Ikhebula le-Uni-tube Non-metallic Non-armored Fiber Optic Cable

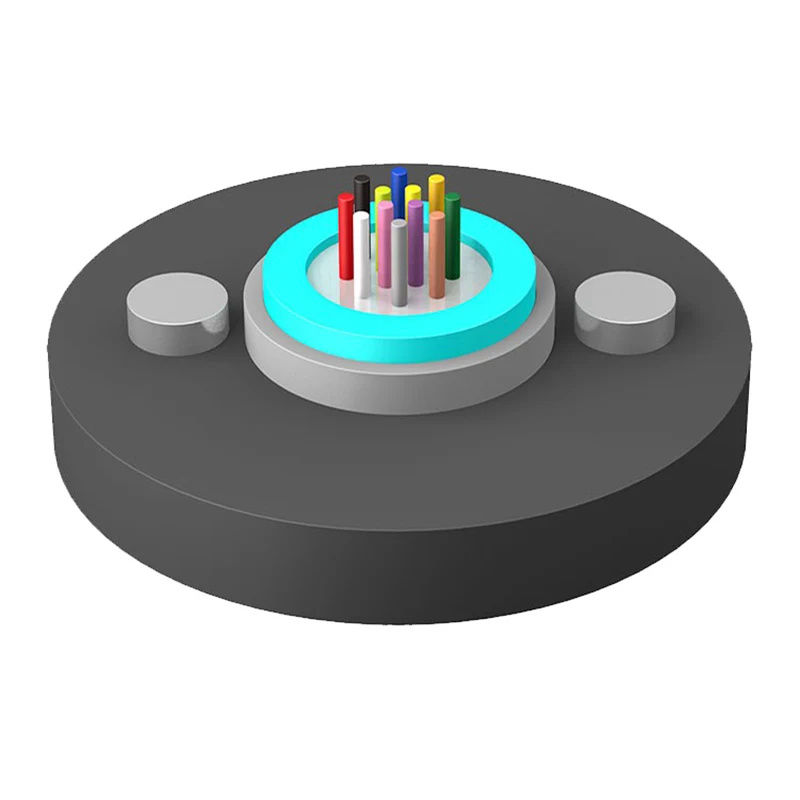

Isakhiwo sekhebula le-uni-tube non-metallic non-armored fibre optic i-GYFXY iwukubeka i-fiber optic engu-250μm eshubhuni elixegayo elenziwe ngezinto eziphezulu zemodulus, futhi ishubhu elixegayo ligcwaliswa ngenhlanganisela engangeni manzi. Izinto zokuvimbela amanzi zengezwa ku-tube evulekile ukuze kuqinisekiswe ukusebenza kokuvimbela amanzi kwekhebula le-optical. Amapulasitiki amabili aqiniswe ngengilazi afanayo (i-FRP) abekwa nhlangothi zombili bese ekhishwa emgodleni we-polyethylene ukuze akhe ikhebula.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-core Architecture ye-Uni-tube Non-metallic Non-armored Fiber Optic Cable (GYFXY) isebenzisa idizayini yeshubhu evulekile emaphakathi. Ngaphakathi kwaleli shubhu le-modulus ephezulu, ama-250μm optical fibers avikelwe yinhlanganisela ekhethekile engangeni manzi. Ukuze kugcinwe ubuqotho besakhiwo ngaphandle kokusetshenziswa kwensimbi, ama-Glass Fiber Reinforced Plastics (FRP) amabili ahambisanayo abekwe ezinhlangothini eziphambene zeshubhu. Lokhu kumisa kube sekubiyelwa emgodleni oqinile we-Polyethylene (PE), okunikeza ibhalansi yokuguquguquka namandla aqinile.

Ukucaciswa Okubalulekile Nokubunjwa Kwezinto

I-Optical Fiber: Imicu ejwayelekile engu-250μm efakwe eshubhuni elixegayo elivikelayo.
Amalungu Amandla: I-Dual parallel FRP (non-metallic) yokumelana nokuphazanyiswa kwe-electromagnetic interference (EMI).
Ukuvimbela Amanzi: Izinto ezihlanganisiwe zokuvimbela amanzi kanye ne-tube-filling compound ukuvimbela ukungena komswakama.
Ukuvikelwa Kwangaphandle: I-PE sheath engamelana ne-UV ilungele izimo zemvelo ezahlukahlukene.
Ukuthobelana: Ihambisana ngokugcwele namazinga e-YD/T 769 ezokuxhumana.

Izinzuzo Zokusebenza Zengqalasizinda Yenethiwekhi

1. Idizayini Okungeyona Yensimbi Yokudlulisa Okungaphazanyiswa

Njengoba i-Uni-tube Non-metallic Non-armored Fiber Optic Cable isebenzisa i-FRP esikhundleni sensimbi, iyi-dielectric ngokuphelele. Leli iphuzu lenani elibalulekile lamaphrojekthi wobunjiniyela eduze kwezintambo zikagesi noma ezifundeni ethandwa umbani, njengoba liqeda ubungozi bokusebenzisa amandla.

2. Ukufakwa kanye Nokusingatha Okulula

Ububanzi obuncane nesisindo esincishisiwe sekhebula ye-Orientalfiber GYFXY kuvumela ubude obude bokudiliva nokudonsa kalula kumapayipi amancane. Lokhu kunciphisa inani lezingxenye ezidingekayo, kwehlisa kokubili izindleko zabasebenzi kanye nokunciphisa isignali.

3. Ukusimama Kwemvelo

I-PE sheath kanye nezinto ezixegayo ezimelana ne-hydrolysis ziqinisekisa i-Uni-tube Non-metallic Non-armored Fiber Optic Cable ihlala isebenza ngaphansi kwamazinga okushisa ahlukahlukene kanye nokuchayeka kwe-UV. I-ointment yangaphakathi inikeza i-buffer yesibili, ivikela imicu ekucindezelekeni ngokomzimba kanye nomswakama.

Uni-tube Non-metallic Non-armored Fiber Optic Cable

Imingcele Yezobuchwepheshe

Uhlobo Lwekhebula

(Kunyuswe ngamafayibha ama-2)

I-Fiber Count

Isisindo sekhebula (Ref)

(kg/km)

Amandla Okuqina

Isikhathi Eside/Esifushane

(N)

I-Crush Resistance

Isikhathi Eside/Esifushane

(N/100mm)

Ukugoba Irediyasi

I-Static/Dynamic

(mm)

I-GYFXY-2~12Xn

2~12

400/1000

300/1000

10D/20D

I-GYFXY-14~24Xn

14-24

Isitoreji/Izinga Lokushisa Lokusebenza: -40℃-+70℃

Izimpawu ze-Optical

Uhlobo lweFiber	Ukunciphisa (+20℃)				Umkhawulokudonsa		Imbobo Yezinombolo	I-Cable Cut-off Wavelength λcc
Uhlobo lweFiber	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Imbobo Yezinombolo	I-Cable Cut-off Wavelength λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Qaphela:

a. Isijobelelo Xn sisho uhlobo lwefayibha

b. Ukuhlelwa kombala kwefayibha neshubhu kucaciswe kuthebula lokuhlonza umbala

c. Ikhebula akufanele ligcinwe endaweni yangaphandle ngaphezu kwezinyanga ezingu-6 ukuze kugcinwe ireli yekhebula isesimweni esihle

Isicelo: I-Aerial

Uni-tube Non-metallic Non-armored Fiber Optic Cable

Ukuthengwa Kwempahla Nokuqukethwe Kwesicelo

Kubathengi abakhulu nabaphathi bephrojekthi, iIkhebula le-Ikhebula le-Uni-tube Non-metallic Non-armored Fiber Optic Cableimele isixazululo esingabizi kakhulu samanethiwekhi endawo (i-LAN), amasistimu okuqapha umgwaqo onguthelawayeka, nokuxhumana kwezokuthutha zikaloliwe.I-I-Orientalfiberihlinzeka ngochungechunge oluphelele lokuhlinzeka—kusuka ezimbonini zekhebula zasendlini/zangaphandle kuya ezingxenyeni ze-ODN—ukuqinisekisa ukuthi ikhebula lihlanganisa ngaphandle komthungo nezinto zokusebenza zenethiwekhi ezikhona.

I-I-Common Procurement Inquiries (FAQ)

Iyini inzuzo eyinhloko yesakhiwo se-GYFXY?

Isakhiwo se-GYFXY siklanyelwe ngokukhethekile izindawo lapho izinto ezingasindi nezingaconductive zidingeka khona. Yenza lula ukufakwa kwe-aerial noma ipayipi ngenkathi inikeza amandla okuqina anele nge-FRP efanayo.

I-Orientalfiber iyiqinisekisa kanjani ikhwalithi kuwo wonke ama-oda amakhulu?

Njengenkampani yeqembu enomkhiqizo wonyaka wezigidi ezingu-20 zama-USD, sisebenzisa amazinga e-ISO9001 kanye ne-ISO45001 kuzo zonke izimboni zethu ezine ezikhethekile. Yonke inqwaba ye-Uni-tube Non-metallic Non-armored Fiber Optic Cable ihlolwa amandla aqinile, ukumelana nokuchoboza, kanye nokungena kwamanzi.
