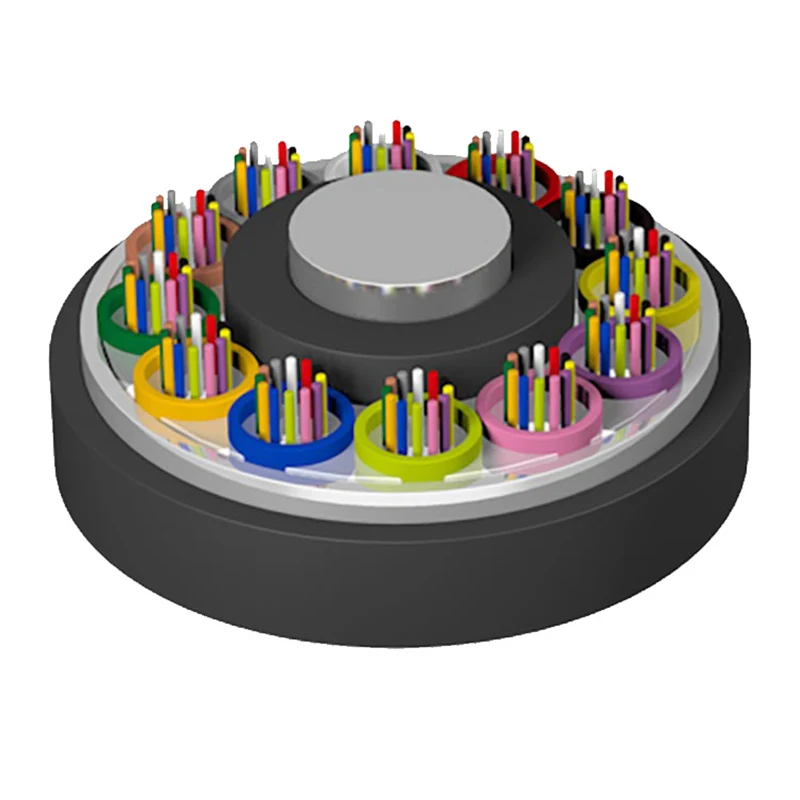

I-Stranded Tube Couse an-arn-arvice cable cable

Uhlobo lwekhebula

(Inyuswe yimicu emi-2)

Ukubalwa kwefayibha

Amashubhu

Amapliki

Isisindo sekhebula (Ref)

(kg / km)

Amandla asheshayo

Isikhathi eside / esifushane

(N)

Ukuchoboza ukumelana

Isikhathi eside / esifushane

(N / 100mm)

Ukugoba Radius

I-Static / Dynamic

(mm)

I-Gyta / S-2 ~ 6xn

2 ~ 6

1

4

76

600/1500

300/1000

I-10D / 20D

I-Gyta / S -8 ~ 12xn

8 ~ 12

2

3

76

I-Gyta / S -14 ~ 18xn

14 ~ 18

3

2

76

I-Gyta / S -20 ~ 24xn

20 ~ 24

4

1

76

I-Gyta / S -26 ~ 30xn

26 ~ 30

5

0

76

Gyta / s -32 ~ 36xn

32 ~ 36

6

0

85

I-Gyta / S -38 ~ 48xn

38 ~ 48

4

1

90

I-Gyta / S -50 ~ 60xn

50 ~ 60

5

0

90

I-Gyta / S -62 ~ 72xn

62 ~ 72 72

6

0

113

I-Gyta / S -74 ~ 84xn

74 ~ 84

7

1

136

I-Gyta / S -86 ~ 96xn

86 ~ 96

8

0

136

I-Gyta / S -98 ~ 108xn

98 ~ 108

9

1

163

I-Gyta / S -110 ~ 120xn

110 ~ 120

10

0

163

I-Gyta / S -122 ~ 132xn

122 ~ 132

11

1

190

I-Gyta / S -134 ~ 144xn

134 ~ 144

12

0

190

I-Gyta / S -146 ~ 216xn

146 ~ 216

13 ~ 18

5 ~ 0

190

Gyta / S -288xn

288

24

0

239

Uhlobo lwefayibha

(+ 20 ℃)

Ibandlawi

Isithambisi sezinombolo

Cable cut-off wavelength λcc

@ 850nm

@ 1300nm

@ 1310NM

@ 1550nm

@ 850nm

@ 1300nm

G.652

---

---

≤0.36DB / km

≤0.22DB / km

---

---

---

≤1260nm

G.655

---

---

≤0.40db / km

≤0.23DB / km

---

---

---

≤1450nm

50 / 125μm

≤3.3DB / km

≤1.2DB / km

---

---

≥500mhz · km

≥500mhz · km

0.200 ± 0.015 vele

---

62.5 / 125μm

≤3.5DB / km

≤1.2DB / km

---

---

≥200mhz · km

≥500mhz · km

0.275 ± 0.015 vele

---
