Ikhebula le-MPO Multi-fiber Push-on Fiber Optic (MPO≥24f)

I-Orientalfiber MPO Multi-fiber Push-on Fiber Optic Cable (MPO≥24f) yakhelwe ukuxhumeka kwenethiwekhi okuminyanisa kakhulu, okusekela amafayibha afika kwangu-24 noma ngaphezulu ngekhebula ngayinye. Ikhiqizwe i-Orientalfiber, umphakeli ozinze e-China, le ntambo ihlanganisa amandla aqinile emishini nezinketho zokuthumela ezivumelana nezimo. Ilungele izikhungo zedatha, amanethiwekhi okuxhumana ngocingo, kanye nokuxhumana okungaphambili kwezimboni, okuhlinzeka ngokudluliswa kwesignali okuthembekile nokumelana nemvelo. Le MPO multi-fiber push-on fibre optic cable iyatholakala kumajakhethi e-PVC noma e-LSZH ngezidingo ezahlukene zokufakwa.

Thumela Uphenyo

Incazelo Yomkhiqizo

II-I-Orientalfiber Ikhebula le-MPO Multi-fiber Push-on Fiber Optic (MPO≥24f)yakhiwe kusetshenziswa amayunithi angu-12-core anemicu yokubona engu-250μm enombala eqiniswe ngentambo ye-aramid. Ilungu elimaphakathi lamandla angewona awensimbi liqinisekisa ukuqondana komgogodla ozinzile, kuyilapho amayunithi amancane asontekile athuthukisa ukuguquguquka nokusebenza kokusebenza. I-PVC noma i-LSZH sheath ihlinzeka ngokugqwala, i-UV, nokumelana nelangabi, iyenze ifanelekele ukufuna ukufakwa kwangaphakathi nangaphandle.

Izici ezibalulekile

Ukuhlanganiswa okuphezulu kusetshenziswa imicu ye-optical enombala ukuhlonza kalula.
Ilungu lamandla entambo ye-Aramid lithuthukisa amandla aqinile nokuqina.
Izinketho zejakhethi yangaphandle: i-PVC noma i-LSZH, ehlinzeka ngokuvikeleka kwemvelo, ukuncipha komlilo, nokumelana ne-UV.
Isekela ukuxhumana kwe-MPO okuminyaniswe kakhulu kwezikhungo zedatha namanethiwekhi omgogodla.
Ivumelana nezimo futhi engasindi ukuze kube lula ukuphatha ikhebula kanye nomzila.

Imininingwane Yezobuchwepheshe

Isibalo seFibre: MPO≥24 fibers
Iyunithi ewumgogodla: amayunithi angu-12-core, Φ250μm ama-optical fibers anombala
Ilungu Lokuqina: I-non-metallic central reinforcement, intambo ye-aramid
I-Sheath Material: I-PVC noma i-LSZH (Intuthu Ephansi, I-Zero Halogen)
Ukuthobela Amazinga: YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21; UL, OFNR, OFNP ye-PVC; Uchungechunge lwe-IEC60332 lwe-LSZH
Ukumelana Nemvelo: Amanzi, i-UV, ukugqwala, i-flame retardant

Izinhlelo zokusebenza

Ukusatshalaliswa kwefayibha yesikhungo sedatha
Umgogodla wenethiwekhi yezokuxhumana
Izixhumanisi zangaphambili zezimboni zamandla kagesi, ezokuthutha zesitimela, nemigwaqo emikhulu
Noma iyiphi injongo yokusetshenziswa kwekhebula le-fiber optic ye-high-density

Izinzuzo Eziyinhloko

IIkhebula le-MPO Multi-fiber Push-on Fiber Optic (MPO≥24f)ngokunikezwa kwe-Orientalfiber:

Ukuthembeka okuphezulu kuzimo zekhebula eziminyene
Ukuqina ngokumelene nengcindezi yendawo ehlanganisa i-UV, umswakama, nelangabi
Ukuvumelana ekudluliselweni kwedatha ngesivinini esikhulu
Ukwesekwa komkhiqizi okuvela kumnikezeli othembekile ozinze e-China onezimboni ezine ezikhethekile
Ukuhambisana nezindinganiso zamazwe ngamazwe zokufakwa okuphephile nokusebenzayo

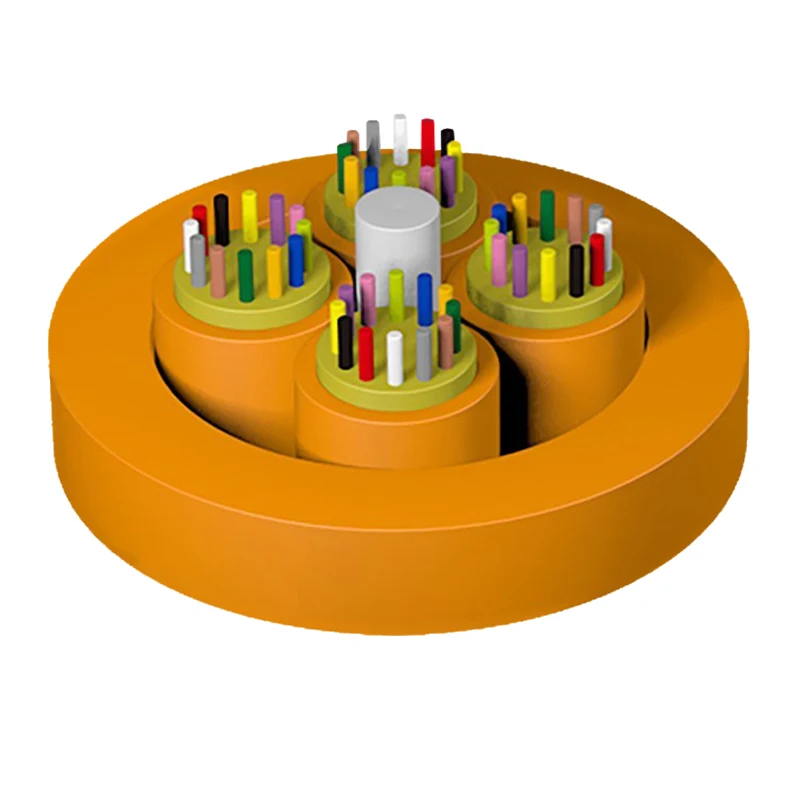

Umdwebo Wesakhiwo

Ilungu le-Central Strength
250μm Ifayibha
Intambo ye-Aramid
Iyunithi engaphansi
Ijakhethi (PVC noma LSZH)

MPO Multi-fiber Push-on Fiber Optic Cable (MPO≥24f)

Imingcele Yezobuchwepheshe

Imodeli Yekhebula	Ububanzi Bekhebula (Ref) (mm)	Isisindo sekhebula (Ref) (kg/km)		Amandla Okuqina Isikhathi Eside/Esifushane (N)	Ukugoba Irediyasi I-Dynamic/Static (mm)
Imodeli Yekhebula	Ububanzi Bekhebula (Ref) (mm)	PVC Jacket	Ijakhethi ye-LSZH	Amandla Okuqina Isikhathi Eside/Esifushane (N)	Ukugoba Irediyasi I-Dynamic/Static (mm)
24	9.6±0.3	64	72	150/500	20D/10D
36	9.6±0.3	64	72	150/500	20D/10D
48	9.6±0.3	64	72	150/500	20D/10D
72	11.3±0.3	92	103	150/500	20D/10D
96	13.3±0.3	129	146	150/500	20D/10D
144	15.5±0.3	160	250	150/500	20D/10D
168	15.5±0.3	150	250	150/500	20D/10D

Izimpawu ze-Optical

Uhlobo lweFiber	Ukunciphisa				OFL	Umkhawulokudonsa wemodi esebenzayo	10 Gbit/s Ethernet Ubude besixhumanisi	Ubuncane be-Bend Radius
Isimo	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Isimo	Inani Elijwayelekile	Inani eliphezulu	Inani Elijwayelekile	Inani eliphezulu	850/1300nm	850nm	850nm	/
Iyunithi	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
I-G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
I-G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Ezokuthutha/Isitoreji/Izinga Lokushisa Lokusebenza: -20℃-+60℃, Izinga Lokushisa Lokufaka: -5℃-+50℃

MPO Multi-fiber Push-on Fiber Optic Cable (MPO≥24f)

FAQ

Q1: Ingabe le khebula ingasetshenziswa ezindaweni ezingaphandle?

I-A1: Yebo, nge-LSZH noma ijakhethi ye-PVC efanelekile, inikeza ukumelana ne-UV nokugqwala, okuyenza ifaneleke endaweni elawulwayo yangaphandle noma yezimboni.

Q2: Yiziphi izibalo ze-fiber ezitholakalayo?

I-A2: Le ntambo ye-MPO ye-multi-fiber push-on isekela imicu engu-≥24, enezinketho zemicu engu-24, 36, 48, noma ngaphezulu kuye ngezidingo zokuthunyelwa.

Q3: Ubani okhiqiza le khebula?

I-A3: Ikhebula likhiqizwa yi-Orientalfiber, umkhiqizi nomphakeli ozinze e-China, ingxenye ye-Jiangsu Xuben Photoelectric Technology Co., Ltd., enamafekthri amane kanye nesipiliyoni esibanzi sezixazululo zenethiwekhi ye-fiber.
