I-Stranded Loose Tube Non-metallic Amandla Ilungu Lekhebula Le-Fiber Optic Engaphethe zikhali

Isakhiwo sekhebula le-fiber optic eliboshiwe eliboshiwe elingeyona eyensimbi elinamandla okungeyona i-armored fiber optic ukufaka i-fiber optic engu-250μm eshubhuni elixegayo elenziwe ngezinto eziphezulu ze-modulus, futhi ishubhu elixegayo ligcwaliswa ngenhlanganisela engangeni manzi. Isikhungo se-cable core siyi-FRP, futhi ishubhu elixegayo (kanye nentambo yokugcwalisa) kusontekile ku-FRP ukuze akhe umgogodla wekhebula ohlangene futhi oyindilinga. Izikhala ku-cable core zigcwele izihlungi ezivimba amanzi. Ungqimba lwe-polyethylene sheath lukhama ngaphandle kwenkambo yekhebula ukuze kwakheke intambo.

Thumela Uphenyo

Incazelo Yomkhiqizo

II-Stranded Loose Tube Non-metallic Amandla Ilungu Lekhebula Le-Fiber Optic Engaphethe zikhaliiqukethe ama-250μm optical fibers afakwe kumashubhu axegayo enziwe nge-high-modulus material, agcwele inhlanganisela engangeni manzi. Umgogodla wekhebula ugxile elungeni lamandla e-FRP engeyona eyensimbi, lapho amashubhu axegayo kanye nezigcwalisi ziboshelwe ngendlela eqinile ukuze kwakheke umgogodla ohlangene, oyindilinga. Ama-filler okuvimbela amanzi athatha noma yiziphi izikhala, futhi i-polyethylene sheath yangaphandle ivikela isakhiwo sekhebula.

Izici Eziyinhloko

Ukusebenza okuqinile kwemishini kanye nezinga lokushisa
Izinto zeshubhu ezixegayo ezinokumelana okuphezulu kwe-hydrolysis namandla aqinile
Ingxube ekhethekile yokugcwalisa ishubhu yokuvikela i-fiber ebalulekile
Ukumelana ne-crush kuhlanganiswe nomklamo oguquguqukayo wokufakwa
Izinyathelo ezibanzi zokungangeni manzi: Ilungu elimaphakathi le-FRP, izinhlanganisela zokugcwalisa amashubhu, ukugcwaliswa okuyisisekelo okungu-100%.
Ukuthobela amazinga: YD/T 901 kanye ne-IEC 60794-1

Imininingwane Yezobuchwepheshe

I-Optical Fiber Count: Ukucushwa okuningi kuyatholakala (isb., 6-144 fibers)
Uhlobo lweFibre: Imodi eyodwa noma i-multimode 250μm
Loose Tube Material: High-modulus polymer
I-Compound yokugcwalisa: Ijeli yokuvimbela amanzi
Ilungu Lamandla: Induku ye-FRP engeyona eyensimbi
Umgodla Wangaphandle: I-Polyethylene (PE)
Izinga Lokushisa Lokusebenza: -40°C ukuya +70°C
Irediyasi yokugoqa encane: 20× ububanzi bekhebula (ngaphansi komthwalo)

Izinhlelo zokusebenza

Lawa makhebuli asetshenziswa kakhulu ku:

Opharetha bezokuxhumana bomgogodla kanye namanethiwekhi okufinyelela
Amasistimu okusakaza amasignali omsakazo nomabonakude
Ukudluliswa kwedatha yenethiwekhi yendawo (LAN) yedatha
Izixhumanisi zangaphambili zezimboni kumaphrojekthi kagesi, wesitimela, nothelawayeka
Amanye amaphrojekthi amakhulu wobunjiniyela kanye nengqalasizinda

Izinzuzo

Idizayini ehlala isikhathi eside engeyona eyensimbi inciphisa ubungozi bokugqwala futhi yenza ikhebula libe lula
Isakhiwo esinemicu eqinile sithuthukisa amandla aqinile nokuvumelana nezimo
Izinto zokuvimbela amanzi ziqinisekisa ukuthembeka okuphezulu ezindaweni ezinomswakama noma ezimanzi
Ukuhambisana nezindlela ezihlukahlukene zokufaka, okuhlanganisa amapayipi kanye nokuthunyelwa emoyeni
Ukusebenza okuqinisekisiwe kuwo wonke amaphrojekthi asekhaya nawamazwe ngamazwe, asekelwa ulwazi lokukhiqiza lwe-Orientalfiber

FAQ

Q: Ingabe le khebula ingasetshenziswa ekufakweni kwangaphandle?: A: Yebo, i-PE sheath kanye nezinhlanganisela zokuvimbela amanzi ziyenza ifanele ukungcwatshwa okuqondile kanye nokuthunyelwa kwemigudu ngaphandle.
Q: Mingaki imicu engacushwa?: A: Ikhebula lingenziwa ngezifiso kusuka ku-6 kuya ku-144 fibers kuye ngezidingo zephrojekthi.
Q: Ingabe ikhebula lihlanganisa izingxenye zensimbi?: IMP: Cha, ilungu lamandla aliyona i-FRP engeyona insimbi, inciphisa isisindo kanye nezinkinga zokugqwala.
Q: Ingabe iyahambisana nemishini evamile yokubona?: A: Yebo, i-250μm fiber kanye ne-standard loose tube design iqinisekisa ukuhambisana nezindlela ezivamile zokuhlanganisa nezindlela zokuqeda.

Amazinga

Ikhebula le-GYFTY lihambisana ne-Standard YD/T 901 kanye ne-IEC 60794-1

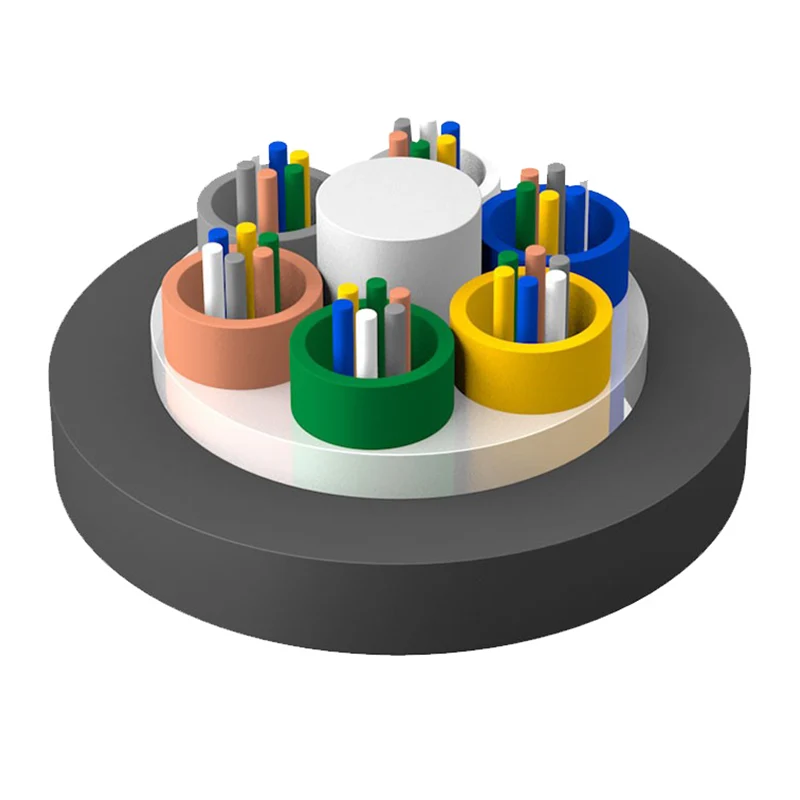

Umdwebo Wesakhiwo

1.I-Fibre

I-2.Tube Filling Compound

3.Ithubhu evulekile

I-4.Inhlanganisela Yokugcwalisa Ikhebula

5.FRP Ilungu Lokuqina

6.PE Sheath

Stranded Loose Tube Non-metallic Strength Member Non-armored Fiber Optic Cable

Imingcele Yezobuchwepheshe

Uhlobo Lwekhebula (Kunyuswe ngamafayibha ama-2)	I-Fiber Count	Amashubhu	Okugcwalisa	Isisindo sekhebula (Ref) (kg/km)	Amandla Okuqina Isikhathi Eside/Esifushane (N)	I-Crush Resistance Isikhathi Eside/Esifushane (N/100mm)	Ukugoba Irediyasi I-Static/Dynamic (mm)
GYFTY-2~6Xn	2~6	1	5	86	400/1000	300/1000	12.5D/25D
I-GYFTY-8~12Xn	8~12	2	4	86
I-GYFTY-14~18Xn	14-18	3	3	86
I-GYFTY-20~24Xn	20-24	4	2	86
I-GYFTY-26~30Xn	26-30	5	1	86
I-GYFTY-32~36Xn	32-36	6	0	86
I-GYFTY-38~48Xn	38-48	4	2	109
I-GYFTY-50~60Xn	50-60	5	1	109
I-GYFTY-62~72Xn	62-72	6	0	109
GYFTY-2~6Xn	2~6	1	6	98	600/1500
I-GYFTY-8~12Xn	8~12	2	5	98
I-GYFTY-14~18Xn	14-18	3	4	98
I-GYFTY-20~24Xn	20-24	4	3	98
I-GYFTY-26~30Xn	26-30	5	2	98
I-GYFTY-32~36Xn	32-36	6	1	98
I-GYFTY-38~42Xn	38-42	7	0	98
I-GYFTY-44~48Xn	44-48	4	3	115
I-GYFTY-50~60Xn	50-60	5	2	115
I-GYFTY-62~72Xn	62-72	6	1	115
GYFTY-2~6Xn	2~6	1	7	119	1000/3000
I-GYFTY-8~12Xn	8~12	2	6	119
I-GYFTY-14~18Xn	14-18	3	5	119
I-GYFTY-20~24Xn	20-24	4	4	119
I-GYFTY-26~30Xn	26-30	5	3	119
I-GYFTY-32~36Xn	32-36	6	2	119
I-GYFTY-38~42Xn	38-42	7	1	119
I-GYFTY-44~48Xn	44-48	8	0	119
I-GYFTY-50~60Xn	50-60	5	3	125
I-GYFTY-62~72Xn	62-72	6	2	125
I-GYFTY-74~84Xn	74-84	7	1	125
I-GYFTY-86~96Xn	86-96	8	0	125
I-GYFTY-98~108Xn	98-108	9	1	149
I-GYFTY-110~120Xn	110~120	10	0	149
I-GYFTY-122~132Xn	122 ~ 132	11	1	179
I-GYFTY-134~144Xn	134-144	12	0	179

Isitoreji/Izinga Lokushisa Lokusebenza: -40℃-+70℃

Izimpawu ze-Optical

Uhlobo lweFiber	Ukunciphisa (+20℃)				Umkhawulokudonsa		Imbobo Yezinombolo	I-Cable Cut-off Wavelength λcc
Uhlobo lweFiber	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Imbobo Yezinombolo	I-Cable Cut-off Wavelength λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---
