Ukusebenza okuhle kwemishini nokushisa
Ishubhu eliphakeme eliphakeme lokungamelana ne-hydrolysis
I-tube ekhethekile yokugcwalisa ishubhu iqinisekisa ukuvikelwa okubucayi kwe-fiber
Izintambo ezimbili zensimbi ezihambisanayo ziqinisekisa amandla ashukumisayo
I-PE Sheath ivikela ikhebula emisebeni ye-ultraviolet
Ububanzi obuncane, isisindo esikhanyayo nokufakwa okunobungane
Ubude obude bokulethwa
Ikhebula le-Gyxy lihambisana ne-yd / t 769 ejwayelekile.

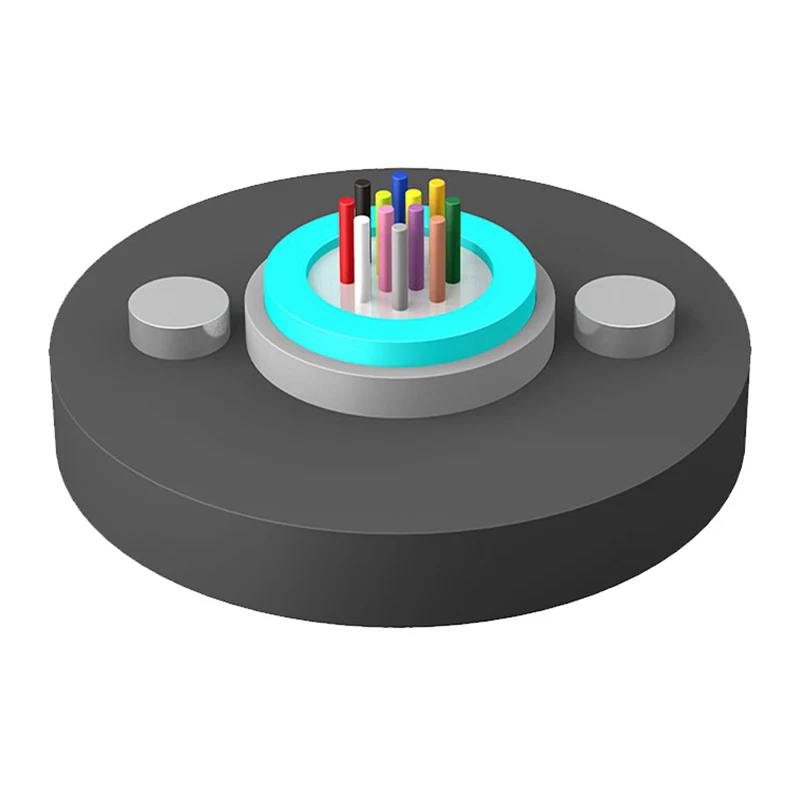

1. I-fiber
2. I-Tube Ukugcwalisa I-Compound
3. I-tube evulekile
4. I-wire wire
5. Izinto ezivimba amanzi
6. I-Sheath
|
Uhlobo lwekhebula (Inyuswe yimicu emi-2) |
Ukubalwa kwefayibha |
Isisindo sekhebula (Ref) (kg / km) |
Amandla asheshayo Isikhathi eside / esifushane (N) |
Ukuchoboza ukumelana Isikhathi eside / esifushane (N / 100mm) |
Ukugoba Radius I-Static / Dynamic (mm) |
|
Gyxy-2 ~ 12xn |
2 ~ 12 |
77 |
600/1500 |
300/1000 |
I-10D / 20D |
|
Gyxy-14 ~ 24xn |
14 ~ 24 |
83 |
|||
|
Gyxy-2 ~ 12xn |
2 ~ 12 |
104 |
1000/3000 |
||
|
Gyxy-14 ~ 24xn |
14 ~ 24 |
109 |
Isitoreji / Ukusebenza okusebenzayo: 40 ℃ - + 70 ℃
|
Uhlobo lwefayibha |
(+ 20 ℃) |
Ibandlawi |
Isithambisi sezinombolo |
Cable cut-off wavelength λcc |
||||
|
@ 850nm |
@ 1300nm |
@ 1310NM |
@ 1550nm |
@ 850nm |
@ 1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36DB / km |
≤0.22DB / km |
--- |
--- |
--- |
≤1260nm |
|
G.655 |
--- |
--- |
≤0.40db / km |
≤0.23DB / km |
--- |
--- |
--- |
≤1450nm |
|
50 / 125μm |
≤3.3DB / km |
≤1.2DB / km |
--- |
--- |
≥500mhz · km |
≥500mhz · km |
0.200 ± 0.015 vele |
--- |
|
62.5 / 125μm |
≤3.5DB / km |
≤1.2DB / km |
--- |
--- |
≥200mhz · km |
≥500mhz · km |
0.275 ± 0.015 vele |
--- |
Qaphela:
a. I-Suffiix XN isho uhlobo lwefayibha
b. Ukuhlelwa kombala kwe-fiber ne-tube kuchaziwe etafuleni lokuhlonza umbala
c. Ikhebula akufanele ligcine imvelo yangaphandle ngaphezu kwezinyanga eziyi-6 ukuze i-Cable reel isimo esihle
