I-tube evulekile (kanye nentambo yokugcwalisa) kuhlanekezelwe ezungeze ukuqiniswa okuphakathi nendawo ukuze wakhe i-compact kanye ne-cable cable core, futhi izikhala ku-cable core zigcwele ama-filler avimba amanzi. Ngemuva kokuthi i-aluminium ehlanganiswe i-aluminium (apl) iboshwe ngokuhamba kwesikhathi, i-polyethylene yangaphakathi i-aner yensimbi ikhishwe, futhi ngemuva kwe-tape yensimbi ephethwe kabili yepulasitiki (i-PSP) iboshwe ngokuhamba ngezinyawo, i-polyethylene yangaphandle i-sheath ikhishwe ukuze kwakhiwe ikhebula.
Ukusebenza okuhle kwemishini nokushisa
Ishubhu eliphakeme eliphakeme lokungamelana ne-hydrolysis
I-tube ekhethekile yokugcwalisa ishubhu iqinisekisa ukuvikelwa okubucayi kwe-fiber
Ukuchoboza ukumelana nokuvumelana nezimo
Izinyathelo ezilandelayo zithathwa ukuze kuqinisekiswe amanzi angenantambo:
-Bheka i-fiber eqinisiwe ipulasitiki njengelungu eliphakathi lamandla
-Lose ishubhu lokugcwalisa
-100% Cable Core Gcwalisa
-I-Isithiyo somswakama-umswakama
-PSP Ukuthuthukisa umswakama-ubufakazi
-Water-ukuvimba
Intambo ye-Gyfta53 ihambisana ne-yd / t 901 ejwayelekile kanye ne-IEC 607944-1.

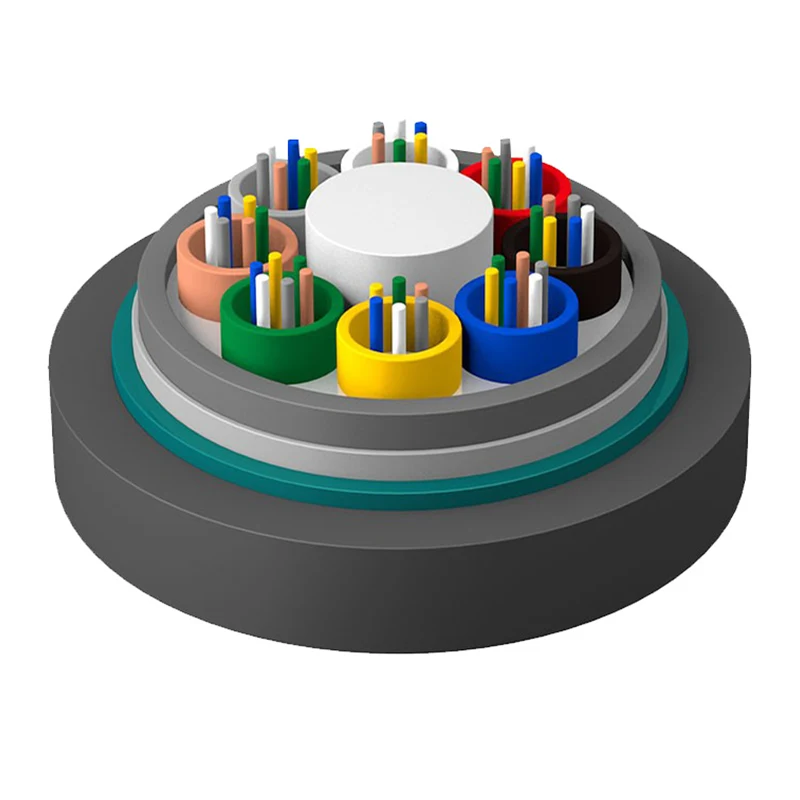

1.Fibre
I-2.Tube Ukugcwalisa Compound
I-3.Loose Tube
4.Kufaka i-Compound yokugcwalisa
I-5.Apl
6.Pe umvini wangaphakathi
7.Water-blocting impahla
I-8.psp
Ilungu lamandla we-9.frfrs
I-10.E-Sheath yangaphandle
|
Uhlobo lwekhebula (Inyuswe yimicu emi-2) |
Ukubalwa kwefayibha |
Amashubhu |
Amapliki |
Isisindo sekhebula (Ref) (kg / km) |
Amandla asheshayo Isikhathi eside / esifushane (N) |
Ukuchoboza ukumelana Isikhathi eside / esifushane (N / 100mm) |
Ukugoba Radius I-Static / Dynamic (mm) |
|
Gyfta53-2 ~ 6xn |
2 ~ 6 |
1 |
7 |
228 |
1000/3000 |
1000/3000 |
12.5d / 25D |
|
Gyfta53-8 ~ 12xn |
8 ~ 12 |
2 |
6 |
228 |
|||
|
Gytta53-14 ~ 18xn |
14 ~ 18 |
3 |
5 |
228 |
|||
|
Gyfta53-20 ~ 24xn |
20 ~ 24 |
4 |
4 |
228 |
|||
|
Gyfta53-26 ~ 30xn |
26 ~ 30 |
5 |
3 |
228 |
|||
|
Gyfta53-32 ~ 36xn |
32 ~ 36 |
6 |
2 |
228 |
|||
|
Gyfta53-38 ~ 42xn |
38 ~ 42 |
7 |
1 |
228 |
|||
|
Gytta53-44 ~ 48xn |
44 ~ 48 |
8 |
0 |
228 |
|||
|
I-Gytta53-50 ~ 60xn |
50 ~ 60 |
5 |
3 |
240 |
|||
|
Gyfta53-62 ~ 72xn |
62 ~ 72 72 |
6 |
2 |
240 |
|||
|
Gyfta53-74 ~ 84xn |
74 ~ 84 |
7 |
1 |
240 |
|||
|
Gyfta53-86 ~ 96xn |
86 ~ 96 |
8 |
0 |
240 |
|||
|
Gyfta53-98 ~ 108xn |
98 ~ 108 |
9 |
1 |
276 |
|||
|
Gyfta53-110 ~ 120xn |
110 ~ 120 |
10 |
0 |
276 |
|||
|
Gyfta53-122 ~ 132xn |
122 ~ 132 |
11 |
1 |
326 |
|||
|
Gyfta53-134 ~ 144xn |
134 ~ 144 |
12 |
0 |
326 |
Isitoreji / Ukusebenza okusebenzayo: 40 ℃ - + 70 ℃
|
Uhlobo lwefayibha |
(+ 20 ℃) |
Ibandlawi |
Isithambisi sezinombolo |
Cable cut-off wavelength λcc |
||||
|
@ 850nm |
@ 1300nm |
@ 1310NM |
@ 1550nm |
@ 850nm |
@ 1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36DB / km |
≤0.22DB / km |
--- |
--- |
--- |
≤1260nm |
|
G.655 |
--- |
--- |
≤0.40db / km |
≤0.23DB / km |
--- |
--- |
--- |
≤1450nm |
|
50 / 125μm |
≤3.3DB / km |
≤1.2DB / km |
--- |
--- |
≥500mhz · km |
≥500mhz · km |
0.200 ± 0.015 vele |
--- |
|
62.5 / 125μm |
≤3.5DB / km |
≤1.2DB / km |
--- |
--- |
≥200mhz · km |
≥500mhz · km |
0.275 ± 0.015 vele |
--- |
Qaphela:
a. I-Suffiix XN isho uhlobo lwefayibha
b. Ukuhlelwa kombala kwe-fiber ne-tube kuchaziwe etafuleni lokuhlonza umbala
c. Ikhebula akufanele ligcine imvelo yangaphandle ngaphezu kwezinyanga eziyi-6 ukuze i-Cable reel isimo esihle
