I-Uni-Tube Light-Armored I-Fibric Cable

Isakhiwo se-Uni-Tube Light-armored I-Fiber Optic Cable ukubeka i-250μm fiber fiber kushubhu evulekile eyenziwe ngezinto eziphakeme ze-modulus, futhi ishubhu elivulekile ligcwele i-waterproof. Ishubhu elixegayo lisongelwe ngokuhamba ngengqikithi yebhande lensimbi elinamakhanda amabili elihlanganiswe kabili (PSP), kanye ne-water-blocting impahla kungezwa phakathi kwebhande lensimbi kanye ne-tube evulekile yokuqinisekisa ukuhlangana nokusebenza kwamanzi. Kubekwa izintambo ezimbili zensimbi ezihambisanayo ezinhlangothini zombili bese kukhishwa i-polyethylene sheath ukuze kwakhiwe ikhebula.

Thumela Uphenyo

Incazelo Yomkhiqizo

Izici

Ukusebenza okuhle kwemishini nokushisa

Ishubhu eliphakeme eliphakeme lokungamelana ne-hydrolysis

I-tube ekhethekile yokugcwalisa ishubhu iqinisekisa ukuvikelwa okubucayi kwe-fiber

Ukuchoboza ukumelana nokuvumelana nezimo

I-PSP ethuthukisa ubufakazi boMswaniso

Izintambo ezimbili zensimbi ezihambisanayo ziqinisekisa amandla ashukumisayo

Ububanzi obuncane, isisindo esikhanyayo nokufakwa okunobungane

Ubude bengxenye ende bungakhiqizwa

Amazinga

I-Gyxs / Gyxtw Cable ihambisana ne-yd / t 769 ejwayelekile.

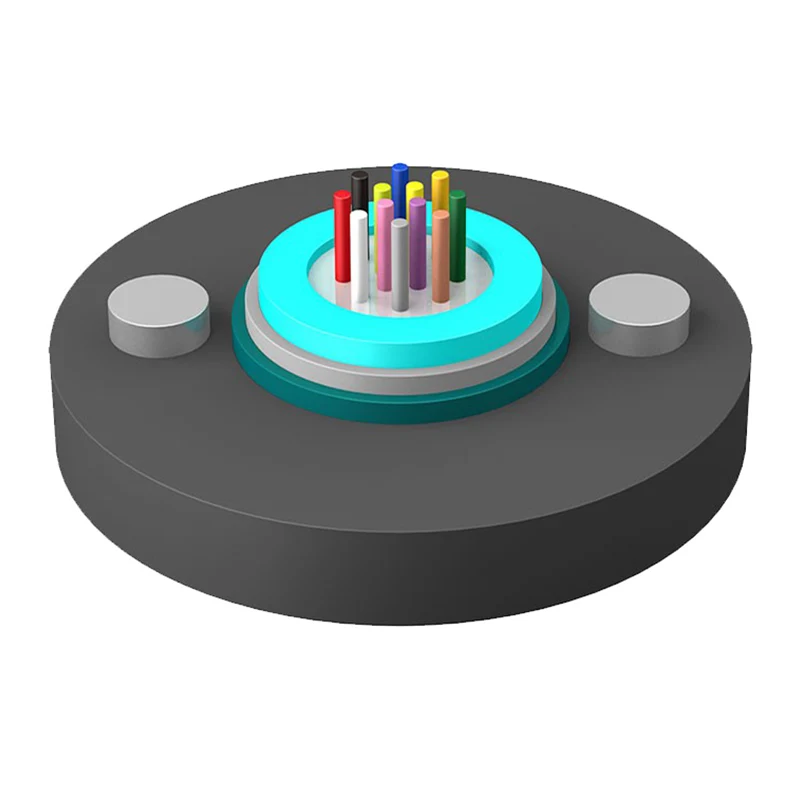

Ukwakheka umdwebo

1. I-fiber

2. Inqwaba yeshubhu

3. I-Tube Ukugcwalisa I-Compound

4. I-tube evulekile

5. I-wire wire

6. Izinto ezivimba amanzi

7. I-PSP

8. PE SHEAT

Uni-tube Light-armored Fiber Optic Cable

Amapharamitha Ezobuchwepheshe

Uhlobo lwekhebula (Inyuswe yimicu emi-2)	Ukubalwa kwefayibha	Isisindo sekhebula (Ref) (kg / km)	Amandla asheshayo Isikhathi eside / esifushane (N)	Ukuchoboza ukumelana Isikhathi eside / esifushane (N / 100mm)	Ukugoba Radius I-Static / Dynamic (mm)
Gyxs / gyxtw-2 ~ 12xn	2 ~ 12	82	600/1500	300/1000	I-10D / 20D
Gyxs / gyxtw-14 ~ 24xn	14 ~ 24	127	600/1500
Gyxs / gyxtw-2 ~ 12xn	2 ~ 12	124	1000/3000
Gyxs / gyxtw-14 ~ 24xn	14 ~ 24	147	1000/3000

Isitoreji / Ukusebenza okusebenzayo: 40 ℃ - + 70 ℃

Izici zokubona

Uhlobo lwefayibha	(+ 20 ℃)				Ibandlawi		Isithambisi sezinombolo	Cable cut-off wavelength λcc
Uhlobo lwefayibha	@ 850nm	@ 1300nm	@ 1310NM	@ 1550nm	@ 850nm	@ 1300nm	Isithambisi sezinombolo	Cable cut-off wavelength λcc
G.652	---	---	≤0.36DB / km	≤0.22DB / km	---	---	---	≤1260nm
G.655	---	---	≤0.40db / km	≤0.23DB / km	---	---	---	≤1450nm
50 / 125μm	≤3.3DB / km	≤1.2DB / km	---	---	≥500mhz · km	≥500mhz · km	0.200 ± 0.015 vele	---
62.5 / 125μm	≤3.5DB / km	≤1.2DB / km	---	---	≥200mhz · km	≥500mhz · km	0.275 ± 0.015 vele	---

Qaphela:

a. I-Suffiix XN isho uhlobo lwefayibha

b. Ukuhlelwa kombala kwe-fiber ne-tube kuchaziwe etafuleni lokuhlonza umbala

c. Intambo ye-fiber optic an-armored arvice akufanele igcine endaweni yangaphandle engaphezu kwezinyanga eziyi-6 ukuze i-cable reel isimo esihle

Isicelo: Duct / Aerial

Uni-tube Light-armored Fiber Optic Cable
