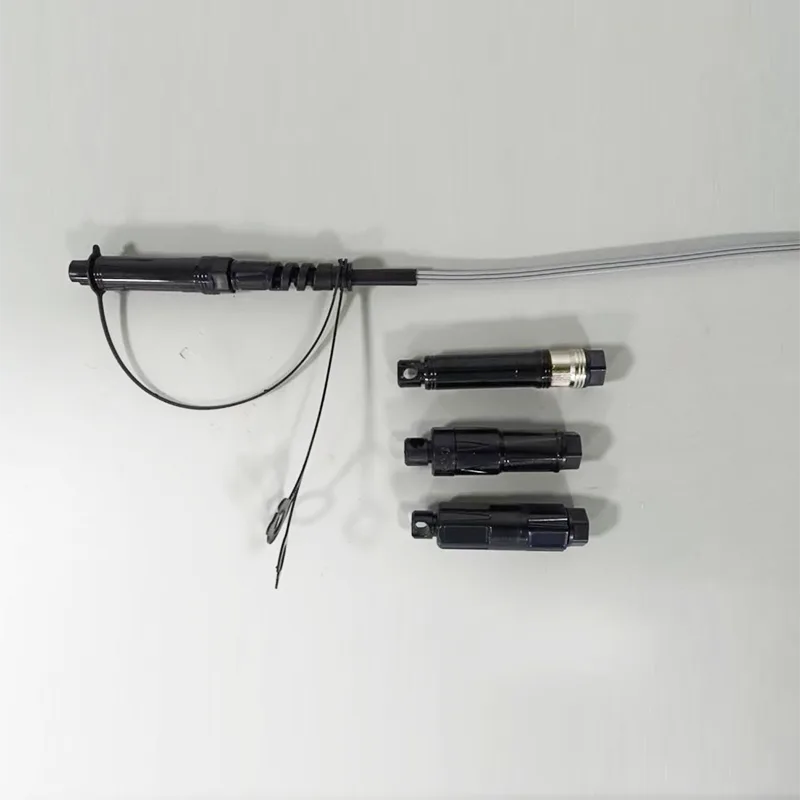

Intambo ye-Patch Catch evuthayo e-Three-in-One

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30
Ukulahlekelwa Ukulahleka	I-	≥50 (apc)
Umbala wekhekhe wekhebula		-Mpunga
Ikhethini elingaphandle kwekhebula	m	I-5.0X2.0
Imodi yefiber		Imodi eyodwa: G657A2
Izinto ze-Cable Jacket		I-LSZH (i-flame retardant, ukuxabana okuphansi)
Isisindo sekhebula	Kg / km	22 (approx)
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	50, 100, 150, 250, 300 noma ngokwezifiso (Ukubekezelela: ± 0.5m)
Uhlobo lwesixhumi		Okokufaka:	Isixhumi se-Accord Optitap RSC / APC I-Accord h optic mini SC / APC Isixhumi Isixhumi se-Accord sc / apc
		Okukhipha:	I-SC / APC evamile
Ibanga elingangeni manzi		IP67
Ukushisa okusebenzayo	℃	-20 ° C ~ + 65 ℃
Ukushisa okushisa	℃	-20 ℃ ~ + 65 ℃

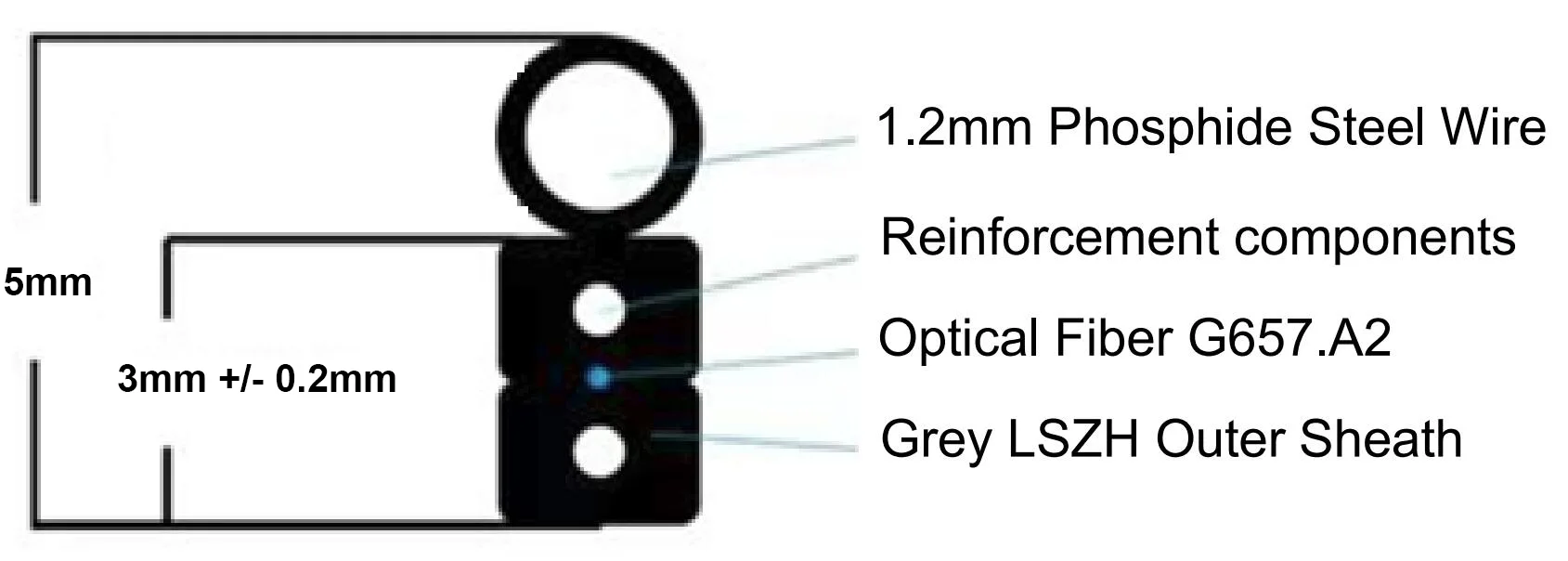

Isakhiwo sekhebula:

Three-In-One Waterproof Drop Cable Patch Cord(Accord OPTITAP/Mini SC/SLIM SC Connector)

Ukucaciswa kobuchwepheshe bekhebula:

I-fiber ye-optical	Ukuthayipha	Imodi eyodwa: G657 A2
	Cha. Feibers	1
	Umbala	-Luhlaza okwesibhakabhaka
	I-attenuation coefflign	@ 1310NM ≤0.32 DB / KM @ 1550nm ≤0.20 DB / KM
	Ububanzi be-Mode-Field	1310nm ≤9.2 μm I-1550 NM ≤9.2 μm
	UCladding Ububanzi	125 ± 0.7 μm
	I-Coaing Ububanzi	242 ± 5 μm
	Ukuhlanganisa ukuhlanganisa Ukuncenga	≤0.5%
	Cable cutoff wavength	I-SM: λcc ≤1258 nm
	Ukulahleka kwe-Macro Bend (DB)	R = 10mm, 1 Turn: ≤0.10 @ 1550nm R = 10mm, 1 Turn: ≤0.20 @ 1625NM R = 7.5mm, 1 Turn: ≤0.20 @ 1550nm
Ilungu Lokuqinisekisa	Amabele	KFRP
Ilungu Lokuqinisekisa	Ibanga elinquma phakathi ububanzi besingelezi	Φ0.50mm * 28
Ilungu le-Self Self Exerting	Amabele	I-phosphide yensimbi wire
Ilungu le-Self Self Exerting	Ibanga elinquma phakathi ububanzi besingelezi	I-1.2mm
Umvini wangaphandle	Into uqobo lwayo	I-LSZH (i-flame retardant, ukuxabana okuphansi)
	Umbala	-Mpunga
	Ubukhulu	2.0 × 5.0 (± 0.1) mm
Ubunzima		22 kg / km
Amandla ashubile (n)		Isikhathi eside: 400 n Isikhathi Esifushane: 800 N
Ukuqhekeka okuchoboze (n / 100mm)		Isikhathi eside: 1000 n / 10cm Isikhathi Esifushane: 2000 n / 10cm
Imiz. Ukugoba Radius		10D (Static); I-20D (Dynamic)
Ukushisa kokusebenza		-20 ° C ~ + 65 ℃
Ezokuhamba & Isitoreji		-20 ℃ ~ + 65 ℃
Ukumaka (Ink Jet)		Okumnyama ukumaka kunyatheliswa yonke imitha eyi-1

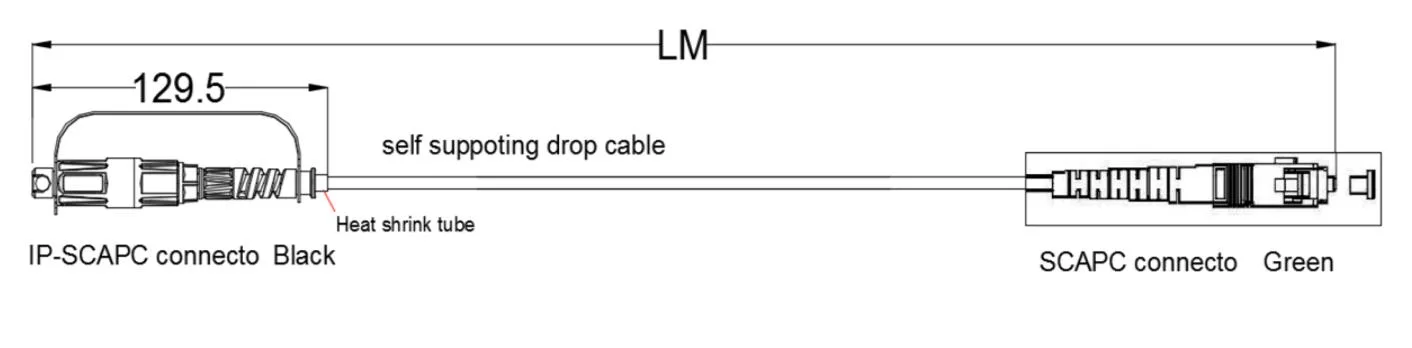

Umdwebo ojwayelekile:

Three-In-One Waterproof Drop Cable Patch Cord(Accord OPTITAP/Mini SC/SLIM SC Connector)

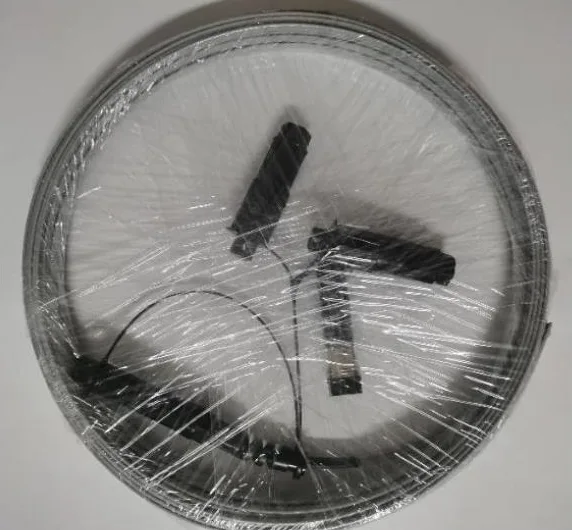

Iphakheji:

Three-In-One Waterproof Drop Cable Patch Cord(Accord OPTITAP/Mini SC/SLIM SC Connector)
