I-5x2mm I-Waterproof Drop Cable I-YOFC SC / APC Isixhumi Optical Fiber Pigtail

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30 (ejwayelekile: 0.20)
Ukulahlekelwa Ukulahleka	I-	≥ 55
Uhlobo lokuxhumeka		SC / APC
Impumelelo		-Ezitsha zobumba
Imijikelezo yokuxhuma		500
Umbala wekhekhe wekhebula		-Mpunga
Ikhethini elingaphandle kwekhebula	m	5.0 (± 0.1) x2.0 (± 0.1)
Imodi yefiber		Imodi eyodwa: G657A2
Izinto ze-Cable Jacket		I-LSZH (i-Flame Retardancy Class C)
Isisindo sekhebula	Kg / km	I-18 (cishe)
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	80 noma ngokwezifiso (ukubekezelelana: ± 0.5m)
Uhlobo lwesixhumi		Okokufaka: Isivumelwano se-Accord YOFC SC / APC
Uhlobo lwesixhumi		Okukhipha: ngaphandle kwesixhumi
Traction (axial phakathi ikhebula nesixhumi)	N	100
Ibanga elingangeni manzi		IP68
Ukushisa okusebenzayo	℃	-20 ° C ~ + 65 ℃
Ukushisa okushisa	℃	-20 ℃ ~ + 65 ℃

Isakhiwo sekhebula:

I-fiber ye-optical	Ukuthayipha	G-657 A2.
	Cha. Feibers	1
	Umbala	-Luhlaza okwesibhakabhaka
Umvini wangaphandle	Ubukhulu	2.0 (± 0.1) x5.0 (± 0.1)
	Into uqobo lwayo	Lszh
	Umbala	-Mpunga
Ilungu lamandla wensimbi	Amabele	Wire wire
Ilungu lamandla wensimbi	Ibanga elinquma phakathi ububanzi besingelezi	0.4mm
Ilungu le-Self Self Exerting	Amabele	Wire wire
Ilungu le-Self Self Exerting	Ibanga elinquma phakathi ububanzi besingelezi	1.0 mm
Ubunzima		18 kg / km
Tile (n)		Isikhathi eside: 300n Isikhathi Esifushane: 600 N
Ukuchoboza ukumelana		I-5N / MM, Imijikelezo emi-3
Ukubambelela (n)		Into eqinisi yensimbi ye-0,4mm:> 50
Ukubambelela (n)		Into esekelayo ye-1,00mm:> 100
Imiz. Ukugoba Radius		I-15XD (i-Static); 30XD (Dynamic)
Ububanzi bokushisa		-20 ° C kuya ku-65 ° C

Ukwakhiwa Kwekhebula:

5x2mm Waterproof Drop Cable Mini SC~SC/APC Connector Optical Patch Cords

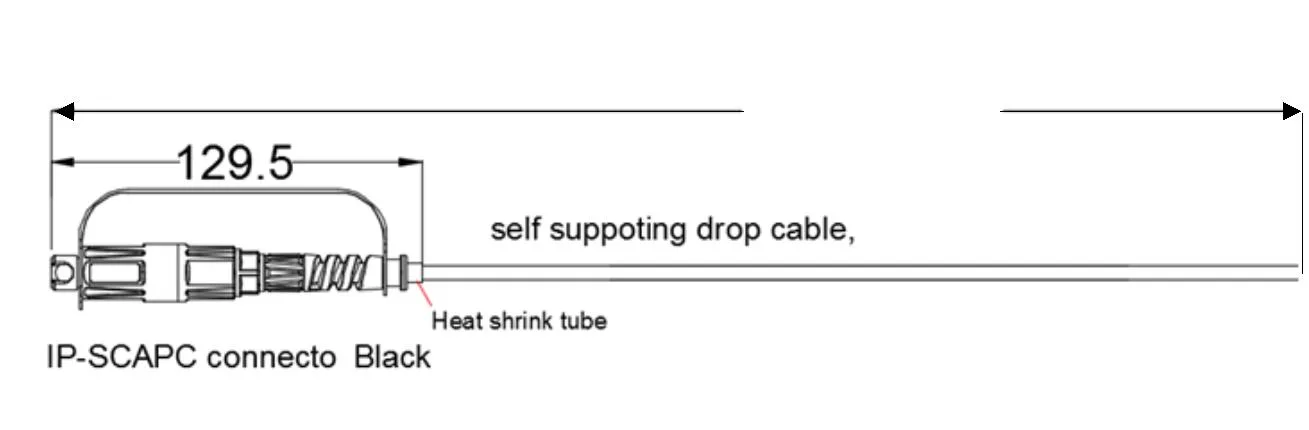

Umdwebo ojwayelekile:

5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail

Iphakheji:

5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail

Izidingo zokupakisha:

Usayizi wenqolobane: 600 * 320 * 265mm, itheyiphu ebonakalayo ebonakalayo "i" ibhokisi lokuvalwa uphawu lefonti.

5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail
