I-Duplex LC / UPC waterproof round cable cable optical fiber fiber izintambo (accord mini DLC Isixhumi)

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Duphaza
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30
Ukulahlekelwa Ukulahleka	I-	≥50 (upc)
Umbala wekhekhe wekhebula		-Mnyama
Ikhethini elingaphandle kwekhebula	m	7.0 ± 0.2
Imodi yefiber		Imodi eyodwa: G657 A2
Izinto ze-Cable Jacket		Lszh
Isisindo sekhebula	Kg / km	38 (cishe)
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	50, 75, 100, 150, 200,250, 300 noma ngokwezifiso (ukubekezelelana: ± 0.5m)
Uhlobo lwesixhumi		Okokufaka:	Accord Mini DLC / UPC Isixhumi
		Okukhipha:	I-Accord Duplex LC / UPC Isixhumi
Ibanga elingangeni manzi		IP68
Ukushisa okusebenzayo	℃	-40 ° C ~ + 70 ℃
Ukushisa okushisa	℃	-40 ° C ~ + 70 ℃

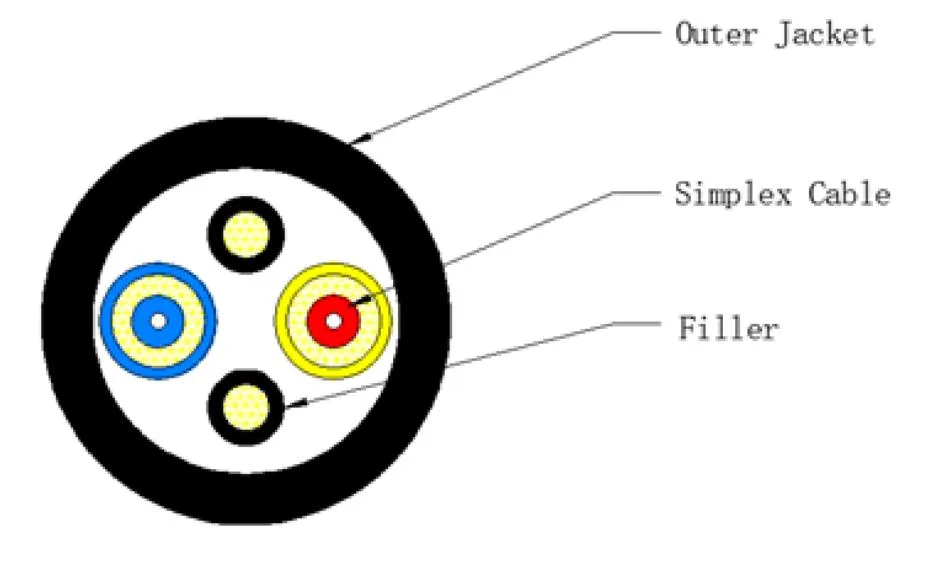

Isakhiwo sekhebula:

Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords Specification (Accord Mini DLC Connector)

Ukucaciswa Kwekhebula:

Into yendaba	Okuqukethwe	Thanda
I-FITIT Buffer fiber	Inombolo	2
	Ukuthayipha	G.657A2
	Ububanzi (mm)	0.90 ± 0.05
	Into uqobo lwayo	Lszh
	Umbala	Okumhlophe
Ikhebula le-Simplex	Into uqobo lwayo	Lszh
	Ububanzi (mm)	2.0 ± 0.1
	Umbala	Oluhlaza okwesibhakabhaka nokuphuzi
Induku yokuzwanda	Into uqobo lwayo	Lszh
	Ububanzi (mm)	1.3 ± 0.1
	Umbala	-Mnyama
Ijekethi yangaphandle	Into uqobo lwayo	Lszh
	Ububanzi (mm)	7.0 ± 0.2
	Umbala	-Mnyama
	Ubukhulu (mm)	1.0 ± 0.1
Isisindo sekhebula (kg / km) approx.		38 ± 3
Ukuhlola okulula (n)		Isikhathi eside: 400 n Isikhathi Esifushane: 800 N
Ukuhlolwa kwe-Flatening (N / 10cm)		Isikhathi eside: 1000 n / 10cm Isikhathi Esifushane: 2200 N / 10cm
Imiz. Ukugoba Radius		I-10XOD (Static); I-20xod (Dynamic)
Ukushisa okushisa		-40 ° C kuya ku-70 ° C
Ukushisa okushisa		-40 ° C kuya ku-70 ° C

Ukusebenza kwe-fiber optical fiber evunyelwe

Ukusebenza kwe-fiber oppical fiber (itu-t rec. G.657A2)

Into yendaba	Ukucacisa
Uhlobo lwefayibha	Imodi eyodwa
Izinto zefayiji	I-silica yadedelwa
I-attenuation coefflign @ 1310 nm @ 1383NM @ 1460nm @ 1550 nm @ 1625nm	≤ 0.35 DB / KM ≤ 0.35 DB / KM ≤ 0.25 DB / KM ≤ 0.21 DB / KM ≤ 0.23 DB / KM
Intambo yokusika ikhebula	≤ 1260 nm
I-Zero-Disching Wavelength	1300 ~ 1324 nm
I-Zero-Dispicesion Slope	≤ 0.092 PS / (NM2.KM)
Pmd @ 1550 nm	≤0.1 I-PS / KM1 / 2
Ukuhlakazeka kweChromatic @ 1285 ~ 1330 NM @ 1271 ~ 1360 nm @ 1550 nm @ 1625nm	≤3 I-PS / NM. KM) ≤5.3 I-PS / NM. KM) ≤18.0 I-PS / NM. KM) ≤22 I-PS / NM. KM)
I-Mode Field Diameter @ 1310 nm	8.5-9.3um
Iphutha le-Core / Clad Hlanganisa iphutha	≤ 0.5 One
UCladding Ububanzi	125.0 ± 0.7 One
Cladding non-isikrini	≤5%
Ububanzi obuyisisekelo	242 ± 7 eyodwa
Ukuhlanganiswa okuyisisekelo / ukuhlanganiswa okuyisisekelo	≤10 μm
Ukuhlanganisa okungekhona	≤0.7%
I-Attenuation ngentambo yokugoba ikhebula 10 Thinta 1 Mandrel 15mm 1 Turn 1 mandrel 10mm 1 Turn 1 mandrel 7.5mm	I-1550nm ≤ δ 0.03 DB / KM I-1550nm ≤ δ 0.1 DB / KM I-1550nm ≤ δ 0.5 DB / KM

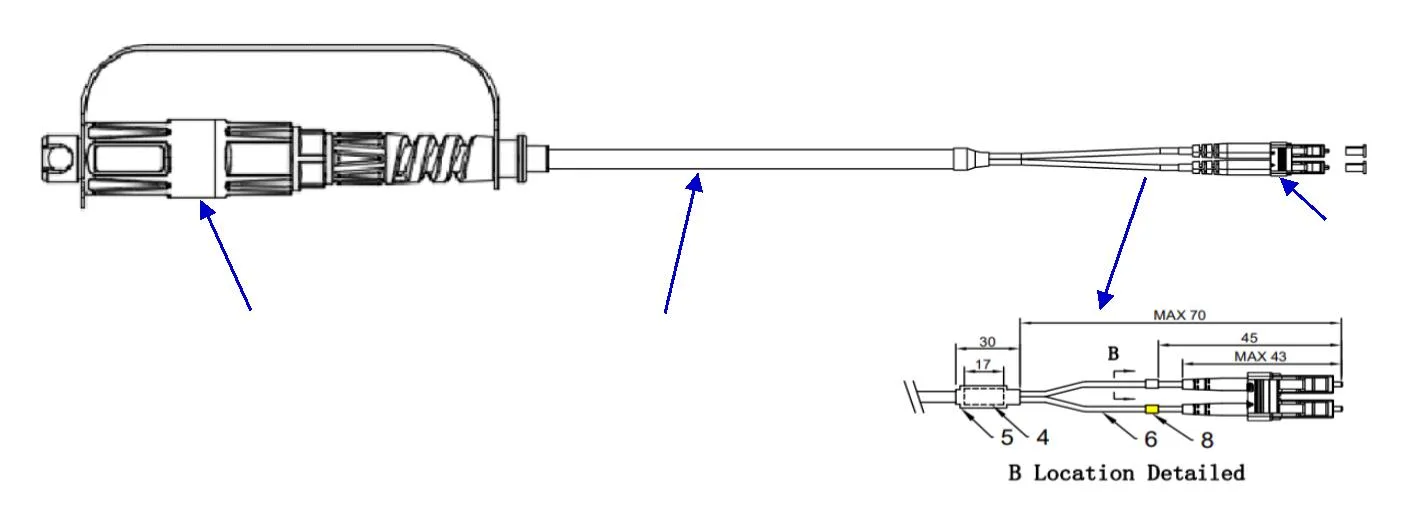

Umdwebo ojwayelekile:

Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords Specification (Accord Mini DLC Connector)

-Nokuba	Ukufanisa	Iding
1	I-SM G.657A2 2 Core nge-2.0mm fiber. I-OD7.0mm, Black LSzH	1
2	I-Mini DLC Isixhumi esimnyama	1
3	I-LC3.0 Duplex ye-fiber eyodwa yemodi eyodwa, beige, ishubhu lesixhumi se-IC, esimhlophe	2
4	I-rubber Heat Shrinkible Tube, emnyama, u-Od 8.5mm L = 17mm	1
5	I-rubber Heat Shefkible Tube, emnyama, u-Od 8.5m L-30mm	2
6	Ukuvikelwa okuguquguqukayo nge-tube yensimbi, i-OD 2.8mm L = 52mm	2
8	I-tube eshisekayo eshisayo, emhlophe / ephuzi od3.0mm l = 5mm	2
