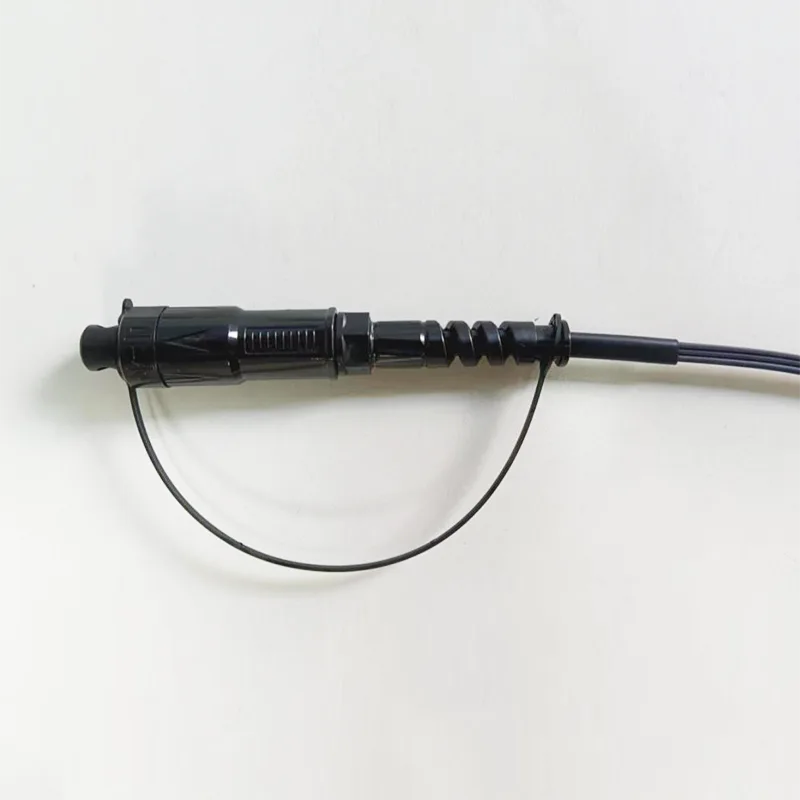

I-5x2mm I-Waterproof Drop Cable H hptic SC / APC Isixhumi Optical Fiber Pigtail

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30
Ukulahlekelwa Ukulahleka	I-	≥ 60
Uhlobo lokuxhumeka		SC / APC
Impumelelo		-Ezitsha zobumba
Imijikelezo yokuxhuma		500
Umbala wekhekhe wekhebula		-Mnyama
Ikhethini elingaphandle kwekhebula	m	(5.2x2.0) * ± 0.2mm (3.0x2.0) * ± 0.2mm (ngaphandle kwesithunywa)
Imodi yefiber		Imodi eyodwa: G657A2
Izinto ze-Cable Jacket		Lszh
Isisindo sekhebula	Kg / km	20 ± 3
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	100 noma ngezifiso (Ukubekezelela: ± 0.5m)
Uhlobo lwesixhumi		Okokufaka: I-Accord H Optic SC / APC
Uhlobo lwesixhumi		Okukhipha: ngaphandle kwesixhumi
Traction (axial phakathi ikhebula nesixhumi)	N	100
Ibanga elingangeni manzi		IP68
Ukushisa okusebenzayo	℃	-20 ° C ~ + 65 ℃
Ukushisa okushisa	℃	-20 ° C ~ + 65 ℃

Isakhiwo sekhebula:

5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail

I-fiber ye-optical	Ukuthayipha	G-657 A2.
	Cha. Feibers	1
	Umbala	-Luhlaza okwesibhakabhaka
Umvini wangaphandle	Ubukhulu	(5.2x2.0) * ± 0.2mm (3.0x2.0) * ± 0.2mm (ngaphandle kwesithunywa)
	Into uqobo lwayo	Lszh
	Umbala	-Mnyama
Ilungu lamandla wensimbi	Amabele	Wire wire
Ilungu lamandla wensimbi	Ibanga elinquma phakathi ububanzi besingelezi	0.45mm
Ilungu le-Self Self Exerting	Amabele	Wire wire
Ilungu le-Self Self Exerting	Ibanga elinquma phakathi ububanzi besingelezi	1.2 mm
Ubunzima		20 ± 3 kg / km
Tile (n)		Isikhathi eside: 300n Isikhathi Esifushane: 600 N
Hlikihla		I-1000N / 10CM
Imiz. Ukugoba Radius		I-15XD (i-Static); 30XD (Dynamic)
Ububanzi bokushisa		-20 ° C kuya ku-65 ° C

Isimo se-Fibre:

Zonke izici ze-cable fiber (i-fiber yekhebula eliqediwe) zizoba, okungenani, ngokuya ngesincomo se-ITU-T G.657A2 futhi zizoba ngale ndlela elandelayo.

Ipharameter		Ukucacisa
I-attenuation coefflign	@ 1310 nm @ 1383 NM @ 1550 nm @ 1625 nm	≤ 0.36 DB / KM ≤ 0.36 DB / KM ≤ 0.22 DB / KM ≤ 0.24 DB / KM
(Ngemuva kwekhebula)	@ 1310NM	≤0.40db / km
	@ 1550nm	≤0.30db / km
Ukufana kwe-attenuation ngo-1310nm		≤0.05DB
Ukufana kwe-attenuation ngo-1550nm		≤0.05DB
I-wave-off cut-off wavelength (λcc)		≤ 1260 nm
I-Zero-Disching Wavelength		1300 ~ 1324 nm
I-Zero-Dispicesion Slope		≤ 0.092 I-PS / (NM ^.KM)
Inani eliphelele lokuhlakazeka ku-1288nm ~ 1339nm		≤3.5PS / (nm · km)
Inani eliphelele lokuhlakazeka ku-1271nm ~ 1360nm		≤5.3PS / (NM · KM)
Ukuhlakazeka ngo-1550nm		≤18ps / (nm · km)
Ukuhlakazeka ngo-1625NM		≤23ps / (nm · km)
Imodi ye-Mode Field (MFD) ngo-1310nm		8.60 ± 0.4mm
Imodi ye-Mode Field (MFD) ngo-1550nm		9.4-10.4mm
I-polarization mode dissaverision (PMD) fiber		≤0.125ps / km^1/2
Intambo ye-Polarization Mode (PMD) Ikhebula		≤0.200ps / km^1/2
I-PMD coefficient	M	Izintambo ezingama-20
	Q	0.01%
	I-PMDQ	≤0.20ps / km^1/2
Izici zejometri
UCladding Ububanzi		125 ± 0.8mm
Cladding non-isikrini		≤1.0%
Iphutha le-Core / Cladring Clicricity		≤0.8mm
Ububanzi befayifa nge-coating (buhle)		245 ± 10μM
Ububanzi befayifa nge-coating (enemibala)		250 ± 10μM
Ukuhlanza / ukuhlanganisa iphutha le-Cliatics		≤12.0mm
Ukuhlolwa Kwe-Tension		I-100kpsi noma i-0.69gpa
Ukususwa kwe-coating (n)		I-1.0 ~ 9.0
Izici ezenziwe ngomshini
Ukulahleka kwe-macrobend ngo-1550nm	R = 15mm, ama-10 ajika	≤0.03DB
	R = 10mm, 1Turn	≤0.10DB
	R = 7.5mm, 1Turn	≤0.5DB
Ukulahleka kwe-macrobend ngo-1625NM	R = 15mm, ama-10 ajika	≤0.10DB
	R = 10mm, 1Turn	≤0.20DB
	R = 7.5mm, 1Turn	≤1.0DB

Umdwebo ojwayelekile:

5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail

Iphakheji:

5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail

Izidingo zokupakisha:

Usayizi wenqolobane: 600 * 320 * 265mm, itheyiphu ebonakalayo ebonakalayo "i" ibhokisi lokuvalwa uphawu lefonti.

5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail

Umdwebo we-Schematic wepuleti lokhuni:

Usayizi weplate yepulangwe: 1200 * 1000mm.

Izidingo Zokubopha: Isendlalelo esisodwa samabhokisi ayisithupha, sifaka izingqimba eziyisithupha.

Ukuvikelwa okuphezulu okuphezulu okulungile, bese usebenzisa ibhande elihlanganisiwe le- "#" Font ngokuqinile.

5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail
