I-Duplex LC / APC I-Waterproof Drop Cable Optical fiber FigeTail (Accord HW DLC Isixhumi)

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Duphaza
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30
Ukulahlekelwa Ukulahleka	I-	≥55 (apc)
Umbala wekhekhe wekhebula		-Mpunga
Ikhethini elingaphandle kwekhebula	m	5.2 (± 0.2) x2.0 (± 0.1)
Imodi yefiber		Imodi eyodwa: G657 A2
Izinto ze-Cable Jacket		Lszh
Isisindo sekhebula	Kg / km	17 (approx)
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	30, 50, 100, 150, 200 noma ngokwezifiso (ukubekezelelana: ± 0.5m)
Uhlobo lwesixhumi		Okokufaka:	I-Accord HW DLC / APC Isixhumi
		Okukhipha:	Asikho isixhumi
Ibanga elingangeni manzi		IP67
Ukushisa okusebenzayo	℃	-20 ° C ~ + 65 ℃
Ukushisa okushisa	℃	-20 ° C ~ + 65 ℃

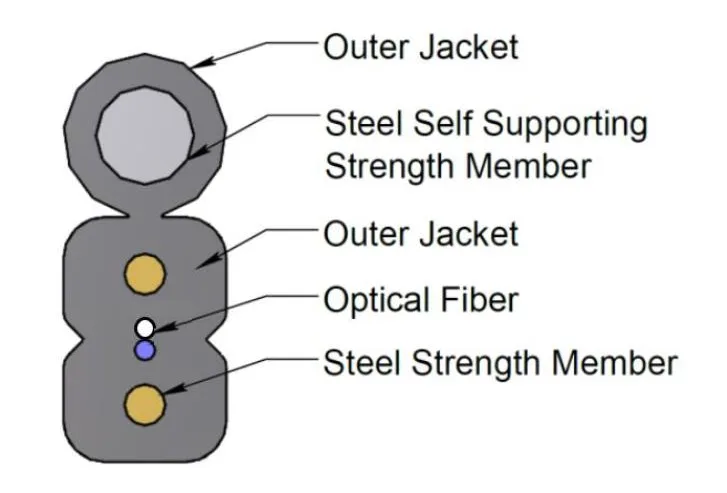

Isakhiwo sekhebula:

Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail(Accord HW DLC Connector)

Ukucaciswa Kwekhebula:

I-fiber ye-optical	Ukuthayipha	G657 A2
	Cha. Feibers	2
	Umbala	Oluhlaza okwesibhakabhaka nokumhlophe
	Ubukhulu	ФФ250um
	I-attenuation	@ 1310NM ≤0.35 DB / KM
	Coefflicafleant	@ 1550nm ≤0.22DB / km
Umvini wangaphandle	Into uqobo lwayo	Lszh
	Umbala	-Mpunga
	Ukujiya	≥.4mm
	Ubukhulu	2.0 (± 0.1) x5.2 (± 0.2)
Ilungu Lokuqinisekisa	Amabele	I-phosphide yensimbi wire
Ilungu Lokuqinisekisa	Ibanga elinquma phakathi ububanzi besingelezi	Φ0.40mm * 28
Ilungu le-Self Self Exerting	Amabele	I-phosphide yensimbi wire
Ilungu le-Self Self Exerting	Ibanga elinquma phakathi ububanzi besingelezi	I-1.0mm
Ubunzima		18 kg / km
Ukuhlola okulula (n)		Isikhathi eside: 300 n Isikhathi Esifushane: 600 N
Ukuhlolwa kwe-Flatening (N / 10cm)		Isikhathi eside: 800 N / 10cm Isikhathi Esifushane: I-1600 N / 10cm
Imiz. Ukugoba Radius		I-15XH (i-Static); 30XH (Dynamic)
Ukushisa okushisa		-20 ° C kuya ku-65 ° C
Ukushisa okushisa		-20 ° C kuya ku-65 ° C
Ukumaka (Ink Jet)		Mhlophe, ukumaka kuphrintiwe yonke imitha eyi-1

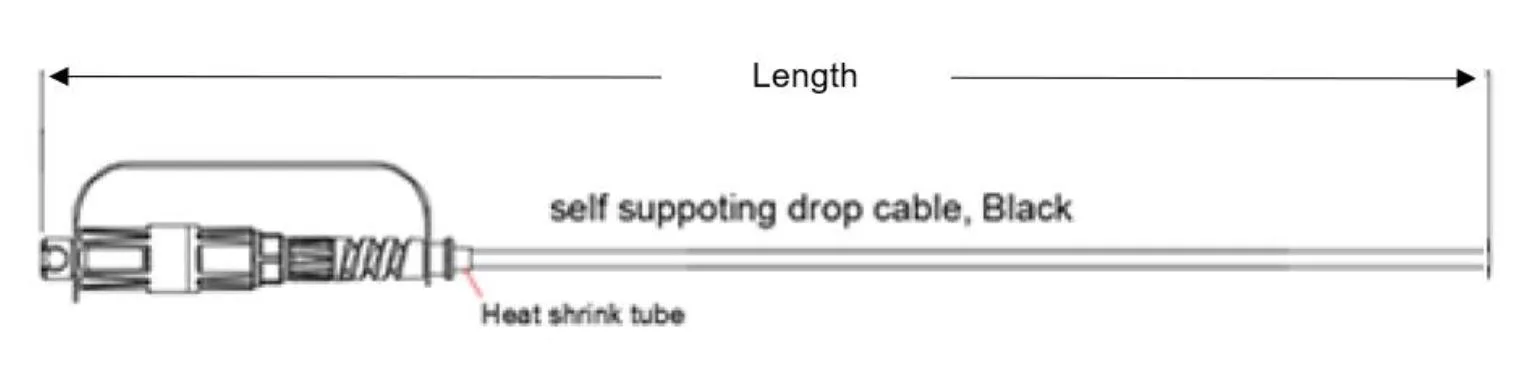

Umdwebo ojwayelekile:

Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail(Accord HW DLC Connector)

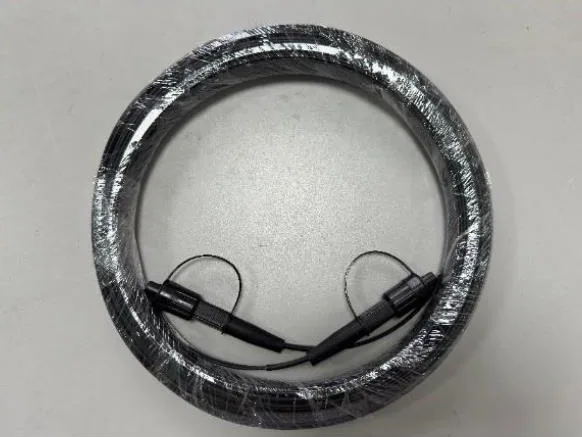

Iphakheji:

Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail(Accord HW DLC Connector)
