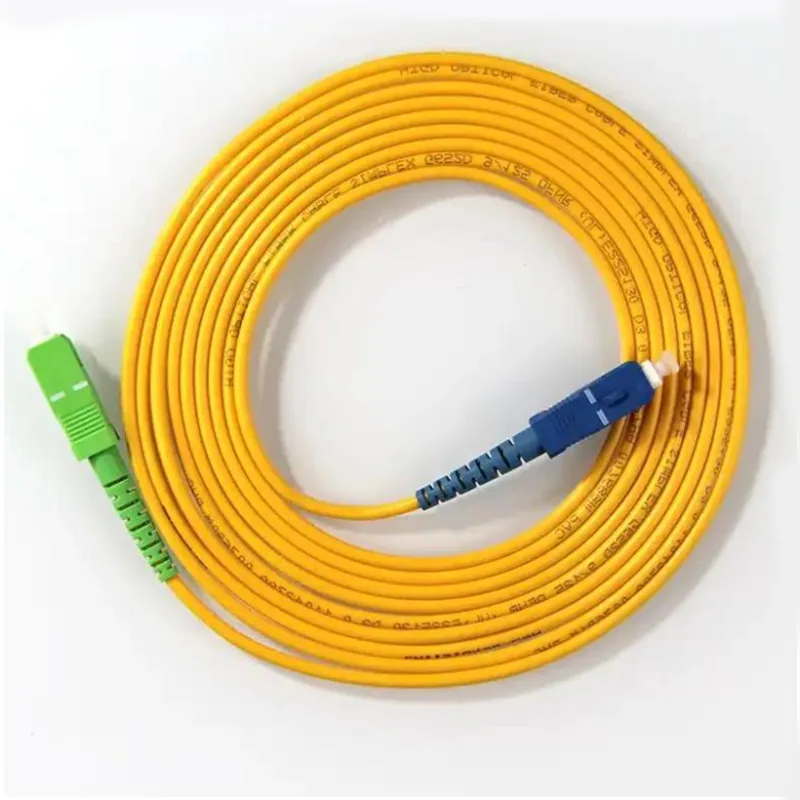

I-3mm Round Cable SC/APC- SC/UPC Patch Cords

Orientalfiber 3mm Round Cable SC/APC- SC/UPC Patch Cords are designed for stable optical signal transmission in structured cabling systems. As a China fiber optic cable manufacturer and supplier, Orientalfiber focuses on consistent connector performance, controlled insertion loss, and reliable return loss values. This product is suitable for data centers, FTTH deployment, and telecom network integration where consistent connection quality and flexible routing are required.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-Orientalfiber 3mm Round Cable SC/APC- SC/UPC Patch Cords yakhiwe kusetshenziswa i-G657A1 yemodi eyodwa, izinhlelo zokusebenza ezisekelayo ezidinga kokubili ukumelana nokugoba kanye nokunciphisa isignali ephansi. Ngobubanzi obungu-3.0mm obungaphandle kanye nejakhethi ye-LSZH, ikhebula lifanele izindawo zasendlini lapho ukuphepha nokuphathwa kwekhebula kubalulekile.

Njengomkhiqizi nomphakeli wase-China, i-Orientalfiber iqinisekisa ukuthi intambo yesichibi ngasinye inqanyuliwe futhi ihlolwe ngaphambi kokulethwa. Inhlanganisela yezixhumi ze-SC/APC kanye ne-SC/UPC ivumela ukusetshenziswa okuguquguqukayo kuzo zonke izixhumi ezibonakalayo zenethiwekhi, kunciphisa ukukhathazeka kokuhambisana ngesikhathi sokufakwa.

Izimo zohlelo lokusebenza

Amasistimu wekhebula esikhungo sedatha kanye noxhumo lokubeka i-rack-to-rack
Ukufakwa kwe-FTTH (Fiber to the Home).
I-Ethernet kanye ne-broadband network transmission
Umgogodla, ovundlile, kanye nekhebula elikhuphukela phezulu
Ividiyo, idatha, namasistimu okudlulisa amasignali ezwi
Ukuxhumana kwemishini yokuhlola nokulinganisa

Izici ezibalulekile

Ukusebenza Kwesixhumi Esizinzile

Izixhumi ze-SC/APC ne-SC/UPC ziqinisekisa ukuboniswa okuphansi emuva kanye nokudluliswa kwesignali okuzinzile
Ama-Ceramic ferrules ahlinzeka ngokuqondana okunembile kwefayibha
Isekela ukuxhumana okuphindaphindiwe nokusebenza okungaguquki

Ukusebenza Kwe-Optical Okulawulwayo

Ukulahlekelwa kokufakwa kulawulwa kokuthi ≤0.30 dB
Ukulahlekelwa kokubuyisela ≥55 dB (APC) kanye no-≥50 dB (UPC)
Ilungiselelwe amawindi okudlulisa angu-1310nm no-1550nm

Idizayini yekhebula eguquguqukayo nehlala isikhathi eside

Isakhiwo sekhebula esiyindilinga esingu-3mm ukuze kube lula ukuhambisa nokuphatha
I-G657A1 fiber isekela izimo zokugoba eziqinile
Irediyasi encane yokugoba ≥20mm yezimo zokufaka ezingokoqobo

Ukuphepha Nokuhambisana

Ijakhethi ye-LSZH (Low Smoke Zero Halogen) yezidingo zokuphepha zasendlini
Izinto ezihambisana ne-ROHS
Izinga lokushisa elisebenzayo lisukela ku--25℃ liye ku-+65℃

Ukucaciswa kobuchwepheshe:

Ezokwakha	Iyunithi	Izincazelo
Imodi ye-Fiber		Imodi eyodwa: ITU-T G657A1
I-Fiber Count		I-Simplex
Ubude begagasi	nm	1310/1550
Ukulahlekelwa Kokufaka	dB	≤0.30
Buyisela Ukulahlekelwa	dB	≥55(APC) ≥50(UPC)
I-Tight-Buffer Fiber Diameter	um	900
Umbala We-Fiber Oyi-Tight-Buffer		Emhlophe
Umbala Wejakhethi Lekhebula		Okuphuzi
I-Cable Jacket Material		I-LSZH
Ububanzi bekhebula	mm	Φ3.0 ±0.20
Ubude	m	3.0 +0.1/-0
Uhlobo lwesixhumi		SC/APC (Green) SC/UPC (Blue)
Ipholishi yobuso bokugcina		I-APC ne-UPC
I-Ferrule Material		I-Ceramic
Ukuphindwa Kwezixhumanisi		> izikhathi ezingu-800
Irediyasi yokugoba encane	mm	≥20
Ukuhlangana kokugcinwa kwe-Fibre/ikhebula	N	50N±2N ku-5N/s 120s ubude besikhathi
Izinga Lokushisa Lokusebenza	℃	-25℃ ~ +65 ℃
Izinga Lokushisa Lesitoreji	℃	-25℃ ~ +65 ℃

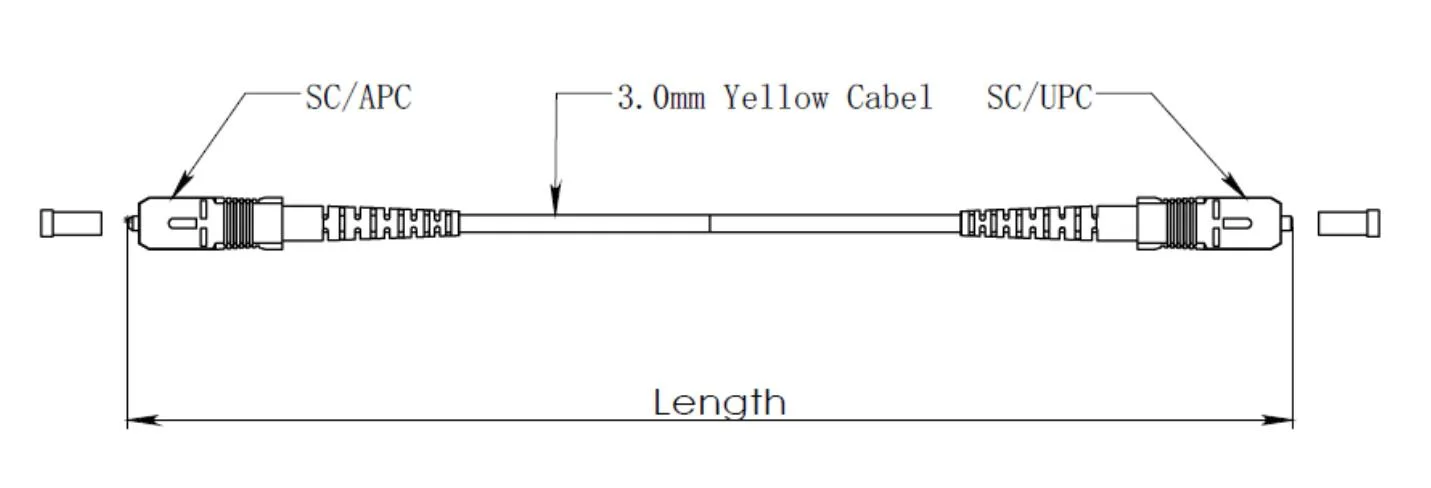

Umdwebo wobukhulu:

3mm Round Cable SC/APC- SC/UPC Patch Cords

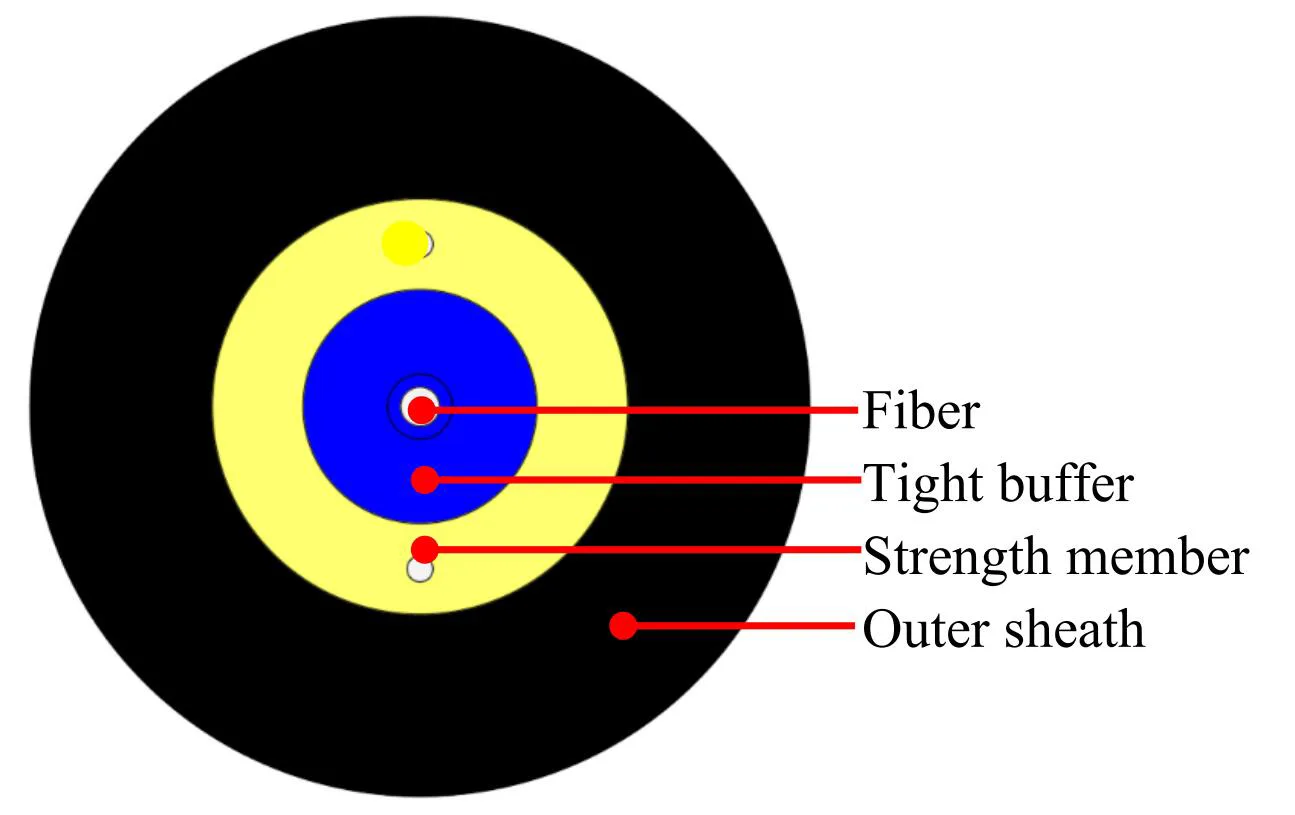

Ukwakhiwa Kwekhebula:

3mm Round Cable SC/APC- SC/UPC Patch Cords

Izinto		Imininingwane
I-fiber yebhafa eqinile	Inani le-fiber	1
	Uhlobo lwefiber	G.657A1
	Umbala Wefayibha	Okuluhlaza okwesibhakabhaka
	Okubalulekile	I-LSZH
	Ububanzi	Φ0.9 ± 0.05mm
	Umbala webhafa eqinile	Emhlophe
Ilungu lamandla	Okubalulekile	Indwangu ye-polyester
Umgodla wangaphandle	Okubalulekile	I-LSZH
	Ububanzi	Φ3.0 ± 0.2 mm
	Umgodla wangaphandle Umbala	Okuphuzi
Uphawu lukayinki	Umbala	Mnyama

Isici se-Fiber:

Zonke izici ze-cable fibre (i-fiber yekhebula eliqediwe) kufanele, okungenani, ngokuhambisana ne-ITU-T Recommendation G.657A1 futhi izoba kanje.

Into	Ukucaciswa
Uhlobo lwefiber	Imodi eyodwa
I-fiber material	I-silica ehlanganisiwe
I-coefficient yokunciphisa @ 1310 nm @ 1383nm @ 1460nm @ 1550 nm @ 1625nm	≤ 0.35 dB/km ≤ 0.35 dB/km ≤ 0.25 dB/km ≤ 0.21 dB/km ≤ 0.23 dB/km
Ubude begagasi bokunqanyulwa kwekhebula	≤ 1260 nm
I-Zero-dispersion wavelength	1300 ~ 1324 nm
I-Zero-dispersion slope	≤ 0.092 ps/(nm².km)
I-PMD @ 1550 nm	≤0.1 ps/km^1/2
Ukuhlakazeka kweChromatic @ 1285 ~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Ububanzi benkambu yemodi @ 1310 nm	8.8±0.4um
Iphutha le-Core / Clad concentricity	≤ 0.5 um
I-diameter yokugqoka	125.0 ± 0.7 um
I-Cladding non-circularity	≤5%
I-diameter ye-coating eyinhloko	242 ± 7 um
I-Concentricity Primary Coating / Coating	≤10 µm
I-coating non-circularity	≤0.7%
Ukuncipha ngekhebula eligoba Ukulahleka 1 jikisa 1 irediyasi engu-10mm 10 ujike 1 irediyasi 15mm	1550nm ≤Δ0.75dB/km 1625nm ≤Δ1.5dB/km 1550nm ≤Δ0.25dB/km 1625nm ≤Δ1.0dB/km

Ukukhiqiza Nokulawula Ikhwalithi

I-Orientalfiber 3mm Round Cable ngayinye ye-SC/APC- SC/UPC Patch Cords ihlolwa kwasefekthri okungu-100%, okuhlanganisa ukulahlekelwa kokufaka nokuqinisekiswa kokulahlekelwa kokubuyisela. Njengefekthri yase-China enezinqubo zokukhiqiza ezihlelekile, i-Orientalfiber igxile ekugcineni ikhwalithi engaguquki kuwo wonke amaqoqo, okubalulekile kumaphrojekthi amakhulu wokuthengwa kwempahla nobunjiniyela.

Mayelana Ne-Orientalfiber Manufacturing Strength

I-Jiangsu Xuben Photoelectric Technology Co., Ltd iyinkampani yeqembu enamafekthri amane, emboza izintambo ze-fiber optical zasendlini, izintambo zangaphandle, izingxenye ze-ODN optical, kanye nemishini ye-optical network. Ingqikithi yendawo yokukhiqiza ifinyelela ku-15,000 wamamitha-skwele, nenani eliphumayo lonyaka le-20 million USD.

Le nkampani ihlinzeka ngezixazululo eziphelele zenethiwekhi ye-fiber optic yabaqhubi bezokuxhumana, izinhlelo zokusakaza, namaphrojekthi wokuxhumana wezimboni. Imikhiqizo isetshenziswa kakhulu ezinhlelweni zamandla, ezokuthutha zikaloliwe, imigwaqo emikhulu, kanye namanethiwekhi amakhulu wengqalasizinda.

Ngohlelo lokuphathwa kwekhwalithi lwe-ISO9001 kanye nesitifiketi se-ISO45001 sezempilo nokuphepha emsebenzini, inkampani igcina ukukhiqizwa okujwayelekile kanye nezinqubo zokulawula ikhwalithi. I-Orientalfiber 3mm Round Cable SC/APC- SC/UPC Patch Cords ihlinzekwa kuzo zombili izimakethe zasekhaya nezamazwe ngamazwe, zisekela amaphrojekthi wobunjiniyela aphakathi nendawo namakhulu.

FAQ

Uyini umehluko phakathi kwezixhumi ze-SC/APC kanye ne-SC/UPC?

Izixhumi ze-SC/APC zinobuso bokuphela obune-engeli (ngokuvamile amadigri angu-8) okunciphisa ukubukeka kwangemuva, okuwenza afanelekele amasistimu okubona anemba okuphezulu. Izixhumi ze-SC/UPC zinendawo epholishiwe eyisicaba futhi zivame ukusetshenziswa ekuxhumekeni kwenethiwekhi okuvamile.

Ingabe ubude bekhebula bungenziwa ngendlela oyifisayo?

Yebo, I-Orientalfiber 3mm Round Cable SC/APC- SC/UPC Patch Cords zisekela ubude obungokwezifiso ukuze buhambisane nezidingo zokufaka ezihlukene.

Ingabe le ntambo yesichibi ilungele izindawo zasendlini?

Yebo, impahla yejacket ye-LSZH iyenza ifanelekele ukusetshenziswa endlini, ikakhulukazi ezindaweni lapho ukuphepha komlilo kanye nokukhishwa kwentuthu ephansi kuyadingeka.

Zingakhi izikhathi lapho isixhumi singasetshenziswa kabusha?

Isixhumi sisekela imijikelezo yokukhwelana engaphezu kuka-800 ngaphansi kwezimo ezivamile zokusetshenziswa, igcina ukusebenza kokubona okuzinzile.
