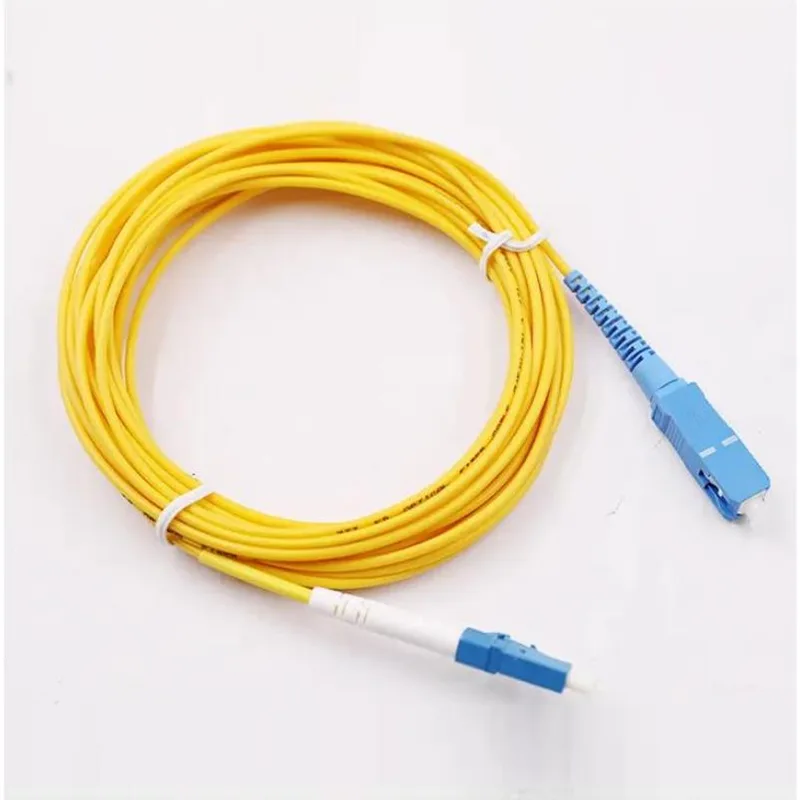

I-Conventional SC/UPC-LC/UPC 3.0mm Patch Cords

I-Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords ayizintambo zokuhlanganisa ze-fiber optic zemodi eyodwa ezinezixhumi ze-SC/UPC kanye ne-LC/UPC kuzo zombili iziphetho, ezinebhantshi lekhebula elingu-3.0mm. Lezi zintambo zokubopha zinqanyulwe ngokwefekthri ngo-100% futhi zihlolwe, okuqinisekisa ukusebenza okungaguquki kanye nokudluliswa kwesignali okuzinzile. Umkhiqizo wamukela intuthu ephansi engu-zero halogen (LSZH) impahla yejakhethi, ehambisana nemvelo futhi ephephile, elungele izimo ezihlukahlukene zesicelo sangaphakathi nesangaphandle. I-Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords yakhelwe ukuhlangabezana nezidingo eziyisisekelo zokuxhumanisa inethiwekhi yokubona, ngekhwalithi ethembekile nempilo ende yesevisi.

Izici ezibalulekile

1. Isixhumi Sokunemba Okuphezulu: Izintambo ze-patch zifakwe ngokunemba okuphezulu kwe-SC kanye ne-LC izixhumi ze-fiber eyodwa, ezithatha i-ceramic ferrule ukuze kuqinisekiswe ukuqondana okunembile kwamafiber optical, ukunciphisa ukulahlekelwa kwesignali, nokuthuthukisa ukuzinza kokudluliswa kwesignali. Izixhumi ziklanywe ngendlela yokuxhuma i-push-pull latching, okulula ukuyixhuma nokuyikhipha, futhi inganqanda ngempumelelo ukunqanyulwa kwephutha phakathi nokusetshenziswa.

2. I-UPC End Face Polish: Ubuso bokugcina besixhumi bupholishelwe ngobuchwepheshe be-UPC, obunobuso obuncane be-convex, obuqinisekisa ukuthintana okuhle phakathi kobuso bokugcina bemicu yokubona, kunciphisa ukubukeka emuva, nokulahlekelwa kokubuyisela akukhona ngaphansi kuka-50dB, okuhlangabezana nezidingo zokudluliswa kwesignali yesivinini esikhulu kanye nebanga elide.

3. I-Single Fiber Design: Zonke izixhumi ze-Orientalfiber Ezivamile ze-SC/UPC-LC/UPC 3.0mm Patch Cords ziyizixhumi ze-fiber eyodwa, ezifanele ukudluliswa kwesignali ye-optical yemodi eyodwa, ehambisana ne-ITU-T G652D i-fibre yemodi eyodwa, futhi ingasetshenziswa ezinhlelweni ezihlukahlukene zenethiwekhi ye-optical network.

4. Ubude Obuzenzela ngokwezifiso: Sinikeza izinsizakalo zobude obuzenza ngokwezifiso ngokuvumelana nezidingo zamakhasimende, ubude obujwayelekile obungu-5m (ngokubekezelela kuka-+0.3/-0m), nobunye ubude bungenziwa ngokwezifiso ukuze kuhlangatshezwane nezidingo zesakhiwo esihlukene samaphrojekthi enethiwekhi ahlukahlukene.

5. Ukuhlolwa Kwefekthri Okuqinile: I-Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cord ngayinye inqanyulwa embonini engu-100% nokuhlolwa ngaphambi kokushiya ifekthri, okuhlanganisa ukulahlekelwa kokufaka, ukulahlekelwa kokubuyisela nezinye izinkomba zokusebenza ezibalulekile, ukuqinisekisa ukuthi umkhiqizo ngamunye uhlangabezana nezindinganiso ezifanele futhi ungasetshenziswa ngokuqondile ngemva kokulethwa.

6. Ithobelana ne-ROHS: Umkhiqizo uhambisana nezindinganiso zemvelo ze-ROHS, awuqukethe izinto eziyingozi, awuhambisani nemvelo futhi uphephile, futhi ungasetshenziswa ezindaweni ezihlukahlukene ezibucayi ngokwemvelo njengezikhungo zedatha nezindawo zokuhlala.

Izimo zohlelo lokusebenza

I-Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords isetshenziswa kabanzi kuzimo ezihlukahlukene zenethiwekhi yokubona, ikakhulukazi ezihlanganisa lezi zindawo ezilandelayo:

• Izikhungo Zedatha: Isetshenziselwa ukuxhumana kwesignali yesivinini esiphezulu phakathi kwamaseva, amaswishi, amathuluzi okugcina nezinye izinto zokusebenza ezikhungweni zedatha, ezisekela izidingo zokudlulisa umkhawulokudonsa ophezulu, nokuqinisekisa ukusebenza okuzinzile kwezikhungo zedatha.

• Izicelo ze-Ethernet: Ifanele izinhlelo ze-Ethernet zezikali ezihlukahlukene, eziqaphela ukudluliswa kwedatha ngesivinini esikhulu futhi ezinzile phakathi kwamadivayisi enethiwekhi, ukuthuthukisa ukusebenza kahle kwenethiwekhi nokuthembeka.

• Izinhlelo zokusebenza ze-FTTH: Isetshenziswa ezinhlelweni ze-fiber-to-the-home (FTTH), ezixhumanisa amatheminali olayini obonakalayo (OLT) namayunithi enethiwekhi yokubona (ONU), ehlinzeka ngamasevisi e-broadband esivinini esikhulu kubahlali namabhizinisi.

• Izicelo Zomgogodla, Ezivundlile kanye Nezikhuphukela phezulu: Isetshenziswa ku-backbone, ikhebula evundlile kanye nesikhuphukeli yokwakha amasistimu ezintambo ezibanzi, eqaphela ukuxhunywa kwamasignali okubona phakathi kwamaphansi ahlukene nezindawo ezihlukene, futhi ehlangabezana nezidingo zesakhiwo senethiwekhi esikhulu.

• Izinsizakalo Zevidiyo, Idatha kanye Nezwi: Isetshenziswa ekudluliselweni kwevidiyo, idatha kanye namasignali ezwi, iqinisekisa ukudluliswa kwamasignali okucacile nezinzile, futhi ifanele izinhlelo zokuxhumana ezifana nomsakazo nomabonakude kanye nokugadwa kwevidiyo.

• Izicelo Zezisetshenziswa Zokuhlola: Isetshenziswa njengentambo yokuxhuma yemishini yokuhlola, iqinisekisa ukunemba nokwethembeka kwemiphumela yokuhlolwa, futhi isetshenziswa kabanzi ocwaningweni nasekuthuthukisweni nasekuhlolweni kwemikhiqizo yokuxhumana okubonakalayo.

Ukwakhiwa Kwekhebula Nempahla

I-Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords isebenzisa isakhiwo sekhebula esinengqondo, esinefayibha yebhafa engu-900μm ngaphakathi, engavikela ngempumelelo i-optical fiber core futhi inciphise umthelela wamandla angaphandle ku-fiber optical. I-buffer fiber imhlophe, okulula ukuyihlukanisa ngesikhathi sokwakhiwa nokulungiswa.

Ijakhethi yekhebula iphuzi, yenziwe ngentuthu ephansi zero halogen (LSZH), enezici zokunqanda ilangabi, intuthu ephansi futhi engenabo ubuthi. Uma kwenzeka umlilo, ngeke ukhulule amagesi ayingozi, angavikela ngokuphumelelayo ukuphepha kwabasebenzi kanye nemishini. Ububanzi bekhebula bungu-Φ3.0 ±0.20mm, obuvumelana nezimo futhi kulula ukugoba, futhi i-radius encane yokugoba ayikho ngaphansi kuka-20mm, elungele izintambo ezindaweni eziwumngcingo.

Izinzuzo Zomkhiqizo

Ukusebenza Okuthembekile

I-Orientalfiber Okuvamile ye-SC/UPC-LC/UPC 3.0mm Patch Cords isebenzisa izinto zekhwalithi ephezulu kanye nobuchwepheshe bokukhiqiza obunembayo, ngokulahlekelwa kokufakwayo ≤0.25dB nokulahlekelwa kwembuyiselo ≥50dB (UPC), iqinisekisa ukulahlekelwa okuphansi kanye nokudluliswa kwesignali okuzinzile. Ukuphindaphinda kokuxhumeka kungaphezu kwezikhathi ze-800, futhi amandla okugcina i-fiber/ikhebula ahlangana ne-50N±2N ku-5N/s ye-120s, engakwazi ukuzivumelanisa nokusetshenziswa kwesikhathi eside ezindaweni ezihlukahlukene.

Ukuguquguquka Okubanzi Kwemvelo

Umkhiqizo unebanga lokushisa elibanzi lokusebenza elingu -20°C ~ +70℃ kanye nezinga lokushisa lokugcina elingu--40℃ ~ +85℃, elikwazi ukuzivumelanisa nezimo ezihlukahlukene zemvelo ezinokhahlo, okuhlanganisa izinga lokushisa eliphezulu, izinga lokushisa eliphansi nezimo ezinomswakama, futhi lifanele ukusetshenziswa kwangaphakathi nangaphandle.

Kulula Ukuyifaka Nokugcina

Izixhumi ze-SC kanye ne-LC zezintambo zokuchibiyela zisebenzisa indlela yokuxhuma i-push-pull latching, okulula ukuyixhuma nokuyikhipha, futhi ingasebenza ngesandla esisodwa, ithuthukise ukusebenza kahle kokufaka nokunakekela. Idizayini esezingeni iqinisekisa ukushintshashintsha okuhle, futhi izixhumi zingasetshenziswa namanye ama-adaptha ajwayelekile e-SC/UPC kanye ne-LC/UPC kanye nemishini.

Kuqiza kahle

Njengomkhiqizi ochwepheshe, i-Orientalfiber inochungechunge lwayo lokukhiqiza oluphelele, olungalawula ngempumelelo izindleko zokukhiqiza. I-Conventional SC/UPC-LC/UPC 3.0mm Patch Cords inikeza ukusebenza kwekhwalithi ephezulu ngentengo enengqondo, eyongayo kumaphrojekthi enethiwekhi amakhulu kanye nokusetshenziswa kwesikhathi eside.

Ukucaciswa kobuchwepheshe:

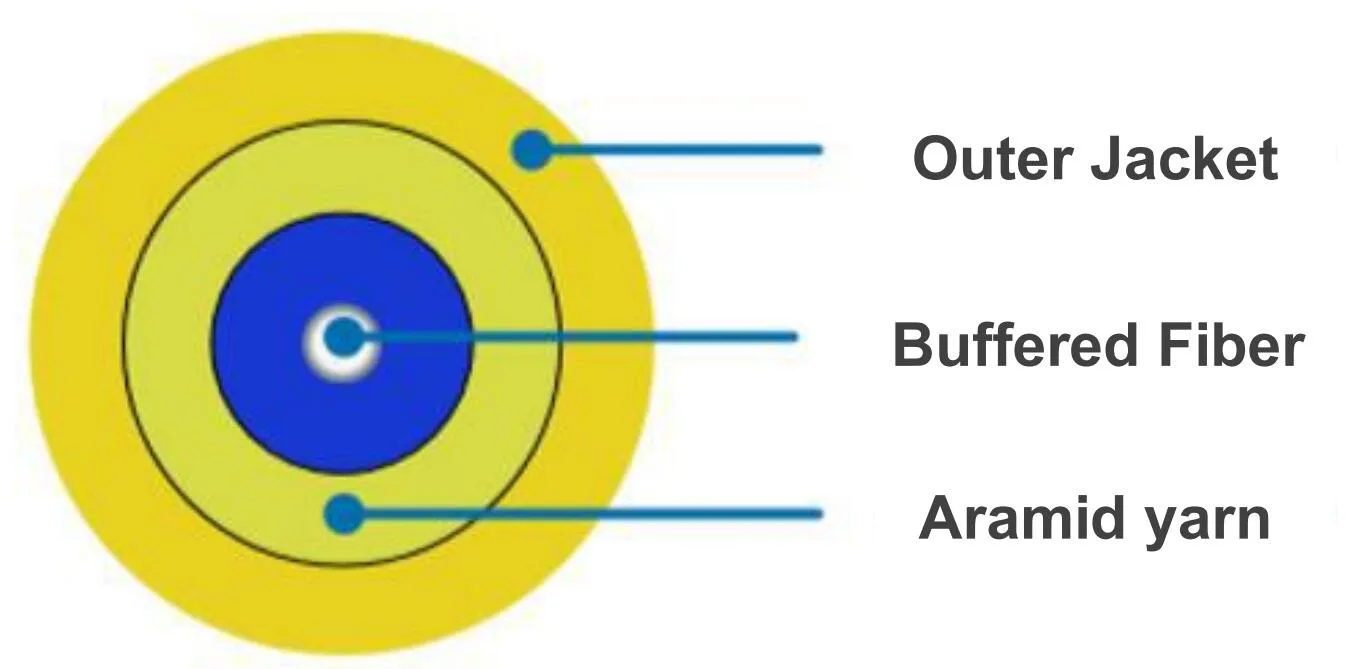

Ukwakhiwa Kwekhebula:

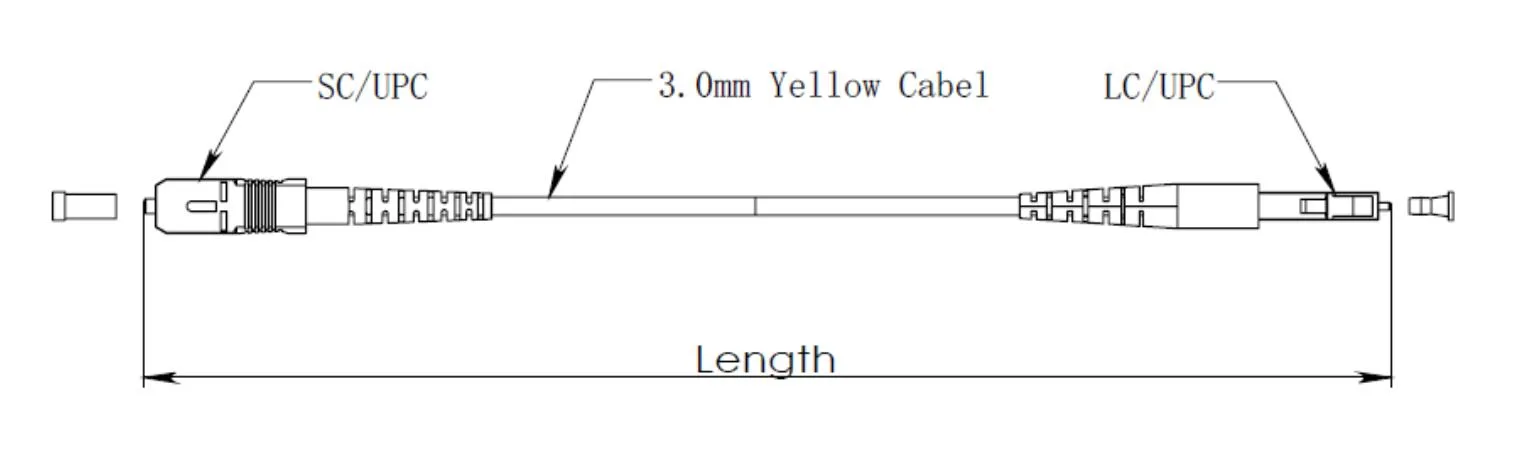

Umdwebo wobukhulu:

I-FAQ (Imibuzo Evame Ukubuzwa)

I-Q1: Ingabe ubude be-Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords bungenziwa ngendlela oyifisayo?

I-A1: Yebo, sihlinzeka ngezinsizakalo zobude obuzenza ngokwezifiso. Ubude obujwayelekile bungu-5m, kanti obunye ubude bungenziwa ngokwezifiso ngokwezidingo zakho ezithile. Ungaxhumana nethimba lethu labadayisi ukuze uqinisekise imininingwane yokwenza ngendlela oyifisayo.

Q2: Uyini umehluko phakathi kwezixhumi ze-SC/UPC ne-LC/UPC?

I-A2: Izixhumi ze-SC/UPC zinegobolondo elingunxande futhi zisebenzisa indlela yokunamathisela i-push-pull, okulula ukuyixhuma nokuyikhipha futhi inokuminyana okuphezulu kokufaka. Izixhumi ze-LC/UPC zincane ngosayizi, ezinobubanzi be-ferrule obungu-1.25mm, okuyingxenye yesixhumi se-SC, ezifanele izimo zokufaka eziminyana kakhulu njengezikhungo zedatha. Zombili izixhumi zamukela i-UPC ekupheleni kobuso bepholishi, engaqinisekisa ukusebenza okuhle kokudluliswa kwesignali.

I-Q3: Ingabe I-Orientalfiber Evamile ye-SC/UPC-LC/UPC 3.0mm Patch Cords ifaneleka ukusetshenziswa ngaphandle?

I-A3: Umkhiqizo wenzelwe ikakhulukazi ukusetshenziswa kwangaphakathi nangaphandle. Izinto zejacket ze-LSZH zinezindawo ezithile ezingangeni manzi futhi ezilwa nokuguga, kodwa akunconywa ukuthi zisetshenziswe isikhathi eside ezindaweni ezivulekile zangaphandle ezinesimo sezulu esibi. Ngezinhlelo zokusebenza zangaphandle, sincoma ukukhetha izintambo zethu ezizinikele ze-fiber optic patch zangaphandle.

Q4: Ungaqinisekisa kanjani ikhwalithi yezintambo ze-patch?

A4: Sinezinqubo eziqinile zokulawula ikhwalithi. Intambo yesichibi ngasinye inqanyulwa embonini engu-100% nokuhlolwa, okuhlanganisa ukulahlekelwa kokufaka, ukulahlekelwa ukubuyisela, ukusebenza kwesixhumi nezinye izinkomba. Ngesikhathi esifanayo, inkampani ithole isitifiketi se-ISO9001 yesistimu yokuphatha ikhwalithi, iqinisekisa ukuthi inqubo yokukhiqiza ihlangabezana nezindinganiso zamazwe ngamazwe, futhi umkhiqizo ngamunye ungahlangabezana nezidingo zekhwalithi ngaphambi kokushiya imboni.

Q5: Yisiphi isikhathi sokulethwa kwe-Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords?

I-A5: Isikhathi sokulethwa sincike enanini le-oda kanye nezidingo zokwenza ngokwezifiso. Ngemikhiqizo yobude obujwayelekile, isikhathi sokulethwa ngokuvamile siyizinsuku zokusebenza ezingu-3-7. Kuma-oda amakhulu noma imikhiqizo eyenziwe ngokwezifiso, isikhathi sokulethwa sizonwetshwa ngokufanelekile, futhi ithimba lethu lokuthengisa lizoqinisekisa isikhathi esithile sokulethwa nawe ngemuva kokuthola i-oda.
