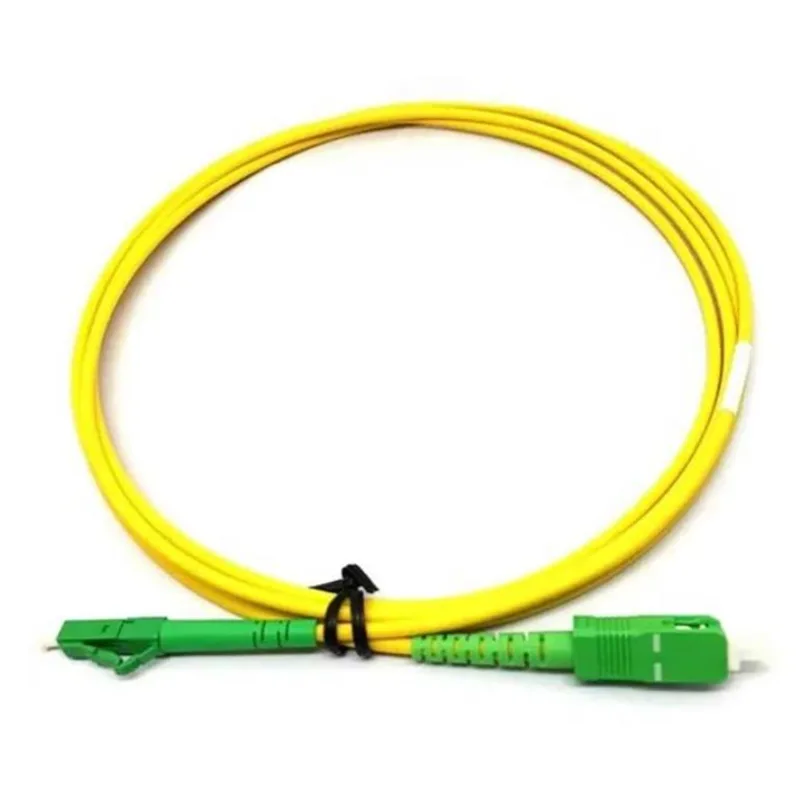

Izintambo ze-SC / APC-LC / APC 1.6mm

Isicelo:● Izikhungo zedatha● Izicelo ze-Ethernet● Izicelo ze-FTTH● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Ividiyo, idatha nezinsizakalo zezwi● Izicelo zemishini yokuhlolaIzici:● Isixhumi esiphezulu sokunemba● I-APC End Face Polish● sc, sonke isixhumi esisodwa se-fiber● Ubude obuhleliwe● Ife......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izikhungo zedatha

● Izicelo ze-Ethernet

● Izicelo ze-FTTH

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Ividiyo, idatha nezinsizakalo zezwi

● Izicelo zemishini yokuhlola

Izici:

● Isixhumi esiphezulu sokunemba

● I-APC End Face Polish

● sc, sonke isixhumi esisodwa se-fiber

● Ubude obuhleliwe

● Ifektri eyi-100% inqanyuliwe futhi ihlolwe

● Rohs ehambisana

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Imodi yefiber		Imodi eyodwa: itu-t g657a2
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ibanga lesixhumi (il)		Ibanga B
Ukulahleka kokufaka	I-	≤0.25 (i-typ.il: ≤0.12)
Ukulahlekelwa Ukulahleka	I-	≥55 (Mated RL: ≥60)
I-Buffer File Ububanzi	okukodwa	900
Umbala we-buffer fiber		Okumhlophe
Umbala wekhekhe wekhebula		-Qanda
Izinto ze-Cable Jacket		I-LSZH (i-Flame Retardancy)
Ububanzi bekhebula	m	1.6 ± 0.20
Ubude	m	1 + 0.1 / -0 3 + 0.1 / -0 I-5 + 0.2 / -0 30 + 0.5 / -0 noma ngokwezifiso
Uhlobo lwesixhumi		I-Port: SC / APC (Green) B Port: LC / APC (Green)
Endface IsiPolish		Ithusi elikhululiwe
Impahla ye-ferrule		-Ezitsha zobumba
Ukuphindaphinda Ukuphindaphinda		> Izikhathi ezingama-800
Radius encane yokugoba	m	≥10
I-Fibress / Cable Retation Hlangana	N	I-50N ± 2N at 5n / S 120s Isikhathi
Ukushisa okusebenzayo		-20 ° C ~ + 70 ℃
Ukushisa okushisa		-40 ℃ ~ + 85 ℃

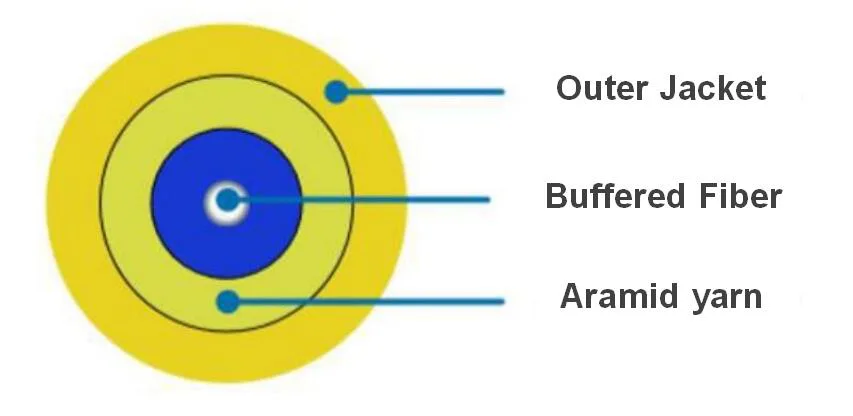

Ukwakhiwa Kwekhebula:

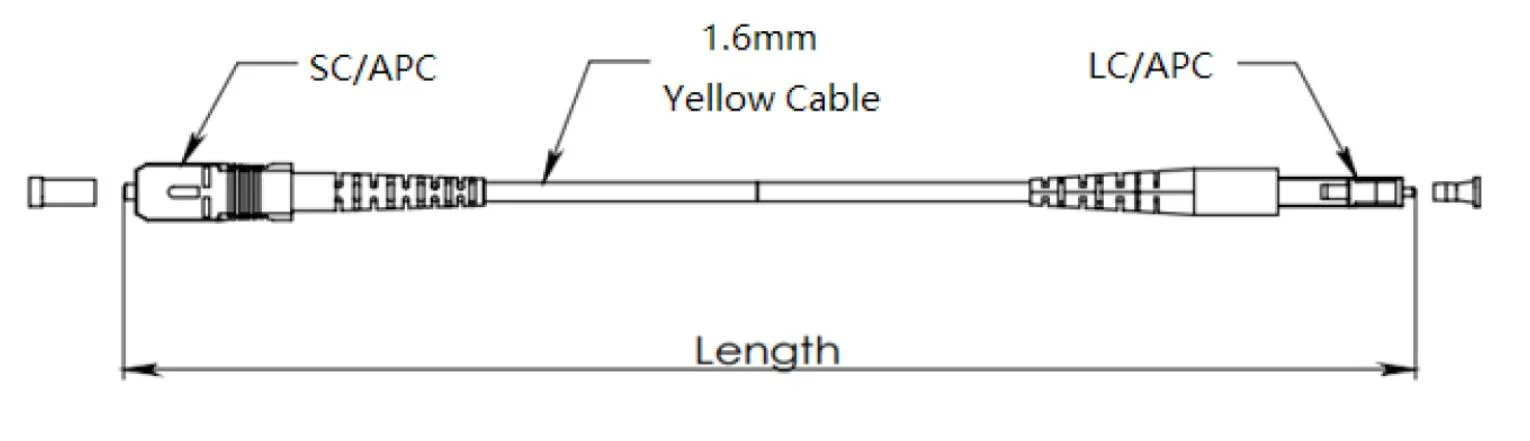

Umdwebo ojwayelekile:

Izakhiwo zemishini:

Into yendaba	Kudingeka Ukuhlolwa	Izidingo
Ukushisa ngokuhamba ngebhayisikile (IEC 61300-222 ED.2)	-25 ° C kuya ku- +70 ° C Isikhathi emazingeni okushisa amakhulu: 60 min I-1 ° C / Izinga lemithi Imijikelezo eyi-12	Njenga nqo nkosi IEC 61753-1
Ukushisa okulomile (IEC 61300-2-18)	Lokushisa: +70 ° C Isikhathi: 96 h
Ukushisa okushisayo (i-cyclic) (IEC 61300-2-46)	Lokushisa: +25 ° C kuya ku- +55 ° C Umswakama:> 90% RH Imijikelezo engu-6 (24 H / umjikelezo)
I-Vibration (Sinusoidal) (IEC 61300-2)	Ububanzi obuvame: 10 hz kuya ku-55 hz Inani lokushanela: 15 Ukushanela (10 - 55 - 10) Hz nge-axis ngayinye Ukukala kokushintsha imvamisa: 1 octave / min Inani lama-axes: 3 ama-perpendicular izembe Amplitude: 0,75 mm
Ukuqina Ukuqina (IEC 61300-2-2)	Imijikelezo engu-200
