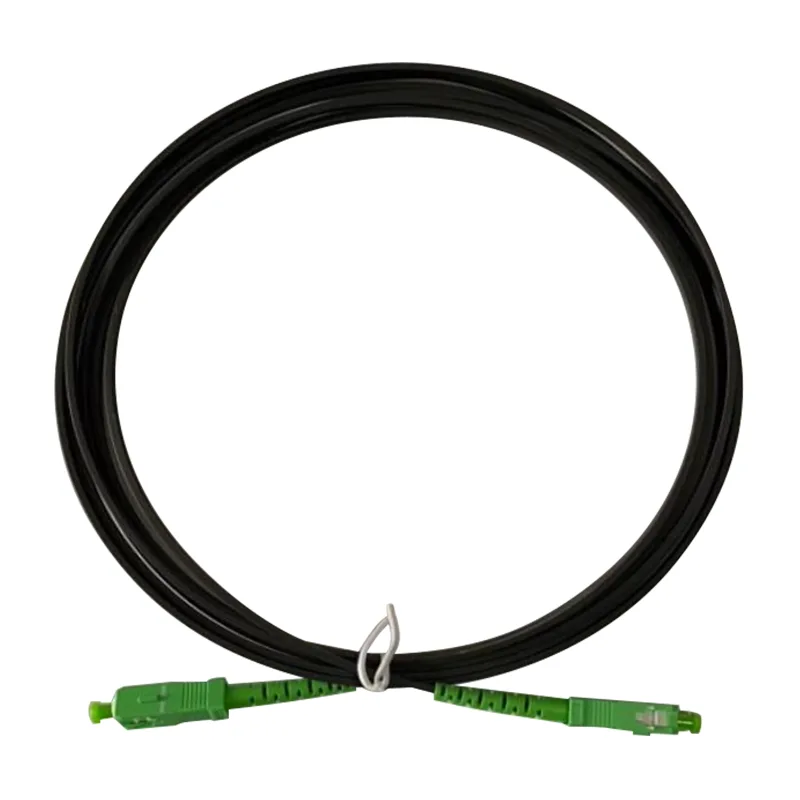

I-3mm Round Cable Check SC / APC- SC / APC PATAS CORDS

Isicelo:● Izikhungo zedatha● Izicelo ze-Ethernet● Izicelo ze-FTTH● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Ividiyo, idatha nezinsizakalo zezwi● Izicelo zemishini yokuhlolaIzici:● Isixhumi esiphezulu sokunemba● I-UPC & APC End FACE POX POLIP● sc, lc, sonke isixhumi esisodwa se-fiber● Ubud......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izikhungo zedatha

● Izicelo ze-Ethernet

● Izicelo ze-FTTH

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Ividiyo, idatha nezinsizakalo zezwi

● Izicelo zemishini yokuhlola

Izici:

● Isixhumi esiphezulu sokunemba

● I-UPC & APC End FACE POX POLIP

● sc, lc, sonke isixhumi esisodwa se-fiber

● Ubude obuhleliwe

● Ifektri eyi-100% inqanyuliwe futhi ihlolwe

● Rohs ehambisana

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Imodi yefiber		Imodi eyodwa: itu-t g657a1
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30
Ukulahlekelwa Ukulahleka	I-	≥55
I-Buffer File Ububanzi	okukodwa	900
Umbala we-buffer fiber		-Luhlaza okwesibhakabhaka
Umbala wekhekhe wekhebula		-Mnyama
Izinto ze-Cable Jacket		Lszh
Dielectric		Ukufakwa kwe-HDPE
Ububanzi bekhebula	m	Φ 23.0 ± 0.20
Ubude	m	10 + 0.5 / -0 30 + 0.5 / -0 50 + 0.5 / -0 75 + 1 / -0 I-100 + 1 / -0
Uhlobo lwesixhumi		I-SC / APC (eluhlaza)
Endface IsiPolish		Ithusi elikhululiwe
Impahla ye-ferrule		-Ezitsha zobumba
Ukuphindaphinda Ukuphindaphinda		> Izikhathi ezingama-800
Radius encane yokugoba	m	≥20
I-Fibress / Cable Retation Hlangana	N	I-50N ± 2N at 5n / S 120s Isikhathi
Ukushisa okusebenzayo	℃	0 ℃ ~ +50 ℃
Ukushisa okushisa	℃	-30 ℃ ~ +60 ℃
Ukushisa okushisa	℃	-30 ℃ ~ +60 ℃

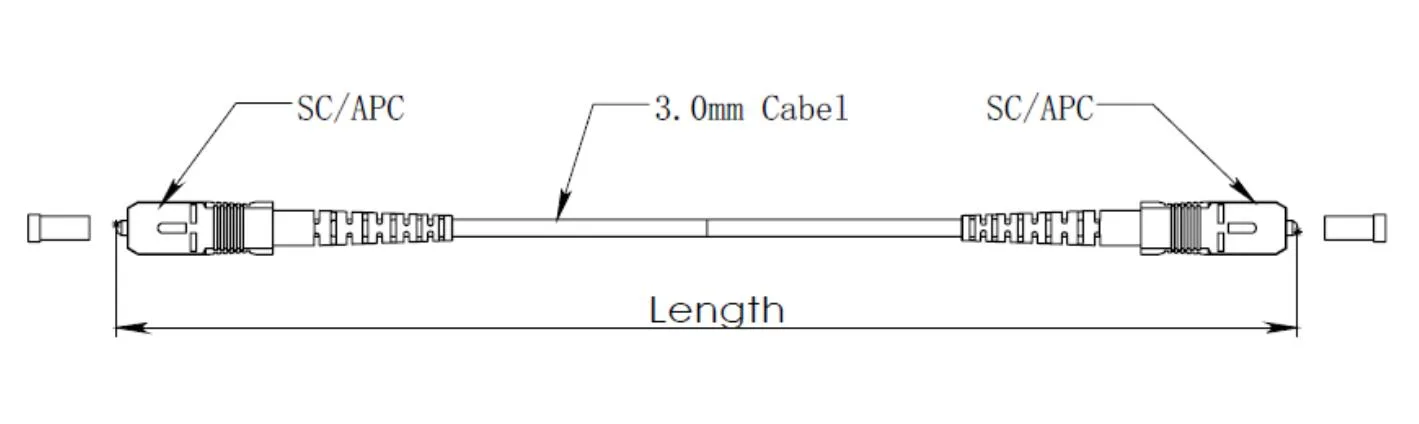

Umdwebo ojwayelekile:

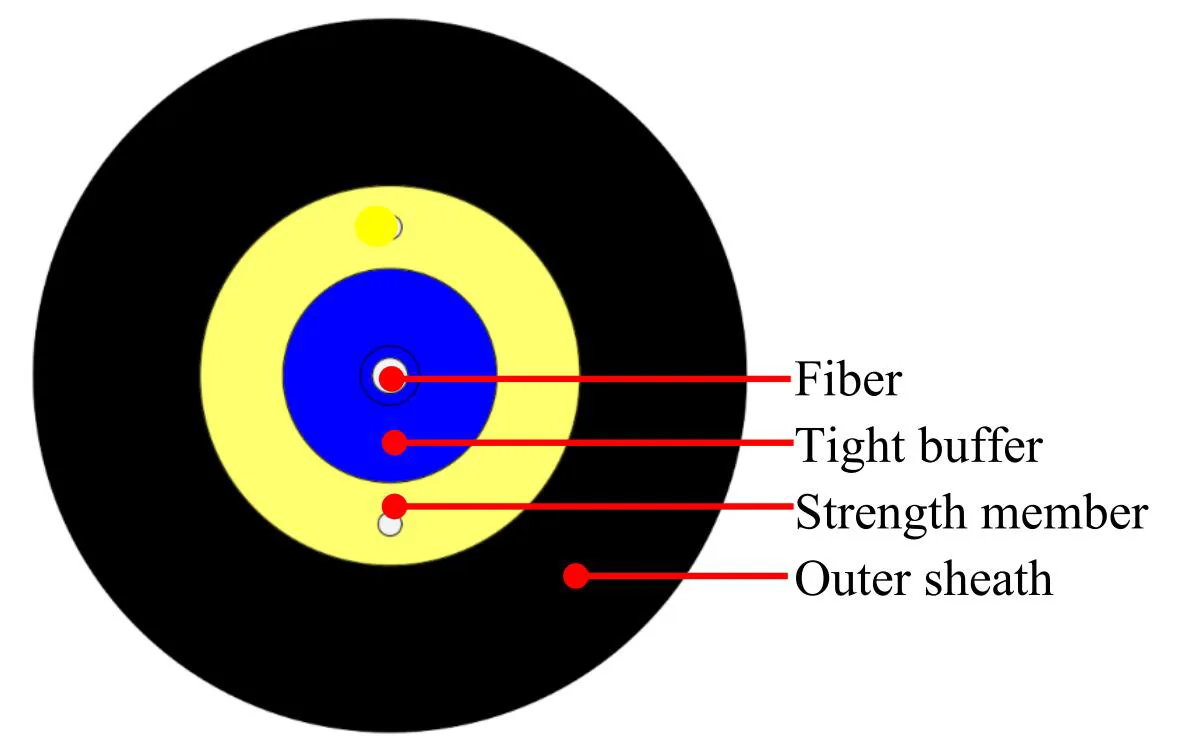

Ukwakhiwa Kwekhebula:

Into	Ukucacisa
I-FITIT Buffer fiber	Ukubalwa kwefayibha	1
	Uhlobo lwefayibha	G.657A1
	Umbala wefayibha	-Luhlaza okwesibhakabhaka
	Into uqobo lwayo	Lszh
	Ibanga elinquma phakathi ububanzi besingelezi	Φ0.9 ± 0.05mm
	Umbala we-buffer	-Luhlaza okwesibhakabhaka
Ilungu Lokuqinisekisa	Into uqobo lwayo	Intambo e-aramid
Umvini wangaphandle	Into uqobo lwayo	Lszh
	Ibanga elinquma phakathi ububanzi besingelezi	Φ3.0 ± 0.2 mm
	Umbala we-sheath ongaphandle	-Mnyama
Uphawu lwe-ink	Umbala	Okumhlophe

Isimo se-Fibre:

Zonke izici ze-cable fiber (i-fiber yekhebula eliqediwe) zizoba, okungenani, ngokuya ngesincomo se-ITU-T G.657A1 futhi zizoba ngale ndlela elandelayo.

Into yendaba	Ukucacisa
Uhlobo lwefayibha	Imodi eyodwa
Izinto zefayiji	I-silica yadedelwa
I-attenuation coefflign @ 1310 nm @ 1383NM @ 1460nm @ 1550 nm @ 1625nm	≤ 0.35 DB / KM ≤ 0.35 DB / KM ≤ 0.25 DB / KM ≤ 0.21 DB / KM ≤ 0.23 DB / KM
Intambo yokusika ikhebula	≤ 1260 nm
I-Zero-Disching Wavelength	1300 ~ 1324 nm
I-Zero-Dispicesion Slope	≤ 0.092 I-PS / (NM².km)
Pmd @ 1550 nm	≤0.1 I-PS / KM^1/2
Ukuhlakazeka kweChromatic @ 1285 ~ 1330 NM @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 I-PS / NM. KM) ≤5.3 I-PS / NM. KM) ≤18.0 I-PS / NM. KM) ≤22 I-PS / NM. KM)
I-Mode Field Diameter @ 1310 nm	8.8 ± 0.4um
Iphutha le-Core / Clad Hlanganisa iphutha	≤ 0.5 One
UCladding Ububanzi	125.0 ± 0.7 One
Cladding non-isikrini	≤5%
Ububanzi obuyisisekelo	242 ± 7 eyodwa
Ukuhlanganiswa okuyisisekelo / ukuhlanganiswa okuyisisekelo	≤10 μm
Ukuhlanganisa okungekhona	≤0.7%
I-Attenuation ngentambo yokugoba ikhebula 1 Turn 1 radius 10mm I-10 ijika i-1 radius 15mm	I-1550nm ≤0..75DB / KM 1625NM ≤1.5DB / KM I-1550nm ≤0.25DB / KM 1625NM ≤1.0DB / KM
