Φ 5Mm materproof round cable YOFC SC / APC Isixhumi Isixhumi sentambo

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

1. I-Patch Cord Technical Ukucaciswa

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30 (ejwayelekile: 0.15)
Ukulahlekelwa Ukulahleka	I-	≥ 55
Uhlobo lokuxhumeka		SC / APC
Impumelelo		-Ezitsha zobumba
Imijikelezo yokuxhuma		500
Umbala wekhekhe wekhebula		-Mnyama
Ikhethini elingaphandle kwekhebula	m	5.0 ± 0.2
Imodi yefiber		Imodi eyodwa: g657a1 noma g657a
Izinto ze-Cable Jacket		Hdpe
Isisindo sekhebula	Kg / km	22 (approx)
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	50 noma ngezifiso (Ukubekezelela: ± 0.5m)
Uhlobo lwesixhumi		Okokufaka: I-Accord H Optic SC / APC
Uhlobo lwesixhumi		Okuphumayo: I-Accord H Optic SC / APC
Traction (axial phakathi ikhebula nesixhumi)	N	200
Ibanga elingangeni manzi		IP68
Ukushisa okusebenzayo	℃	-25 ° C ~ + 70 ℃
Ukushisa okushisa	℃	-25 ° C ~ + 70 ℃

2. I-Cable Cross-isigaba

φ5mm Waterproof Round Cable YOFC SC/APC Connector Patch Cord

3. Usayizi wesakhiwo sekhebula

Into yendaba	Okuqukethwe	Ukucacisa
I-FITIT Buffer fiber	Inombolo	1
	Ukuthayipha	G.657A1 noma G.657A2
	Umbala	-Luhlaza okwesibhakabhaka
	Into uqobo lwayo	Lszh
	Ububanzi (mm)	0.90 ± 0.05
Umvini wangaphakathi	Ububanzi (mm)	2.8 ± 0.2
	Ubukhulu (mm)	0.25 ± 0.05
	Umbala	Okumhlophe
	Into uqobo lwayo	Lszh
Amandla welungu 1	Into uqobo lwayo	I-Flued Frp
Amandla welungu 1	Ubuningi	0.5 * 2
Amandla ilungu 2	Into uqobo lwayo	I-Aramid Yarn + Amanzi Avimba Ingilazi Yomvu
RPS COM STRON	Inombolo	1
RPS COM STRON	Umbala	-Bomvu
Ushise	Into uqobo lwayo	Hdpe
	Ububanzi (mm)	5.0 ± 0.2
	Ubukhulu (mm)	1.1 ± 0.1
	Umbala	-Mnyama
I-cable weigth	Kg / km	22 ± 3
Tile (n)		Isikhathi eside: 400n Isikhathi Esifushane: 800 N
Imiz. Ukugoba Radius		I-15XD (i-Static); 30XD (Dynamic)
Ibanga lokushisa elisebenzayo:	℃	-25 ℃ to + 70 ℃
Isitoreji / Ibanga lokushisa lokushisa:	℃	-25 ℃ to + 70 ℃
Ibanga lokushisa lokufaka:	℃	-25 ℃ to + 70 ℃

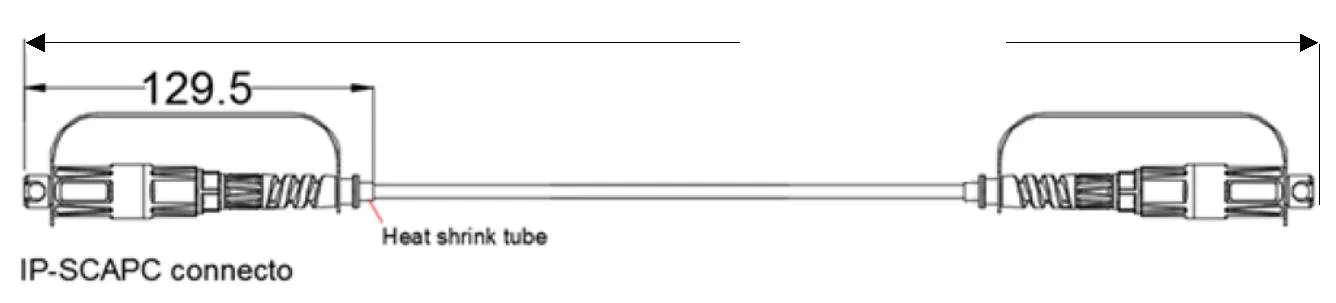

4. Umdwebo we-Patch Cord Disensional

φ5mm Waterproof Round Cable YOFC SC/APC Connector Patch Cord

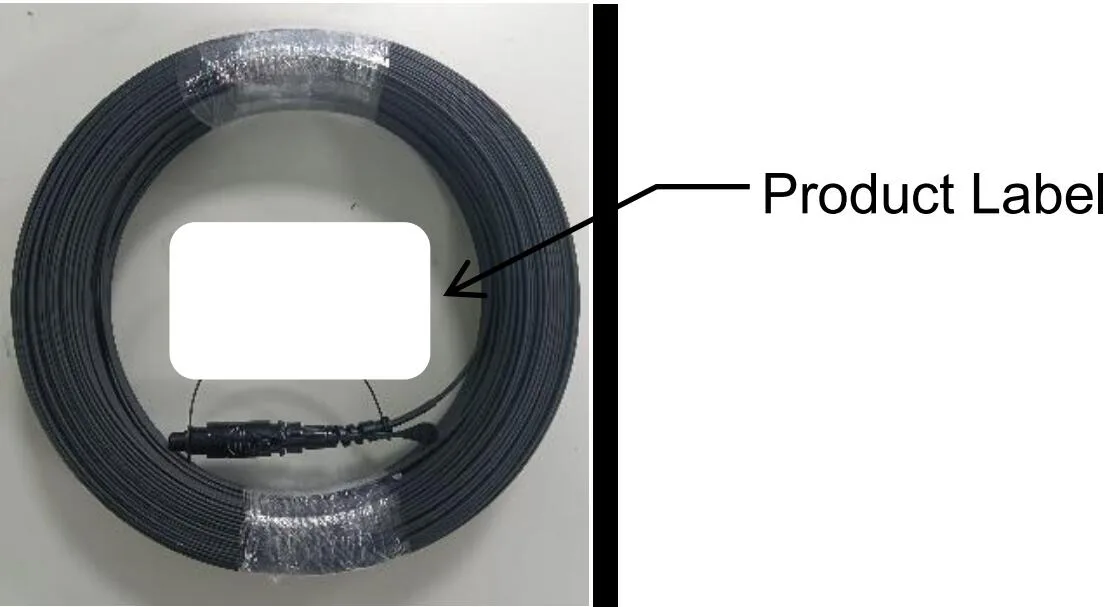

I-5. Iphakheji

φ5mm Waterproof Round Cable YOFC SC/APC Connector Patch Cord

Izidingo zokupakisha

φ5mm Waterproof Round Cable YOFC SC/APC Connector Patch Cord
