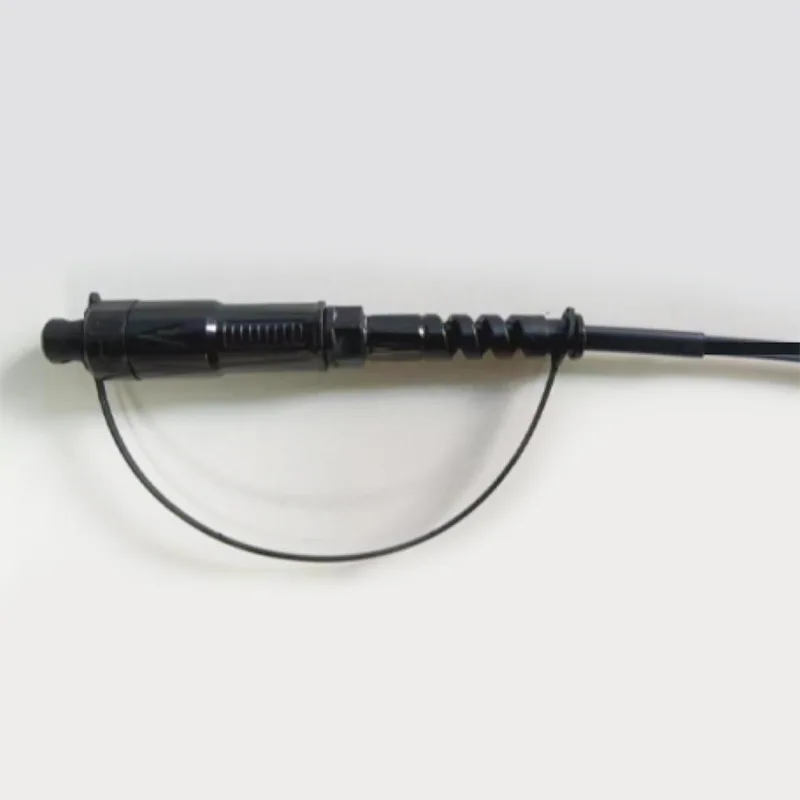

Ф5mm materproof round cable mini SC / APC Isixhumi Sokukhanya Intambo Yentambo

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30
Ukulahlekelwa Ukulahleka	I-	≥ 60
Uhlobo lokuxhumeka		SC / APC
Impumelelo		-Ezitsha zobumba
Imijikelezo yokuxhuma		500
Umbala wekhekhe wekhebula		-Mnyama
Ikhethini elingaphandle kwekhebula	m	5.0 ± 0.2
Imodi yefiber		Imodi eyodwa: G657A2
Izinto ze-Cable Jacket		Hdpe
Isisindo sekhebula	Kg / km	35 (approx)
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	30, 50, 100, 150, 200,250, 300, 400,500 noma ngokwezifiso (Ukubekezelela: ± 1.0m)
Uhlobo lwesixhumi		Okokufaka: I-Accord h optic mini SC
Uhlobo lwesixhumi		Okuphumayo: Isivumelwano SC / APC
Traction (axial phakathi ikhebula nesixhumi)	N	200
Ibanga elingangeni manzi		Okokufaka: IP68
Ukushisa okusebenzayo	℃	-40 ° C ~ + 70 ℃
Ukushisa okushisa	℃	-40 ° C ~ + 70 ℃

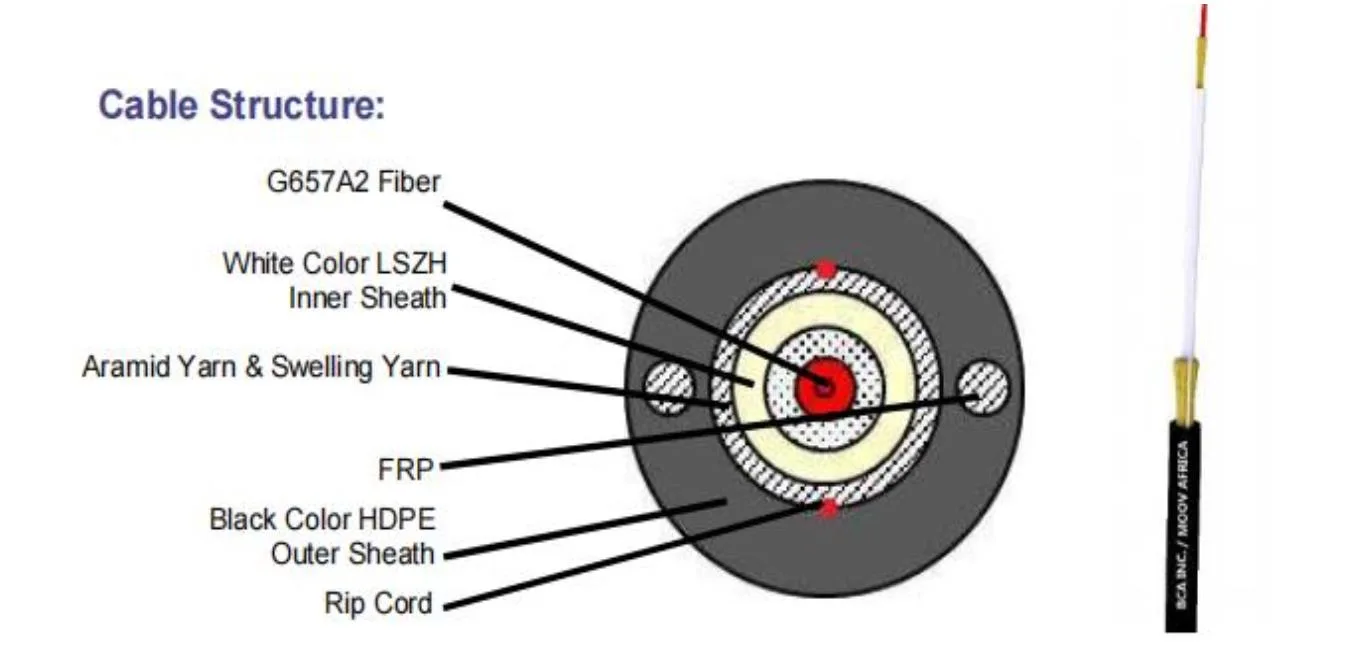

Ukwakhiwa Kwekhebula:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord

Isakhiwo sekhebula:

Into yendaba	Okuqukethwe	Ukucacisa
I-FITIT Buffer fiber	Inombolo	1
	Ukuthayipha	G.657A2
	Into uqobo lwayo	Lszh
	Umbala we-buffer	Okumhlophe
	Ububanzi (mm)	0.90 ± 0.05
Amandla welungu 1	Into uqobo lwayo	Intambo e-aramid
Umvini wangaphakathi	Ububanzi (mm)	2.8 ± 0.2
	Ubukhulu (mm)	0.25 ± 0.1
	Umbala	Okumhlophe
	Into uqobo lwayo	Lszh
Amandla ilungu 2	Into uqobo lwayo	Jikisana
Amandla ilungu 2	Ubuningi	0.5 * 2
Amandla ilungu 3	Into uqobo lwayo	I-Aramid Yarn + Amanzi Avimba Ingilazi Yomvu
RPS COM STRON	Ukucaciswa nombala	I-600D ebomvu
Umvini wangaphandle	Into uqobo lwayo	Hd
	Ububanzi (mm)	5.0 ± 0.2
	Ubukhulu (mm)	1.1 ± 0.1
	Umbala	-Mnyama
I-cable weigth	Kg / km	35 ± 3
Isimo esishubile	N	400 (isikhathi eside)
Isimo esishubile	N	I-800 (igama elifushane)
Hlikihla	N / 10cm	200 (isikhathi eside)
Hlikihla	N / 10cm	I-1000 (ithemu elifushane)
Imiz. Bend radius	m	I-10XD (i-Static)
Imiz. Bend radius	m	I-20XD (Dynamic)
Ibanga lokushisa elisebenzayo:		-20 ℃ to + 60 ℃
Isitoreji / Ibanga lokushisa lokushisa:		-20 ℃ to + 60 ℃

I-Optical Fiber:

Zonke izici ze-cable fiber (i-fiber yekhebula eliqediwe) zizoba, okungenani, ngokuya ngesincomo se-ITU-T G.657A2 futhi zizoba ngale ndlela elandelayo.

Into yendaba	Ukucacisa
Uhlobo lwefayibha	Imodi eyodwa
Izinto zefayiji	I-silica yadedelwa
I-attenuation coefflign @ 1310 nm @ 1383NM	≤ 0.36 DB / KM ≤ 0.36 DB / KM
@ 1490nm @ 1550 nm @ 1625nm Ngemuva kokwakheka kwekhebula @ 1310 nm @ 1550nm	≤ 0.25 DB / KM ≤ 0.22 DB / KM ≤ 0.25 DB / KM ≤ 0.36 DB / KM ≤ 0.22 DB / KM
Intambo yokusika ikhebula	≤ 1260 nm
I-Zero-Disching Wavelength	1300 ~ 1324 nm
I-Zero-Dispicesion Slope	≤ 0.092 PS / (NM2.KM)
Pmd @ 1550 nm	≤0.1 I-PS / KM1 / 2
Ukuhlakazeka kweChromatic @ 1285 ~ 1330 NM @ 1271 ~ 1360 nm @ 1550 nm @ 1625nm	≤3 I-PS / NM. KM) ≤5.3 I-PS / NM. KM) ≤18.0 I-PS / NM. KM) ≤22 I-PS / NM. KM)
I-Mode Field Diameter @ 1310 nm	8.5-9.3um
Iphutha le-Core / Clad Hlanganisa iphutha	≤ 0.5 One
UCladding Ububanzi	125.0 ± 0.7 One
Cladding non-isikrini	≤5%
Ububanzi obuyisisekelo	242 ± 7 eyodwa
Ukuhlanganiswa okuyisisekelo / ukuhlanganiswa okuyisisekelo	≤10 μm
Ukuhlanganisa okungekhona	≤0.7%
I-Attenuation ngentambo yokugoba ikhebula 1 Turn 1 mandrel 7.5mm I-10 ijika 1 mandrel 15mm	I-1550nm ≤ δ 0.10 DB / KM I-1550nm ≤ δ 0.03 DB / KM

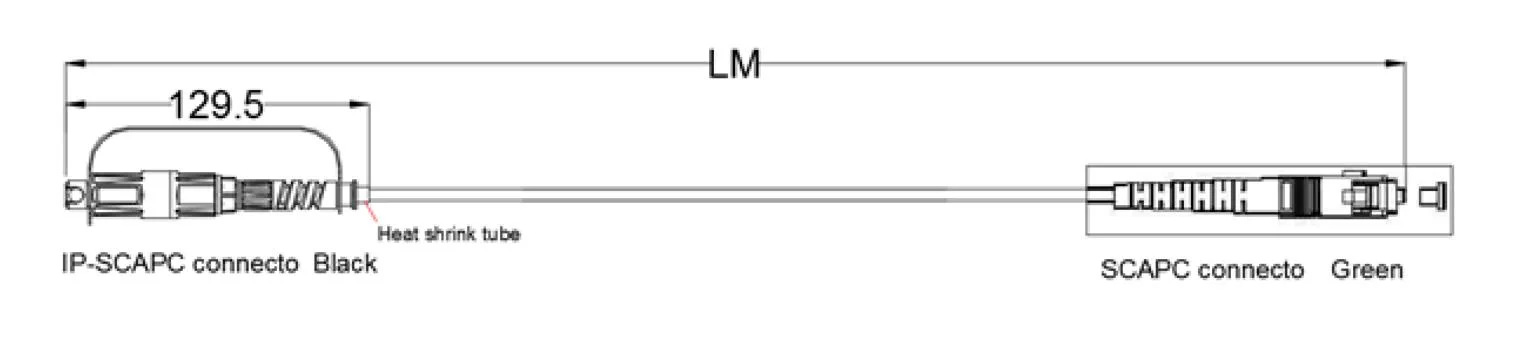

Umdwebo ojwayelekile:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord

Iphakheji:

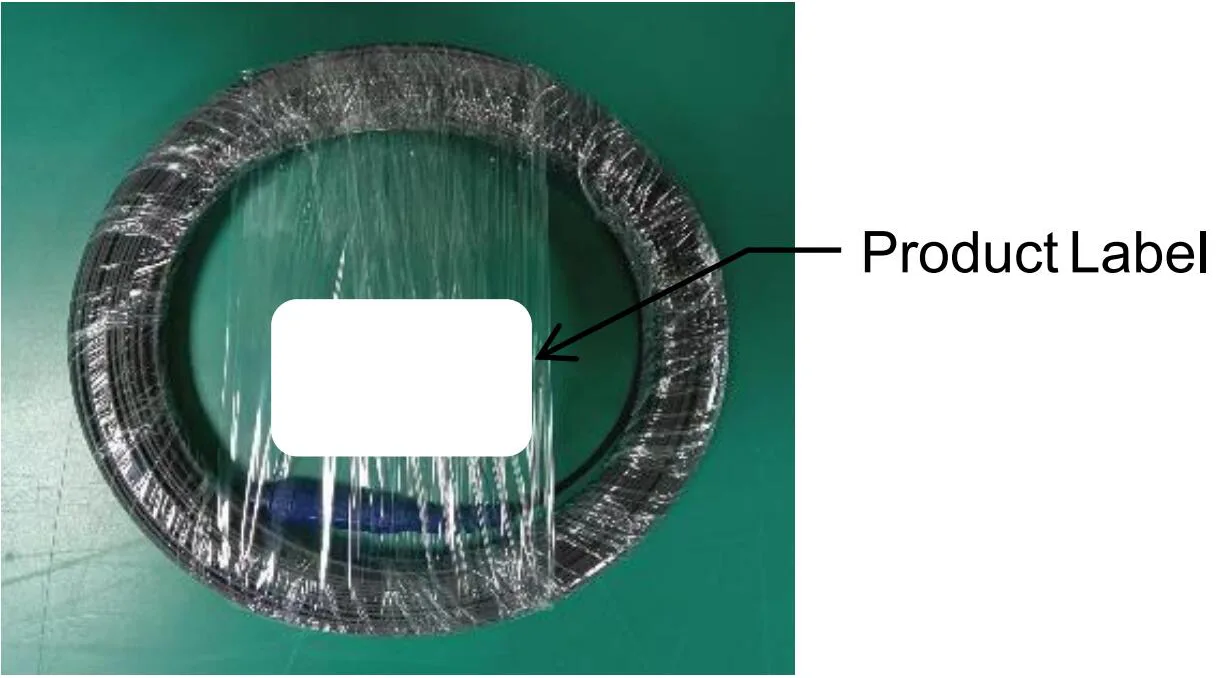

I-fiber coil winding:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord

Izidingo zokupakisha:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord
