Φ 5Mm materproof fiber ikhebula Optitap SC / APC Isixhumi Isixhumi sentambo

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

Izintambo zentambo yezobuchwepheshe

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.50 (ejwayelekile: 0.3)
Ukulahlekelwa Ukulahleka	I-	≥55 (apc)
Umbala wekhekhe wekhebula		-Mnyama
Ikhethini elingaphandle kwekhebula	m	Φ0.0 (± 0.2)
Imodi yefiber		Imodi eyodwa: G657 A2
Izinto ze-Cable Jacket		I-LSZH (Ukuvikelwa kwe-UV nokumelana nomlilo)
Isisindo sekhebula	Kg / km	28 (approx)
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	50, 100, 150, 200, 250, 300, 400, 500, 600 (Ukubekezelela: ± 0.5m)
Uhlobo lwesixhumi		Okokufaka: I-Accord Optitap SC / APC
Uhlobo lwesixhumi		Okukhipha: I-Accord Optitap SC / APC
Ibanga elingangeni manzi		IP68
Amandla asheshayo	N	200
Ukushisa okusebenzayo	℃	-20 ~ +65

I-Cable Cross-isigaba

φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord

Usayizi wesakhiwo wekhebula

Into yendaba	Okuqukethwe	Ukucacisa
Ingqondo	Inombolo	1
	Ukuthayipha	G.657A2
	Umbala	-Luhlaza okwesibhakabhaka
I-Microbeam tube	Into uqobo lwayo	Lszh
	Umbala	-Luhlaza okwesibhakabhaka
	Ububanzi (mm)	0.9 ± 0.05
Umvini wangaphakathi	Ububanzi (mm)	2.2 ± 0.05
	Ubukhulu (mm)	0.4 ± 0.05
	Umbala	I-Ivory / White / Beige
	Into uqobo lwayo	Lszh
	Amandla welungu 1	I-Aramid Yarn 1100D * 3
Amandla ilungu 2	Into uqobo lwayo	Intambo e-aramid
Amandla ilungu 2	Ubuningi	1100d * 7
Amandla ilungu 3	Into uqobo lwayo	I-Flued Frp
Amandla ilungu 3	Ububanzi (mm)	0.5 * 2
RPS COM STRON	Inombolo	1
RPS COM STRON	Umbala	-Bomvu
Ushise	Into uqobo lwayo	I-LSZH (Ukuvikelwa kwe-UV nokumelana nomlilo)
	Ububanzi (mm)	5.0 ± 0.2
	Ubukhulu (mm)	1.1 ± 0.1
	Umbala	-Mnyama
Isisindo sekhebula	Kg / km	28 ± 3

Ukusebenza kwekhebula le-fiber optical

Zonke izici ze-cable fiber (i-fiber yekhebula eliqediwe) zizoba, okungenani, ngokuya ngesincomo se-ITU-T G.657A2 futhi zizoba ngale ndlela elandelayo.

Into yendaba	Ukucacisa
Uhlobo lwefayibha	Imodi eyodwa
Izinto zefayiji	I-silica yadedelwa
I-attenuation coefflign @ 1310 nm @ 1383NM @ 1490nm @ 1550 nm @ 1625nm Ngemuva kokwakheka kwekhebula @ 1310 nm @ 1550 nm	≤ 0.36 DB / KM ≤ 0.36 DB / KM ≤ 0.25 DB / KM ≤ 0.22 DB / KM ≤ 0.25 DB / KM ≤ 0.36 DB / KM ≤ 0.22 DB / KM
Intambo yokusika ikhebula	≤ 1260 nm
I-Zero-Disching Wavelength	1300 ~ 1324 nm
I-Zero-Dispicesion Slope	≤ 0.092 PS / (NM2.KM)
Pmd @ 1550 nm	≤0.1 I-PS / KM1 / 2
Ukuhlakazeka kweChromatic @ 1285 ~ 1330 NM @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 I-PS / NM. KM) ≤5.3 I-PS / NM. KM) ≤18.0 I-PS / NM. KM) ≤22 I-PS / NM. KM)
I-Mode Field Diameter @ 1310 nm	8.5-9.3um
Iphutha le-Core / Clad Hlanganisa iphutha	≤ 0.5 One
UCladding Ububanzi	125.0 ± 0.7 One
Cladding non-isikrini	≤5%
Ububanzi obuyisisekelo	242 ± 7 eyodwa
Ukuhlanganiswa okuyisisekelo / ukuhlanganiswa okuyisisekelo	≤10 μm
Ukuhlanganisa okungekhona	≤0.7%
I-Attenuation ngentambo yokugoba ikhebula 1 Turn 1 mandrel 7.5mm I-10 ijika 1 mandrel 15mm	I-1550nm ≤ δ 0.10 DB / KM I-1550nm ≤ δ 0.03 DB / KM

Ububanzi bokushisa kwesicelo

Uhla lokushisa olusebenzayo	: -20 ℃ to + 65 ℃
Isitoreji / Ibanga lokushisa lokushisa	: -20 ℃ to + 65 ℃
Ibanga lokushisa lokufaka	: -20 ℃ to + 65 ℃

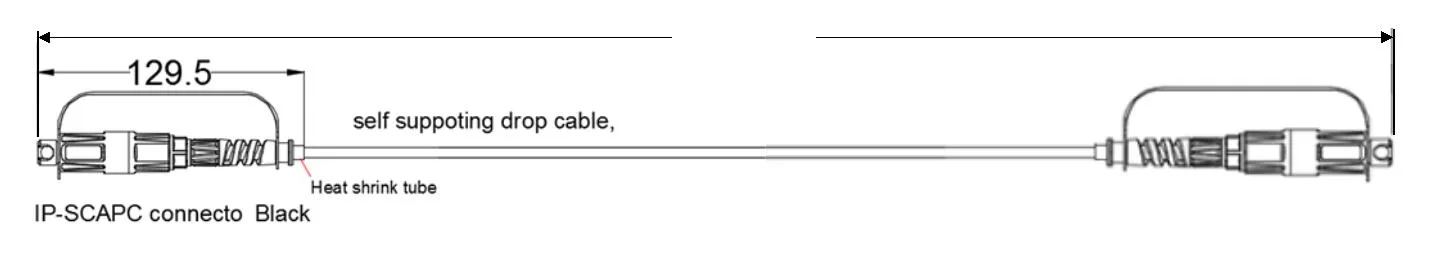

Umdwebo onobukhulu

φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord

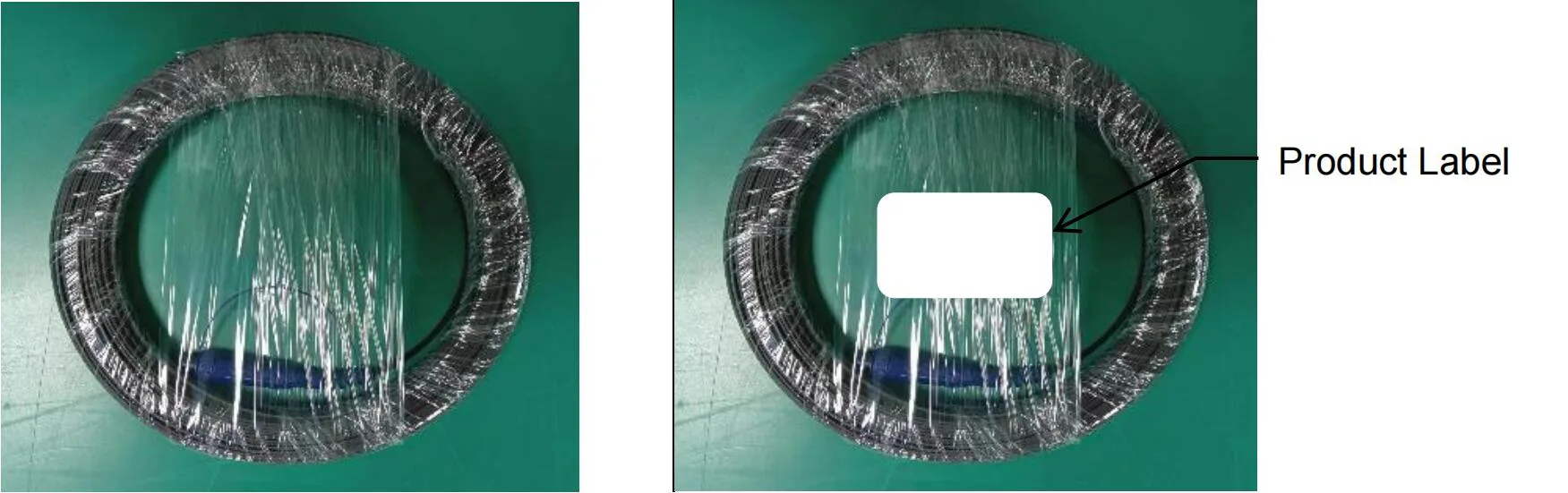

Isishuqulu

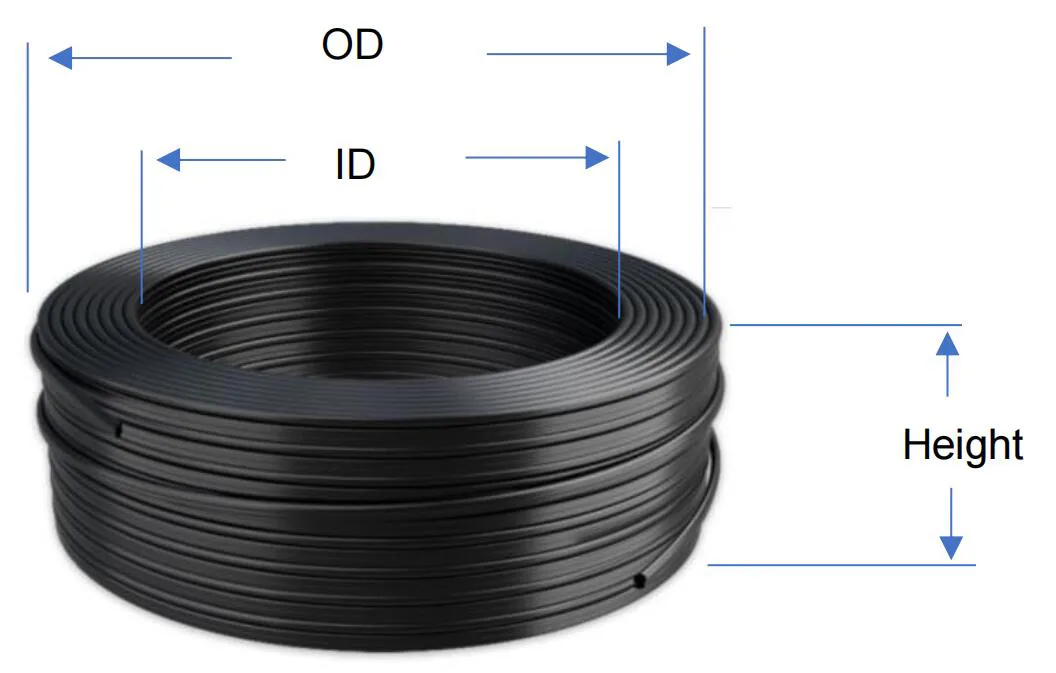

I-fiber coil winding:

φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord
