Φ 5Mm amanzi angena emanzini akhipha intambo cable h optic SC / APC Isixhumi Isixhumi sentambo

Isicelo:● Izinhlelo ze-FTTX / FTTH● Izicelo ze-Ethernet● Izixhumanisi ze-Catv● Ukusatshalaliswa kwesiginali ye-Optical● Amanethiwekhi we-Passive Optical (PON)● I-Backbone, Izicelo Ezivundlile Nezimpikiswano● Amabhokisi esibulalayo e-depmerminated● Izindawo zangaphandle; Imvelo enokhahloIzici:● Ukula......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● Izinhlelo ze-FTTX / FTTH

● Izicelo ze-Ethernet

● Izixhumanisi ze-Catv

● Ukusatshalaliswa kwesiginali ye-Optical

● Amanethiwekhi we-Passive Optical (PON)

● I-Backbone, Izicelo Ezivundlile Nezimpikiswano

● Amabhokisi esibulalayo e-depmerminated

● Izindawo zangaphandle; Imvelo enokhahlo

Izici:

● Ukulahleka kokufaka okuphansi, ukulahleka okuphezulu okuphezulu.

● Kuhle ukuphindaphinda nokushintshana.

● Ukufakwa kwe-100%, ukulahleka kokubuyisa, ubuso bokuphela kanye.

● Ukuhlolwa kokuphazanyiswa.

● Ukukhuthazela okuhle kakhulu kwemishini.

● Ukuthobela iTelcordia Gr-326-Core.

● Ukuqinisekisa ukusebenza okuphezulu nokwethenjwa ekuphathweni kwe-Optical Carying.

● Ukufakwa okusheshayo nokulula nokubuyiselwa kabusha.

● Ukusingathwa okulula, asikho isidingo sethuluzi elikhethekile.

● ip68 materproof.

1. I-Patch Cord Technical Ukucaciswa

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30 (ejwayelekile: 0.15)
Ukulahlekelwa Ukulahleka	I-	≥ 60
Uhlobo lokuxhumeka		SC / APC
Impumelelo		-Ezitsha zobumba
Imijikelezo yokuxhuma		500
Umbala wekhekhe wekhebula		-Mnyama
Ikhethini elingaphandle kwekhebula	m	5.0 ± 0.2
Imodi yefiber		Imodi eyodwa: G657A2
Izinto ze-Cable Jacket		Hdpe
Isisindo sekhebula	Kg / km	22 (approx)
Okuqukethwe okuphrintiwe		Ngokwezifiso
Ubude	m	50, 75, 125, 175 noma ngokwezifiso (Ukubekezelela: ± 0.5m)
Uhlobo lwesixhumi		Okokufaka: I-Accord H Optic SC / APC
Uhlobo lwesixhumi		Okuphumayo: I-Accord H Optic SC / APC
Traction (axial phakathi ikhebula nesixhumi)	N	200
Ibanga elingangeni manzi		IP68
Ukushisa okusebenzayo	℃	-25 ° C ~ + 70 ℃
Ukushisa okushisa	℃	-25 ° C ~ + 70 ℃

2. I-Cable Cross-isigaba

φ5mm Waterproof Drop Cable H Optic SC/APC Connector Patch Cord

3. Usayizi wesakhiwo sekhebula

Into yendaba	Okuqukethwe	Ukucacisa
I-FITIT Buffer fiber	Inombolo	1
	Ukuthayipha	G.657A2
	Umbala	-Luhlaza okwesibhakabhaka
	Into uqobo lwayo	Lszh
	Ububanzi (mm)	0.90 ± 0.05
Umvini wangaphakathi	Ububanzi (mm)	2.8 ± 0.2
	Ubukhulu (mm)	0.25 ± 0.05
	Umbala	Okumhlophe
	Into uqobo lwayo	Lszh
Amandla welungu 1	Into uqobo lwayo	I-Flued Frp
Amandla welungu 1	Ubuningi	0.5 * 2
Amandla ilungu 2	Into uqobo lwayo	I-Aramid Yarn + Amanzi Avimba Ingilazi Yomvu
RPS COM STRON	Inombolo	1
RPS COM STRON	Umbala	-Bomvu
Ushise	Into uqobo lwayo	Hdpe
	Ububanzi (mm)	5.0 ± 0.2
	Ubukhulu (mm)	1.1 ± 0.1
	Umbala	-Mnyama
I-cable weigth	Kg / km	22 ± 3

4. I-Cable Material

I-4.1 fiber eptical

Zonke izici ze-cable fiber (i-fiber yekhebula eliqediwe) zizoba, okungenani, ngokuya ngesincomo se-ITU-T G.657A2 futhi zizoba ngale ndlela elandelayo.

Into yendaba	Ukucacisa
Uhlobo lwefayibha	Imodi eyodwa
Izinto zefayiji	I-silica yadedelwa
I-attenuation coefflign @ 1310 nm @ 1383NM @ 1490nm @ 1550 nm @ 1625nm Ngemuva kokwakheka kwekhebula @ 1310 nm @ 1550 nm	≤ 0.36 DB / KM ≤ 0.36 DB / KM ≤ 0.25 DB / KM ≤ 0.22 DB / KM ≤ 0.25 DB / KM ≤ 0.36 DB / KM ≤ 0.22 DB / KM
Intambo yokusika ikhebula	≤ 1260 nm
I-Zero-Disching Wavelength	1300 ~ 1324 nm
I-Zero-Dispicesion Slope	≤ 0.092 PS / (NM2.KM)
Pmd @ 1550 nm	≤0.1 I-PS / KM1 / 2
Ukuhlakazeka kweChromatic @ 1285 ~ 1330 NM @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 I-PS / NM. KM) ≤5.3 I-PS / NM. KM) ≤18.0 I-PS / NM. KM) ≤22 I-PS / NM. KM)
I-Mode Field Diameter @ 1310 nm	8.5-9.3um
Iphutha le-Core / Clad Hlanganisa iphutha	≤ 0.5 One
UCladding Ububanzi	125.0 ± 0.7 One
Cladding non-isikrini	≤5%
Ububanzi obuyisisekelo	242 ± 7 eyodwa
Ukuhlanganiswa okuyisisekelo / ukuhlanganiswa okuyisisekelo	≤10 μm
Ukuhlanganisa okungekhona	≤0.7%
I-Attenuation ngentambo yokugoba ikhebula 1 Turn 1 mandrel 7.5mm I-10 ijika 1 mandrel 15mm	I-1550nm ≤ δ 0.10 DB / KM I-1550nm ≤ δ 0.03 DB / KM

5. Ukusebenza kwekhebula le-fiber optical

5.1 I-RACE DRADISIS:

I-10 X ububanzi (ngemuva kokufakwa): 50mm

I-20 X ububanzi (ngesikhathi sokufakwa): 100mm

6. I-Mechanical & Environmental Performance Test

S / N	Into yendaba	Indlela yokuhlola	Isimo sokwamukelwa
1	Amandla asheshayo IEC 794-1-E1	- umthwalo: 1200n - Ubude bekhebula ngaphansi kwemithwalo: 50 m - Isikhathi sokulayisha: ≥1min.	- Ukushintsha Ukushintsha ≤ 0.1 DB / Km @ 1550 NM -Akulimaza ijakhethi yangaphandle nezinto zangaphakathi.
2	Ukuhlolwa kwe-Crush IEC 794-1-E3	- umthwalo: 500n / 100mm * 100mm - Isikhathi sokulayisha: ≥1min.	- Ukushintsha Ukushintsha ≤ 0.1 DB / Km @ 1550 NM -Akulimaza ijakhethi yangaphandle nezinto zangaphakathi.
3	Ukumelana nomthelela IEC 794-1-E4	- Amaphuzu Wethonya: 5 -Izikhathi zephuzu ngalinye: 1 - Umthelela wamandla: 1n.m - Imisakazo yekhanda lesando: 12.5mm - Izinga elinomthelela: 2 sec / umjikelezo	- Ukushintsha Ukushintsha ≤ 0.1 DB / Km @ 1550 NM -Akulimaza ijakhethi yangaphandle nezinto zangaphakathi.
4	Ukugoba okuphindaphindiwe IEC 794-1-E6	- Ukugoba Radius: 20 x ububanzi bekhebula - umthwalo: 20 n - Izinga Lokuguquguquka: 3 Sec / Umjikelezo - I-cyclic curvature: 30	- Ukushintsha Ukushintsha ≤ 0.1 DB / Km @ 1550 NM -Akulimaza ijakhethi yangaphandle nezinto zangaphakathi.
5	Ijerabi IEC 794-1-E7	- Ubude: 1 m - umthwalo: 50 n - Izinga elisontekile: 1 min / umjikelezo - Twist Angle: ± 180 ° - Cha. Wemjikelezo: 10	- Ukushintsha Ukushintsha ≤ 0.1 DB / Km @ 1550 NM -Akulimaza ijakhethi yangaphandle nezinto zangaphakathi.
6	Izinga lokushisa nokubanda Ukuhlolwa Kwamabhayisikile IEC 794-1-F1	- Isinyathelo sokushisa: + 20 ℃ → -25 ℃ → + 70 → + 20 ℃ - Isikhathi ngasinye isinyathelo: amahora angama-24 - Inani lomjikelezo: 2	- Ukushintsha Ukushintsha ≤ 0.1 DB / Km @ 1550 NM - Akukho break break futhi akukho monakalo we-sheath.

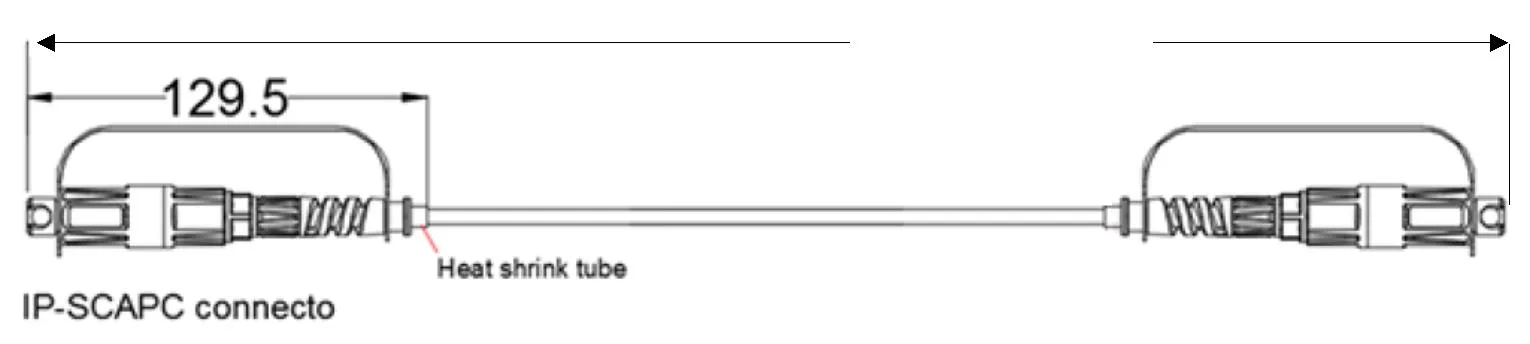

7

φ5mm Waterproof Drop Cable H Optic SC/APC Connector Patch Cord

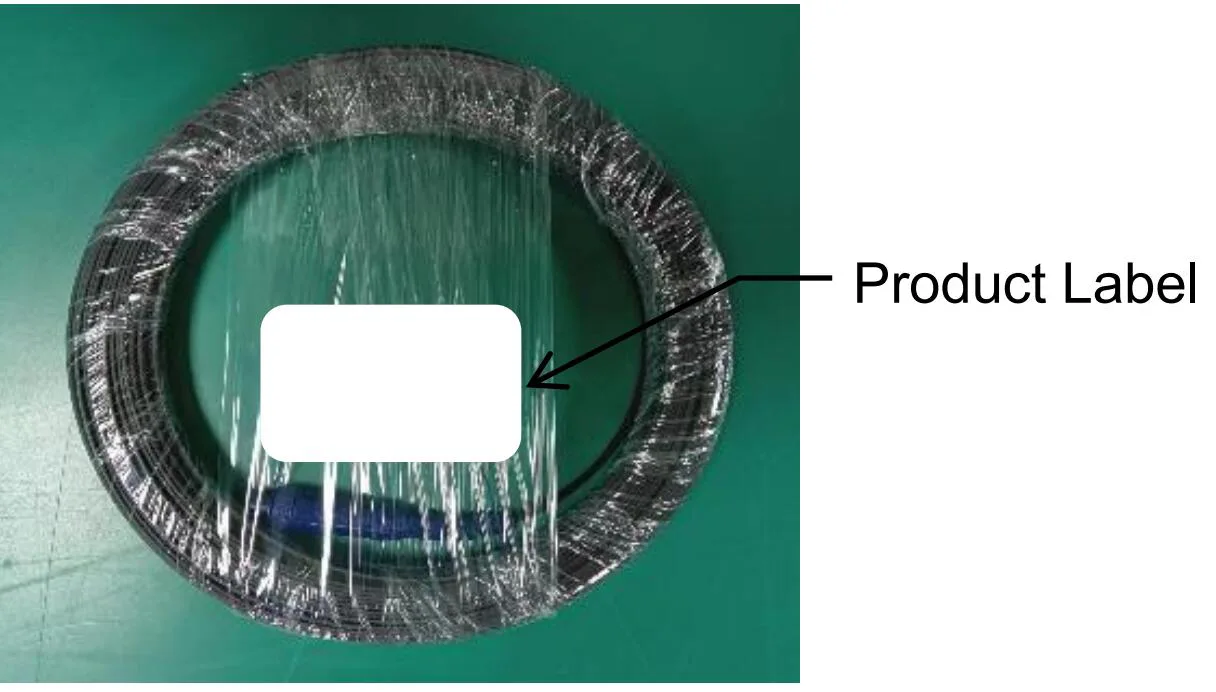

8. Iphakheji

φ5mm Waterproof Drop Cable H Optic SC/APC Connector Patch Cord

Izidingo zokupakisha

φ5mm Waterproof Drop Cable H Optic SC/APC Connector Patch Cord
