I-Fiber Opting Optip Optic Cable Distribution Box TFS-16SX

1. Okuvamile

1.1 Incazelo

Ibhokisi lokusabalalisa le-Optical Presed Optical njenge-FTTX Network Distribution Network Distribution Ourction, nikeza ukuxhumana okusheshayo nokwethembekile, ukuvikelwa okuhle kanye nokuphatha inethiwekhi ye-FTTX.

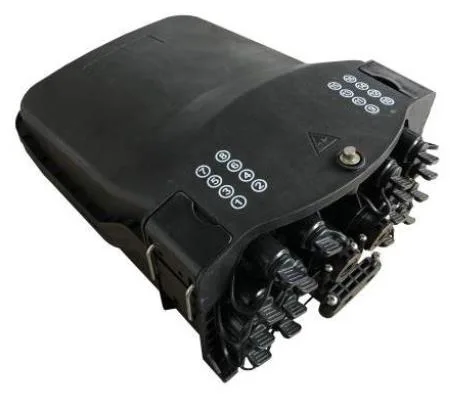

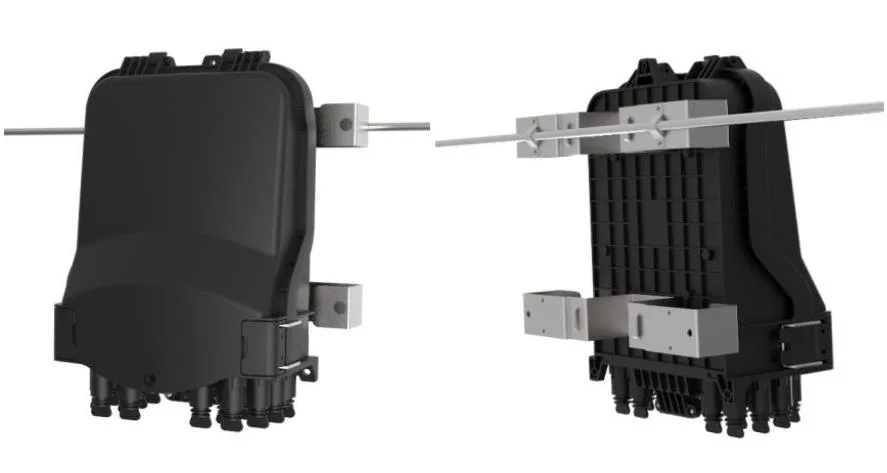

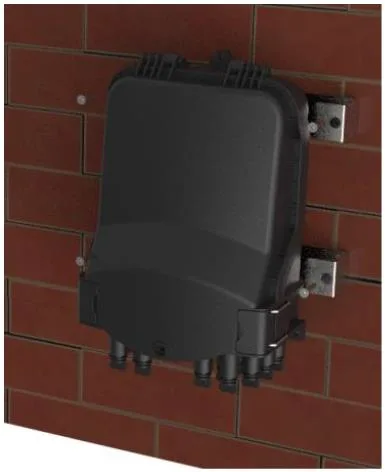

Ukubukeka kwe-GFS-16SX

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

1.3 Izicelo zemvelo

2. Izici

1. Design wesakhiwo esithuthukile, ukusebenza okulula kanye nomzila ofanele.

2. Indwangu: I-PP + gf.

3. Ubufakazi obunamanzi, amanzi angenamanzi, ubufakazi bothuli, anti-ukuguga.

4. Izinga lokuvikelwa phezulu ku-IP65.

I-5. 1 I-OVAL Optical Cable Entry, 2 IBANDLA LESI-STANCH OPTICY OPTICICE ONTIes kanye Adaptha ayi-16 axhunyiwe kwangaphambili.

I-6. Kutholakala amathoyimitha e-splice ahlukahlukene.

7

8. Ingafakwa nge-Drop Cable Startore Tray ukuze uhlangabezane nokugcinwa kwamamitha angama-50 amamitha ayi-5mm nxazonke.

3. Ukucaciswa

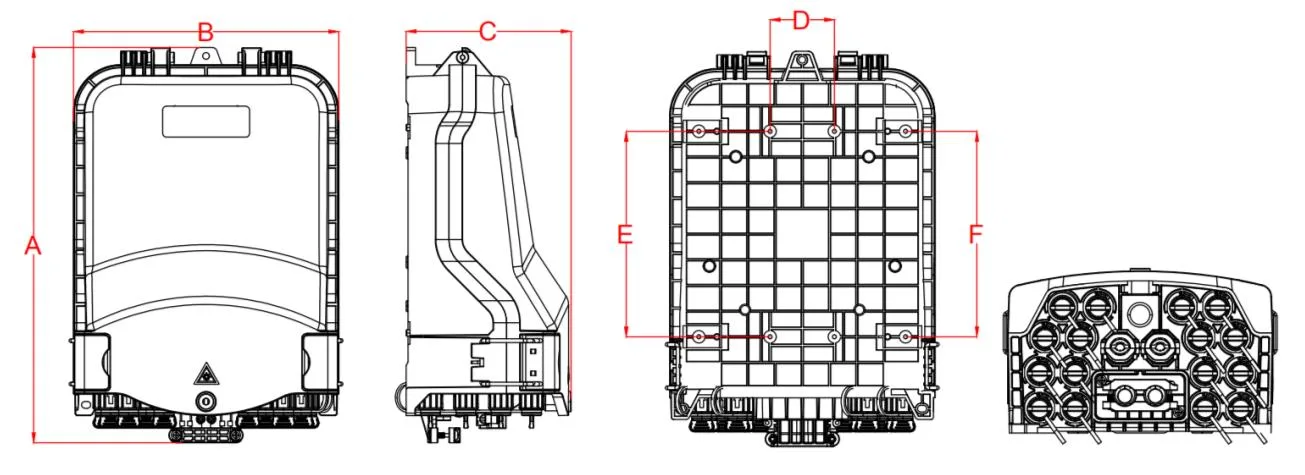

3.1 Ukucaciswa Kwemishini

4. Ukucushwa

4.1 Amapharamitha aphambili we-Optical

Amapharamitha abonakalayo akhonjiswe etafuleni ngenhla ngamanani azenzakalelayo, futhi angenziwa ngokwezifiso ngokuya ngezidingo.

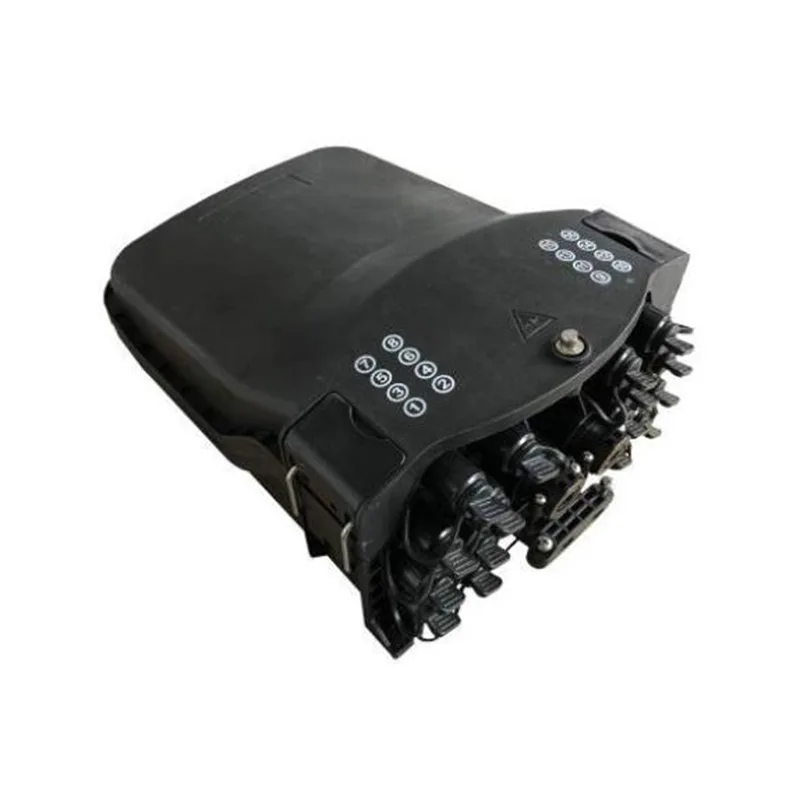

5. Isithombe somkhiqizo

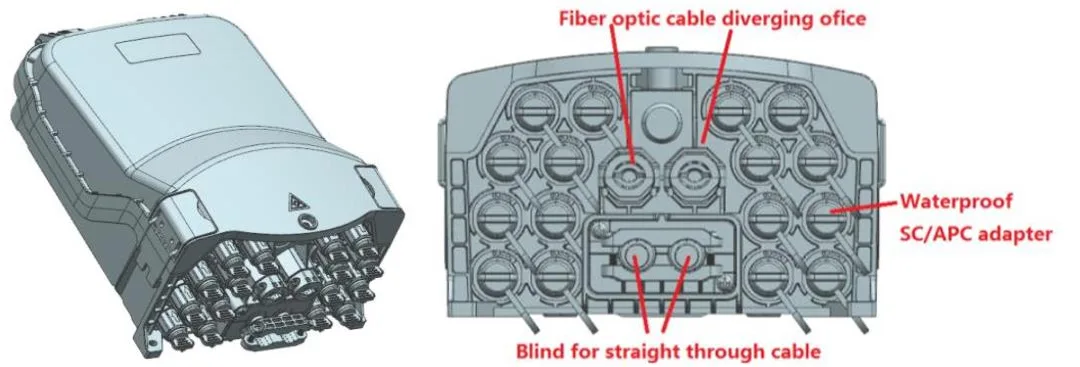

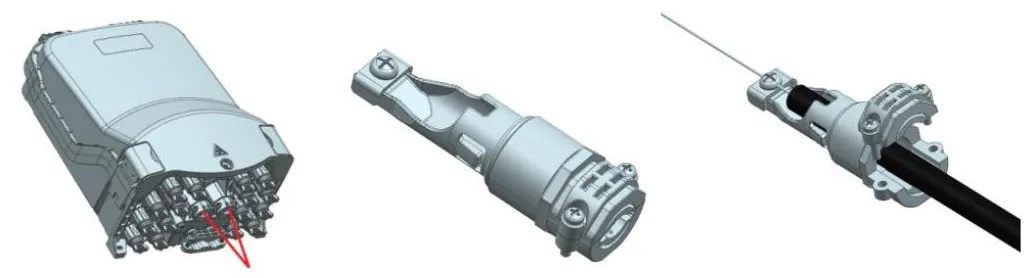

5.1 Izindlela zekhebula zomkhiqizo:

I-5.2 ipulaki okusheshayo

1. Khulula isikulufa bese ususa uxhumano.

2. Khulula isikulufa bese ususa ipuleti lokucindezela.

3. Khulula isikulufa epuletini lokucindezela kwelungu lamandla.

4. Susa ipulaki yerabha nezingxenye zepulasitiki.

5. Sika ipulaki yerabha ngokuya ngosayizi wekhebula.

6

7 Ingeze ilungu lamandla kwisembozo, cindezela phansi ipuleti lokucindezela, bese uqinisa isikulufa ukulungisa ilungu lamandla.

8. Cindezela phansi ipuleti lokucindezela bese uqinisa isikulufa ukulungisa ikhebula le-Optical.

9. Cindezela izakhi ngentambo ye-optical ungene phansi bese uqinisa izikulufa.

5.3 I-Fibthoc Optic Optic Cable Bifurcation

5.4 Imikhiqizo yekhebula le-Product

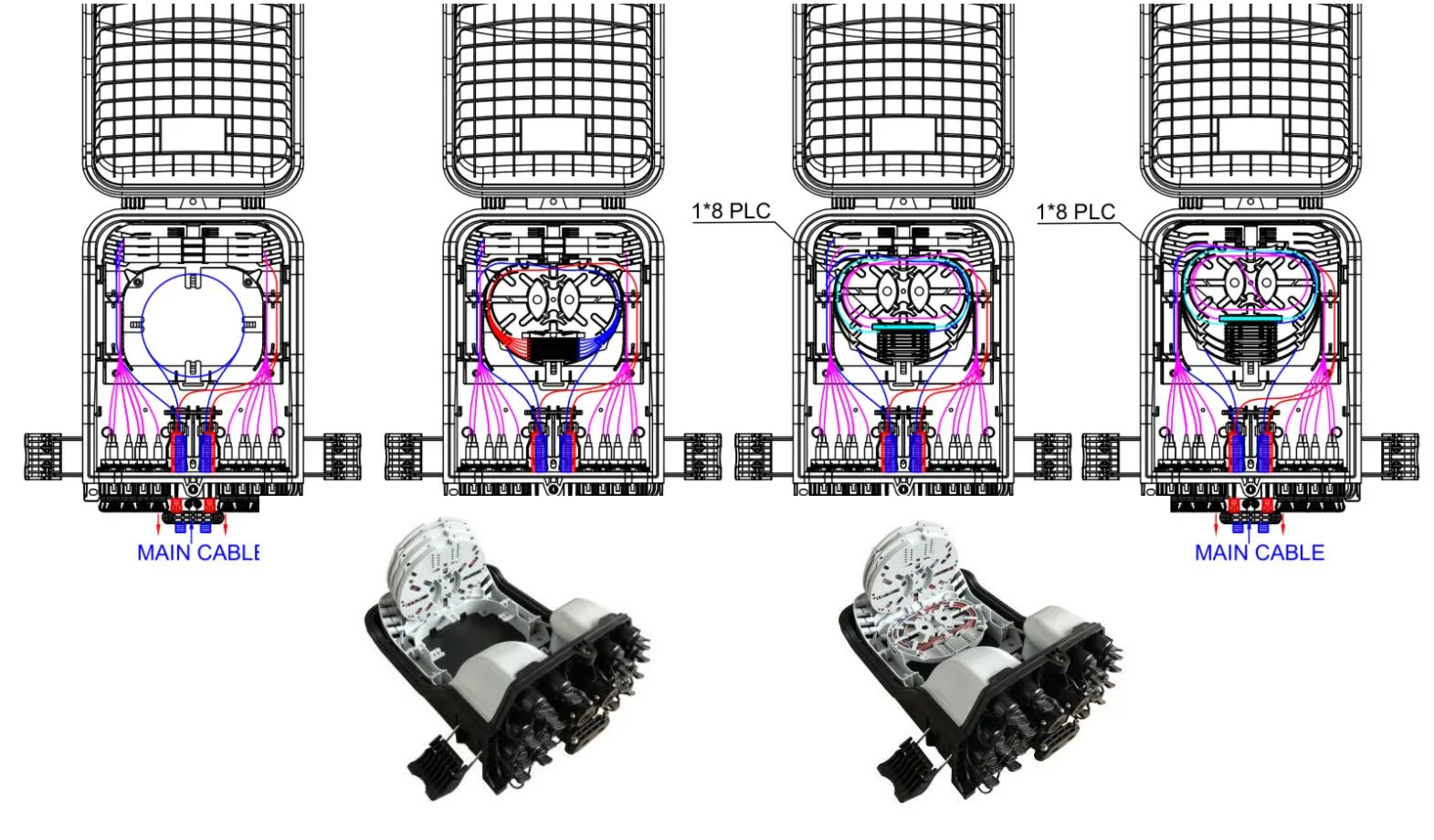

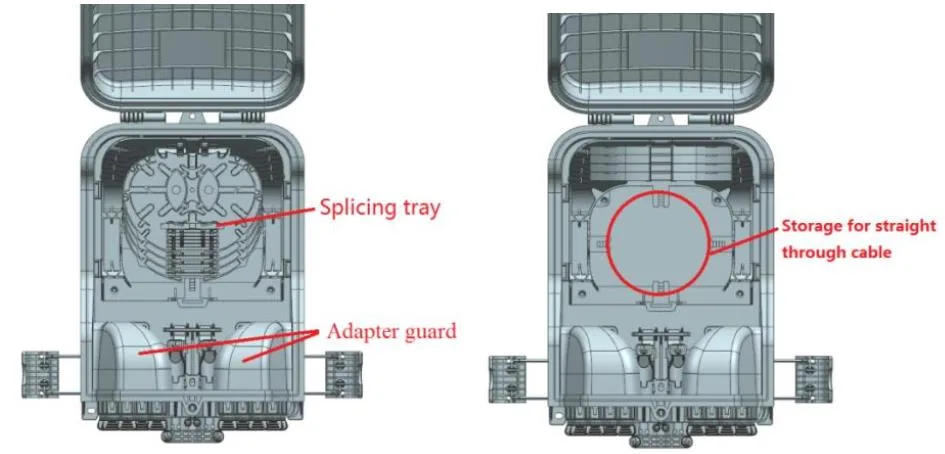

I-GFS-16SX Routing Diagam

I-5.5 yokuhlukanisa ugqoko

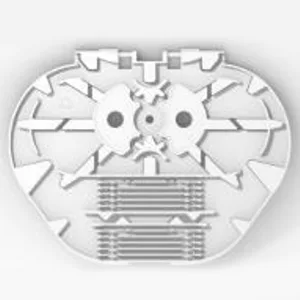

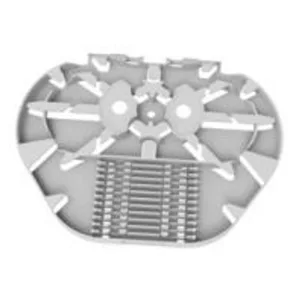

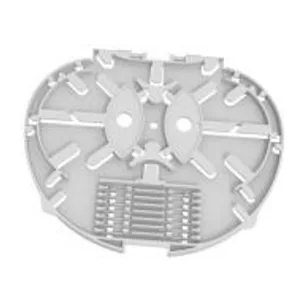

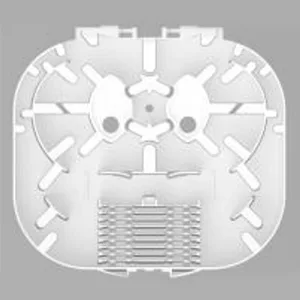

Into yendaba	Ukugoqa ugqoko a	Ukugoqa ugqoko b	I-Splitter Tray A-1	Ukugoqa ugqoko c
Ubukhulu (H * w * d, mm)	134 * 104 * 8	134 * 104 * 4	134 * 104 * 8
Isisindo se-net (kg)	0.021	0.015	0.021
Isithombe
Umbala	RAL7035	RAL7035	RAL7035
Into uqobo lwayo	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuhlukanisa umthamo wetay (cores)	12 (Izingqimba ezi-2 zokushisa okushisayo okubonakalayo okubonakalayo)	8 (1 ungqimba lokushisa okushisayo okubonakalayo okubonakalayo)	6 (Izingqimba ezi-2 zokushisa okushisayo okubonakalayo okubonakalayo)
Umthamo we-splitter we-tray (Ama-PC)	1 (Plc 1x2, 1x4, 1x8, i-1.9mm fiber, 60x7x4mm)	/	1  (PLC 1x16, 0.9mm fiber, 60x12x4mm)
Ubukhulu (ama-PC)	4	8	4
Okuzenzakalelayo (ama-PC)	2	/	/
Qaphela: 1. Amathileyi angenhla angaxutshwa ngokuya ngezidingo. 2. Imithetho yokucushwa: 1a = 2b = 2c = 1d = 1E = 2f 3. Izinhlobo zama-fiber disc zanda ngokuqhubekayo

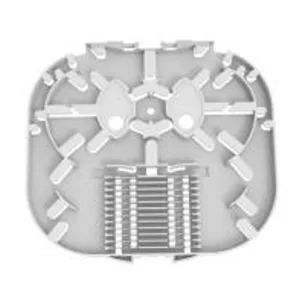

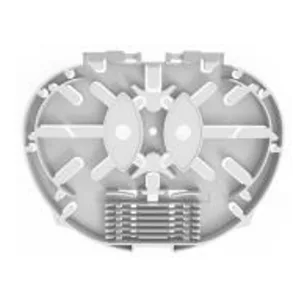

Into yendaba	Ukugoqa ugqoko c	Uhlukanisa ugqoko d	Ukugoqa ugqoko e	Ukuhlukanisa ugqoko e-1
Ubukhulu (H * W * d, mm)	136 * 104 * 4	136 * 104 * 8	135 * 125 * 8	135 * 125 * 8
Isisindo se-net (kg)	0.018	0.024	0.033	0.033
Isithombe
Umbala	RAL7035	RAL7035	RAL7035	RAL7035
Into uqobo lwayo	I-PC + ABS	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuhlukanisa umthamo wetay (cores)	12 (1 ungqimba lokushisa okushisayo okubonakalayo okubonakalayo)	24 (Izingqimba ezi-2 zokushisa okushisekayo okuvikelekile)	24 (Izingqimba ezi-2 zokushisa okushisekayo okuvikelekile)	18 (Izingqimba ezi-2 zokushisa okushisekayo okuvikelekile)
Umthamo we-splitter we-tray (Ama-PC)	/	/	1 (Plc 1x2, 1x4, 1x8, i-1.9mm fiber, 60x7x4mm)	1 (PLC 1x16, 0.9mm fiber, 60x12x4mm)
Ubukhulu (ama-PC)	8	4	4	4
Okuzenzakalelayo (ama-PC)	/	/	/	/
Qaphela: 1. Amathileyi angenhla angaxutshwa ngokuya ngezidingo. 4. Imithetho yokucushwa: 1a = 2b = 2c = 1d = 1E 3.Izinhlobo zama-fiber disc zanda ngokuqhubekayo

5.3 Izesekeli

Cha.	Ingxenye Igama	Isithombe sereferensi	Umuvo	Ubuningi	Phawula
1	Abasebenzisi''mamal	/	Ama-PC	1	Phakathi kwa-
2	Umbiko wokuhlola we-Splitter	/	Ama-PC	1	Phakathi kwa-

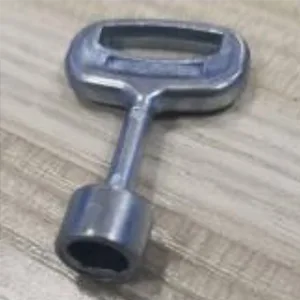

3	Isihluthulelo		Ama-PC	1	"D" uhlobo

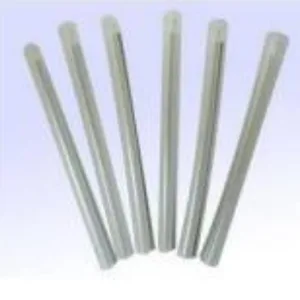

4	Umkhono Wokuvikelwa Okushisayo		Ama-PC	16	L = 45mm, Ongakukhetha njengesicelo seKhasimende

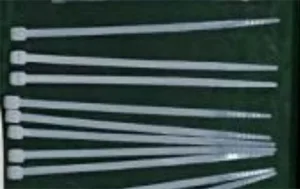

5	Ithayi lekhebula le-nylon		Ama-PC	10	3x100mm

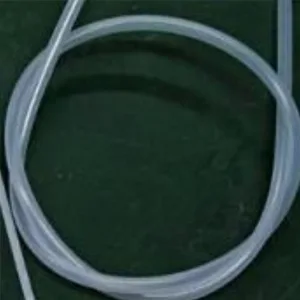

6	I-Tube Evikelekile Yefilimu		Ama-PC	1	I-OD5MM x 50cm

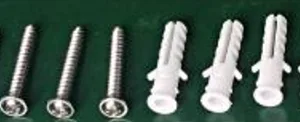

7	Kit efakwe odongeni		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende. Ipulakini elinwetshiwe lepulasitiki φ7.5x40mm, Ama-Phillips athepha ngokuzithoba ama-M5x40mm.
8	Kit efakwe ezigxotsheni		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende
9	Kit ebekwe e-aerial		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende
10	Dlulisa ugqoko wokugcina intambo		Ama-PC	2	Ongakukhetha njengesicelo seKhasimende

6. Izici zezemvelo

Lo mkhiqizo uhambisana ne-ROHS Environmental Ukuvikelwa Kwezemvelo Detrive, kanye nokuqukethwe kwe-Lead, CADMIUM, i-Hexavalent, i-Hexavalent Chromium, i-POLYBROMINAID BIPHENYL (PBDE) nePolybromalinated Diphhenyl (PBDE) ne-PillBromalined Diphhenyl (PBDE) angeqi umkhawulo.

7. Ukufakwa

7.1. Ukufakwa okufakwe odongeni

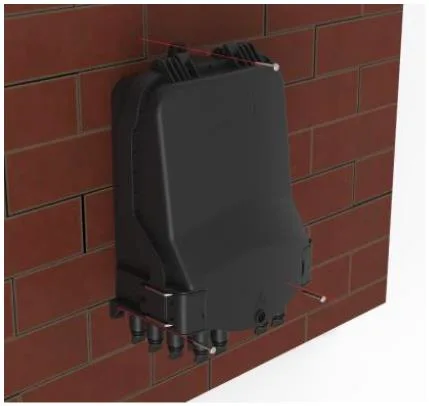

Drill 3 izimbobo odongeni ngokuya ngobukhulu kuThebula 2, Beka ukwandisa i-plule7.5 * 40, beka ibhokisi ukuze uhambisane nezimbobo bese usebenzisa izikulufa ukubopha.

Ukufakwa okufakwe odongeni

7.2. Ukufakwa okufakwe esigceni

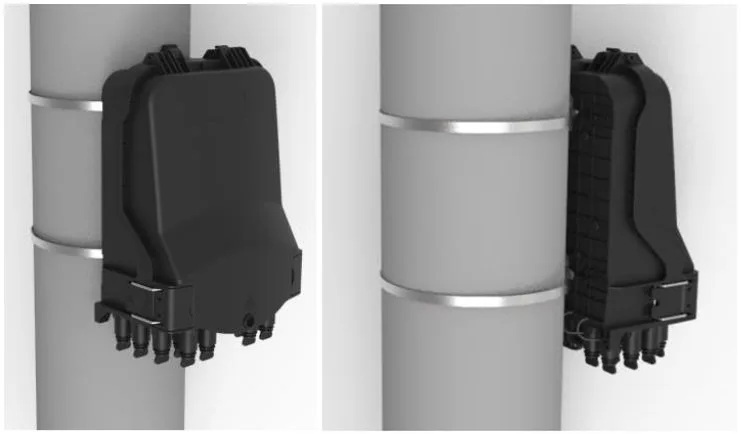

Dlulisa indandatho ye-hoop ngokusebenzisa slot yepuleti engemuva bese uyilungisa esigxotsheni se-telecommunication

Ukufakwa okufakwe phezu kwe-Pole

7.3 Isakhiwo esiphezulu

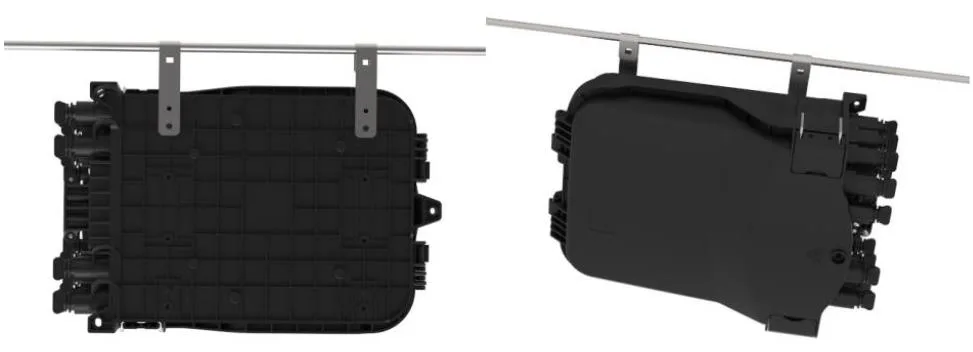

Bopha laba ababili abafakwe ku-chassis of the overhead belenga ocingweni, bese begcotshwa, vimbela leli cala liwe. (PIC 6)

Isakhiwo esiphezulu

7.4 Ukufakwa okufakwe odongeni (nge-Drop Cable Storay Tray)

Dlala izimbobo ezi-4 odongeni ngokuya ngobukhulu be-Drop Cable Tray Hole Hole, Beka ipulaki yokwandiswa Φ 7.54 * 40, Beka ibhokisi ukufanisa izimbobo, bese ubopha ngezikulufo.

Ukufakwa okufakwe odongeni (nge-Drap Cable Startal Tray)

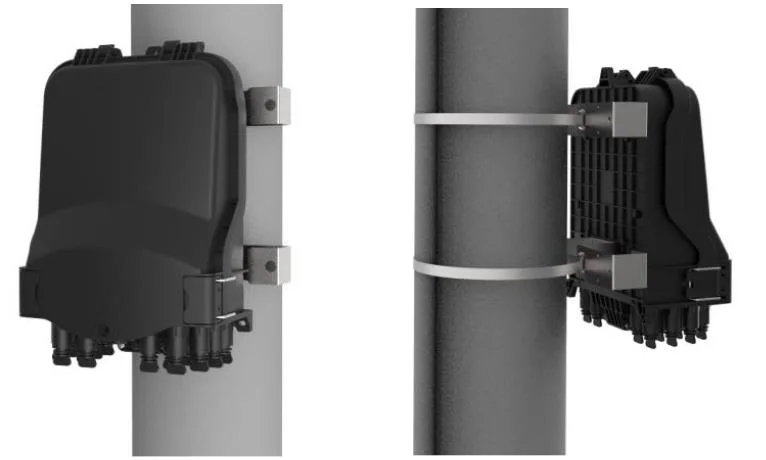

7.5 Ukufakwa okufakwe kwi-pole (nge-Drop Cable Tray)

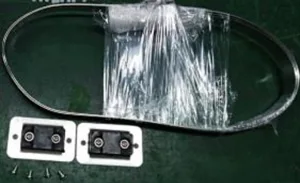

Dlulisa ibhande lensimbi elingagqwali ngokusebenzisa slot of the Drop Cable Storay Trey bese uyilungisa esigxotsheni nge-buckle.

Ukufakwa okufakwe kwi-pole (nge-Drop Cable Tray)

7.6. Ukufakwa okufakwe e-Aerial (nge-Drop Cable Startay Tray)

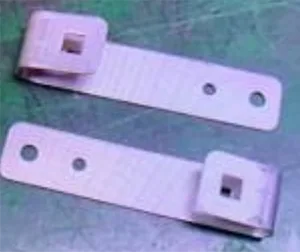

Sebenzisa ipuleti elincane lensimbi ukulungisa ibhokisi lokusabalalisa ku-Messenger.

Ukufakwa okufakwe e-Aerial (nge-Drop Cable Startay Tray)

8. Ukusebenza kwesixhumi

8.1 I-adaptha exhunywe kuqala - a (e)

⚫ Shekele engxenyeni yomcibisholo yesixhumi esixhumeke nge-fiber contecliokwise futhi ukhiphe i-cap cap.

⚫ Ingxenye yomcibisholo wesixhumi se-fiber ingaphezulu, faka isixhumi se-fiber ungene kwisokhethi bese ujikeleza umcibisholo ingxenye yewashi.

8.2 I-Adapter Exhunyiwe Kwangaphambili - B (XL)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cable cap cap ku-sheath iwashi

8.3 I-adaptha exhunywe kuqala - c

⚫ Push indandatho eshelelayo ku-plug ye-fiber ye-Optical fiber ekuqondeni komcibisholo ukuze ususe i-cap cap; Cindezela inkinobho ukuthatha i-cap cap ku-adaptha ohlangothini lomcibisholo.

⚫ Qondanisa umzimba wepulaki ebelwe nge-adapter Buckle kuze kube yilapho iboshwe. Xhuma uthuli olubili luhlanganisa ngendlela efanayo.

⚫ Ipulaki efakiwe efakiwe iphoqelela indandatho eshelelayo ukudedela ibhande, bese udonsa umzimba oyinhloko emuva ukuze uyihlukanise.

8.4 I-adaptha exhunywe kuqala - D

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo.

⚫ Xhuma i-plug exhunywe kuqala D kanye ne-adaptha yangaphambili exhunyiwe D ekuqondeni komcibisholo, futhi ujikeleze i-plug ngokwewashi ukuyilungisa.

8.5 I-Adapter exhunywe kuqala - e (a)

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo

⚫ Xhuma i-plug exhunywe kuqala i-e kanye ne-adaptha exhunyiwe ngaphambili e eqophelweni lomcibisholo, futhi ujikeleze i-plue wise ukuyilungisa.

8.6 I-adaptha exhunywe kuqala - SC

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cack cap ku-sheath iwashi.

8.7 I-Adapter exhunywe kuqala - g

9. Iphakheji

I-1PC esikhwameni se-bubble, 420 * 350mm;

I-1PC ebhokisini elincane, 340 * 230 * 150mm, isisindo esikhulu yi-1.5kg;

Ama-10pcs ebhokisini elikhulu elihlanganisiwe, 480 * 360 * 805 mm, isisindo esiningi lingu-16kg.
