● Idizayini yesakhiwo esithuthukile, ukusebenza okulula kanye nomzila ofanele.
● Izinto ezibonakalayo: I-PP noma i-PC + ABS.
● umswakama ubufakazi, amanzi angenamanzi, ubufakazi bothuli, ukulwa nokuguga.
● Izinga lokuvikelwa phezulu ku-IP65.
● I-1 opl optical cable engenayo, ama-2 e-branch amakhebula we-trictical aptical kanye ne-adaptha engu-8 exhunywe kuqala.
● Izinhlobo ezahlukahlukene zamathileyi we-splice ayatholakala.
● Indlela yokufaka: I-Pole-efakwe, ifakwe endalini, ifakwe ngodonga.
● Ingafakelwa nge-Drop Cable Startal Tray ukuze uhlangabezane nokugcinwa kwamamitha angama-50 amamitha ayi-5mm nxazonke.

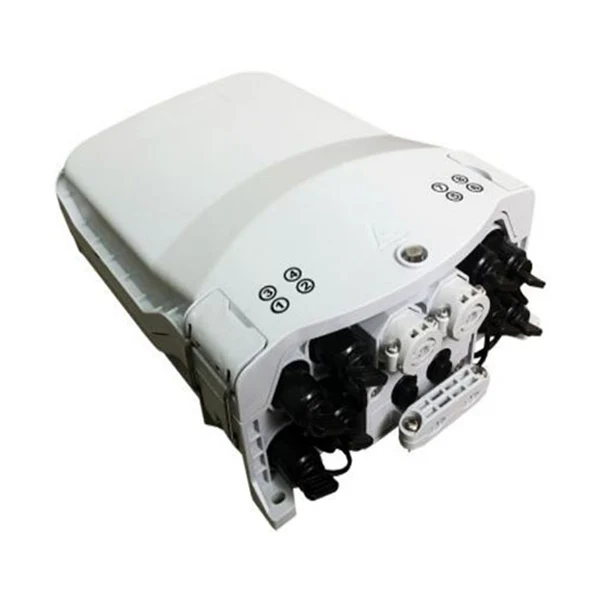

Ibhokisi lokusabalalisa le-Optical Presed Optical njenge-FTTX Network Distribution Network Distribution Ourction, nikeza ukuxhumana okusheshayo nokwethembekile, ukuvikelwa okuhle kanye nokuphatha inethiwekhi ye-FTTX.
I-IP65 exhunywe ngaphambilini ye-Fiber Optip Cant Distripation Box yakhelwe, yenziwa futhi ihlolwe ngokwezindinganiso ngale ndlela elandelayo:
|
Imodeli: I-XB-8SX |
Ukucacisa |
Phawula |
|
Izinto ezibonakalayo zezindlu |
I-PC + ABS |
|
|
Impahla yezakhi zangaphakathi |
I-PC + ABS / ABS |
|
|
Impahla yesesekeli sensimbi |
Insimbi esezingeni eliphakeme engenasici |
|
|

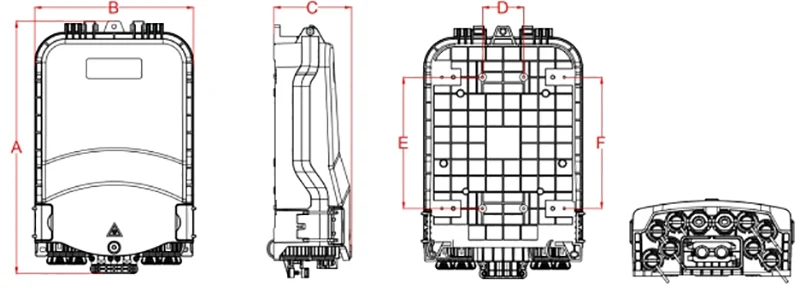

Isici sangaphandle (mm) |
319.3 * 200 * 97.5 (A * B * C) |
|
|
Isikhundla Somgodi Wokufaka (MM) |
52 * 166 * 166 (DNEXF) |
|
|
Umbala |
Pantone 428C |
Ngokwezifiso |
|
Usayizi nenani lomgodi wekhebula we-optical |
I-1 ovel optical cable yokungena, igatsha eli-2 okufakiwe kwentambo ye-Optical ne-Adaptha engu-8 exhunyiwe |
|
|
I-Fusion Amanani (Max) |
48 |
Ugqoko a, 12x4 = 48, 2 izingqimba ze Umkhono wokuvikela ukushisa okushisayo. |
|
64 |
I-Tray B, 8x8 = 64, 1 ungqimba we Umkhono wokuvikela ukushisa okushisayo. |
|
|
96 |
Ugqoko c, 8x12 = 96, 1 ungqimba lwe Umkhono wokuvikela ukushisa okushisayo. |
|
|
96 |
Ugqoko d, ugqoko e, 24x4 = 96, 2 izingqimba ze Umkhono wokuvikela ukushisa okushisayo. |
|
|
108 |
UMax: 1C + 4D = 108 |
|
|
I-PLRO PLC SPLITTER |
1x2 |
Usayizi we-Splitter: 60x7x4mm. Ingafakwa uthayipha a nohlobo e I-skicing tray, i-1 PC nge-tray yokuhlukanisa. |
|
1x4 |
||
|
I-1x8 |
||
|
1 * 16 |
Usayizi we-Splitter: 60x12x4mm. Ingafakwa uthayipha i-a-1, bese uthayipha i-e-1 I-skicing tray, i-1 PC nge-tray yokuhlukanisa. |
|
|
Ububanzi bekhebuli le-chat dlula ethekwini (mm) |
Φ8 ~ φ18 |
|
|
Ubukhulu bekhebula lefiber yentambo yegatsha IPort (MM) |
Φ16 |
|
|
Izinga Lokuvikelwa kwe-IP |
IP65 |
|
|
Ukuvulayo |
I-HB (evamile) |
ingenziwa ngokwezifiso ngokuya nge Izidingo |
|
Ukuhlolwa kwe-Houtral Salt Spray (NSS) |
48 h |
