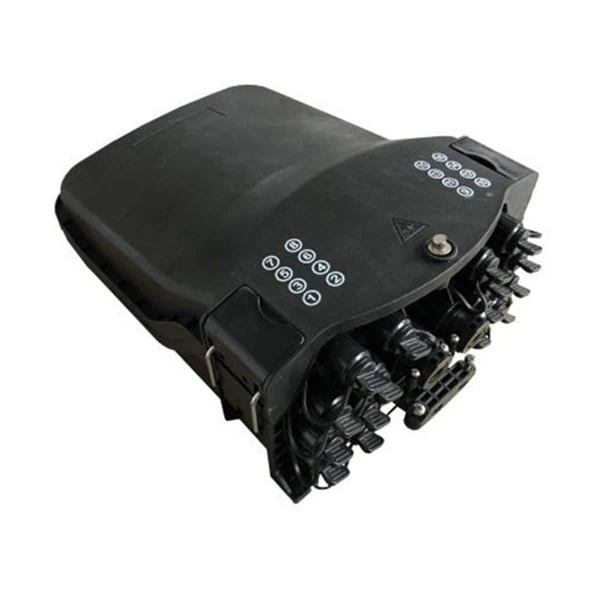

48 Ibhokisi Lokusabalalisa Ikhebula Le-Fiber Optic elixhumeke ngaphambili

I-48 Fiber Core Pre-connectorized Fiber Optic Cable Distribution Box eyenziwe yi-Orientalfiber iyisixazululo sezinga lochwepheshe esiklanyelwe ukwenza lula ukuthunyelwa kwenethiwekhi ye-FTTX. Njengomkhiqizo ohamba phambili we-Jiangsu Xuben Photoelectric Technology Co., Ltd, leli bhokisi lokusabalalisa lihlanganisa i-fiber splicing, ukuhlukaniswa, nokuxhumeka kwetheminali endaweni eyodwa, ehlala isikhathi eside.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-48-Core Pre-connectorized Fiber Optic Cable Distribution Box yakhelwe ngokukhethekile izimo zobunjiniyela bezokuxhumana ngocingo. Ithuthukiswe ngokuhambisana namazinga wobunjiniyela womkhiqizi wase-China i-Orientalfiber, ibeka ukugxila okuyinhloko ekuthembekeni kwesakhiwo kanye nokuzinza kokusebenza kwesikhathi eside. Indawo ebiyelwe yomkhiqizo yakhiwe ngezinto ezisezingeni eliphezulu ze-PP noma ze-PC+ABS, enikeza ukumelana okuqinile namanzi, uthuli, nokuguga. Ngesilinganiso sokuvikela se-IP65, siqinisekisa ukuzinza koxhumo lwangaphakathi lwe-fiber optic ngisho nasezindaweni eziyinkimbinkimbi nezifunayo. Isakhiwo sangaphakathi senziwe ngcono ukuze kube lula ukuphathwa kwe-fiber bend radius kanye nokuhleleka komzila wekhebula; ihlanganisa ama-adaptha axhumeke ngaphambilini futhi isekela ukucushwa kwethreyi ehlukahlukene, ngaleyo ndlela ithuthukise ukusebenza kahle kokufaka nokwenza lula nezinqubo zokulungisa. Ukusekela izindlela eziningi zokufaka—okuhlanganisa ukukhweza isigxobo, ukuthunyelwa emoyeni, nokufakwa odongeni—leli bhokisi lokusabalalisa lizifanelekela kahle izinhlelo zokusebenza ze-FTTH kanye nezinhlobonhlobo zezidingo zokuphakelwa kwenethiwekhi ye-fiber optic yangaphandle.

Ukucaciswa Kwezobunjiniyela kanye Nobuqotho Bezinto

Ngengqalasizinda yezokuxhumana yangaphandle, ukuphila isikhathi eside kubalulekile. II-I-I-Orientalfiber 48 Ibhokisi Lokusabalalisa Ikhebula Le-Fiber Optic elixhumeke ngaphambiliyakhelwe ukumelana nezingcindezi ezehlukene zemvelo ngaphandle kokucekelwa phansi.

Izinto Zezindlu: Zakhiwe nge-PP (i-Polypropylene) enomthelela ophezulu noma i-PC+ABS (i-Polycarbonate ne-Acrylonitrile Butadiene Styrene) izingxube zokuvikela imishini ephakeme.
Ukuqina Kwendawo Ezungezile: Kwenzelwe ukuthi kuvikeleke umswakama, kungangeni manzi, kungangeni uthuli, futhi kuvimbele ukuguga.
I-Ingress Protection: Izinga lokuvikela lifinyelela ku-IP65, okuqinisekisa ukuthi izingxenye zangaphakathi zihlala zomile futhi zisebenza phakathi nemvula enkulu noma izimo ezinomswakama ophezulu.

I-Technical Architecture kanye Nokuphathwa Kwekhono

Isakhiwo sangaphakathi se-48 Ibhokisi Lokusabalalisa Ikhebula Le-Fiber Optic elixhumeke ngaphambiliigxile ekuvikelweni kwerediyasi egobile kanye nomzila wekhebula ohlelekile ukuze kuvinjelwe ukuncishiswa kwesignali nokukhathala kokulungisa.

Ukucushwa Kwe-Inlet/Outlet: Ifaka indawo yokungena yekhebula eli-oval oval oval kanye nokufakwa kwekhebula legatsha elingu-2, kusiza ukuphathwa kwekhebula lomgogodla osebenza ngezindlela eziningi.
Isixhumi esibonakalayo se-adaptha: Ifakwe ama-adaptha axhumeke ngaphambili ayi-16, ehlisa kakhulu isikhathi esidingekayo sokufakwa kwenkambu nezindleko zomsebenzi wochwepheshe.
Izinketho zethreyi ye-Splice: Izinhlobo ezimbili ezihlukene zamathreyi ahlangene ziyatholakala ukuze kufakwe imikhuba ehlukene yokuhlanganisa ukuhlanganisa kanye nokuminyana kwefayibha.
Isitoreji Sekhebula Lokulahla: Idizayinelwe ukufaka ithreyi yokugcina ikhebula ozikhethela yona, ekwazi ukuphatha kufika kumamitha angu-50 ekhebula eliyindilinga elingu-5mm, elibalulekile ekugcineni ubunono besayithi ekufakweni kwe-FTTH yokuhlala.

Izimo Ezihlukahlukene Zokuthunyelwa

I-I-I-Orientalfiberiqinisekisa ukuthi48 Ibhokisi Lokusabalalisa Ikhebula Le-Fiber Optic elixhumeke ngaphambiliijwayela nengqalasizinda ekhona esikhundleni sokudinga ukuguqulwa okumba eqolo. Ukusekelwa kwezindlela eziningi zokukhweza kuvumela ukusetshenziswa okungaguquki kwehadiwe kuzo zonke izindawo ezihlukene:

I-Pole-mounted: Ilungiselelwe izindawo zasemakhaya noma ezisekelwe esigxotsheni sosizo.
I-Aerial-mounted: Ifanele izikhala zekhebula ngaphezulu phakathi kwezakhiwo.
Ifakwe odongeni: Idizayinelwe ama-MDU asemadolobheni (Amayunithi Okuhlala Okuningi) noma ama-facade ezakhiwo zezimboni.

Incazelo

Ibhokisi lokusabalalisa le-optical elixhunywe ngaphambili njengethuluzi le-node yokusabalalisa inethiwekhi ye-FTTX ethuthuke kakhulu, lihlinzeka ngoxhumano olusheshayo noluthembekile, ukuvikeleka okuhle nokuphathwa kwenethiwekhi ye-FTTX.

Amazinga Ayahambisana

Ibhokisi lokusabalalisa ikhebula le-fiber optic elingu-48 elixhumeke ngaphambili lakhiwe, lakhiqizwa futhi lahlolwa ngokwamazinga alandelayo:

I-ITU-T G.652	Izici ye-fiber optical yemodi eyodwa
I-IEC 60794-1-1	I-Optical izintambo zefayibha-ingxenye 1-1: Ukucaciswa Okujwayelekile Okujwayelekile
I-IEC 60794-1-2	I-Optical izintambo zefiber-ingxenye 1-2: Ukucaciswa Okujwayelekile-Ukuhlolwa kwekhebula elibonakalayo eliyisisekelo inqubo

Imininingwane

Imodeli: I-XB-16SX	Imininingwane	Phawula

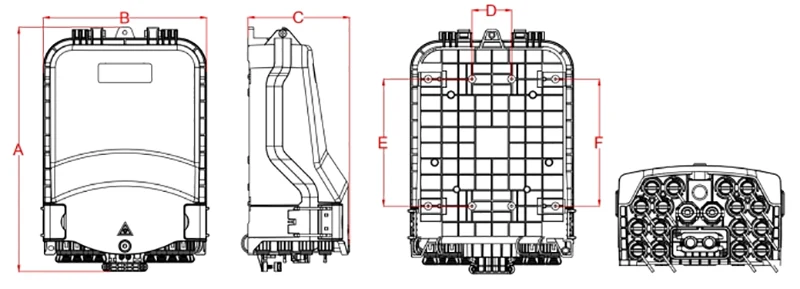

Kwangaphandle ubukhulu(mm)	319.3214133(ABC)
Ukufakwa indawo yembobo(mm)	52166166(DxExF)
Umbala	I-PANTONE 428C	Yenza ngokwezifiso
Usayizi kanye nenani lembobo yekhebula yokubona	1 ikhebula eli-oval optical entry, 2 igatsha okufakiwe kwekhebula le-optical kanye nama-adaptha axhunywe ngaphambili angu-16
I-Fusion umthamo (Ubukhulu)	48	Ithreyi A ,12x4=48, 2 izingqimba ze Umkhono wokuvikela iziqephu ezishwabene ukushisa ukushisa.
	64	Ithreyi B, 8x8=64, ungqimba olu-1 lwe Umkhono wokuvikela iziqephu ezishwabene ukushisa ukushisa.
	96	Ithreyi C, 8x12=96, ungqimba ongu-1 we Umkhono wokuvikela iziqephu ezishwabene ukushisa ukushisa.
	96	Ithreyi D, Ithreyi E, 24x4=96, 2 izendlalelo ze Umkhono wokuvikela iziqephu ezishwabene ukushisa ukushisa.
I-Micro I-PLC Splitter	1x2	Usayizi wokuhlukanisa: 60x7x4mm. Ingafakwa kuhlobo A kanye nohlobo Ithreyi yokuhlanganisa i-E, i-PC eyodwa ngethreyi yokuhlanganisa.
	1x4
	1x8
	1*16	Usayizi wokuhlukanisa: 60x12x4mm. Ingafakwa ngohlobo A-1, futhi thayipha i-E-1 splicing tray, 1 PC ngethreyi yokuhlanganisa.
Ingene ubukhulu bekhebula obukhulu (mm)	8~18
Ubuningi usayizi wembobo yegatsha(mm)	ᴓ16
IP izinga lokuvikela	IP65
Ukuvutha	I-HB(Eyejwayelekile)	kungenziwa egcizelele ngokusho izidingo
Ukungathathi hlangothi ukuhlolwa kwesifutho sikasawoti (NSS)	48 h	kungenziwa egcizelele ngokusho izidingo
