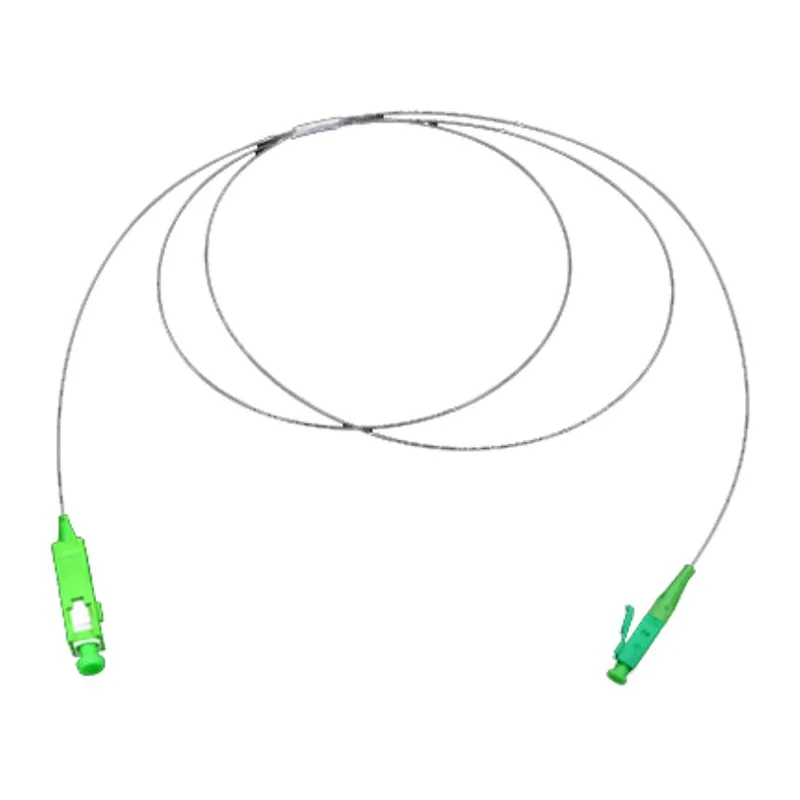

Okungabonakali SC / APC-LC / APC 0.9MM Izintambo Zobuthosi

Isicelo:● I-Indoor CABLIng● I-FTTH (i-fiber ekhaya)● Iyunithi yentambo yokudonsa engabonakali yohloboIzici:● I-compact futhi isisindo esincane● Ayibonakali futhi ayinamphumela ekuhlobiseni ingaphakathi● Inikeza ukusebenza okuhle kakhulu kokugoba● Ubude obuhleliwe● Ifektri eyi-100% inqanyuliwe futhi ......

Thumela Uphenyo

Incazelo Yomkhiqizo

Isicelo:

● I-Indoor CABLIng

● I-FTTH (i-fiber ekhaya)

● Iyunithi yentambo yokudonsa engabonakali yohlobo

Izici:

● I-compact futhi isisindo esincane

● Ayibonakali futhi ayinamphumela ekuhlobiseni ingaphakathi

● Inikeza ukusebenza okuhle kakhulu kokugoba

● Ubude obuhleliwe

● Ifektri eyi-100% inqanyuliwe futhi ihlolwe

Ukucaciswa kobuchwepheshe:

Ukwakhesiwe	Umuvo	Ukuchaza izincazelo
Imodi yefiber		Imodi eyodwa: itu-t g657 b3
Ukubalwa kwefayibha		Simplex
Umbuzi	nye	1310/1550
Ukulahleka kokufaka	I-	≤0.30
Ukulahlekelwa Ukulahleka	I-	≥55 (apc)
Ububanzi bekhebula	m	0.9 ± 0.05
Umbala wekhekhe wekhebula		-Khanyayo
Izinto ze-Cable Jacket		Injobe
Ubude	m	10 + 0.5 / -0, 20 + 0.5 / -0, 30 + I-1.0 / -0, 40 + 1.0 / -0,
Uhlobo lwesixhumi		I-Port: SC / APC (Green) B Port: LC / APC (Green)
Endface IsiPolish		Ithusi elikhululiwe
Impahla ye-ferrule		-Ezitsha zobumba
Ukuphindaphinda Ukuphindaphinda		> Izikhathi ezingama-500
Ukushisa okusebenzayo		-20 ° C ~ + 60 ℃
Ukushisa okushisa		-20 ℃ ~ + 60 ℃

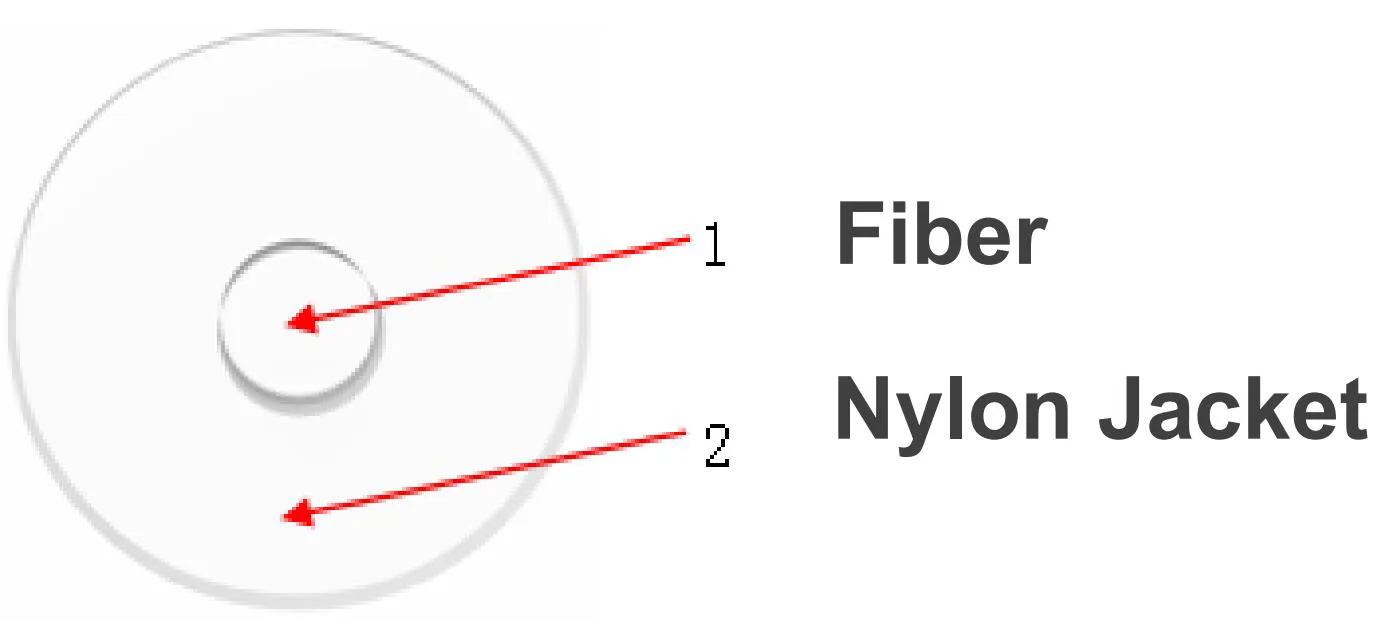

Ukwakhiwa Kwekhebula:

Invisible SC/APC-LC/APC Patch Cords

Impahla yekhebula:

Uhlobo lwekhebula	Ibanga elinquma phakathi ububanzi besingelezi	Amandla asheshayo		Ukuchoboza ukumelana		Ukugoba Radius (B6A)		Ukugoba Radius (B6B)
		-De ukuphela	-Fushane ukuphela	-De ukuphela	-Fushane ukuphela	Isitatiki	-Namandla	Isitatiki	-Namandla
	(MM)	(N)		(N / 100mm)		(MM)		(MM)
Φ 0 mm	I-0.9 ± 0.05	5	20	100	500	15	30	5	20

Isimo se-Fibre:

Uhlobo lwefayibha	I-Attenuation (Max)		Ukulahleka kwe-Macro Bend (max)
	1310nm	I-1550nm	Φmm Ukujika okungu-10	Φ00mm I-1Turn	Φ155mm I-1Turn	Φ 10mm I-1Turn
	(DB / KM)		(Db)
G.657B3	0.40	0.30	N / a	0.03 @ 1550nm 0.10 @ 1625nm	0.08 @ 1550nm 0.25 @ 1625NM	0.15 @ 1550nm 0.45 @ 1625NM

Ukusebenza Kwezemvelo:

Ezokuhamba & Isitoreji	Ukufaka	Ukuhlinza	Kuphawula
-20 ℃ - + 60 ℃	-10 ℃ - + 50 ℃	-20 ℃ - + 60 ℃	Rohs

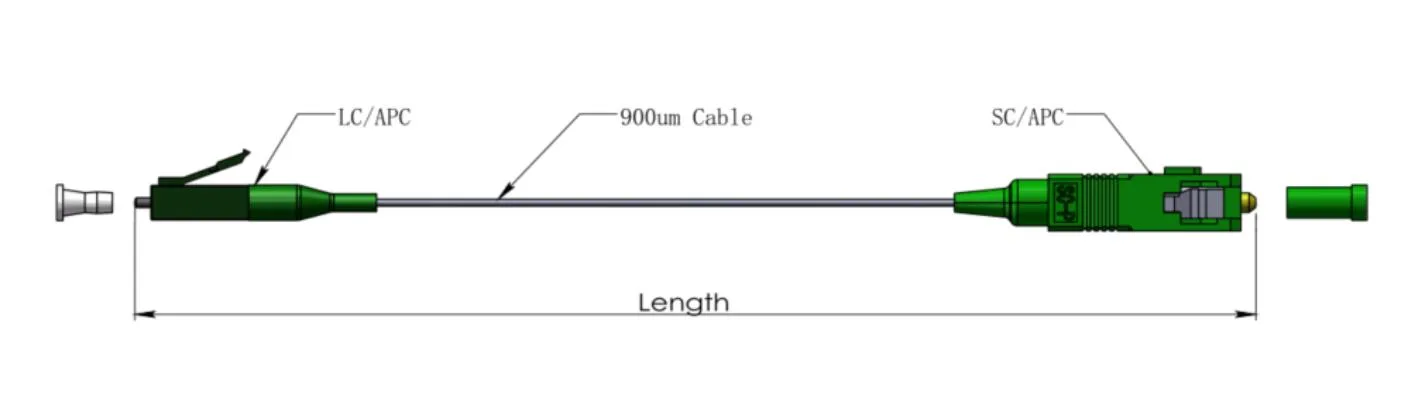

Umdwebo ojwayelekile:

Invisible SC/APC-LC/APC Patch Cords
