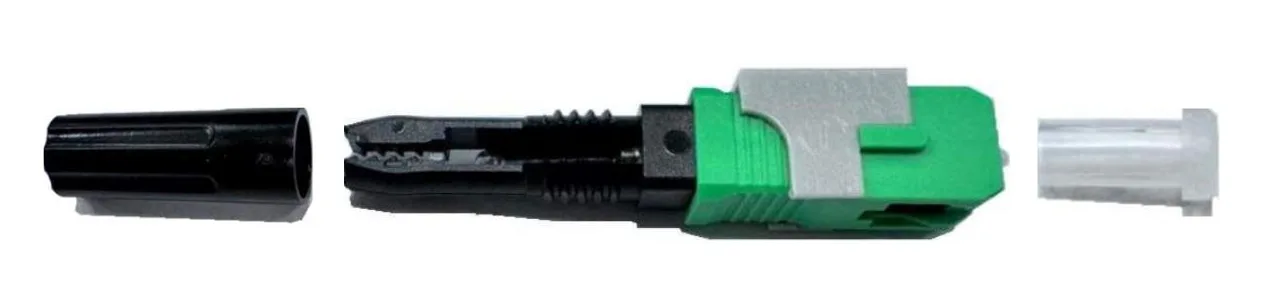

I-Fac-SC / APC-06 I-FIELD FICEL FICECTOR

Model: FAC-SC/APC-06

Fac-SC / apc-06Isicelo: I-FTTX, Igumbi ledatha TransformatioIzisombululo ezifanele:● Ukusebenza okulula, isixhumi singasetshenziswa ngqo ku-ONU, futhi ngokuqinisa amandla ngaphezu kwe-30n, kusetshenziswa kabanzi kwiphrojekthi ye-FTTH ye-Network Revolution. Iphinde inciphise ukusetshenziswa kwamasoki......

Thumela Uphenyo

Incazelo Yomkhiqizo

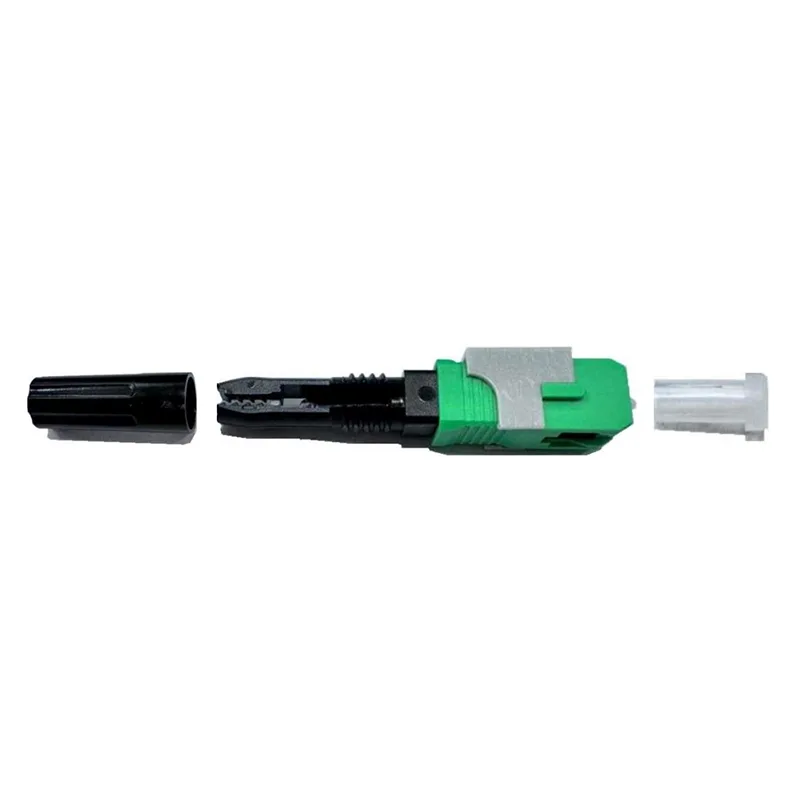

Fac-SC / apc-06

Field Assembly Fiber Connector

Isicelo: I-FTTX, Igumbi ledatha Transformatio

Izisombululo ezifanele:

● Ukusebenza okulula, isixhumi singasetshenziswa ngqo ku-ONU, futhi ngokuqinisa amandla ngaphezu kwe-30n, kusetshenziswa kabanzi kwiphrojekthi ye-FTTH ye-Network Revolution. Iphinde inciphise ukusetshenziswa kwamasokisi nama-adaptha, gcina izindleko zephrojekthi.

● Njengoba i-86 isokhethi elijwayelekile kanye ne-adaptha, isixhumi senza ukuxhumana phakathi kwentambo ye-drop nentambo ye-patch. Isokhethi elijwayelekile lama-86 lihlinzeka ngokuvikelwa okuphelele ngomklamo wayo oyingqayizivele.

● Kuyasebenza ekuxhumeni nekhebula elithandekayo le-Indoor Cable, i-pigtail, intambo ye-patch kanye nenguquko yentambo ye-patch egumbini ledatha futhi isetshenziswe ngqo ku-OTU ethile.

Ukucaciswa kobuchwepheshe:

Ukufanisa	Ukucacisa	Imininingwane Yezobuchwepheshe
-Phathelene nokubona
Ukulahleka kokufaka (il)	I-1310NM & 1550NM	≤ 0.5 dB
Ukulahlekelwa Ukulahleka (RL) Ithusi elikhululiwe	I-1310NM & 1550NM	≥55DB
Jwayelekile
Uhlobo lokuhlanganisa	-E okwenhla	-Yimpatho
Izinto ze-ferrule	Ithusi elikhululiwe	8.0 ± 0.5 °
	Ibanga elinquma phakathi ububanzi besingelezi	I-2.5mm
	Into uqobo lwayo	Ceramic zirconia
	Ingqondo	G.657A2
Ukuhlukaniswa kwemishini	amandla asheshayo	4 n - 5 n
	I-fiber efakiwe	10 mm ± 0.5 mm (125μ)
	I-fiber loop	I-18 mm ± 0.5 mm (250μμ)
	Isikhathi se-Gel	Iminyaka engama-20
Komhlaba	Ukugcinwa kwekhebula	IChamber / Screw 30N / 2min
	Umdwebo omncane we-mini 8	(5.3 ± 0.2) * (2.0 * 3.0 ± 0.1) MM
Ubukhulu	m	L (50 ± 2,5) x w (9 ± 0.1) x h (8 ± 0 .1)
Sebenza
Ukuphihlazeka	Izikhathi ezi-5	Umhlangano olula - disasqweb
Izinyathelo Zomhlangano	2
Umbusi / Jig	Izixhumi eziyi-1x10
	Imakwe ngegama lomkhiqizi wegama 18 * 10mm
	Ukuhlangana kwe-Cleaver	16.2mm x (xxx)
Ukumaka
Isixhumi	Igama Lomenzi
	Igama leKhasimende
	Ukukhiqiza uLoti #
Ukuwowapha (Isikhwama sodwa)	Umenzi
	Ukukhiqiza uLoti #
	Ukulungiselela I-Fibres Image 1x1 Isilinganiso
Okokuphatha
Ukuwowapha	Ibhokisi lekhadibhodi	Izixhumi eziyi-100 +10 jigs
	Ukulebula	Umkhiqizi, imodeli, ubungako, i-MFG. Okuningi
	Ukuhlolwa Kwekhwalithi	Ishidi lokuhlola lokuhlola i l & rl

Ukuhlolwa kokusebenza kwezemvelo:

Ukuqinisekiswa
-Omshini	I-Telcordia GR-326-Core, 4.4.3.5	Ukudlulisela ngokungezwani okusetshenzisiwe
-Yimzukeni	I-Telcordia gr-326-Core, 4.4.2.2,	Ukuguga okujikelezayo okushisayo
-Phathelene nokubona	IEC 61300-3-4	Indlela ye-AtTenuation (a) Ukulahlekelwa Ukulahleka
	IEC 61300-3-6	Buyisela indlela yokulahleka (1) Inkabi
Impilo Yenkonzo
Impilo	Iminyaka engama-25
Incwadi yokufakazela	Iphumelelayo ekukhiqizeni iziphambeko zazo zonke izinto zayo
Rma	Ngaphansi kwezinsuku zemvelo eziyi-120
