Incazelo Yomkhiqizo

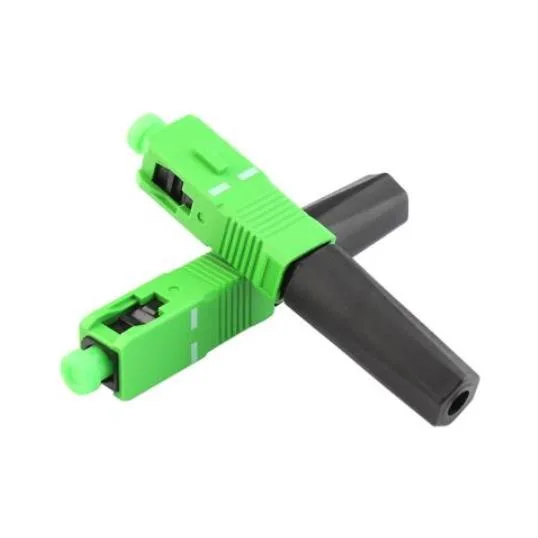

Fac-SC / apc-02

Field Assembly Connector-Fiber Pre-embeded Tech

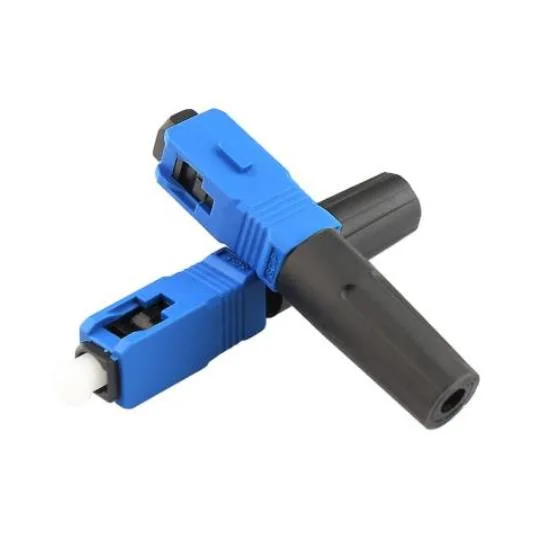

Fac-sc / upc-02

Field Assembly Connector-Fiber Pre-embeded Tech

Isicelo FTTX, inguquko yegumbi ledatha

Ukucaciswa kobuchwepheshe:

Into yendaba	Ipharameter
Isikali sekhebula	2.0 X 3.0,2.0 x 5.3 & 1.6 x 2.0mm Drop Cable (0.9, 2.0 & 3.0mm Ikhebula le-Optical)
Usayizi:	50 * 8.7 * 8.3 MM & 55 * 8.7 * 8.3mm
Ububanzi be-fiber	I-125μm (652 & 657)
I-Coaing Ububanzi	250μm
Umkhuba	Ithi
Isikhathi sokusebenza	cishe ama-15s (ngaphandle kokusethwa kwefayibha)
Ukulahleka kokufaka	≤ 0.5DB max / imvamisa ≤0.3DB (1310NM & 1550NM)
Ukulahlekelwa Ukulahleka	≥50rdb we-UPC, ≥55DB we-APC
Izinga lempumelelo	> 98%
Izikhathi ezisebenzisekayo	> Izikhathi eziyi-10
Qinisekisa amandla we-hebfile enqunu	> 5 n
Amandla asheshayo	> 50 n
Izinga lokushisa nokubanda	-40 ~ +85 c
Ukuhlolwa kwamandla kwe-on-line tensile (20 n)	Il Range≤0.3DB RL Range≤5DB
Ukuqina Kwemishini (izikhathi ezingama-500)	Il Range≤0.3DB RL Range≤5DB
Ukuhlolwa kwe-Drop (4m floor floor, kanye ngamunye ngamunye ukuqondiswa, inani kathathu)	Il Range≤0.3DB RL Range≤5DB

Izisombululo ezifanele:

● Ukusebenza okulula, isixhumi singasetshenziswa ngqo ku-ONU, futhi ngokuqinisa amandla ngaphezu kwama-5 kg, kusetshenziswa kabanzi kuphrojekthi ye-FTTH ye-Network Revolution. Iphinde inciphise ukusetshenziswa kwamasokisi nama-adaptha, gcina izindleko zephrojekthi.

● Njengoba i-86 isokhethi elijwayelekile kanye ne-adaptha, isixhumi senza ukuxhumana phakathi kwentambo ye-drop nentambo ye-patch. Isokhethi elijwayelekile lama-86 lihlinzeka ngokuvikelwa okuphelele ngomklamo wayo oyingqayizivele.

● Kuyasebenza ekuxhumeni nekhebula elithandekayo le-Indoor Cable, i-pigtail, intambo ye-patch kanye nenguquko yentambo ye-patch egumbini ledatha futhi isetshenziswe ngqo ku-OTU ethile.
