Isixhumi se-Fac-05-SC-SC / UPC-05 Insimu Isixhumi Somhlangano

Fac-SC / apc-05Fac-sc / upc-05Isicelo: I-FTTX, Igumbi ledatha TransformatioIzisombululo ezifanele:● Ukusebenza okulula, isixhumi singasetshenziswa ngqo ku-ONU, futhi ngokuqinisa amandla ngaphezu kwama-5 kg, kusetshenziswa kabanzi kuphrojekthi ye-FTTH ye-Network Revolution. Iphinde inciphise ukusetsh......

Thumela Uphenyo

Incazelo Yomkhiqizo

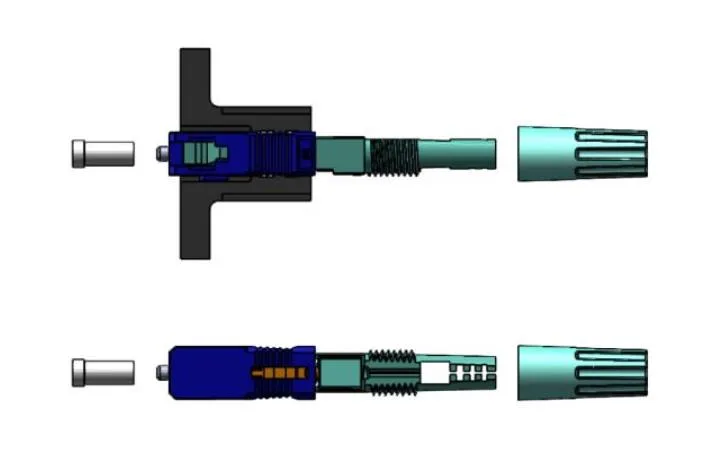

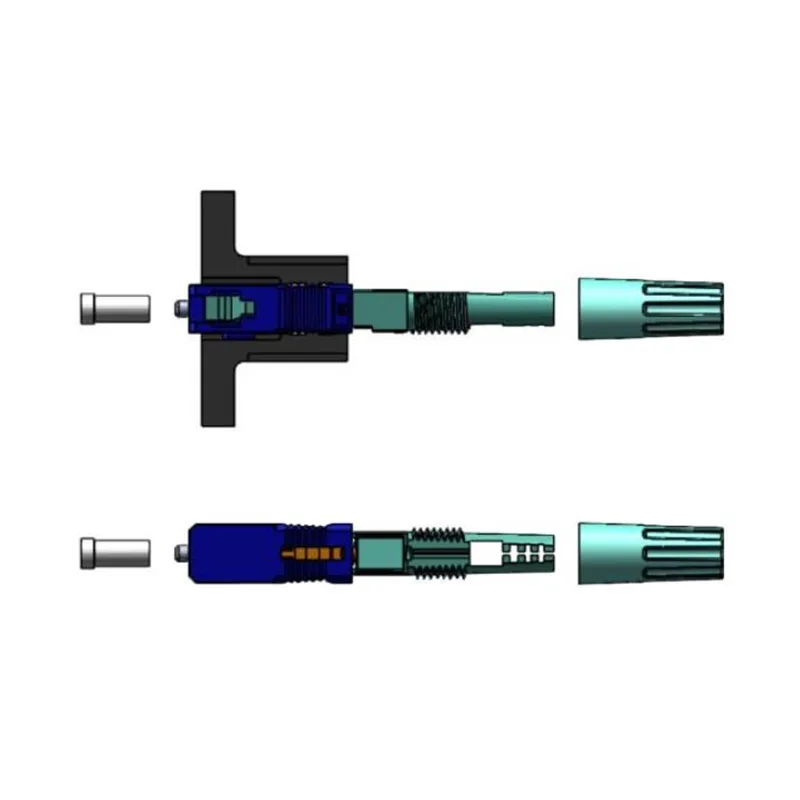

Fac-SC / apc-05

Field Assembly Connector-Fiber Pre-embeded Tech

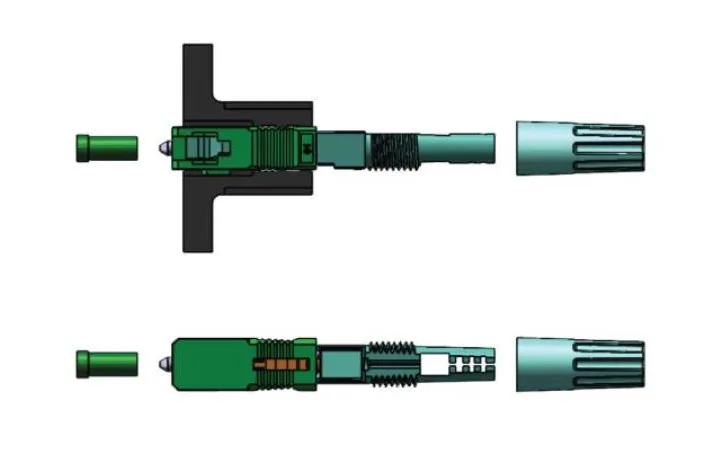

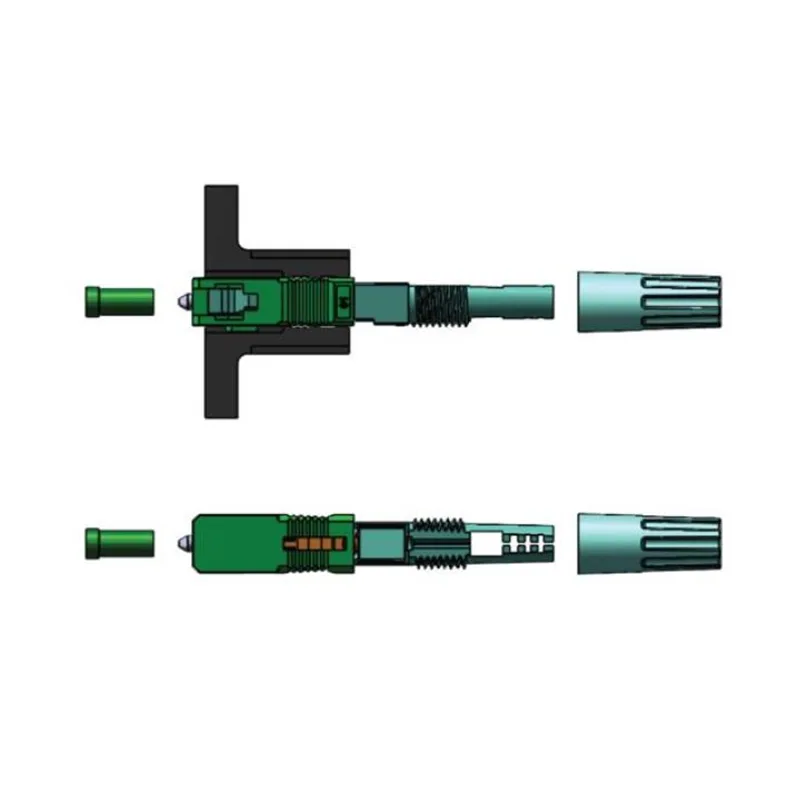

Fac-sc / upc-05

Field Assembly Connector-Fiber Pre-embeded Tech

Isicelo: I-FTTX, Igumbi ledatha Transformatio

Izisombululo ezifanele:

● Ukusebenza okulula, isixhumi singasetshenziswa ngqo ku-ONU, futhi ngokuqinisa amandla ngaphezu kwama-5 kg, kusetshenziswa kabanzi kuphrojekthi ye-FTTH ye-Network Revolution. Iphinde inciphise ukusetshenziswa kwamasokisi nama-adaptha, gcina izindleko zephrojekthi.

● Njengoba i-86 isokhethi elijwayelekile kanye ne-adaptha, isixhumi senza ukuxhumana phakathi kwentambo ye-drop nentambo ye-patch. Isokhethi elijwayelekile lama-86 lihlinzeka ngokuvikelwa okuphelele ngomklamo wayo oyingqayizivele.

● Kuyasebenza ekuxhumeni nekhebula elithandekayo le-Indoor Cable, i-pigtail, intambo ye-patch kanye nenguquko yentambo ye-patch egumbini ledatha futhi isetshenziswe ngqo ku-OTU ethile.

Ukucaciswa kobuchwepheshe:

Into yendaba	Ipharameter
Isikali sekhebula	3.0 x 2.0 mm drop ikhebula (2.0 & 3.0 ikhebula le-optical)
Usayizi:	55 * 8.9 * 8.3 MM
Ububanzi be-fiber	I-125μm (g 652 & g 657)
I-Coaing Ububanzi	250μm
Umkhuba	Ithi
Isikhathi sokusebenza	cishe ama-15s (ngaphandle kokusethwa kwefayibha)
Ukulahleka kokufaka	≤ 0.5DB max / imvamisa ≤0.3DB (1310NM & 1550NM)
Ukulahlekelwa Ukulahleka	≥50db we-UPC, ≥55DB Forpc
Izinga lempumelelo	> 98%
Izikhathi ezisebenzisekayo	> Izikhathi eziyi-10
Qinisekisa amandla we-hebfile enqunu	> 5 n
Amandla asheshayo	> 40 n
Izinga lokushisa nokubanda	-40 ~ +85 c
Ukuhlolwa kwamandla kwe-on-line tensile (20 n)	Il Range≤0.3DB RL Range≤5DB
Ukuqina Kwemishini (izikhathi ezingama-500)	Il Range≤0.3DB RL Range≤5DB
Ukuhlolwa kwe-Drop (4m phansi kokhonkolo	Il Range≤0.3DB RL Range≤5DB
