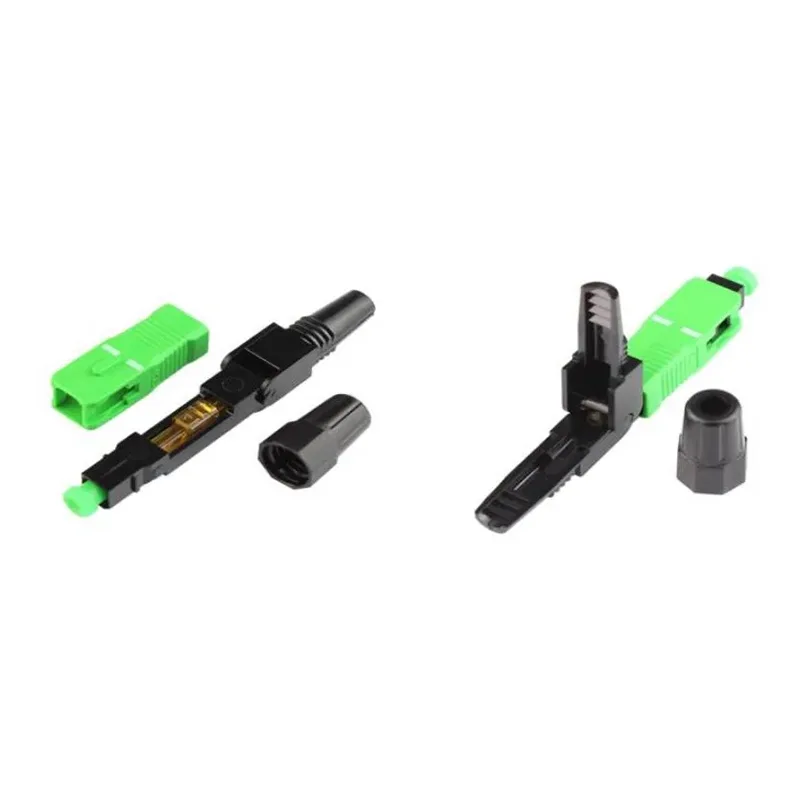

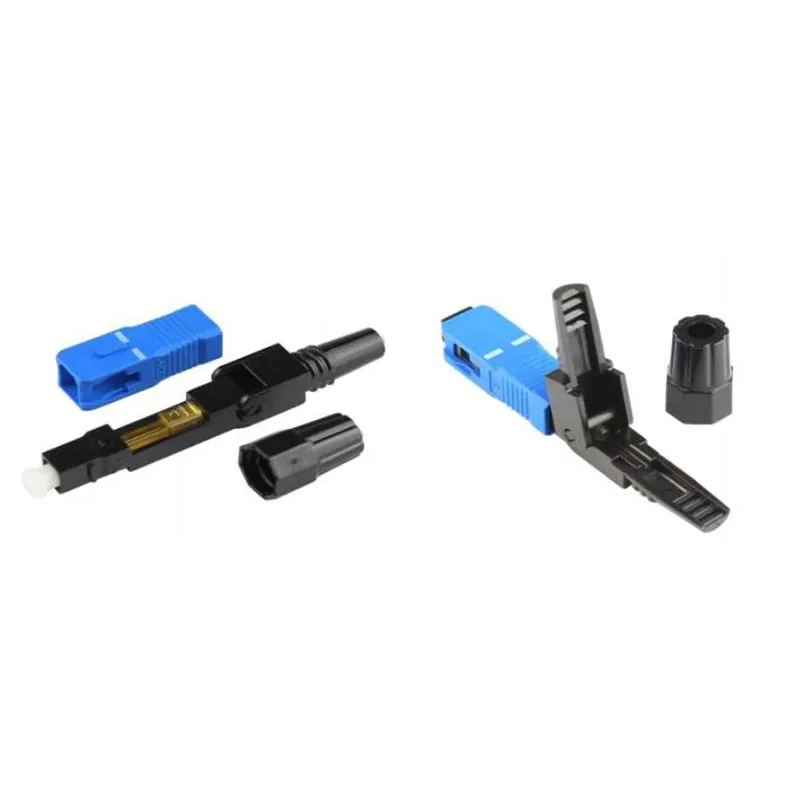

I-FAC-SC/APC-03 FAC-SC/UPC-03 Isixhumi Somhlangano Wensimu

I-Orientalfiber FAC-SC/APC-03 ne-FAC-SC/UPC-03 izixhumi zokuhlanganisa insimu zenzelwe ukuqeda izinselele ezivamile zokufakwa kwefayibha yendabuko, okuhlanganisa izinqubo ezidla isikhathi, inkimbinkimbi, namazinga aphezulu amaphutha. Ngalezi zixhumi, ochwepheshe bangaqeda ukunqanyulwa kwefayibha eyodwa cishe imizuzwana engu-15 ngaphandle kokudinga ukuhlanganisa ukuhlanganisa noma amathuluzi akhethekile abizayo, bathuthukise kakhulu ukusebenza kahle kokuthunyelwa kwamaphrojekthi we-FTTH, ukuthuthukiswa kwegumbi ledatha, nokufakwa kwenethiwekhi yebhizinisi.

Ubani Oyidingayo

Lesi sixhumi silungele: - Osonkontileka beTelecom abadinga ukufaka imiqulu emikhulu yefayibha ngokushesha esizeni. - Ama-opharetha esikhungo sedatha adinga ukunemba okuphezulu, ukuxhumeka okulahlekelwa kancane. - Abaphathi benethiwekhi yebhizinisi abafuna ukwenza lula ukuthuthukiswa kwegumbi ledatha noma ukunwetshwa kwe-LAN. - Amaqembu wokufaka we-FTTH adinga ukuthunyelwa kwefayibha okusheshayo nokuthembekile kumanethiwekhi okuhlala noma ezentengiso.

Kungani Kungcono

Izixhumi ze-Orientalfiber FAC zigqama ngenxa yezizathu ezimbalwa: -Ukusebenza okuphezulu kwe-optical:Ukulahlekelwa kokufaka ≤0.5dB (okujwayelekile ≤0.3dB), ukulahlekelwa kokubuyisela ≥50dB (UPC) kanye ≥55dB (APC), okuqinisekisa ukudluliswa kwesignali okuzinzile. -Ukuqina kwemishini nemvelo:Imelana nemijikelezo yokukhwelana engu-500, ukuhlolwa okuqinile okuku-inthanethi okungu-20N, futhi isebenza emazingeni okushisa asuka ku--40°C kuya ku-+85°C. -Isebenziseka kabusha:Ingaphinda ifakwe izikhathi ezingaphezu kwezingu-10 ngenkathi kugcinwa ukusebenza, yehlisa izindleko zokulungisa. -Ukufakwa okusheshayo:Cishe imizuzwana eyi-15 ifayibha ngayinye, ukusebenza okunembile ngaphandle kwemishini yokuhlanganisa yokuhlanganisa. -I-ONU eqondile kanye nokuhambisana kwesokhethi okujwayelekile okungu-86:Yehlisa isidingo sama-adaptha, yehlise izindleko zephrojekthi iyonke.

Isetshenziswa kanjani

1. Lungisa i-fiber futhi uqinisekise ukuthi ithiphu elishumekiwe lihlanzekile. 2. Faka i-fiber kusixhumi se-FAC, vikela, futhi uqinise kancane. 3. Xhuma ngqo ku-ONU noma kuphaneli yokuchibiyela ukuze uthole ukudluliswa kwesiginali okunesivinini esikhulu esizinzile. Ngaphambili: Ukufakwa kwe-fiber kudla isikhathi, kujwayele ukuba namaphutha, futhi kudinga izinyathelo eziningi. Ngemuva: Ukuhlanganiswa okusheshayo endaweni, isignali ezinzile, nokufakwa okulula konga isikhathi somsebenzi nesikhathi sephrojekthi.

Impendulo Yekhasimende

Amaphrojekthi amakhulu e-FTTH e-China abike ukwanda okungama-40% ekusebenzeni kahle kokufaka kanye nokwehliswa ngo-15% kuzo zonke izindleko kusetshenziswa izixhumi ze-Orientalfiber FAC. - Ukuthuthukiswa kwenethiwekhi yesikhungo sedatha kubonise ukufakwa okuzinzile nokulahlekelwa kokubuyisela, ngokulungiswa okuncishisiwe nokusebenza kabusha. - Opharetha bezokuxhumana bezizwe ngezizwe abaningi bayaqhubeka nokusebenzisa lezi zixhumi ukuze kusetshenziswe amandla, ujantshi wesitimela, onguthelawayeka, kanye nokuthunyelwa ngaphambili kwenethiwekhi yezimboni.

Izinkathazo Ezivamile

-Ukuhambisana:Isekela imicu yemodi eyodwa engu-125μm, ehambisana namazinga angu-652 no-657, aqondana ngqo ne-ONU kanye nekhebula yasendlini. -Ukuqinisekisa ikhwalithi:Igunyazwe ngokuphathwa kwekhwalithi ye-ISO9001 kanye ne-ISO45001 yezempilo nokuphepha emsebenzini. -Impahla & Logistics:I-Orientalfiber inamafekthri amane kanye nochungechunge oluphelele lokuhlinzeka ukuze kuqinisekiswe ukulethwa okufika ngesikhathi kwama-oda amaningi. -Ukusebenziseka kabusha:Ingaphinda ifakwe izikhathi ezingaphezu kwezingu-10, inciphise ingcindezi yokusebenza eqhubekayo.

Kungani Uthatha Manje

Ukukhetha izixhumi ze-Orientalfiber FAC-SC/APC-03 noma i-FAC-SC/UPC-03 ikuvumela ukuthi: - Thuthukisa ngokushesha ukufakwa kwefayibha esizeni - Yehlisa izindleko zephrojekthi kanye nobungozi bokusebenza kabusha - Qinisekisa ukuzinza kwenethiwekhi yesikhathi eside - Zuza ekunikezelweni kwemboni okuqondile nokwesekwa komhlaba wonke Njengomhlinzeki wesisombululo se-fiber optic ochwepheshe, i-Orientalfiber iletha izixhumi zomhlangano wensimu ezinokwethenjelwa, ezisebenza kahle kakhulu ze-telecom, i-FTTH, amanethiwekhi ebhizinisi, nezikhungo zedatha, okwenza ukufakwa kwefayibha eyinkimbinkimbi kube lula futhi kusebenze kahle.

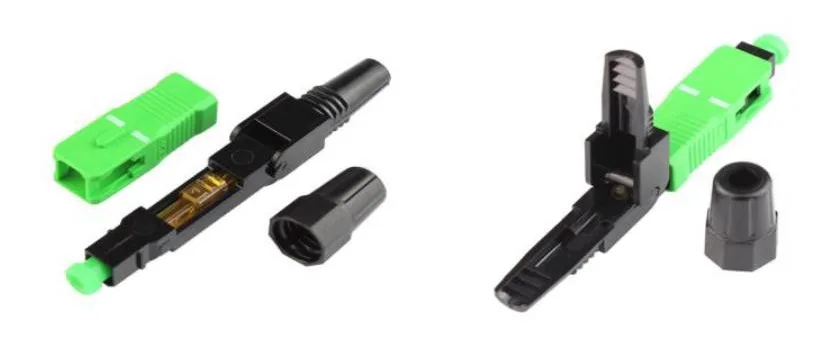

I-FAC-SC/APC-01

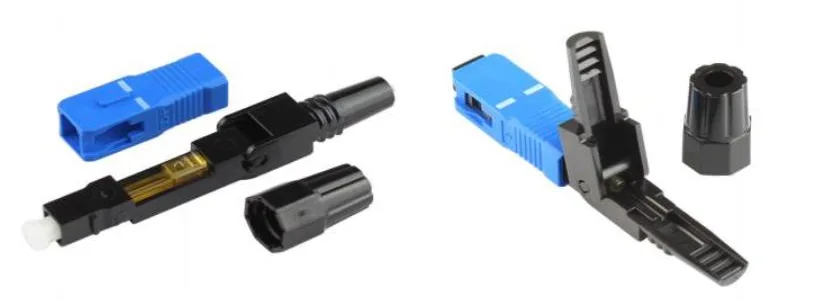

I-FAC-SC/UPC-01

Uhlelo lokusebenza lwe-FTTx, Ukuguqulwa Kwegumbi Ledatha

Ukucaciswa kobuchwepheshe:

Into	Ipharamitha
Ububanzi bekhebula	3.0 x 2.0 mm
Usayizi:	59*8.7*8.3mm & 55*8.7*8.3mm
I-Fiber Diameter	125μm ( 652 & 657)
I-Coating Diameter	250μm
Imodi	SM
Isikhathi sokuSebenza	cishe 15s (ngaphandle kokusetha ifayibha)
Ukulahlekelwa Kokufaka	≤ 0.5dB Max/Ngokujwayelekile ≤0.3dB (1310nm & 1550nm)
Buyisela Ukulahlekelwa	≥50dB ye-UPC, ≥55dB ye-APC
Isilinganiso Sempumelelo	>98%
Izikhathi Ezisebenziseka Kabusha	> izikhathi ezingu-10
Qinisa Amandla E-Naked Fibre	>5 N
Amandla Okuqina	> 50 N
Izinga lokushisa	-40 ~ +85 C
Ukuhlola Amandla E-Tensile Ku-inthanethi (20 N)	Ibanga le-IL≤0.3dB RL ibanga≤5dB
Ukuqina Komshini (izikhathi ezingama-500)	Ibanga le-IL≤0.3dB RL ibanga≤5dB
Isivivinyo sokulahla (4m ukhonkolo phansi, kanye isiqondiso ngasinye, inani eliphindwe kathathu)	Ibanga le-IL≤0.3dB RL ibanga≤5dB

Izixazululo Ezifanelekile:

● Ukusebenza okulula, Isixhumi singasetshenziswa ngokuqondile ku-ONU, futhi sinamandla okubopha angaphezu kuka-5 kg, sisetshenziswa kabanzi kuphrojekthi ye-FTTH yenguquko yenethiwekhi. Iphinde yehlise ukusetshenziswa kwamasokhethi nama-adaptha, yonga izindleko zephrojekthi.

● Ngesokhethi evamile engu-86 ne-adaptha, isixhumi sixhuma phakathi kwekhebula lokudonsa kanye nentambo yokuchibiyela. Isokhethi evamile engu-86 ihlinzeka ngokuvikeleka okuphelele ngomklamo wayo oyingqayizivele.

● Isebenza ekuxhumekeni ngentambo yasendlini ekhwezekayo, i-pigtail, intambo yesichibi kanye nokuguqulwa kwentambo yesichibi egumbini ledatha futhi isetshenziswe ngokuqondile ku-ONU ethile.
