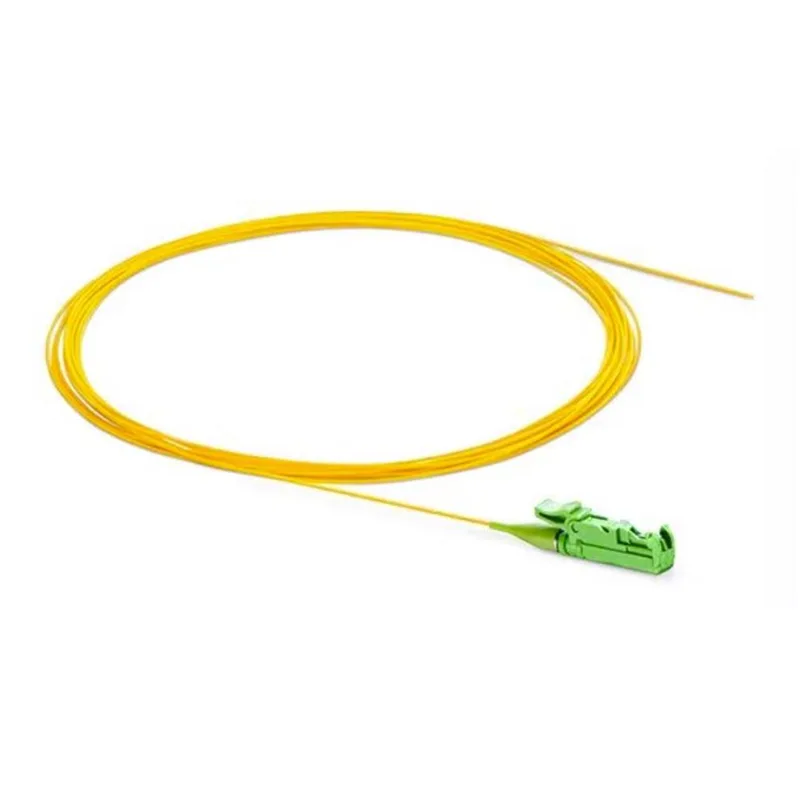

I-E2000 / APC 0.9MM Optical FiberTail

Izici:● Kutholakala nge-900um tight buffered futhi 2.0, 3.0mm fibers● ivumelana nezimo kakhulu kalula● Isixhumi esiphezulu sokunemba● I-UPC APC End Face Plazling● I-LC, Mu, SC, FC, ST, E2000, zonke izixhumi ze-fiber eyodwa● Ubude obuhleliwe● Ifektri eyi-100% inqanyuliwe futhi ihlolwe● Rohs ehambisan......

Thumela Uphenyo

Incazelo Yomkhiqizo

Izici:

● Kutholakala nge-900um tight buffered futhi 2.0, 3.0mm fibers

● ivumelana nezimo kakhulu kalula

● Isixhumi esiphezulu sokunemba

● I-UPC APC End Face Plazling

● I-LC, Mu, SC, FC, ST, E2000, zonke izixhumi ze-fiber eyodwa

● Ubude obuhleliwe

● Ifektri eyi-100% inqanyuliwe futhi ihlolwe

● Rohs ehambisana

Izicelo:

● Bheka ukumiswa kwefayibha "backbone"

● Ukuqedwa kwezinhlelo ze-fiber rack

● Ukuhanjiswa kwezinyawo eziningi lapho kusetshenziswa khona imicibisholo esitezi ngasinye

● I-Backbonel "Backbones"

● Izinhlelo zesikhungo sedatha

Ukucaciswa Okujwayelekile:

Ukwakhesiwe	Ukuchaza izincazelo	Umuvo
Ukubalwa kwefayibha	1f
Imodi yefiber	Imodi eyodwa: G.652D
Umbala we-fiber (250um)	-Khanyayo
Umbuzi	1310/1550	nye
Ukulahleka kokufaka	≤0.30	I-
Ukulahlekelwa Ukulahleka	≥55	I-
Izinto ze-Cable Jacket	I-LSZH (SEMI-FITE buffered)
Umbala wekhekhe wekhebula	Okumhlophe
Uhlobo lwe-fiber tube	Simplex
I-fiber tube diar. (Mm)	Φ0.9	m
Ubude be-fiber * 1	I-0.6 + 0.1 / -0	m
Uhlobo lwesixhumi	I-E2000 / APC (eluhlaza)
Impumelelo	Zirconia ceramic
Ukushisa okusebenzayo	-25 ~ + 65	℃
Ukushisa okushisa	-25 ~ + 65	℃

Qaphela: Ubude be-fiber akufaki izixhumi.

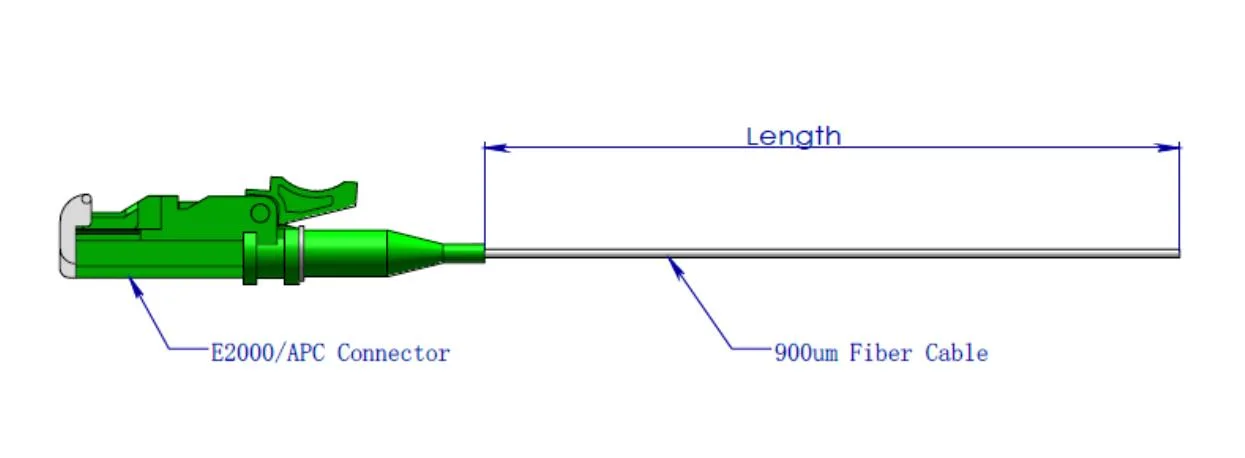

Umdwebo we-Schematic:

E2000/APC Optical Fiber Pigtail
