I-3mm Round Cable LC/UPC- LC/UPC Patch Cords

Orientalfiber Factory’s 3mm Round Cable LC/UPC-to-LC/UPC Patch Cords are designed utilizing G657A1 single-mode fiber and high-precision LC/UPC connectors. With a primary focus on controlling insertion loss and return loss, these cords ensure stable, high-speed transmission performance while guaranteeing a return loss of ≥50dB. The 3.0mm LSZH outer jacket enhances tensile and compressive strength, making the product suitable for a wide range of applications, including server room cabling, FTTH deployments, and industrial communications. Supporting over 800 repeated insertions and extractions with a minimum bending radius of ≥20mm, these patch cords undergo 100% factory testing to ensure an optimal balance between signal stability and practical installation durability.

Thumela Uphenyo

Incazelo Yomkhiqizo

II-I-I-I-I-I-I-I-Orientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsyizici ezibalulekile zezindawo zokunamathisela i-fiber optic ezixinene kakhulu. Akhiqizwe yi-Orientalfiber, umkhiqizo ongaphansi kweqembu le-Jiangsu Xuben Photoelectric Technology, lezi zintambo zokuhlanganisa ziyazuza kusukela kusisekelo sokukhiqiza esingamamitha-skwele angu-15,000 kanye nezinqubo zokukhiqiza ezithuthukisiwe. Ngokukhetha ukuthola umthombo we-I-I-I-I-I-I-I-I-Orientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cords, onjiniyela benethiwekhi bathola umkhiqizo osekelwa yi-ISO9001 kanye nezitifiketi ze-ISO45001, oqinisekisa ukusebenza okuthembekile ezikhungweni zedatha ezibalulekile namahabhu ezokuxhumana emhlabeni jikelele.

Idizayini Yezobuchwepheshe kanye Nobuqotho Besiginali

Ubunjiniyela ngemuva kweI-I-I-I-I-I-I-I-Orientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsigxile ekunembeni okuphezulu kanye nokunciphisa isignali ephansi. Kusetshenziswa i-G657A1 i-fiber yemodi eyodwa, lawa makhebuli adizayinelwe ukuphatha izidingo ezingokwenyama zomzila wekhebula wesimanje.

Izingxenye Zokunemba kanye Nekhwalithi Yokwakha

I-LC/UPC High-Precision Connectors: Izixhumi ze-LC zefomu elincane zivumela ukwanda kokuminyana kwembobo kumaswishi namaphaneli okuchibiyela. Ipholishi ye-UPC (Ultra Physical Contact) iqinisekisa ukulahlekelwa kwembuyiselo okungu-≥50dB, okuyindinganiso yezinhlelo zokusebenza ze-Ethernet zesivinini esikhulu.
Ijakhethi le-LSZH elingu-3.0mm: Ngokungafani nezinye izindlela ezacile ezingu-2.0mm, ikhebula eliyindilinga elingu-3mm linikeza ukuvikelwa komshini okuthuthukisiwe. Izinto ezisetshenziswayo ze-Low Smoke Zero Halogen (LSZH) ziqinisekisa ukuthobelana nokuphepha ekufakweni kwasendlini, ikakhulukazi esikhuphukeleni nesivundlile.
I-Ceramic Ferrule Technology: Isixhumi ngasinye sibonisa i-ceramic Ferrule yezinga eliphezulu egcina ukuqondana okunembe ngaphezu kwemijikelezo yokukhwelana engaphezu kuka-800.
Gobisa Ukungazweli: Ngerediyasi encane yokugoba engu-≥20mm, lezi zintambo zigcina ubuqotho besignali ngisho nalapho zihanjiswa emakhoneni aqinile kumarekhi eseva aminyene.

Izicelo Zemboni Ezihlukahlukene

Ukusetshenziswa kweI-I-I-I-I-I-I-I-Orientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsinqamula imikhakha eminingi, ihlinzeka ngesendlalelo esizinzile esidingekayo kumasevisi omkhawulokudonsa ophezulu.

Izikhungo Zedatha Yebhizinisi kanye ne-Ethernet Systems

Enkabeni yenethiwekhi, lezi zintambo zokuchibiyela zixhuma ama-transceiver anesivinini esikhulu kumafreyimu okusabalalisa. Ijakhethi ye-LSZH ephuzi inikeza ukuhlonza okucacile kwezixhumanisi zefiber yemodi eyodwa, kube lula ukunakekelwa nokuxazulula izinkinga.

I-FTTH kanye Nengqalasizinda ye-Broadband

Njengokukhetha okuyinhloko kokusetshenziswa kwe-Fiber-to-the-Home (FTTH), ukuqina kwekhebuli engu-3mm kuyenza ifaneleke ukuxhumeka phakathi kwetheminali yenethiwekhi yokubona (ONT) nebhokisi lokusabalalisa. Isekela ukulethwa okungenazihibe kwevidiyo, idatha, nezinsizakalo zezwi kubasebenzisi bokugcina.

Ukuxhumana Kwezimboni Nezokuthutha

Ngale kwe-IT ejwayelekile, imikhiqizo ye-Orientalfiber ihlanganiswe kumagridi kagesi kanye nezinhlelo zokuxhumana zokuhamba kukaloliwe. Ukwakhiwa okuqinile kwe-I-I-I-I-I-I-I-I-Orientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsiqinisekisa ukuthi zingakwazi ukumelana nokudlidliza kanye nokuguquguquka kwemvelo okutholakala ekuxhumekeni kwezimboni.

Imibuzo Evame Ukubuzwa (FAQ)

Yini are izinzuzo eziyinhloko zobubanzi obungu-3mm kulawa ma-patch cords e-LC/UPC?

Ububanzi obungu-3mm bunikeza amandla aphakeme okuqina kanye nokumelana nokuchoboza uma kuqhathaniswa nezintambo ezicishayo ezincanyana. Lokhu kwenza i-I-I-I-I-I-I-I-I-Orientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordsifaneleka kakhulu intambo yomgogodla kanye nekhebula evundlile lapho ikhebuli ingase ibe ngaphansi kokuphathwa ngokomzimba okwengeziwe.

Ingabe isixhumi se-LC/UPC sisekela ukudluliswa kwedatha okunesivinini esikhulu?
Yebo. Isixhumi se-LC/UPC siyindinganiso yemboni yezinhlelo zokusebenza zefiber yemodi eyodwa. Ngokulahlekelwa okubuyayo kwe-≥50dB nokulahlekelwa kokufaka okuphansi, ihambisana ngokugcwele nezinhlelo zokusebenza ze-10G, 40G, kanye ne-100G Ethernet.

Ingabe lezi zintambo zingasetshenziswa ezindaweni ezinokuguquguquka okubanzi kwezinga lokushisa?
II-I-I-I-I-I-I-I-Orientalfiber 3mm Round Cable LC/UPC- LC/UPC Patch Cordszilinganiselwe ukusebenza phakathi kuka -25°C kanye +65°C, okuzenza zithembeke kuzo zombili izikhungo zedatha ezilawulwa yisimo sezulu kanye nezindawo zokuxhumana ezingenazo umoya.

Ingabe le mboni ye-patch cords ihloliwe?
Yebo, iyunithi ngayinye inqanyulwe ngokwefekthri engu-100% futhi ihlolwa ngokuqinile ukuze kuqinisekiswe ukuthi ihlangabezana namazinga ashiwo okubonayo nawemishini ngaphambi kokulethwa ekhasimendeni.

Isicelo:

● Izikhungo zedatha

● Izinhlelo zokusebenza ze-Ethernet

● Izinhlelo zokusebenza ze-FTTH

● Izinhlelo zokusebenza ezingemuva, ezivundlile nezikhuphukela phezulu

● Ividiyo, idatha namasevisi ezwi

● Izinhlelo zokusebenza zokuhlola

Izici:

● Isixhumi esinembe kakhulu

● I-UPC&APC yokupholisha ubuso

● SC, LC, sonke isixhumi sefayibha eyodwa

● Ubude obenziwe ngendlela oyifisayo buyatholakala

● 100% imboni inqanyuliwe futhi yahlolwa

● Ithobelana ne-ROHS

Ukucaciswa kobuchwepheshe:

Ezokwakha	Iyunithi	Izincazelo
Imodi ye-Fiber		Imodi eyodwa: ITU-T G657A1
I-Fiber Count		I-Simplex
Ubude begagasi	nm	1310/1550
Ukulahlekelwa Kokufaka	dB	≤0.30
Buyisela Ukulahlekelwa	dB	≥50(UPC)
I-Tight-Buffer Fiber Diameter	um	900
Umbala We-Fiber Oyi-Tight-Buffer		Emhlophe
Umbala Wejakhethi Lekhebula		Okuphuzi
I-Cable Jacket Material		I-LSZH
Ububanzi bekhebula	mm	Φ3.0 ±0.20
Ubude	m	3.0 +0.1/-0
Uhlobo lwesixhumi		LC/UPC (Blue)
Ipholishi yobuso bokugcina		I-UPC
I-Ferrule Material		I-Ceramic
Ukuphindwa Kwezixhumanisi		> izikhathi ezingu-800
Irediyasi yokugoba encane	mm	≥20
Ukuhlangana kokugcinwa kwe-Fibre/ikhebula	N	50N±2N ku-5N/s 120s ubude besikhathi
Izinga Lokushisa Lokusebenza	℃	-25℃ ~ +65 ℃
Izinga Lokushisa Lesitoreji	℃	-25℃ ~ +65 ℃

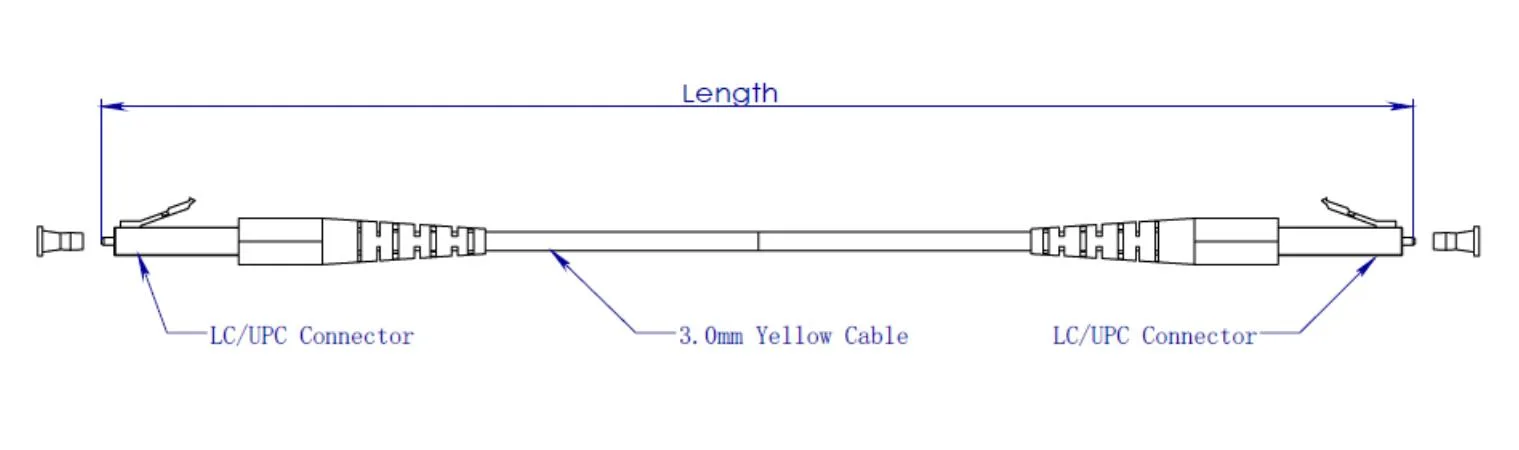

Umdwebo wobukhulu:

3mm Round Cable LC/UPC- LC/UPC Patch Cords

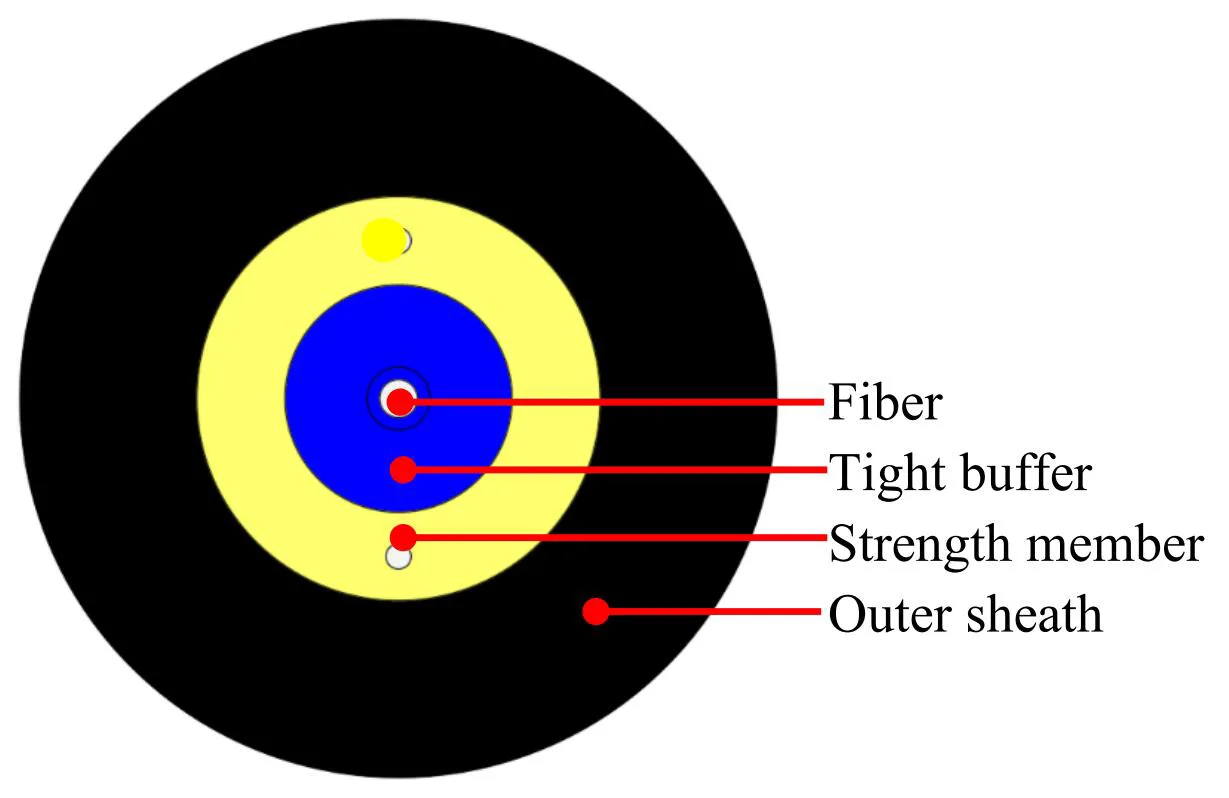

Ukwakhiwa Kwekhebula:

3mm Round Cable LC/UPC- LC/UPC Patch Cords

Izinto		Imininingwane
I-fiber yebhafa eqinile	Inani le-fiber	1
	Uhlobo lwefiber	G.657A1
	Umbala Wefayibha	Okuluhlaza okwesibhakabhaka
	Okubalulekile	I-LSZH
	Ububanzi	Φ0.9 ± 0.05mm
	Umbala webhafa eqinile	Emhlophe
Ilungu lamandla	Okubalulekile	Indwangu ye-polyester
Umgodla wangaphandle	Okubalulekile	I-LSZH
	Ububanzi	Φ3.0 ± 0.2 mm
	Umgodla wangaphandle Umbala	Okuphuzi
Uphawu lukayinki	Umbala	Mnyama

Isici se-Fiber:

Zonke izici ze-cable fibre (i-fiber yekhebula eliqediwe) kufanele, okungenani, ngokuhambisana ne-ITU-T Recommendation G.657A1 futhi izoba kanje.

Into	Ukucaciswa
Uhlobo lwefiber	Imodi eyodwa
I-fiber material	I-silica ehlanganisiwe
I-coefficient yokunciphisa @ 1310 nm @ 1383nm @ 1460nm @ 1550 nm @ 1625nm	≤ 0.35 dB/km ≤ 0.35 dB/km ≤ 0.25 dB/km ≤ 0.21 dB/km ≤ 0.23 dB/km
Ubude begagasi bokunqanyulwa kwekhebula	≤ 1260 nm
I-Zero-dispersion wavelength	1300 ~ 1324 nm
I-Zero-dispersion slope	≤ 0.092 ps/(nm².km)
I-PMD @ 1550 nm	≤0.1 ps/km^1/2
Ukuhlakazeka kweChromatic @ 1285 ~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Ububanzi benkambu yemodi @ 1310 nm	8.8±0.4um
Iphutha le-Core / Clad concentricity	≤ 0.5 um
I-diameter yokugqoka	125.0 ± 0.7 um
I-Cladding non-circularity	≤5%
I-diameter ye-coating eyinhloko	242 ± 7 um
I-Concentricity Primary Coating / Coating	≤10 µm
I-coating non-circularity	≤0.7%
Ukuncipha ngekhebula eligoba Ukulahleka 1 jikisa 1 irediyasi engu-10mm 10 ujike 1 irediyasi 15mm	1550nm ≤Δ0.75dB/km 1625nm ≤Δ1.5dB/km 1550nm ≤Δ0.25dB/km 1625nm ≤Δ1.0dB/km
