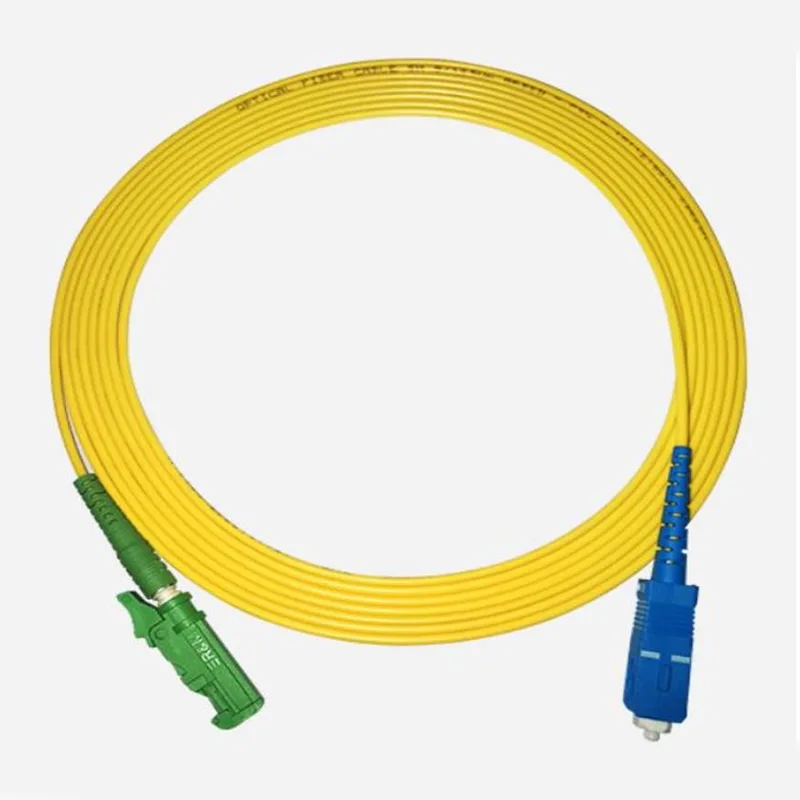

I-3mm Round Cable E2000/APC- SC/UPC Patch Cords

Orientalfiber offers the 3mm Round Cable E2000/APC- SC/UPC Patch Cords, a reliable fiber optic solution from a leading manufacturer in China. Designed for high-precision data transmission, these patch cords support multiple applications in data centers, FTTH projects, and Ethernet networks. Available in customizable lengths, these cables are factory terminated, tested, and compliant with industry standards, ensuring seamless integration into your network setup.

Thumela Uphenyo

Incazelo Yomkhiqizo

II-I-3mm Round Cable E2000/APC- SC/UPC Patch Cordsngabakwa-Orientalfiber bakhelwe ukunikeza ikhwalithi yesiginali engaguquki ezindaweni ezihlukahlukene zenethiwekhi. Ngezixhumi ezinemba okuphezulu nezinketho eziphakeme zokupholisha zobuso bokugcina (i-UPC ne-APC), lawa makhebula afaneleka ekuxhumekeni kwefayibha eyodwa, esekela izixhumi ze-SC ne-LC. I-Orientalfiber inikezela ngezinketho ezithe xaxa nezihlinzeka ngamaklayenti afuna izixazululo ezinokwethenjelwa ze-fiber optic.

Izinhlelo zokusebenza

Izikhungo zedatha namakamelo amaseva
Ukufakwa kwenethiwekhi ye-Ethernet
FTTH (Fiber to the Home) ukusetshenziswa
Umgogodla, ovundlile, kanye nekhebula elikhuphukela phezulu
Ividiyo, idatha, nokudluliswa kwezwi
Ukuhlanganiswa nezinto zokuhlola kanye nezinhlelo zokulinganisa

Izici Eziyinhloko

Isixhumi esinembe kakhulu sokulahlekelwa kokufaka okuphansi
Izinketho ze-UPC ne-APC zokuphelisa ubuso
Isekela i-SC, i-LC, nezinye izixhumi ze-fiber eyodwa
Ubude obungenziwa ngendlela oyifisayo ukuze buhambisane nezidingo zephrojekthi
Imboni engu-100% inqanyuliwe futhi ihloliwe
I-ROHS ihambisana nokuphepha kwemvelo

Izinzuzo Zobuchwepheshe

I-Orientalfiber's 3mm Round Cable E2000/APC- SC/UPC Patch Cords yakhelwe ngamazinga okukhiqiza aqinile. Izintambo zigcina ukusebenza kwe-optical okuzinzile ngaphansi kwezimo ezihlukahlukene, ukunciphisa ukuncishiswa kwesignali nokuqinisekisa ukuxhuma okuthembekile. Zifanele kokubili izicelo zangaphakathi nangaphandle, kuye ngomklamo wenethiwekhi.

Kungani Khetha Orientalfiber

Njengochwephesheumphakeli nomkhiqizi, I-Orientalfiber inikeza izixazululo zokuphela-to-ekupheleni zamanethiwekhi e-fiber optic. Ngamafekthri amane ahlanganisa izintambo ezibonakalayo zasendlini nangaphandle, izingxenye ze-ODN, nemishini yenethiwekhi yokubona, i-Orientalfiber isekela ukuthunyelwa kwenani elikhulu namaphrojekthi wobunjiniyela emhlabeni jikelele. Izitifiketi zabo zekhwalithi, okuhlanganisa i-ISO9001 ne-ISO45001, zibonisa ukuzibophezela ekukhiqizeni okunembayo nokuphepha emsebenzini.

Ukufakwa Nokugcinwa

I-3mm Round Cable E2000/APC- SC/UPC Patch Cords isilungele ukuthunyelwa ngokushesha. Ukunqanyulwa kwefekthri kuqinisekisa isikhathi esincane sokusetha, kuyilapho izixhumi ezipholishiwe zinciphisa ukubonakaliswa kwesignali. I-Orientalfiber iphinde inikeze isiqondiso sokuhamba ngendlela efanele, ukuphatha, nokuhlola ukuze kugcinwe ukusebenza okuphezulu ngesikhathi sempilo yekhebula.

FAQ

Ngingakwazi uku-oda ubude bangokwezifiso?

Yebo, i-Orientalfiber ihlinzeka ngobude obungenziwa ngokwezifiso ukuze bulingane nezidingo zephrojekthi yakho.

Yiziphi izinhlobo zezixhumi ezisekelwayo?

I-SC, i-LC, nezinye izixhumi zefayibha eyodwa zisekelwa ngazo zombili izinketho zokupholisha ze-UPC ne-APC.

Ingabe lezi zintambo zokubopha ziyahlolwa ngaphambi kokuthunyelwa?

Yebo, konke3mm Round Cable E2000/APC- SC/UPC Patch Cordi-100% inqanyuliwe futhi ihlolwe ukuze kuqinisekiswe ukusebenza okuthembekile.

Xhumana ne-Orientalfiber

Ukuze uthole ama-oda ama-wholesale, ama-oda ayinqwaba, noma imininingwane yomkhiqizo enemininingwane, finyelela ku-Orientalfiber. Ithimba labo lochwepheshe linikeza ukwesekwa okugcwele kokuthengwa kwempahla, ukuhlela iphrojekthi, kanye nesevisi yangemuva kokuthengisa.

Ukucaciswa kobuchwepheshe:

Ezokwakha	Iyunithi	Izincazelo
Imodi ye-Fiber		Imodi eyodwa: ITU-T G657A1
I-Fiber Count		I-Simplex
Ubude begagasi	nm	1310/1550
Ukulahlekelwa Kokufaka	dB	≤0.30
Buyisela Ukulahlekelwa	dB	≥55(APC) ≥50(UPC)
I-Tight-Buffer Fiber Diameter	um	900
Umbala We-Fiber Oyi-Tight-Buffer		Emhlophe
Umbala Wejakhethi Lekhebula		Okuphuzi
I-Cable Jacket Material		I-LSZH
Ububanzi bekhebula	mm	Φ3.0 ±0.20
Ubude	m	3.0 +0.1/-0
Uhlobo lwesixhumi		SC/APC (Green) SC/UPC (Blue)
Ipholishi yobuso bokugcina		I-APC ne-UPC
I-Ferrule Material		I-Ceramic
Ukuphindwa Kwezixhumanisi		> izikhathi ezingu-800
Irediyasi yokugoba encane	mm	≥20
Ukuhlangana kokugcinwa kwe-Fibre/ikhebula	N	50N±2N ku-5N/s 120s ubude besikhathi
Izinga Lokushisa Lokusebenza	℃	-25℃ ~ +65 ℃
Izinga Lokushisa Lesitoreji	℃	-25℃ ~ +65 ℃

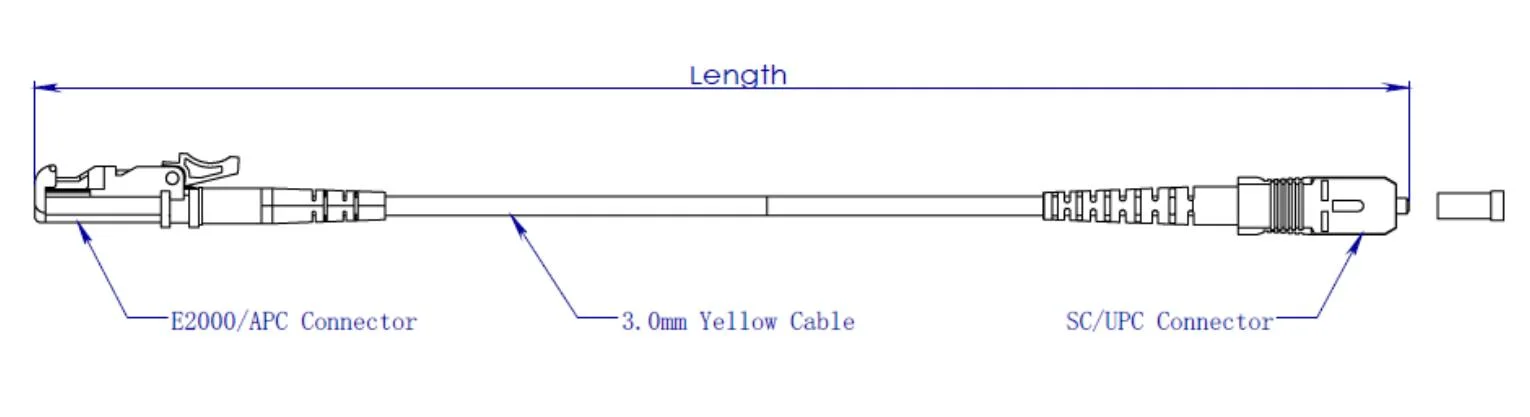

Umdwebo wobukhulu:

3mm Round Cable E2000/APC- SC/UPC Patch Cords

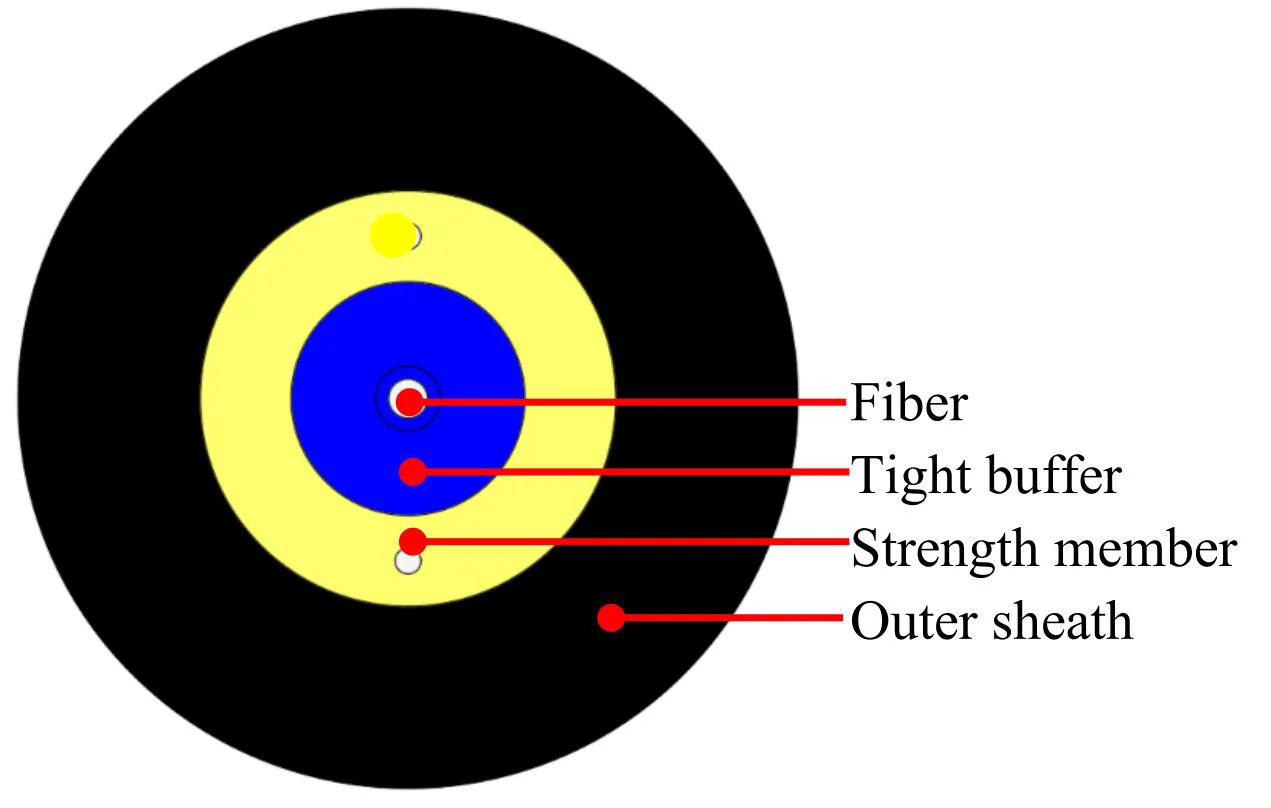

Ukwakhiwa Kwekhebula:

3mm Round Cable E2000/APC- SC/UPC Patch Cords

Izinto		Imininingwane
I-fiber yebhafa eqinile	Inani le-fiber	1
	Uhlobo lwefiber	G.657A1
	Umbala Wefayibha	Okuluhlaza okwesibhakabhaka
	Okubalulekile	I-LSZH
	Ububanzi	Φ0.9 ± 0.05mm
	Umbala webhafa eqinile	Emhlophe
Ilungu lamandla	Okubalulekile	Indwangu ye-polyester
Umgodla wangaphandle	Okubalulekile	I-LSZH
	Ububanzi	Φ3.0 ± 0.2 mm
	Umgodla wangaphandle Umbala	Okuphuzi
Uphawu lukayinki	Umbala	Mnyama

Isici se-Fiber:

Zonke izici ze-cable fibre (i-fiber yekhebula eliqediwe) kufanele, okungenani, ngokuhambisana ne-ITU-T Recommendation G.657A1 futhi izoba kanje.

Into	Ukucaciswa
Uhlobo lwefiber	Imodi eyodwa
I-fiber material	I-silica ehlanganisiwe
I-coefficient yokunciphisa @ 1310 nm @ 1383nm @ 1460nm @ 1550 nm @ 1625nm	≤ 0.35 dB/km ≤ 0.35 dB/km ≤ 0.25 dB/km ≤ 0.21 dB/km ≤ 0.23 dB/km
Ubude begagasi bokunqanyulwa kwekhebula	≤ 1260 nm
I-Zero-dispersion wavelength	1300 ~ 1324 nm
I-Zero-dispersion slope	≤ 0.092 ps/(nm².km)
I-PMD @ 1550 nm	≤0.1 ps/km^1/2
Ukuhlakazeka kweChromatic @ 1285 ~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Ububanzi benkambu yemodi @ 1310 nm	8.8±0.4um
Iphutha le-Core / Clad concentricity	≤ 0.5 um
I-diameter yokugqoka	125.0 ± 0.7 um
I-Cladding non-circularity	≤5%
I-diameter ye-coating eyinhloko	242 ± 7 um
I-Concentricity Primary Coating / Coating	≤10 µm
I-coating non-circularity	≤0.7%
Ukuncipha ngekhebula eligoba Ukulahleka 1 jikisa 1 irediyasi engu-10mm 10 ujike 1 irediyasi 15mm	1550nm ≤Δ0.75dB/km 1625nm ≤Δ1.5dB/km 1550nm ≤Δ0.25dB/km 1625nm ≤Δ1.0dB/km
