● Idizayini yesakhiwo esithuthukile, ukusebenza okulula kanye nomzila ofanele.
● Izinto ezibonakalayo: I-PP.
● umswakama ubufakazi, amanzi angenamanzi, ubufakazi bothuli, ukulwa nokuguga.
● Izinga lokuvikelwa phezulu ku-IP68.
● I-1 opl optical cable engenayo, ama-2 e-branch amakhebula we-trictical aptical kanye ne-adaptha engu-8 exhunywe kuqala.

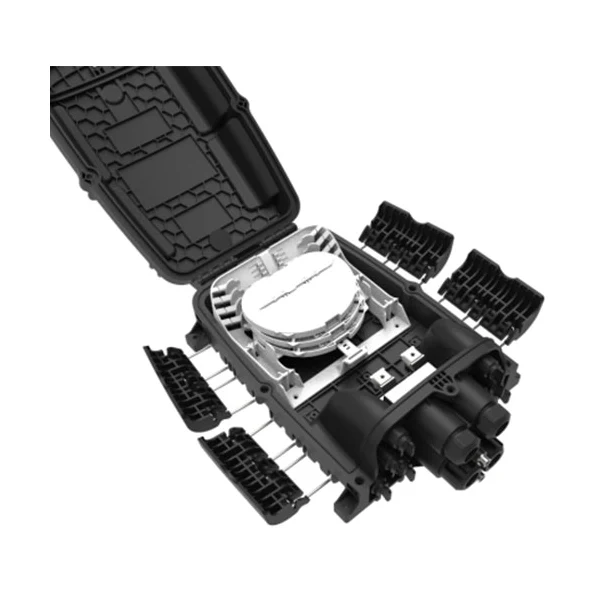

● Izinhlobo ezahlukahlukene zamathileyi we-splice ayatholakala.
● Indlela yokufaka: I-Pole-efakwe, ifakwe endalini, ifakwe ngodonga.

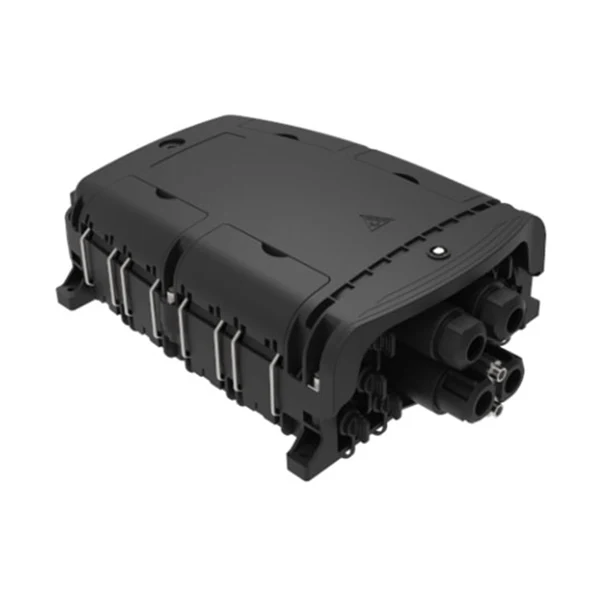

I-WibleProof exhunywe ngaphambilini ye-Fiber Optiption Distripation Box njenge-FTTX Network Distribution Advints Aquipt Option Equipment, ahlinzeke ngokuxhumeka okusheshayo nokwethembekile, ukuvikelwa okuhle kanye nokuphatha inethiwekhi ye-FTTX.
Umkhiqizo wenzelwe, wenziwe futhi wahlolwa ngokuya ngamazinga ngale ndlela elandelayo:
|
Lokho-t g.652 |
Izici zemodi eyodwa-yemodi eyodwa ingqondo |
|
IEC 607944-1-1 |
I-Optical fiber cable-part 1-1: generic generic Ukucaciswa-Jikelele |
|
IEC 60794-1-2 |
I-Optical fiber cable-part 1-2: generic Inqubo yokuhlola ikhebula le-Optical |
|
Imodeli: I-XB-8QX |
Ukucacisa |
Phawula |
|

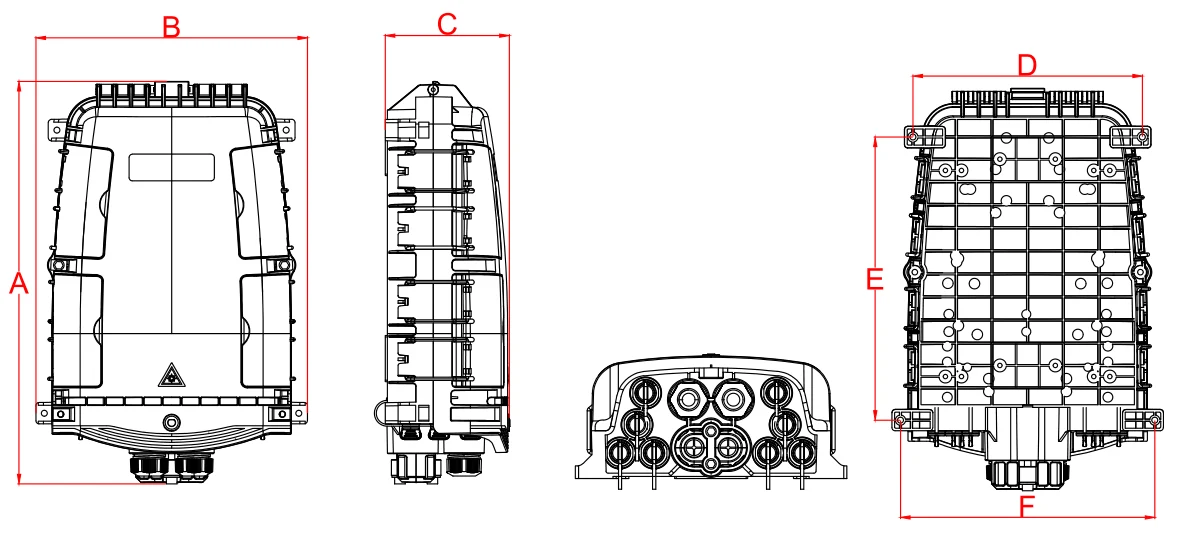

Ngaphandle ubukhulu (mm) |
378 * 255 * 116 (A * B * C) |
|
|
Ukufaka Isikhundla somgodi (mm) |
215 * 266 * 239 (D * E * F) |
|
|
Umbala |
-Mnyama |
Ngokwezifiso |
|
Ubungako kanye nenani lomgodi wekhebula we-optical |
I-1 ovel optical cable yokungena, igatsha eli-2 okufakiwe kwentambo ye-Optical ne-Adaptha engu-8 exhunyiwe |
|
|
Isinyusi Amandla (max) |
48 |
Ugqoko a, 12x4 = 48, 2 izingqimba ze Umkhono wokuvikela ukushisa okushisayo. |
|
96 |
Ugqoko c, 12x8 = 96, 1 ungqimba lwe Umkhono wokuvikela ukushisa okushisayo. |
|
|
96 |
Ugqoko d, ugqoko e, 24x4 = 96, 2 izingqimba ze Umkhono wokuvikela ukushisa okushisayo. |
|
|
128 |
Ugqoko f, 16x8 = 128, 1 ungqimba lwe Umkhono wokuvikela ukushisa okushisayo. |
|
|
136 |
Max = 1e + 7f = 24 + 7 * 16 = 136 |
|
|
Imro Plc splitter |
1x2 |
Usayizi we-Splitter: 60x7x4mm. Ingafakwa uthayipha a nohlobo e I-skicing tray, i-1 PC nge-tray yokuhlukanisa. |
|
1x4 |
||
|
I-1x8 |
||
|
1 * 16 |
Usayizi we-Splitter: 60x12x4mm. Ingafakwa uthayipha i-a-1, bese uthayipha i-e-1 I-skicing tray, i-1 PC nge-tray yokuhlukanisa. |
|
|
Ingqondo ububanzi bekhebula le-chat dlula ngokusebenzisa iPort (MM) |
Φ18 |
* Qaphela: Nikeza uhlobo nobubanzi be Intambo ye-Optical lapho uthenga, ukuqhathanisa ipulaki efanelekile yokubopha ukuqinisekisa ukusebenza kokubekwa uphawu. |
|
Ingqondo Ubukhulu bekhebula le-Branch Cable Port (MM) |
Φ18 |
|
|
Isitho Ileveli yokuvikela |
IP68 |
|
|
Ukuvulayo |
I-HB (evamile) |
ingenziwa ngokwezifiso ngokuya nge Izidingo |
|
-Ngagqamisi uhlobo Ukuhlolwa kosawoti okusawoti (NSS) |
48 h |
