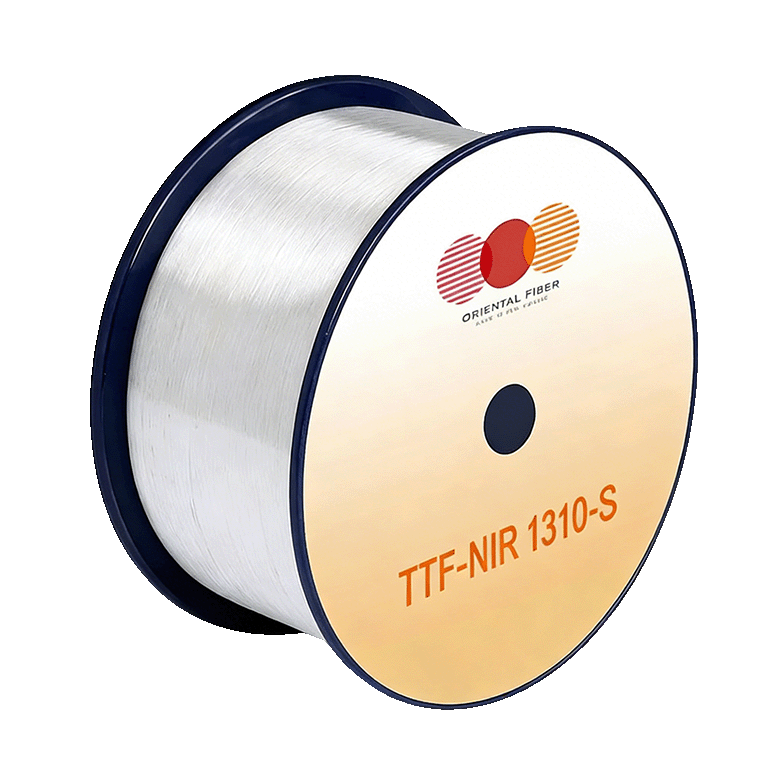

I-TTR-NIR 1310-S

I-TTF-NIR 1310-S i-hollow-core optical fiber ifaka ukulahleka kokudluliselwa okungaphansi kuka-1 dB/km ku-O-band, nokubambezeleka kwesikhathi ngo-31% okungaphansi kwalokho kwamafiber optical avamile aqinile, okuyenza ifanelekele ukuthunyelwa kwe-intra-data optical transmission.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-Orientalfiber TTR-NIR 1310-S iyi-fiber optical enembayo eyenziwe ngokunemba eyenzelwe ukudluliswa kwesikhungo sedatha esinesivinini esiphezulu. I-Jiangsu Xuben Photoelectric Technology Co., Ltd, njengomkhiqizi nomphakeli wase-China othembekile, inikeza lo mkhiqizo ngokulawula ikhwalithi okuphrofeshinali nokusebenza okuthembekile. I-TTR-NIR 1310-S inikezela ngokulahleka kokudlulisela okuphansi, ukubambezeleka okuncishisiwe, nokusebenza kahle komkhawulokudonsa, okuyenza ifaneleke ezokuxhumana ngezingcingo zesimanje kanye nezinhlelo zokusebenza zedatha eziminyanisa kakhulu.

Isingeniso Somkhiqizo

II-I-I-TTR-NIR 1310-Si-hollow-core optical fiber yakhelwe ukuthuthukisa ukusebenza kokudluliswa kwedatha ngaphakathi kwezikhungo zedatha. Ngokungafani nemicu yendabuko eqinile, i-TTR-NIR 1310-S ifinyelela ukulahleka kokudlulisela okungaphansi kwe-1 dB/km ku-O-band, futhi ukubambezeleka kwayo kwesikhathi cishe kungaphansi kwama-31% kunemicu evamile. Lo mkhiqizo ovela e-Orientalfiber ungahlanganiswa kalula kumanethiwekhi akhona e-fiber optic futhi usekele ukuxhumana okunesivinini esikhulu, nokubambezeleka okuphansi okudingekayo kungqalasizinda yesimanje ye-IT. I-Jiangsu Xuben Photoelectric Technology Co., Ltd isebenza njengomhlinzeki onokwethenjelwa, eqinisekisa ukuvumelana kanye nokulethwa komhlaba wonke.

Incazelo

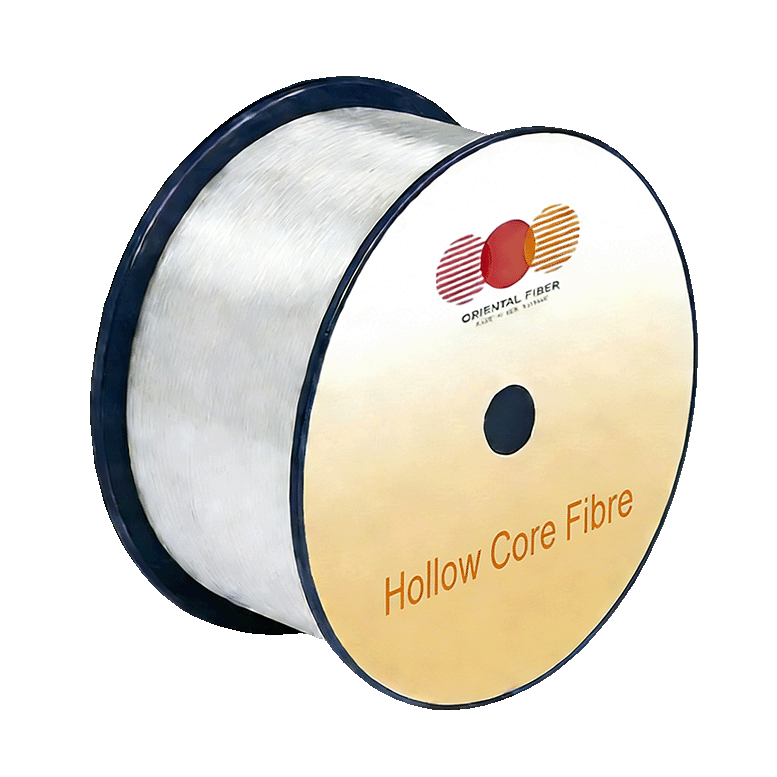

I-TTR-NIR 1310-S iyi-hollow-core optical fibre eqondisa ukukhanya ikakhulukazi ngomongo ogcwele umoya, inciphisa ukulahleka kwesignali nokubambezeleka uma kuqhathaniswa namafayili e-silica ajwayelekile. Ilungele izinhlelo zokusebenza lapho ukudluliswa kwe-optical ngesivinini esikhulu, ibanga elifushane kubalulekile.

Izinzuzo Eziyinhloko

Ukulahleka Kokudlulisela Okuphansi: <1 dB/km ku-O-band, okuqinisekisa ukuwohloka kwesignali okuncane.
Ukubambezeleka Okuncishisiwe: Ukubambezeleka kwesikhathi ngo-31% kuphansi kunemicu evamile eqinile.
Ukuvumelana Okuphezulu: Isekela izixhumi zefayibha ezijwayelekile nezakhiwo zesikhungo sedatha.
Ukuthembeka Kokukhiqiza: Kukhiqizwe ezimbonini ezilawulwa yi-Orientalfiber ngaphansi kwezitifiketi ze-ISO9001 nezitifiketi ze-ISO45001.
Ukuqina Okuthuthukisiwe: Idizayini eyi-Hollow-core inciphisa imiphumela engaqondile kanye nokuhlanekezelwa kwesignali.

Imininingwane Yezobuchwepheshe

Ipharamitha	Ukucaciswa	Iyunithi
Uhlobo lweFiber	Imodi eyodwa engenalutho-core	-
Ukulahleka Kokudluliselwa	<1	dB/km
Ukuncishiswa Ukubambezeleka Kwesikhathi	31%	-
I-Wavelength esebenzayo	I-O-band (1260–1360 nm)	nm
Imodi Yenkundla Ububanzi	~8.5	µm
I-Coating Material	I-acrylate ye-UV enezendlalelo ezimbili	-
Ukuthobela Okujwayelekile	I-IEC 60793-2	-

Izinhlelo zokusebenza

I-Intra-data center optical transmission
Izixhumanisi zeseva enesivinini esikhulu
Izindawo zekhompuyutha ezingabambeki kancane
Amanethiwekhi omgogodla wezokuxhumana
Amanethiwekhi okubona kwemboni amandla kagesi nezokuthutha zikaloliwe

Ukuqhathanisa ne-Conventional Solid-Core Fibers

Isici	I-I-I-TTR-NIR 1310-S	I-Conventional Solid-Core Fiber
Ukulahleka Kokudluliselwa	<1 dB/km	~2–3 dB/km
Ukubambezeleka	31% ngaphansi	Okujwayelekile
Imiphumela Engaqondile	Yehlisiwe	Phezulu
Sebenzisa Ikesi	Izikhungo zedatha, amanethiwekhi anesivinini esikhulu	I-General Telecom, i-LAN

Ukwethenjwa Kwekhasimende Nokwesekwa Komkhiqizo

I-Jiangsu Xuben Photoelectric Technology Co., Ltd ibikhiqiza izixazululo ze-fiber optic ezimakethe zasekhaya nezamazwe ngamazwe, isekela opharetha bezingcingo abakhulu namanethiwekhi ezimboni. Imikhiqizo ye-Orientalfiber efanaI-I-I-TTR-NIR 1310-Sbathenjwa kumaphrojekthi wobunjiniyela amaningi emhlabeni wonke ngenxa yekhwalithi engaguquki, ukukhiqizwa okuphrofeshinali, nokuhambisana nezindinganiso ze-ISO.

Imininingwane

Into	Ukucaciswa
Uhlobo lweFiber	I-I-I-TTR-NIR 1310-S
Kulungiselelwe	1310 nm
Okubalulekile	Umnyombo womoya
Idayamitha eyinhloko	28±2 μm
Uhlobo lwe-coating	Ijazi elibili elinenkomba ephezulu ye-acrylate
Ukunciphisa	<1 dB/km @ 1310 nm
Umkhawulokudonsa wokudlulisa	1150-1500 nm
Imodi yenkambu yobubanzi	20±2 μm
Ukuhlakazeka	<5 ps/(nm·km) @ 1310 nm
Ukuvuleka kwezinombolo	0.03
Ukucindezelwa kwe-HOM	>30 dB
Ukulahleka kwe-Gobela @ 5 cm irediyasi (amajika angama-50)	<0.1 dB

FAQ

I-Q1: Ingakanani ibanga eliphezulu lokudluliselwa kokulahlekelwa okuphansi nge-TTR-NIR 1310-S?

A: Ngaphakathi kwe-O-band, ukulahleka kokudlulisela kuhlala kungaphansi kuka-1 dB/km, kulungele amabanga ajwayelekile esikhungo sedatha yangaphakathi.

I-Q2: Ingabe i-TTR-NIR 1310-S iyahambisana nezixhumi ezijwayelekile zefayibha?

A: Yebo, ingahlanganiswa nezixhumi ezivamile ze-LC, SC, ne-MPO ezisetshenziswa ezikhungweni zedatha.

Q3: Ingabe le fiber ingasetshenziselwa izinhlelo zokusebenza zangaphandle?

A: I-TTR-NIR 1310-S ilungiselelwe izindawo zasendlini ezilawulwayo; ukuthunyelwa kwangaphandle kudinga ikhebula elivikelayo elengeziwe.
