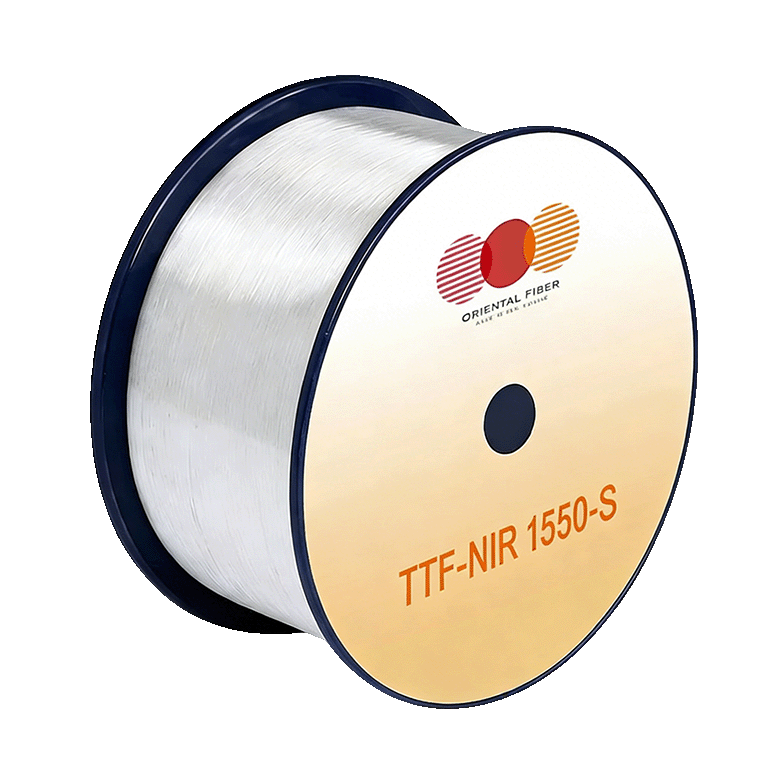

I-TTF-NIR 1550-S

I-TTF-NIR 1550-S i-hollow-core optical fiber ibonisa ukulahlekelwa kokudluliswa okungaphansi kuka-1 dB/km kumabhendi e-C no-L, ngokubambezeleka kwesikhathi ngo-31% okungaphansi kwalokho kwamafiber optical aqinile avamile, okuyenza ifaneleke ekudlulisweni kwe-inter-data optical transmission kanye namanethiwekhi efoni.

Thumela Uphenyo

Incazelo Yomkhiqizo

Imicu yekhwalithi ephezulu ye-Orientalfiber ye-TTF-NIR 1550-S yenziwe ngokunemba e-China ukuze isebenze kahle kakhulu. Ihambisana nedizayini ye-air-core, le micu ithola ukulahleka kokudlulisela okungaphansi kuka-1 dB/km kumabhendi e-C no-L kanye nokulibaziseka kwesikhathi esiphansi ngo-31% uma kuqhathaniswa namafayibha aqinile aqinile, okuwenza alungele izixhumanisi ezibonakalayo zesikhungo sedatha phakathi namanethiwekhi ocingo.

Ukucaciswa okubalulekile kufaka phakathi ububanzi obuyi-31 μm core, i-dual-coat high-index acrylate, i-bandwidth yokudlulisa engu-1450-1700 nm ebanzi, ukuhlakazeka okungu-<5 ps/(nm·km), kanye nokumelana nokugoba okuhle kakhulu. I-Orientalfiber inikeza ukuhlinzeka okuthembekile, okuqondile kwasefekthri kwezinhlelo zokusebenza ezidinga ukudluliselwa kwe-optical speed, low-latency Optical.

Imininingwane

Into	Ukucaciswa
Uhlobo lweFiber	I-TTR-NIR 1550-SS
Kulungiselelwe	1550 nm
Okubalulekile	Umnyombo womoya
Idayamitha eyinhloko	31±2 μm
Uhlobo lwe-coating	Ijazi elibili elinenkomba ephezulu ye-acrylate
Ukunciphisa	<1 dB/km @ 1550 nm
Umkhawulokudonsa wokudlulisa	1450-1700 nm
Imodi yenkambu yobubanzi	21.5±2 μm
Ukuhlakazeka	<5 ps/(nm·km) @ 1550 nm
Ukuvuleka kwezinombolo	0.03
Ukucindezelwa kwe-HOM	>30 dB
Ukulahleka kwe-Gobela @ 5 cm irediyasi (amajika angama-50)	<0.1 dB
