Ikhebula Le-Round Fiber Optic Drop Elisanqanyuliwe

Izintambo ezinqanyuliwe eziyindilinga eziyindilinga ezinqanyuliwe zinikeza isixazululo esiqinile nesivaliwe soxhumano lwe-Fiber to the Home (FTTH) ngesistimu yokuxhuma esheshayo nenembayo, enciphisa isikhathi sokufaka, amaphutha obuchwepheshe nokunakekelwa. Ngaphezu kwalokho, iqinisekisa ukuthembeka okuphezulu nokuqina kwenethiwekhi.

Thumela Uphenyo

Incazelo Yomkhiqizo

Isigaba Somkhiqizo: I-Fiber to the Home (FTTH) Izixazululo Zokuxhumana
Umsebenzi Obalulekile: Ikhebuli yokudonsa esetshenziswa ngokushesha yepulaki bese udlala enonqanyulwa kwe-SC/APC okuqinisiwe.
Ukuthobelana: Ihlangabezana namazinga e-IEC 61754-4 okusebenza kwesixhumi esibonakalayo.

I-Orientalfiber ihlinzeka ngekhebula le-Pre-Terminated Round Fiber Optic Drop Cable njengesixazululo esisebenza kahle kakhulu sokuphakelwa kwefayibha yokuhlala neyokuhweba. Idizayinwe i-Jiangsu Xuben Photoelectric Technology Co., Ltd, le khebula ihlanganisa ukuvikelwa komshini okuqinile nezixhumi ezinobunjiniyela obunembayo ukuze kuqinisekiswe ukudluliswa kwesignali ezinzile ezimeni ezihlukahlukene zemvelo.

Incazelo Yomkhiqizo & Nobubanzi Bokusebenza

Ikhebula Elinqanyuliwe Eliyi-Round Fiber Optic Drop Cable iyinhlangano ekhethekile yokubona ehlanganisa ikhebula eliyindilinga elingu-5mm eliqine kakhulu elinqanyulwe ngesixhumi esiqinisiwe se-SC/APC. Ngokungafani nezintambo ezinqanyuliwe zasenkambuni ezijwayelekile, lesi sixazululo esixhunywe ngaphambili sisusa isidingo sokuxhumanisa endaweni ekugcineni kobhalisile, kusetshenziswa i-zirconium ferrule yekhwalithi ephezulu ukuze kugcinwe ukulahleka kokufakwa okuphansi nokulahlekelwa okuphezulu kwembuyiselo kuyo yonke impilo yenethiwekhi.

Izinzuzo Eziyinhloko Nokuphumelela Kwezobuchwepheshe

1. Precision Engineering

Ikhebula Elinqanyuliwe Eliyi-Round Fiber Optic Drop Cable linesixhumi esiqinisiwe se-SC/APC ku-Side A, eqinisekisa ukuxhumana okuvalekile, ukumelana nesimo sezulu. Ukusetshenziswa kwe-zirconium ferrules kuqinisekisa ukuqondana okuzinzile, kunciphisa ingozi yokuwohloka kwesignali ngenxa yokuguquguquka kwezinga lokushisa noma ukudlidliza komshini.

2. Ukuqina Okuthuthukisiwe

Yakhelwe ukuphila isikhathi eside, ukwakhiwa kwekhebula kuhlanganisa:

Ijakhethi yangaphandle ye-HDPE/LSZH: Inikeza ukumelana nemisebe ye-UV kanye nokucindezeleka kwemvelo.

Izingxenye Zokuvimba Amanzi: I-fiberglass ehlanganisiwe nezintambo ze-aramid zivimbela ukungena komswakama.

I-G657A1/A2 Fiber: Inikezela ngokusebenza okuphezulu okungezwani nokugoba, okubalulekile emzileni oqinile ezindaweni zasemadolobheni ze-FTTH.

3. Uhlaka Oluthuthukisiwe Lokutshala

Ngokusebenzisa Ikhebula Elinqanyuliwe Le-Round Fiber Optic Drop Cable, ama-opharetha ezokuxhumana anganciphisa kakhulu isikhathi sokufaka. "Isiphetho esivulekile" ku-Side B sivumela ukudonsa kalula ngamapayipi ngaphambi kokunqanyulwa kokugcina endaweni yokusabalalisa.

Izinkambu Zokusebenza

Ukuguquguquka kwe-Pre-Terminated Round Fiber Optic Drop Cable kuyenza ifaneleke emikhakheni ehlukahlukene edingeka kakhulu:

Ezokuxhumana: Ukuxhumana kwe-FTTH kwemayela lokugcina kubahlinzeki besevisi ye-inthanethi yokuhlala.

Ukusakaza: Ukudluliselwa kwesignali kumanethiwekhi omsakazo nomabonakude.

Ingqalasizinda Yezimboni: Izixhumanisi zangaphambili zamagridi ahlakaniphile, ezokuthutha ngololiwe, nezinhlelo zokuqapha umgwaqo omkhulu.

Amanethiwekhi Endawo Yendawo (LAN): Ukudluliswa kwedatha enesivinini esikhulu sekhampasi noma izakhiwo zamahhovisi.

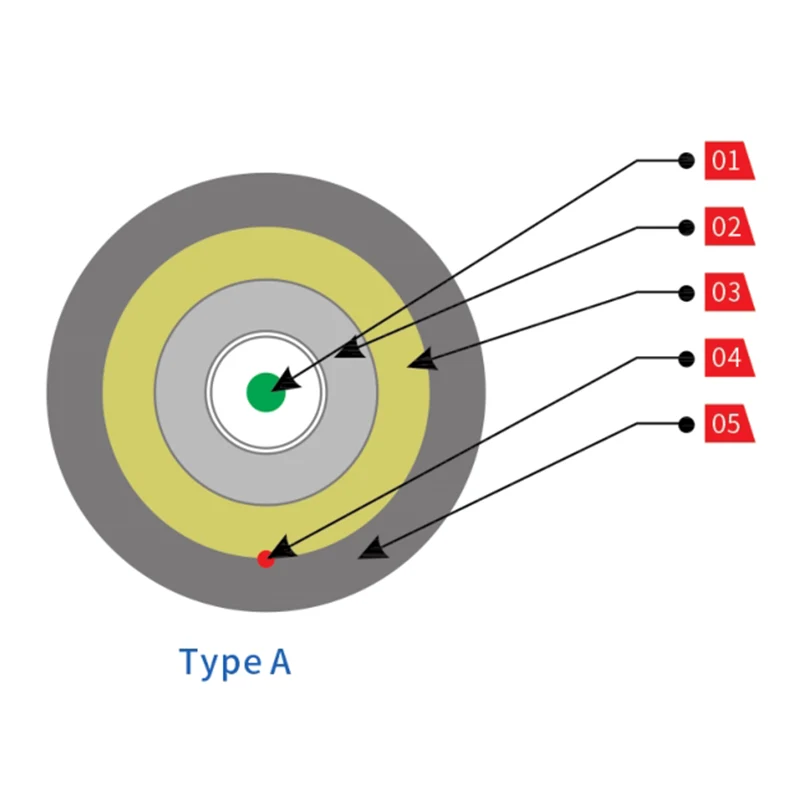

Umdwebo Wesakhiwo

900μm buffer

I-PBT tube

I-fiberglass evimba amanzi kanye namabhafa we-fibre yentambo ye-aramid

I-Ripcord

Ijakhethi ye-LSZH

Pre-terminated Round Fiber Optic Drop Cable

Uhlobo A

900μm buffer

Umgodla Wangaphakathi

I-fiberglass evimba amanzi kanye namabhafa we-fibre yentambo ye-aramid

Ilungu lamandla

I-Ripcord

Umgodla Wangaphandle

Blue Color Line

Pre-Terminated Round Fiber Optic Drop Cable

Uhlobo B

Imininingwane Yesixhumi

Imodeli: Uhlobo E

Umbala: Mnyama

Material: PC+ABS

Isixhumi: SC/APC

Ikhebula elisebenzayo: 5mm ikhebula lokudonsa

Izici

Idizayini ye-modular, kulula ukuyinweba

Ingasebenza futhi ifakwe ngaphandle

Izinga lokuvikela: IP68

I-RL: ≥55dB

Pre-Terminated Round Fiber Optic Drop Cable

Imininingwane ye-Optical

Ipharamitha	Inani
Uhlobo Lwesixhumi	Uhlobo lwe-E
Ukulahlekelwa Kokufaka Isixhumi (dB)	I-IL: ≤0.3dB Ubukhulu. 0.3dB + 0.4dB/km * L(km) @ 1310nm Ubukhulu. 0.3dB + 0.35dB/km * L(km) @ 1550nm ngokuya nge-IEC 61300-3-4 Indlela B
Ukulahleka Kokubuyisela Isixhumi (dB)	I-RL: ≥55dB Okuncane. 60dB @ 1310&1550nm Ngokusho kwe-IEC 61300-3-6
Ubude bekhebula (m)	50, 100, 150, 200, 250, njll
Izinga Lokuvikeleka	IP68

I-Cable Assembly

Ukulahlekelwa Kokufaka: Max. 0.3dB + 0.35dB/km * L(km) @ 1310nm

Ubukhulu. 0.3dB + 0.21dB/km * L(km) @ 1550nm

Ngokusho kwe-IEC 61300-3-4 Indlela B

Ukulahlekelwa Kokubuyisela: Okungenani. 60 dB @ 1310&1550nm

Ngokusho kwe-IEC 61300-3-6

Imininingwane Yemishini

Into	Indlela yokuhlola	Imfuneko
Amandla Okuqina	I-IEC 60794-1-E1 (1000N/1h)	I-Fiber Elongation ≤0.40% I-Residual Elongation ≤ 0.05% Ukushintsha kokunaka≤ 0.1 dB @1550nm
Ukucaba	I-IEC 60794-1-E3 (1000 N/100mm emizuzwini eyi-15)	Ukushintsha Kokunaka ≤ 0.1 dB @1550nm
Umthelela	I-IEC 60794-1-2-E4 (umthelela we-5N.m kanye no-D=300mm)	Ukushintsha Kokunaka ≤ 0.1 dB @1550nm
I-Torsion	I-IEC 60794-1-2-E7 (Umthwalo we-25N nemijikelezo engu-10)	Ushintsho lokuqina ≤ 0.1 dB @1550nm
Ijika	I-IEC 60794-1-2-E6 (D=100mm nomthwalo ongu-55N, imijikelezo engama-25)	Ushintsho lokuqina ≤ 0.1 dB @1550nm
Izinga Lokushisa	I-IEC 60794-1-2-F1 (-15°C ~ + 65°C)	Ushintsho lwe-attenuation ≤ 0.2 dB @1550nm
Ukungena Amanzi	I-IEC 60794-1-2-F5A (3m ubude, 1m ukuphakama, 24 amahora)	Qeda ukuvuza kwamanzi
Ukuncipha kwe-Sheath	I-EIA-RS-455-86 (85°C, 4HRS) I-EIA-RS-455-86 (85°C,4小时)	≤ 5.0%
I-RoHs (2011/65/EU)	Iyahambisana
