Ikhebula le-armored Duct Bow-Fiber Optic Drop Cable

I-Orientalfiber igxile ku-R&D, ukukhiqizwa kanye nokuhlinzekwa kwezintambo zokuxhumana ezisebenza kahle kakhulu, kanti i-Armored Duct Bow-type Fiber Optic Drop Cable iwumkhiqizo owumgogodla wokuthumela optical oklanyelwe i-duct cabling kanye nezimo ze-FTTH. Lo mkhiqizo uthatha ikhebula elihola uvemvane njengeyunithi yokuxhumana eyinhloko, wamukela idizayini yesakhiwo esezingeni elinezici zokuqinisa, izinto ezivimba amanzi nezendlalelo ezivikelayo, futhi wenza ngokuzinza imisebenzi yokudlulisela isignali yokubona ezindaweni ezihlukene zokubeka.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-Orientalfiber Armored Duct Bow-type Fiber Optic Drop Cable iyikhebula elikhethekile lokuxhumana eliklanyelwe ukubekwa kwemigudu. Ngekhebula le-butterfly lead-in njenge-central optical communication subunit, ifakwe izinto zokuqinisa ezihambisanayo nhlangothi zombili, isongwe ngetheyiphu evimba amanzi kanye netheyiphu ye-aluminium ukuze ivikeleke, futhi imbozwe ngomgodla wangaphandle okhishiwe. Lo mkhiqizo ohlelekile unikezelwe ekudluliseleni isignali ye-optical ezinzile kumaphrojekthi we-FTTH nezinhlelo zamakhebula wamapayipi, futhi uwumkhiqizo osekelayo obalulekile wokwakhiwa kwenethiwekhi yokubona.

Izinzuzo Eziyinhloko Namaphuzu Okuthengisa

Ukusebenza Kwemishini Okuzinzile

Lo mkhiqizo wakhiwe ngedizayini yesakhiwo esezingeni eliphezulu, ebonisa ukushuba okuvelele nokumelana nokuchoboza. Izakhi zokuqinisa ezakhelwe ngaphakathi kanye nongqimba lwezikhali zivikela ngokuphumelelayo i-fiber optical yangaphakathi, igwema umonakalo obangelwa ukukhishwa kwamandla angaphandle noma ukudonsa ngesikhathi sokwakha kanye nokusetshenziswa kwansuku zonke, ukuqinisekisa ukusebenza okuzinzile kwesikhathi eside komkhiqizo ezindaweni eziyinkimbinkimbi.

Ukwakha Kalula Nokunakekela

Isebenzisa idizayini yomtshingo eyingqayizivele, i-Orientalfiber Armored Duct Bow-type Fiber Optic Drop Cable isekela ukuhlubula okusheshayo nokuhlanganisa, okwenza kube lula kakhulu inqubo yokwakha endaweni, ifinyeze isikhathi sokufaka, futhi inciphise ubunzima bokulungisa nokulungisa kamuva.

Ukusebenza Okuthembekile Kokungangeni Manzi

Umkhiqizo wamukela isakhiwo esomile kanye nomklamo ochwepheshe wokuvimbela amanzi, ongavimbela ngokuphumelelayo umswakama nokungena kwamanzi. Ijwayelana nezindawo zamapayipi anomswakama namanzi, ivimbela umonakalo wamanzi ukuthi ungaphazamisi ukusebenza kokudlulisela komkhiqizo kanye nokwelula impilo yesevisi yekhebula.

Ukwesekwa Kwangaphambi Kokunqanyulwa Kwemboni

Ukuze kuhlangatshezwane nezidingo zokwakha ubunjiniyela obujwayelekile, lo mkhiqizo usekela ukuqedwa kwangaphambili kwefekthri. Ukucubungula okuhlanganisiwe efekthri kuqinisekisa ukufana kwekhwalithi nokusebenza komkhiqizo, kunciphisa amaphutha okucubungula endaweni, futhi kufane namazinga okwakhiwa kwamaphrojekthi enethiwekhi yokubona yobukhulu obumaphakathi.

Imininingwane Yezobuchwepheshe

I-Orientalfiber ihlinzeka ngezixazululo zokucushwa kwezobuchwepheshe ezihlukene ze-Armored Duct Bow-type Fiber Optic Drop Cable ukuhlangabezana nezidingo ezenziwe ngokwezifiso zamaphrojekthi ahlukene:

Isakhiwo esiyinhloko: Ikhebula elihola uvemvane eliphakathi nendawo + izinto zokuqinisa ezihambisanayo eziphindwe kabili
Isendlalelo esivikelayo: Itheyiphu evala amanzi evala amanzi + isendlalelo se-armored tape ye-aluminium
Impahla ye-Sheath: Impahla ye-polymer eqinile ephezulu ukumelana nokugqwala
Izici zesakhiwo: Idizayini yokuvimbela amanzi okomile, umumo womtshingo ojwayelekile ukuze kwakhiwe kalula
Indawo yohlelo lokusebenza: Ijwayelana nendawo yokubeka ipayipi yasendlini nengaphandle, ifanele izinga lokushisa elivamile kanye nomswakama ophakathi kobunjiniyela bezokuxhumana.

Izinkambu Zokusebenza

I-Orientalfiber Armored Duct Bow-type Fiber Optic Drop Cable isetshenziswa kabanzi ezimeni zokuxhumana eziningi ngokusebenza kwayo okuzinzile, ihlanganisa lezi zindawo ezibalulekile ezilandelayo:

Ukwakhiwa kwenethiwekhi ye-FTTH (Fiber To The Home), ehlinzeka ngokudluliswa kwe-optical okuzinzile kokufinyelela kwe-broadband yokuhlala.
Amaphrojekthi we-standard duct cabling wabaqhubi bemboni yezokuxhumana ngezingcingo basekhaya nabangaphandle
Izinhlelo zokuxhumana ngomsakazo nethelevishini kanye nezinhlelo zokudlulisa ulwazi
Amasistimu wokudlulisa idatha yenethiwekhi yendawo endaweni yezimo zezimboni
Amaphrojekthi okuxhumana okubonakalayo kumandla kagesi, ezokuthutha ngololiwe, emigwaqweni emikhulu nakwezinye izimboni zengqalasizinda

Isici

Isakhiwo esomile nokuvinjwa kwamanzi

I-tensile enhle kakhulu nokumelana nokuchoboza

Idizayini yomtshingo yenza kube lula ukuhlubula nokuhlanganisa

Isicelo

Ikhebula ku-duct

I-FTTH (I-Fiber Iya Ekhaya)

Kunqanyulwe ngaphambilini efekthri

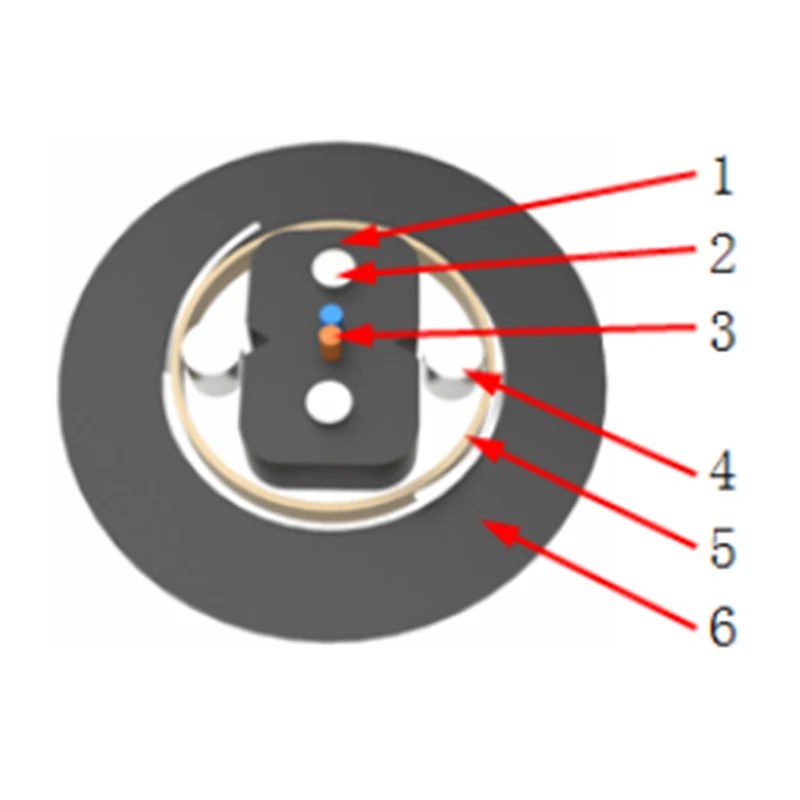

Isakhiwo Nempahla

Cha.	Into	Okubalulekile
1	Umgodla wangaphakathi	I-PVC, LSZH
2	Ilungu lamandla	Intambo yensimbi, i-FRP, i-KFRP
3	I-Fiber	I-G.652D (B1.3), G.657A1 (B6a1), G.657A2 (B6a2) …
4	Ilungu elisekela amandla	Intambo yensimbi, FRP
5	Izinto ezivimba amanzi	Itheyiphu yokuvimbela amanzi
6	Isendlalelo sezikhali	I-aluminium tape
7	Umgodla wangaphandle	LSZH, PE
8	Umbala	Mnyama

Armored Duct Bow-type Fiber Optic Drop Cable

Impahla yekhebula

Uhlobo lwekhebula	Ubukhulu		Amandla aqinile		Ukumelana nokuchoboza		Irediyasi egobayo
	Iyunithi	Ikhebula	Isikhati eside	Isikhathi esifushane	Isikhati eside	Isikhathi esifushane	I-Static	Amandla
	(mm)		(N)		(N/100mm)		—
I-GJYXFHA - 1/2/4	2.0×3.0	7.5	300	600	1000	2200	10 ·D	20 ·D
I-GJYXHA - 1/2/4	2.0×3.0	7.5	300	600	1000	2200	10 ·D	20 ·D

Amanothi: D = Ububanzi bekhebula.

Isici seFiber

Uhlobo lwefiber	Ukunciphisa (Ubukhulu)		Ukulahlekelwa kwe-Macro bend ( Max)
	1310nm	1550nm	Φ30 mm Imibuthano engu-10(amajika)	Φ20mm Imibuthano engu-1(jika)	Φ15mm Imibuthano engu-1(jika)	Φ32 mm Imibuthano engu-1(jika)	Φ60 mm Imibuthano engu-100 (ukujika)
	(dB/km)		(dB)
G.652 D	0.40	0.30	N/a	N/a	N/a	0.05 @1550nm	0.05 @1625nm
G.657 A1	0.40	0.30	0.25 @1550nm 1.00 @1625nm	0.75 @1550nm 1.50 @1625nm	N/a	N/a	N/a
G.657 A2	0.40	0.30	0.03 @1550nm 0.10 @1625nm	0.1 @1550nm 0.2 @1625nm	0.5 @1550nm 1.0 @1625nm	N/a	N/a
