I-Fiber Opting Optip Optic Cable Distribution Box TFS-8SX

1. Okuvamile

1.1 Incazelo

Ibhokisi lokusabalalisa le-Optical Presed Optical njenge-FTTX Network Distribution Network Distribution Ourction, nikeza ukuxhumana okusheshayo nokwethembekile, ukuvikelwa okuhle kanye nokuphatha inethiwekhi ye-FTTX.

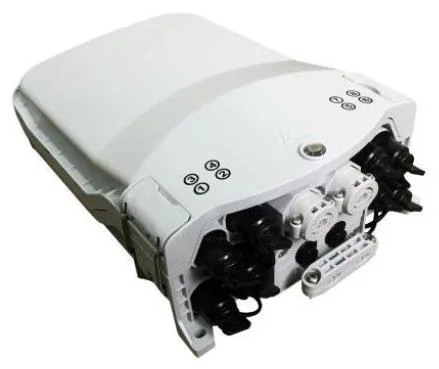

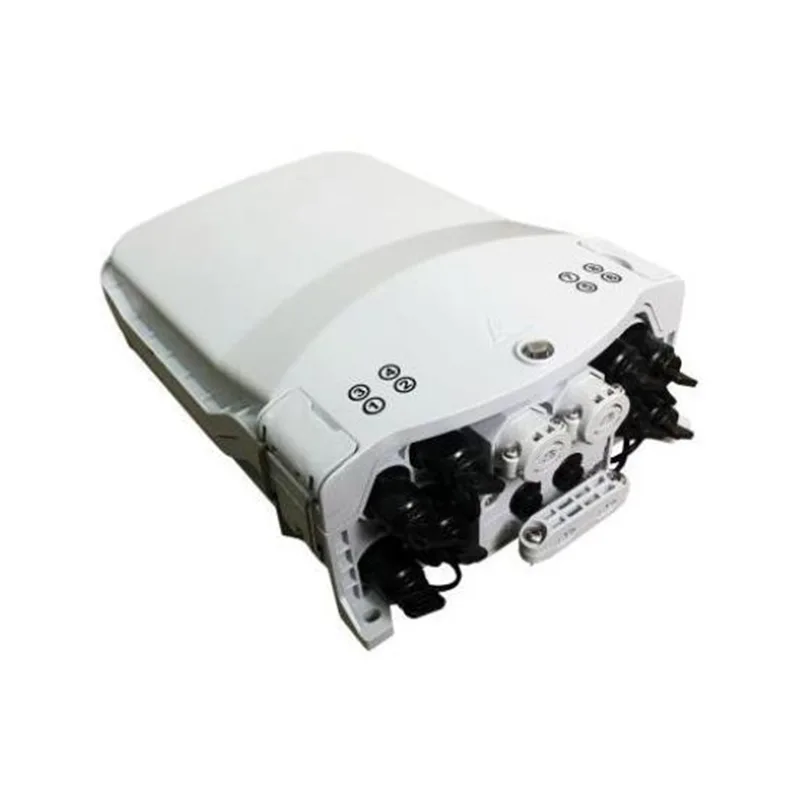

Ukubukeka kwe-gfs-8sx

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

1.3 Izicelo zemvelo

2. Izici

1. Design wesakhiwo esithuthukile, ukusebenza okulula kanye nomzila ofanele.

2. Indwangu: I-PC + ABS.

3. Ubufakazi obunamanzi, amanzi angenamanzi, ubufakazi bothuli, anti-ukuguga.

4. Izinga lokuvikelwa phezulu ku-IP65.

I-5. 1 I-Oval Optical Cable Entry, 2 I-2 Branch Cable Experies kanye ne-Adaptha engu-8 exhunywe kuqala.

I-6. Izinhlobo ezahlukahlukene zamathileyi we-splice ayatholakala.

7

8. Ingafakwa nge-Drop Cable Startore Tray ukuze uhlangabezane nokugcinwa kwamamitha angama-50 amamitha ayi-5mm nxazonke.

3. Ukucaciswa

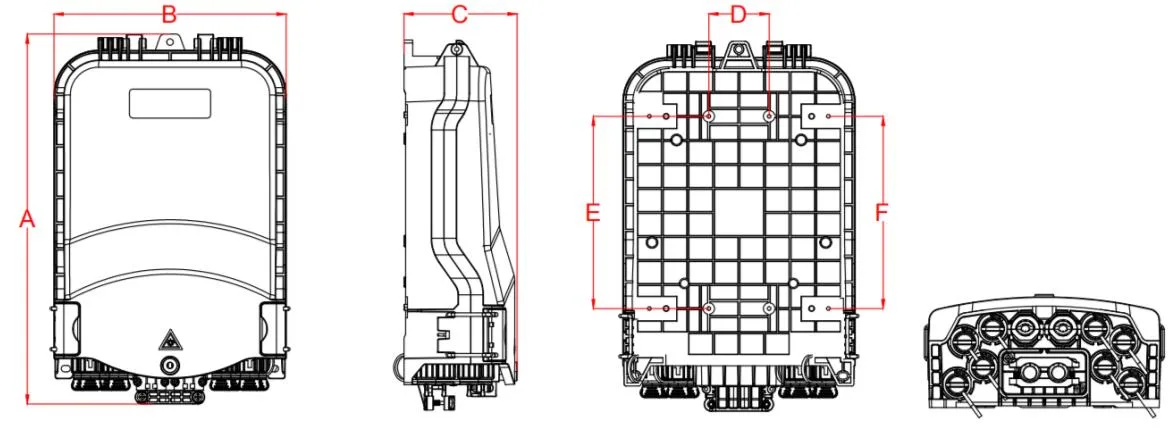

3.1 Ukucaciswa Kwemishini

4. Ukucushwa

Amapharamitha aphambili we-Optical

Amapharamitha abonakalayo akhonjiswe etafuleni ngenhla ngamanani azenzakalelayo, futhi angenziwa ngokwezifiso ngokuya ngezidingo.

5. Isithombe somkhiqizo

5.1 Izindlela zekhebula zomkhiqizo:

5.2 Ukucushwa

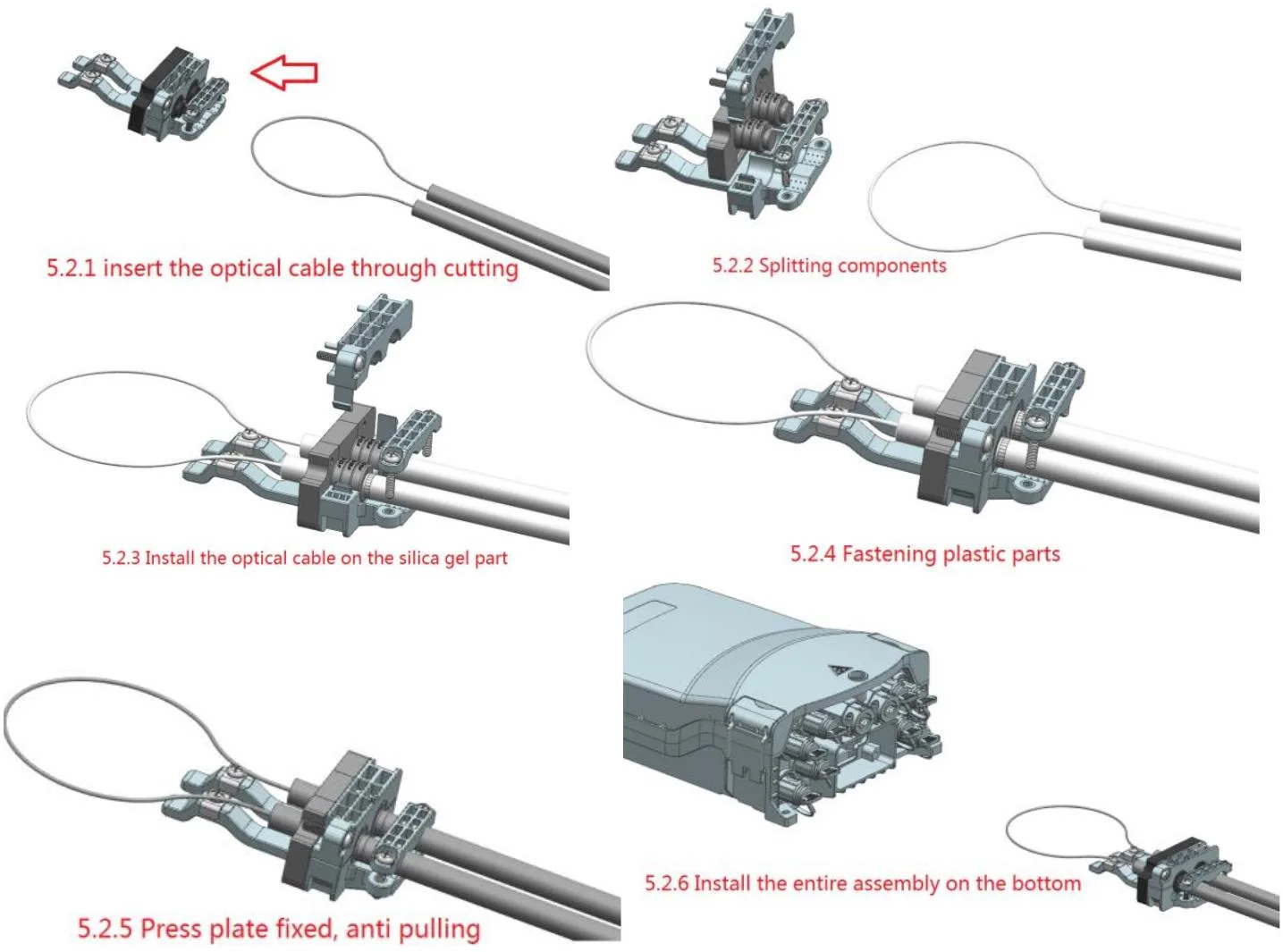

Ukufakwa okusheshayo, ukuqinisa okusheshayo, nokubekwa uphawu kwekhebula le-optical nge-plug esheshayo nge-plug esheshayo.

5.3 I-Fibthoc Optic Optic Cable Bifurcation

5.4 Imikhiqizo yekhebula le-Product

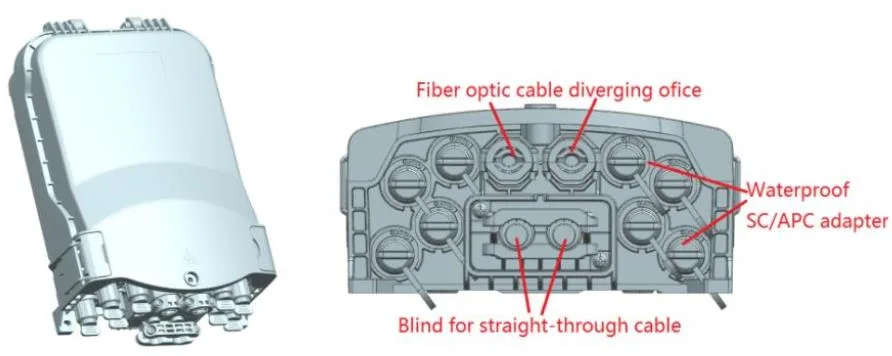

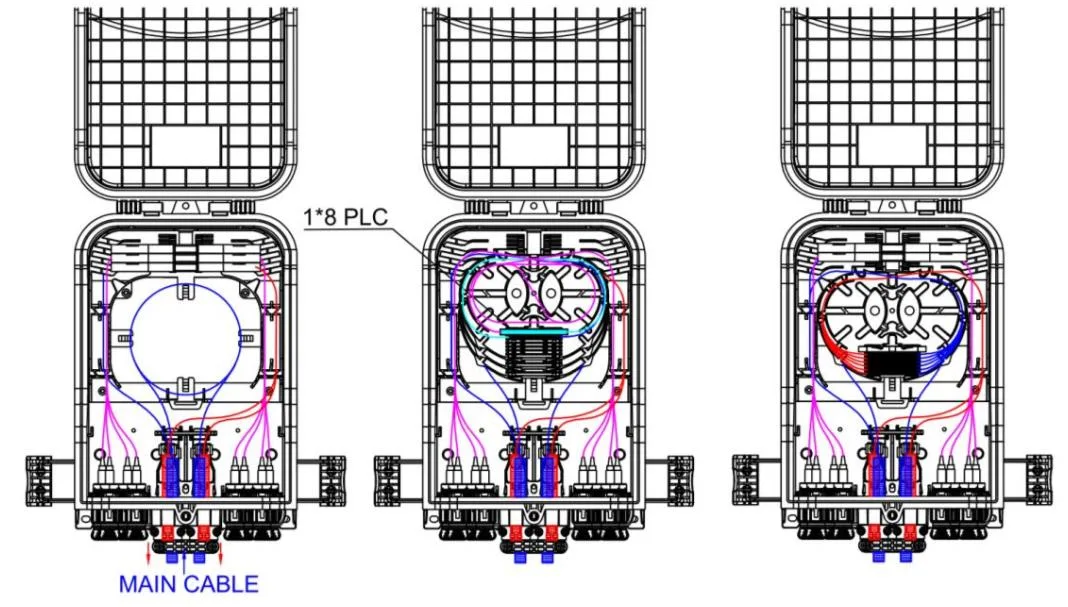

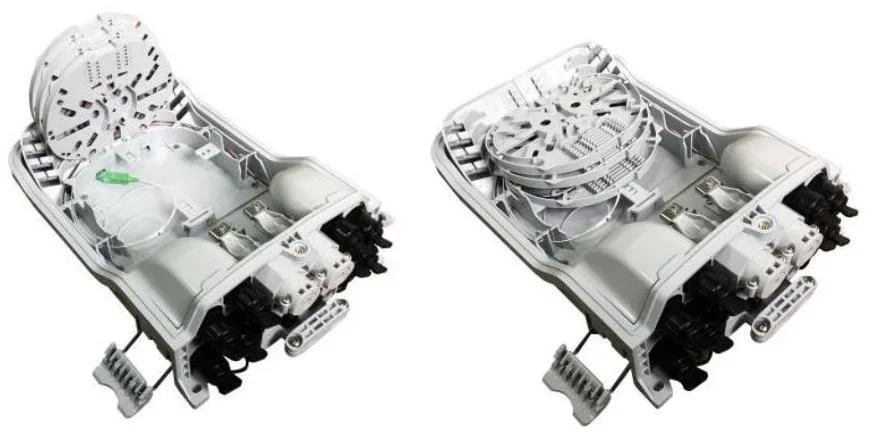

I-GFS-8SX Routing Diagam

I-5.5 yokuhlukanisa ugqoko

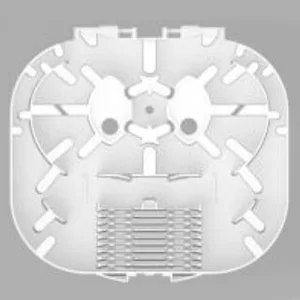

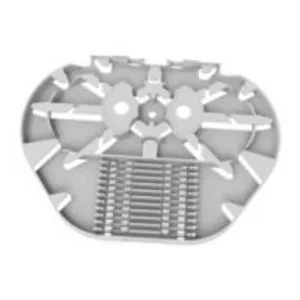

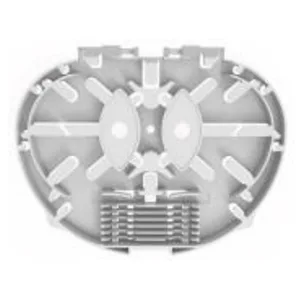

Into yendaba	Ukugoqa ugqoko a	Ukugoqa ugqoko b	I-Splitter Tray A-1
Ubukhulu (H * W * d, mm)	134 * 104 * 8	134 * 104 * 4	134 * 104 * 8
Isisindo se-net (kg)	0.021	0.015	0.021
Isithombe
Umbala	RAL7035	RAL7035	RAL7035
Into uqobo lwayo	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuhlukaniswa kwamandla we-tray (ama-cores)	12 (2 izingqimba zokushisa okushisayo okubonakalayo okubonakalayo)	I-8 (1 ungqimba lokushisa okushisayo okubonakalayo)	I-6 (2 izingqimba zokushisa okushisayo okubonakalayo okubonakalayo)
Umthamo we-splitter we-tray (ama-PC)	1 (Plc 1x2, 1x4, 1x8, 0.9mm fiber, 60x7x4mm)	/	1 (PLC 1x16, 0.9mm fiber, 60x12x4mm)
Ubukhulu (ama-PC)	4	8	4
Okuzenzakalelayo (ama-PC)	1	/	/

Qaphela:

1. Amathileyi angenhla angaxutshwa ngokuya ngezidingo.

2. Imithetho yokucushwa: 1a = 2b = 2c = 1d = 1e

3.Izinhlobo zama-fiber disc zanda ngokuqhubekayo

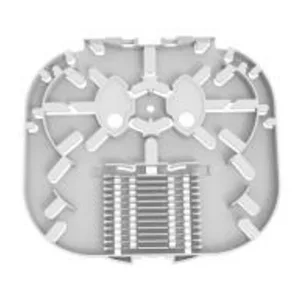

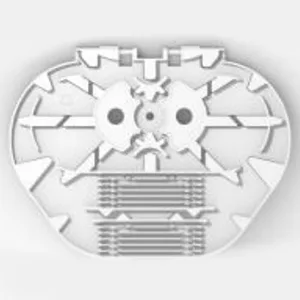

Into yendaba	Ukugoqa ugqoko c	Uhlukanisa ugqoko d	Ukugoqa ugqoko e	Ukuhlukanisa ugqoko e-1
Ubukhulu (H * W * d, mm)	136 * 104 * 4	136 * 104 * 8	135 * 125 * 8	135 * 125 * 8
Isisindo se-net (kg)	0.018	0.024	0.033	0.033
Isithombe
Umbala	RAL7035	RAL7035	RAL7035	RAL7035
Into uqobo lwayo	I-PC + ABS	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuhlukaniswa kwamandla we-tray (ama-cores)	12 (1 ungqimba lokushisa okufudumele okubonakalayo)	I-24 (2 izingqimba zokushisa okushisekayo okuvikelekile)	I-24 (2 izingqimba zokushisa okushisekayo okuvikelekile)	I-18 (2 izingqimba zokushisa okushisekayo okuvikelekile)
Umthamo we-splitter we-tray (ama-PC)	/	/	1 (Plc 1x2, 1x4, 1x8, 0.9mm fiber, 60x7x4mm)	1 (PLC 1x16, 0.9mm fiber, 60x12x4mm)
Ubukhulu (ama-PC)	8	4	4	4
Okuzenzakalelayo (ama-PC)	2	/	/	/

Qaphela:

1. Amathileyi angenhla angaxutshwa ngokuya ngezidingo.

3. Imithetho yokucushwa: 1a = 2b = 2c = 1d = 1e

3.Izinhlobo zama-fiber disc zanda ngokuqhubekayo

Izesekeli ze-5.6

Cha.	Ingxenye Igama	Isithombe sereferensi	Umuvo	Ubuningi	Phawula
1	Abasebenzisi''mamal	/	Ama-PC	1	Phakathi kwa-
2	Umbiko wokuhlola we-Splitter	/	Ama-PC	1	Phakathi kwa-

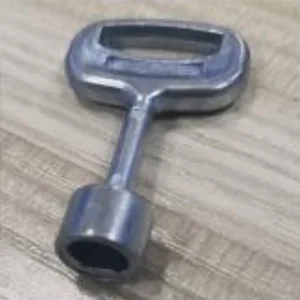

3	Isihluthulelo		Ama-PC	1	"D" uhlobo
4	Umkhono Wokuvikelwa Okushisayo		Ama-PC	8	L = 45mm
5	Ithayi lekhebula le-nylon		Ama-PC	10	3x100mm
6	I-Tube Evikelekile Yefilimu		Ama-PC	1	I-OD4MM x 50cm

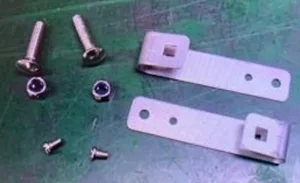

7	Kit efakwe odongeni		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende. (Kunwetshwe ipulaki leplastiki leplastiki φ7.5x40mm, ama-Phillips athinta ukushaya izikulufo m5x40mm.)
8	Kit efakwe ezigxotsheni		ukubeka esikhathini esithile	10	Ongakukhetha njengesicelo seKhasimende
9	Kit ebekwe e-aerial		ukubeka esikhathini esithile	10	Ongakukhetha njengesicelo seKhasimende
10	Dlulisa ugqoko wokugcina intambo		ukubeka esikhathini esithile	10	Ongakukhetha njengesicelo seKhasimende

6. Izici zezemvelo

Lo mkhiqizo uhambisana ne-ROHS Environmental Ukuvikelwa Kwezemvelo Detrive, kanye nokuqukethwe kwe-Lead, CADMIUM, i-Hexavalent, i-Hexavalent Chromium, i-POLYBROMINAID BIPHENYL (PBDE) nePolybromalinated Diphhenyl (PBDE) ne-PillBromalined Diphhenyl (PBDE) angeqi umkhawulo.

7. Ukufakwa

7.1. Ukufakwa okufakwe odongeni

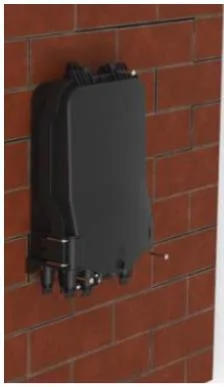

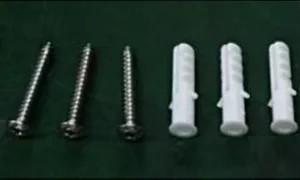

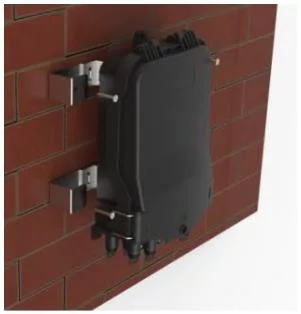

Drill 3 izimbobo odongeni ngokuya ngobukhulu kuThebula 2, beka ipulaki yokwanda Φ7.5 * 40, beka ibhokisi ukuze uhambisane nezimbobo bese usebenzisa izikulufa ukubopha.

Ukufakwa okufakwe odongeni

7.2. Ukufakwa okufakwe esigceni

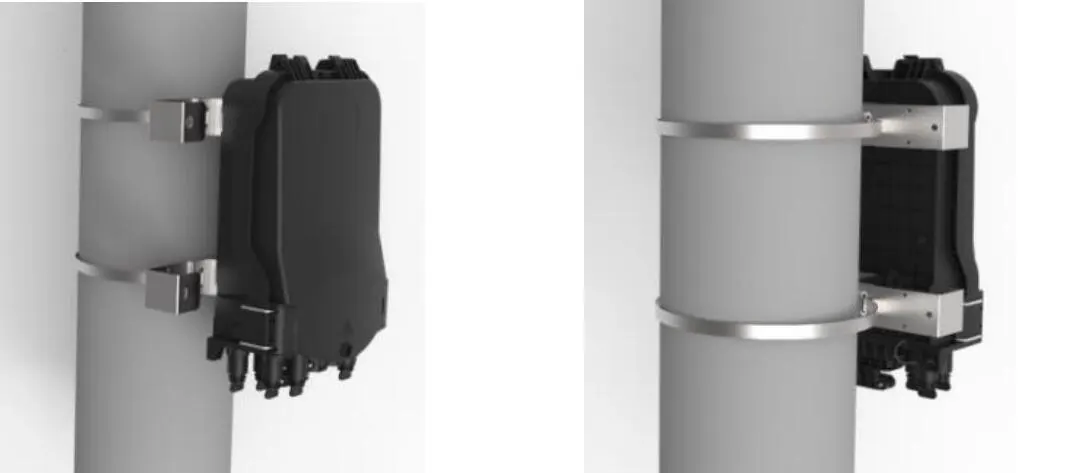

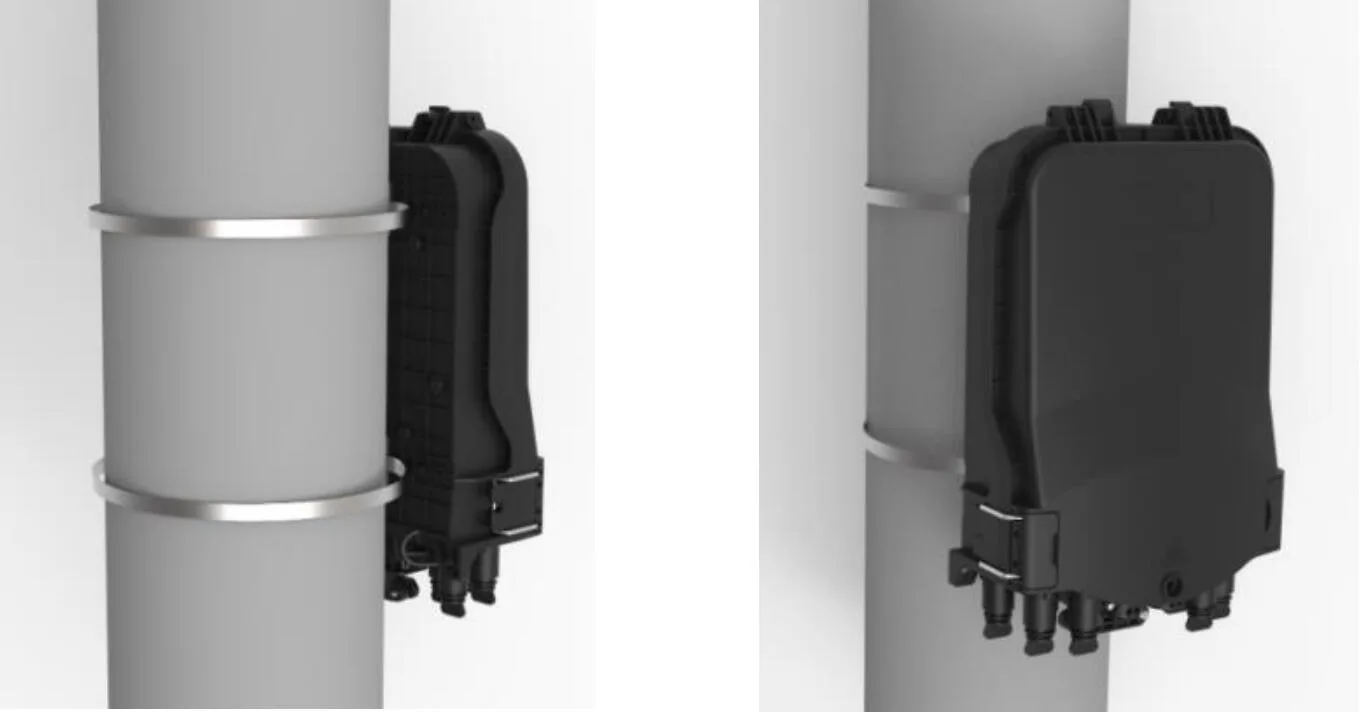

Dlulisa indandatho ye-hoop ngokusebenzisa slot yepuleti engemuva bese uyilungisa esigxotsheni se-telecommunication

Ukufakwa okufakwe phezu kwe-Pole

7.3 Isakhiwo esiphezulu

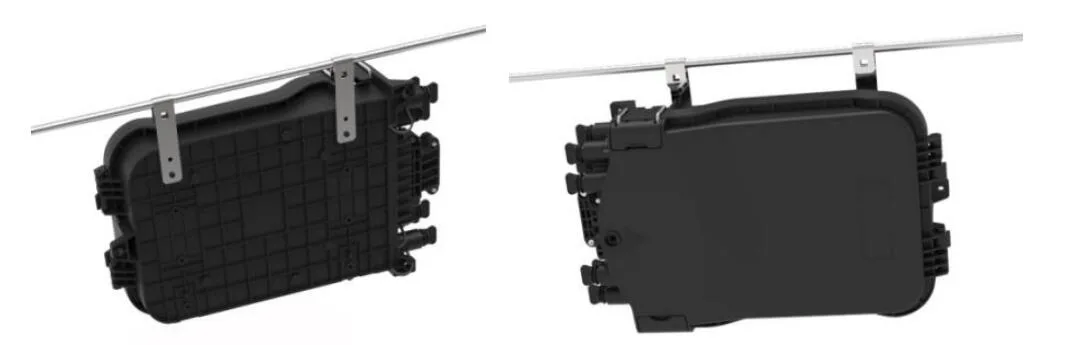

Bopha laba ababili abafakwe ku-chassis of the overhead belenga ocingweni, bese begcotshwa, vimbela icala liwa.

Isakhiwo esiphezulu

7.4 Ukufakwa okufakwe odongeni (nge-Drop Cable Storay Tray)

Dlala izimbobo ezi-4 odongeni ngokuya ngobukhulu be-Drop Cable Tray Hole Hole, Beka ipulaki yokwandiswa Φ 7.54 * 40, Beka ibhokisi ukufanisa izimbobo, bese ubopha ngezikulufo.

Ukufakwa okufakwe odongeni (nge-Drap Cable Startal Tray)

7.5 Ukufakwa okufakwe kwi-pole (nge-Drop Cable Tray)

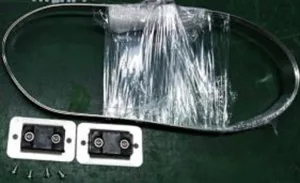

Dlulisa ibhande lensimbi elingagqwali ngokusebenzisa slot of the Drop Cable Storay Trey bese uyilungisa esigxotsheni nge-buckle.

Ukufakwa okufakwe kwi-pole (nge-Drop Cable Tray)

7.6 Ukufakwa okufakwe e-Aerial (nge-Drop Cable Tray)

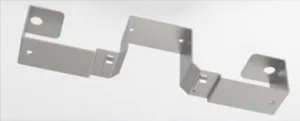

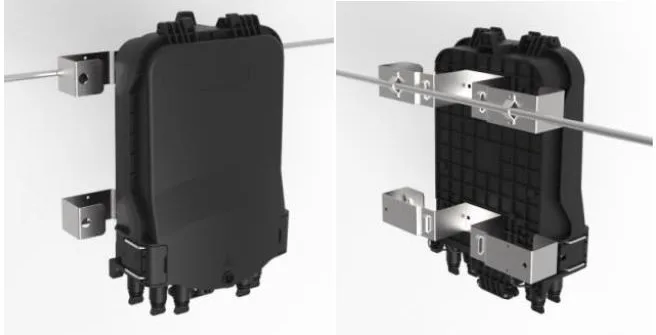

Sebenzisa ipuleti elincane lensimbi ukulungisa ibhokisi lokusabalalisa ku-Messenger.

Ukufakwa okufakwe e-Aerial (nge-Drop Cable Startay Tray)

8. Ukusebenza kwesixhumi

8.1 I-adaptha exhunywe kuqala - a (e)

⚫ Shekele engxenyeni yomcibisholo yesixhumi esixhumeke nge-fiber contecliokwise futhi ukhiphe i-cap cap.

⚫ Ingxenye yomcibisholo wesixhumi se-fiber ingaphezulu, faka isixhumi se-fiber ungene kwisokhethi bese ujikeleza umcibisholo ingxenye yewashi.

8.2 I-Adapter Exhunyiwe Kwangaphambili - B (XL)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cable cap cap ku-sheath iwashi

8.3 I-adaptha exhunywe kuqala - c

⚫ Push indandatho eshelelayo ku-plug ye-fiber ye-Optical fiber ekuqondeni komcibisholo ukuze ususe i-cap cap; Cindezela inkinobho ukuthatha i-cap cap ku-adaptha ohlangothini lomcibisholo.

⚫ Qondanisa umzimba wepulaki ebelwe nge-adapter Buckle kuze kube yilapho iboshwe. Xhuma uthuli olubili luhlanganisa ngendlela efanayo.

⚫ Ipulaki efakiwe efakiwe iphoqelela indandatho eshelelayo ukudedela ibhande, bese udonsa umzimba oyinhloko emuva ukuze uyihlukanise.

8.4 I-adaptha exhunywe kuqala - D

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo.

⚫ Xhuma i-plug exhunywe kuqala D kanye ne-adaptha yangaphambili exhunyiwe D ekuqondeni komcibisholo, futhi ujikeleze i-plug ngokwewashi ukuyilungisa.

8.5 I-Adapter exhunywe kuqala - e (a)

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo

⚫ Xhuma i-plug exhunywe kuqala i-e kanye ne-adaptha exhunyiwe ngaphambili e eqophelweni lomcibisholo, futhi ujikeleze i-plue wise ukuyilungisa.

8.6 I-Adapter exhunywe kuqala

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cack cap ku-sheath iwashi.

8.7 I-Adapter exhunywe kuqala - g
