1. Okuvamile

1.1 Incazelo

Ibhokisi lokusabalalisa le-Optical Presed Optical njenge-FTTX Network Distribution Network Distribution Ourction, nikeza ukuxhumana okusheshayo nokwethembekile, ukuvikelwa okuhle kanye nokuphatha inethiwekhi ye-FTTX.

Uhlobo Sokukhiqiza	Ukuhlela ngohlobo oluthile
Gfs-8by & -1	Ibhokisi elixhumeke ngaphambili le-fiber optic cable passsation bhokisi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

Lokho-t g.652	Izici ze-Optical fiber eyodwa eyodwa
IEC 607944-1-1	I-Optical fiber cable-part 1-1: I-generic specification-jikelele
IEC 60794-1-2	I-Optical fiber cables-parts 1-2: Inqubo yokuhlola ikhebula elijwayelekile

1.3 Izicelo zemvelo

Into yendaba	Thanda
Ukushisa kokusebenza	-40 ºC ~ + 65 ºC
Ukushisa okushisa	-5 ºC ~ + 40 ºC
Ukushisa okushisa	-0ºC ~ + 65 ºC
Ingcindezi yasemkhathini	70 ~ 106kpa
Umswakama ohlobene	≤93% (+ 40 ℃)

2. Izici

1. Igobolondo elingezansi nesembozo esiphezulu selded nge-holt Plate selding, engatholakali.

2. Indwangu: I-PP.

3. Ubufakazi obunamanzi, amanzi angenamanzi, ubufakazi bothuli, anti-ukuguga.

4. Izinga lokuvikelwa phezulu ku-IP68.

I-5. Ingaphakathi lifakwe nge-1x2 FBT Splitter + 1x8 PLC Splitter noma i-1x8 PLC Spritter.

I-6

7. Ingafakwa nge-Drop Cable Traw yokugcina ugqoko ukuze uhlangabezane nokugcinwa kwamamitha angama-30 amamitha ayi-5mm nxazonke.

3. Ukucaciswa

3.1 Ukucaciswa Kwemishini

Into yendaba	Ukucacisa	Phawula
Izinto ezibonakalayo zezindlu	Ipulasitiki ye-PP eguquliwe
Impahla yesesekeli sensimbi	Insimbi esezingeni eliphakeme engenasici

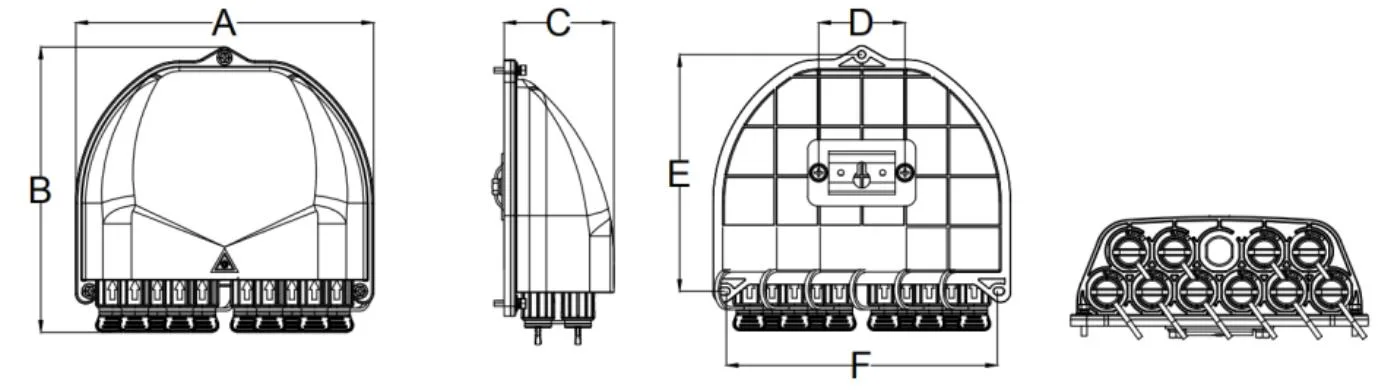

Isici sangaphandle (mm)	171 * 179 * 66mm	A * B * C
Umbala	-Mnyama
Isikhundla Somgodi Wokufaka (MM)	52 * 142 * 165	D * e * f
Inani lama-adaple axhumeke kuqala	10	Gfs-8by (1 red, 1 luhlaza okwesibhakabhaka, 8 mnyama)
Inani lama-adaple axhumeke kuqala	9	Gfs-8by-1 (1 red, 8 emnyama)
Shupha	I-1x2 FBT Splitter + 1x8 PLC Splitter	I-GFS-8BY, isilinganiso esizenzakalelayo se-1x2 FBT Splitter singama-70% / 30%
Shupha	I-1x8 PLC yeplitter	Gfs-8by-1
Gradlar	IP68
Ukuvulayo	UL94-HB	Kungenziwa ngokwezifiso ngokuya ngezidingo.
Ukuhlolwa kwe-Houtral Salt Spray (NSS)	48h	Kungenziwa ngokwezifiso ngokuya ngezidingo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

4. Ukucushwa

Amapharamitha aphambili we-Optical

Isifanekiso	Shupha	(DB)		Rl (db)	(DB)	Indlela yokuhlola
Isifanekiso	Shupha	Shupha			Ibhokisi Lokusabalalisa	Indlela yokuhlola
Gfs-8by	1 * 2 FBT (90/10) + 1 * 8 plc splitter, ngesixhumi seScapc	1 * 2 FBT (90%)	≤8.3	≥55DB	≤1.03	IL: IEC61300-3-4 Indlela B RL: I-IEC61300-3-6 1
		1 * 2 FBT (10%) + 1 * 8 PLC	≤21.7	≥55DB	≤21.9
	1 * 2 FBT (80/20) + 1 * 8 plc splitter, ngesixhumi seScapc	1 * 2 FBT (80%)	≤1.4	≥55DB	≤1.6
		1 * 2 FBT (20%) + 1 * 8 PLC	≤18.3	≥55DB	≤18.5
	1 * 2 FBT (70/30) + 1 * 8 plc splitter, ngesixhumi seScapc	1 * 2 FBT (70%)	≤2.1	≥55DB	≤2.3
		1 * 2 FBT (30%) + 1 * 8 PLC	≤16.5	≥55DB	≤16.7
	1 * 2 FBT (60/40) + 1 * 8 plc splitter, ngesixhumi seScapc	1 * 2 FBT (60%)	≤2.8	≥55DB	≤3.0
		1 * 2 FBT (40%) + 1 * 8 PLC	≤15.2	≥55DB	≤15.4
	1 * 2 FBT (50/50) + 1 * 8 plc splitter, ngesixhumi seScapc	1 * 2 FBT (50%)	≤3.8	≥55DB	≤4.0
		1 * 2 FBT (50%) + 1 * 8 PLC	≤14.3	≥55DB	≤14.5
Gfs-8by-1	I-1x8 plc splitter, ngesixhumi seScapc	1 * 8 plc	≤10.5	≥55DB	≤10.7

Amapharamitha abonakalayo akhonjiswe etafuleni ngenhla ngamanani azenzakalelayo, futhi angenziwa ngokwezifiso ngokuya ngezidingo.

5. Isithombe somkhiqizo

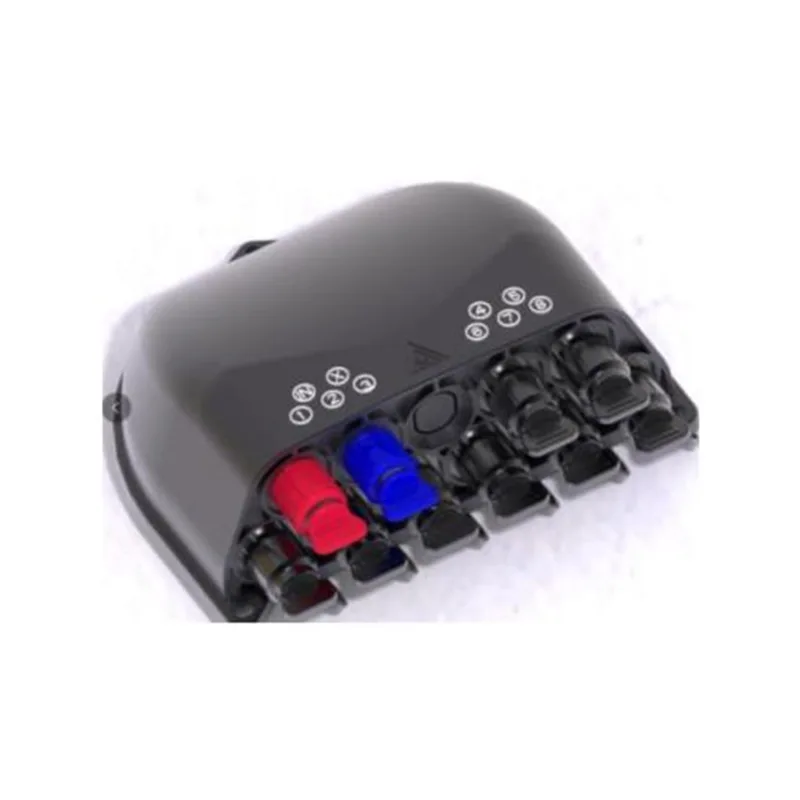

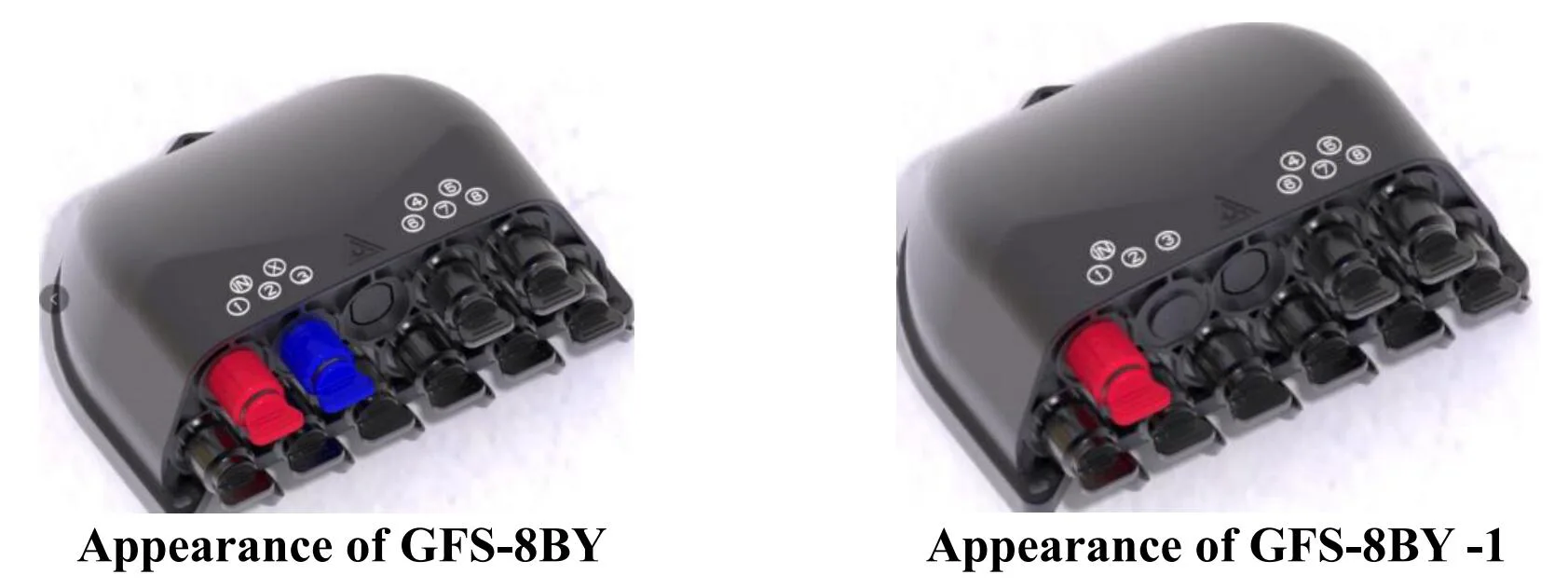

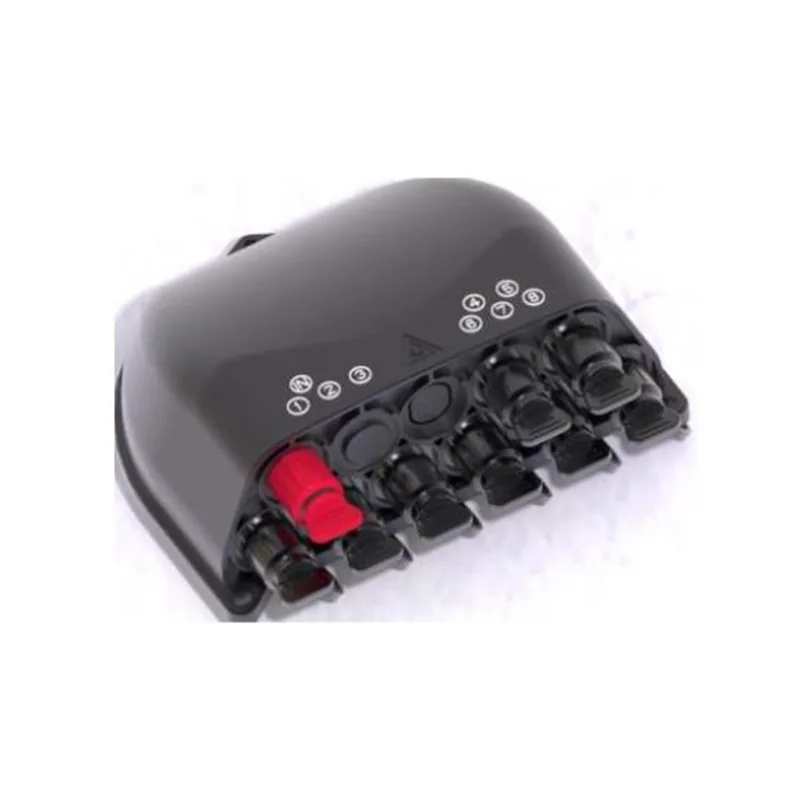

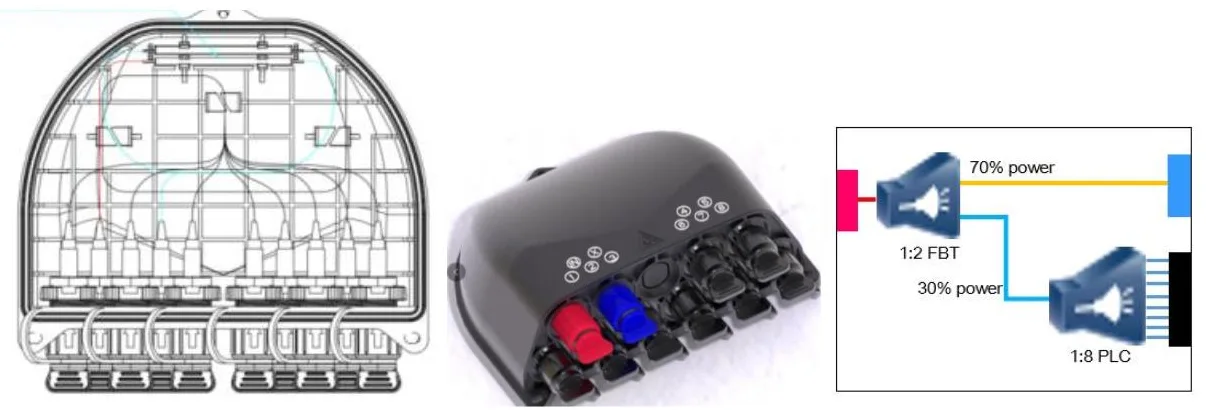

5.1 Izindlela zekhebula zomkhiqizo:

PLC ngaphezulu, FBT Phansi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

I-GFS-8BY (1 * 2 FBT + 1 * 8 PLC Splitter izindlela zekhebula)

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

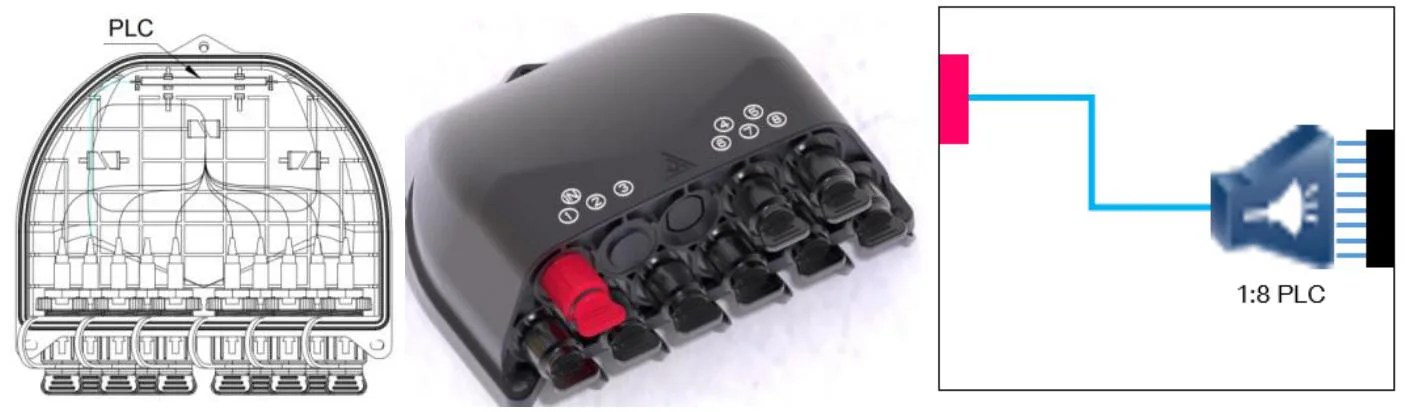

I-GFS-8BY-1 (1 * 8 PLC Spripter Cable Izindlela)

5.2 Ukucushwa

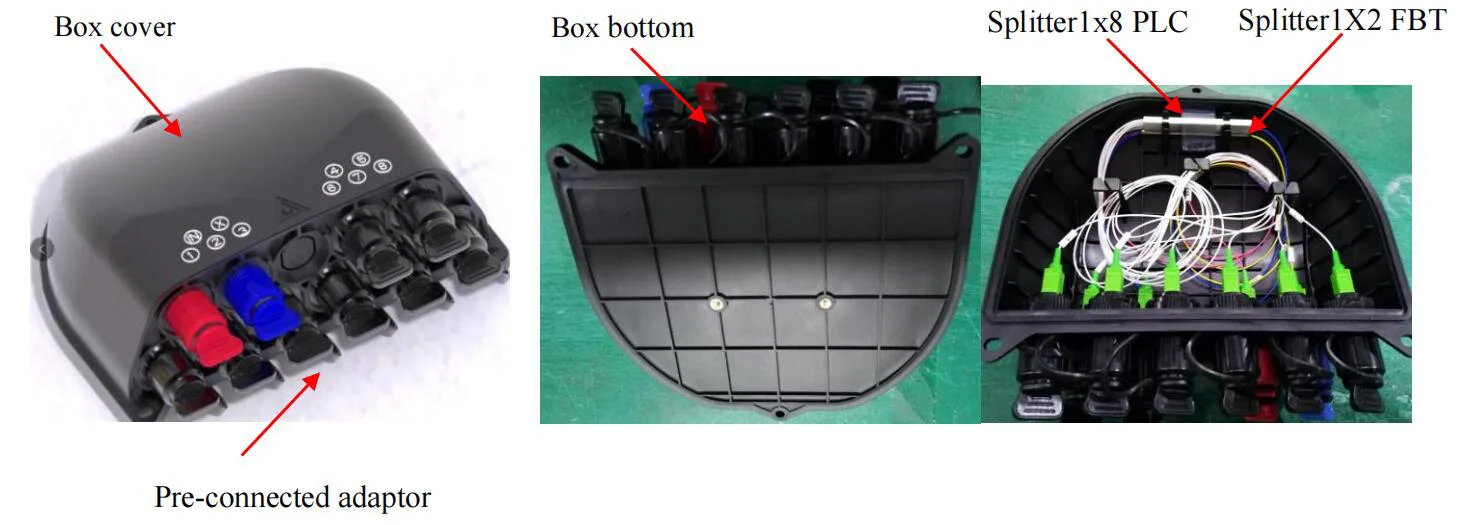

5.2.1 izingxenye eziphambili

Cha.	Ingxenye Igama	Umuvo	Ubuningi	Phawula
1	Ibhokisi phansi	Ama-PC	1
2	Isembozo sebhokisi	Ama-PC	1
3	I-adaptha exhunywe kuqala	Ama-PC	10	Gfs-8by
4	I-adaptha exhunywe kuqala	Ama-PC	9	Gfs-8by-1
5	Splitter1x2 fbt	Ama-PC	1	Kufakwe kuphela ku-GFS-8BY
6	Splitter1x8 plc	Ama-PC	1

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

5.2.2 Izesekeli

Cha.	Ingxenye Igama	Isithombe sereferensi	Umuvo	Ubuningi	Phawula
1	Abasebenzisi''mamal	/	Ama-PC	1	Phakathi kwa-
2	Umbiko wokuhlola we-Splitter	/	Ama-PC	1	Phakathi kwa-
3	Kit efakwe odongeni		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa
4	Kit efakwe ezigxotsheni		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa
4	Kit efakwe ezigxotsheni		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa
5	Kit ebekwe e-aerial		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa

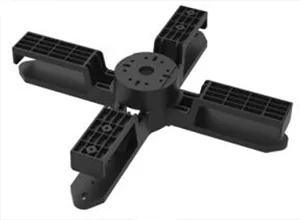

6	Drop Cable ugqoko wokugcina		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa

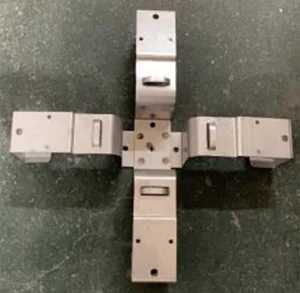

7	Drop Cable ugqoko wokugcina		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa

6. Izici zezemvelo

Lo mkhiqizo uhambisana nomyalo wokuvikelwa kwemvelo we-rohs, kanye nokuqukethwe kwe-lead, i-cadmium, i-mercury, i-chromium ye-chromium, i-polybromalinated biphenyl (PBB) ne-polybromalinated diphenyl (PBDE) ne-polybromalined diphenyl (PBDE) futhi angeqi umkhawulo.

7. Ukufakwa

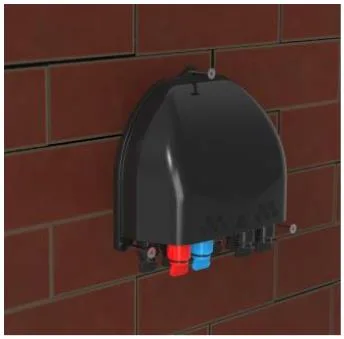

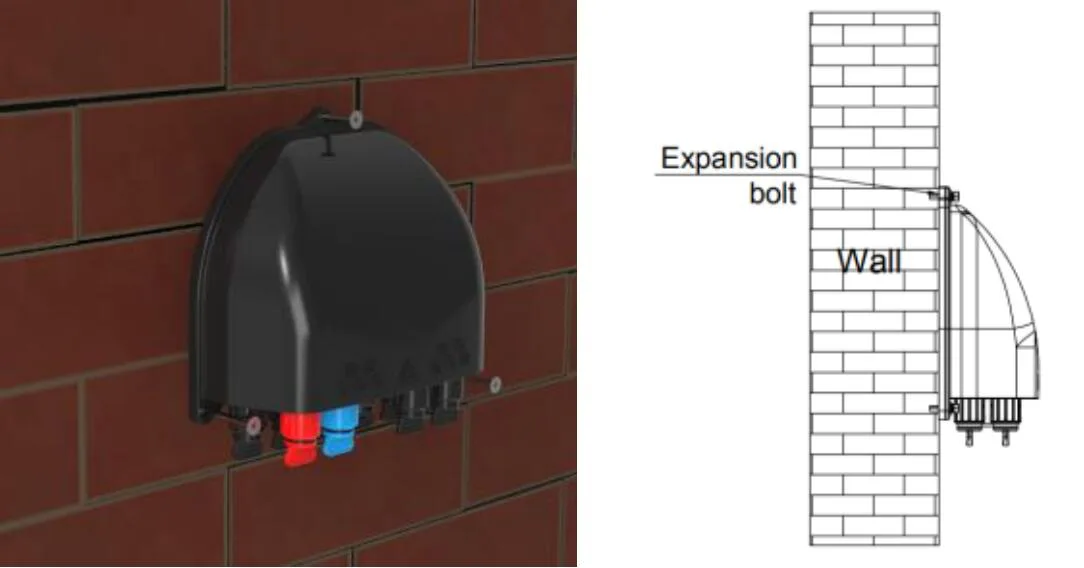

7.1. Ukufakwa okufakwe odongeni

Shayela izimbobo ezi-3 odongeni ngokuya ngobukhulu, beka ipulaki yokwanda Φ7.5 * 40, beka ibhokisi ukuze uhambisane nezimbobo bese usebenzisa izikulufa ukubopha.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa okufakwe odongeni

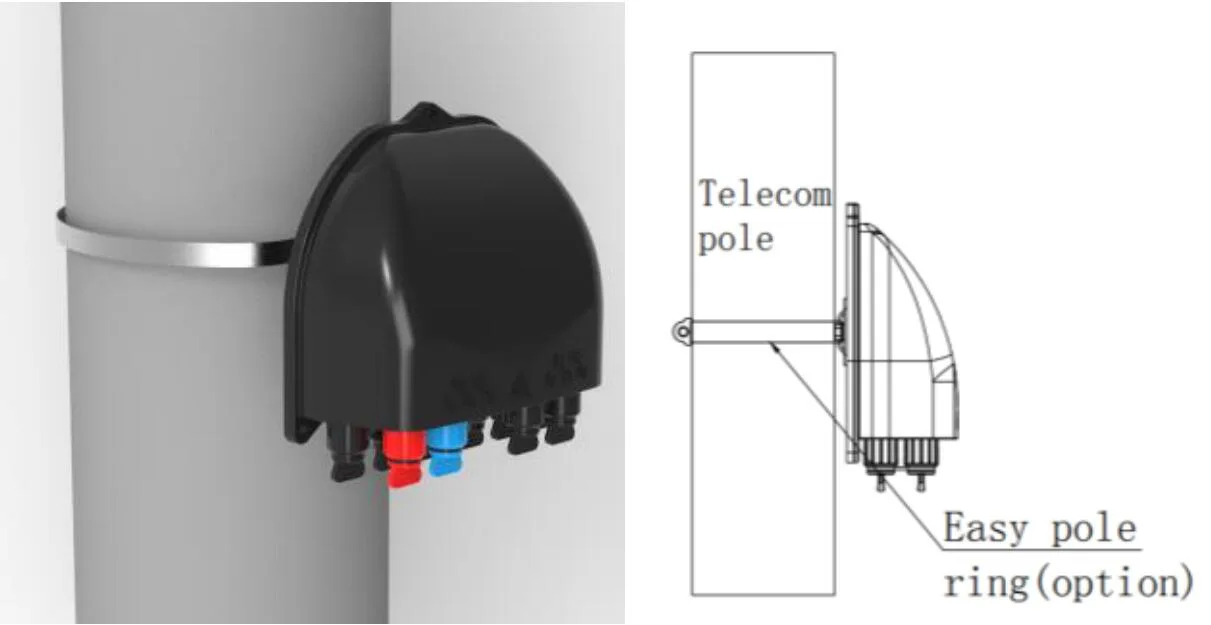

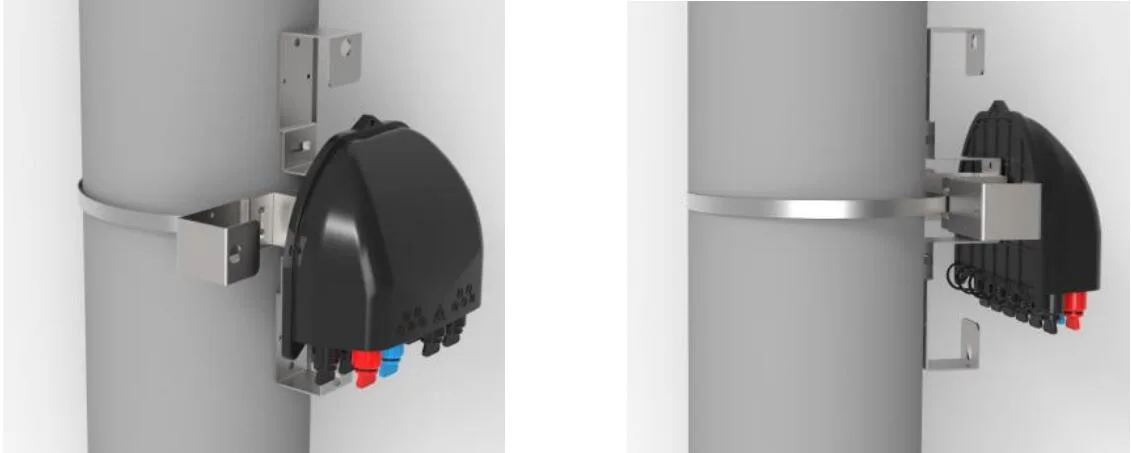

7.2. Ukufakwa okufakwe esigceni

Dlulisa indandatho ye-hoop ngokusebenzisa slot yepuleti engemuva bese uyilungisa esigxotsheni se-telecommunication

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa okufakwe phezu kwe-Pole

7.3. Ukufakwa okufakwe odongeni (nge-Drap Cable Startal Tray)

Shayela izimbobo ezi-4 odongeni ngokuya ngobukhulu be-Drop Cable Storare Tray Hole Bonge, faka ipulaki yokwanda Φ 8 * 40, Beka ibhokisi ukuze uhambisane nezimbobo, bese ubopha ngezikulufo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa okufakwe odongeni (nge-Drop Cable Traw

7.4. Ukufakwa okufakwe kwi-pole (nge-Drop Cable Tray)

Dlulisa ibhande lensimbi elingagqwali ngokusebenzisa slot of the Drop Cable Storay Trey bese uyilungisa esigxotsheni nge-buckle.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa okufakwe kwi-pole (nge-Drop Cable Tray)

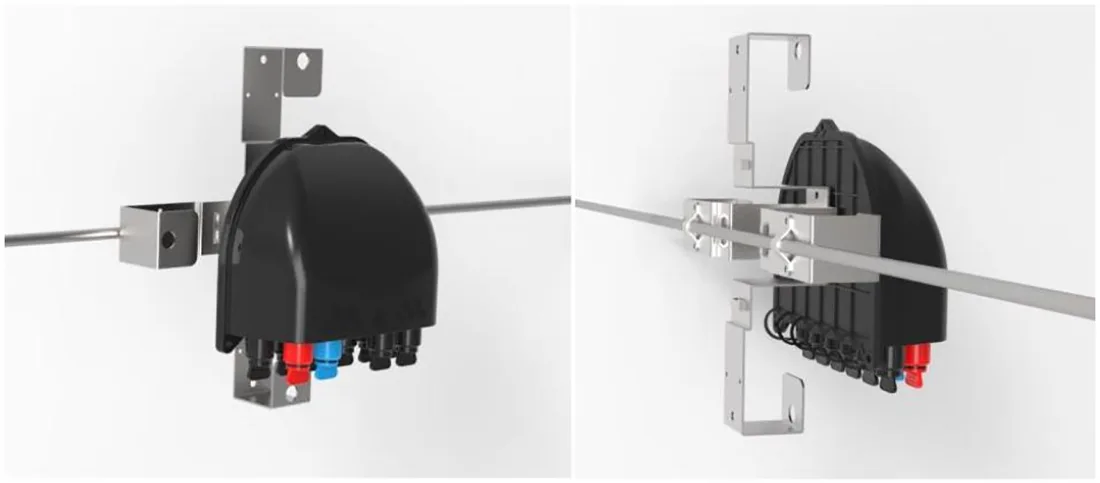

7.5. Ukufakwa okufakwe e-Aerial (nge-Drop Cable Startay Tray)

Sebenzisa ipuleti elincane lensimbi ukulungisa ibhokisi lokusabalalisa ku-Messenger.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Ukufakwa okufakwe e-Aerial (nge-Drop Cable Startay Tray)

8. Ukusebenza kwesixhumi

8.1 I-adaptha exhunywe kuqala - a (e)

⚫ Shekele engxenyeni yomcibisholo yesixhumi esixhumeke nge-fiber contecliokwise futhi ukhiphe i-cap cap.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Ingxenye yomcibisholo wesixhumi se-fiber ingaphezulu, faka isixhumi se-fiber ungene kwisokhethi bese ujikeleza umcibisholo ingxenye yewashi.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.2 I-Adapter Exhunyiwe Kwangaphambili - B (XL)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cable cap cap ku-sheath iwashi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.3 I-adaptha exhunywe kuqala - c

⚫ Push indandatho eshelelayo ku-plug ye-fiber ye-Optical fiber ekuqondeni komcibisholo ukuze ususe i-cap cap; Cindezela inkinobho ukuthatha i-cap cap ku-adaptha ohlangothini lomcibisholo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Qondanisa umzimba wepulaki ebelwe nge-adapter Buckle kuze kube yilapho iboshwe. Xhuma uthuli olubili luhlanganisa ngendlela efanayo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Ipulaki efakiwe efakiwe iphoqelela indandatho eshelelayo ukudedela ibhande, bese udonsa umzimba oyinhloko emuva ukuze uyihlukanise.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.4 I-adaptha exhunywe kuqala - D

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Xhuma i-plug exhunywe kuqala D kanye ne-adaptha yangaphambili exhunyiwe D ekuqondeni komcibisholo, futhi ujikeleze i-plug ngokwewashi ukuyilungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.5 I-Adapter exhunywe kuqala - e (a)

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Xhuma i-plug exhunywe kuqala i-e kanye ne-adaptha exhunyiwe ngaphambili e eqophelweni lomcibisholo, futhi ujikeleze i-plue wise ukuyilungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.6 I-Adapter exhunywe kuqala

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cack cap ku-sheath iwashi.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

9. Iphakheji

Into yendaba	Into uqobo lwayo	Usayizi (mm)	Ubuningi	Isisindo esiphelele (kg)
Ukupakishwa komkhiqizo ezizimele	Ibhokisi lekhadibhodi	195x195XX95	1	0.7
I-Outer Packal Carton	Ibhokisi lekhadibhodi	I-810x410X510	40	28.1
Qaphela: ngaphandle kwe-Drap Cable Traw
