I-Fiber Opting Optip Optip Cable Distribution Box GFS-16QX

1. Okuvamile

1.1 Incazelo

Ibhokisi lokusabalalisa le-Optical Presed Optical njenge-FTTX Network Distribution Network Distribution Ourction, nikeza ukuxhumana okusheshayo nokwethembekile, ukuvikelwa okuhle kanye nokuphatha inethiwekhi ye-FTTX.

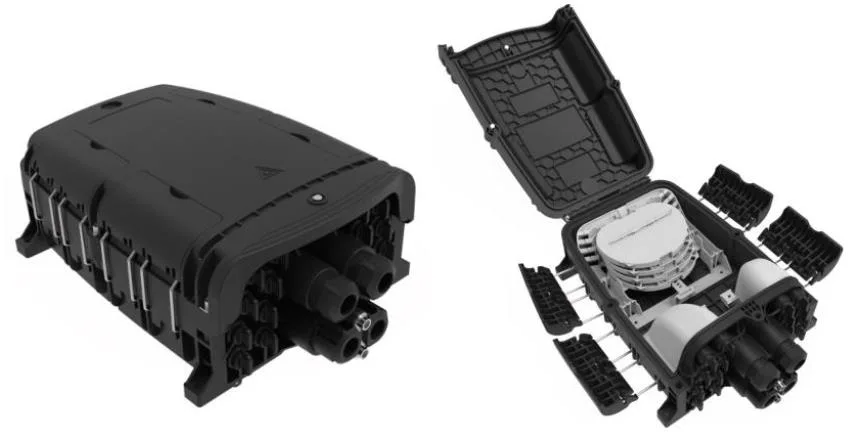

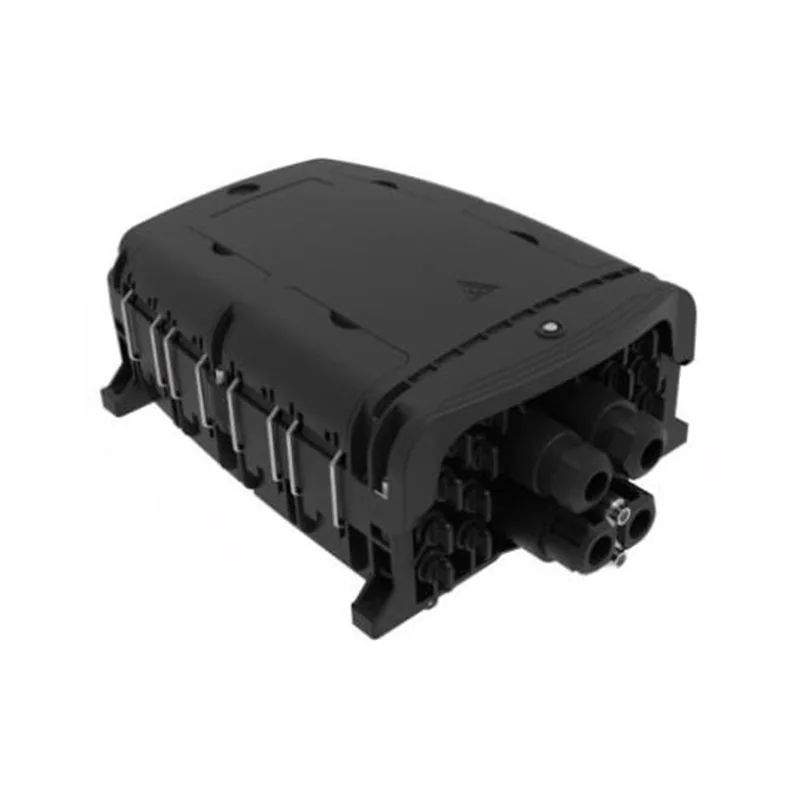

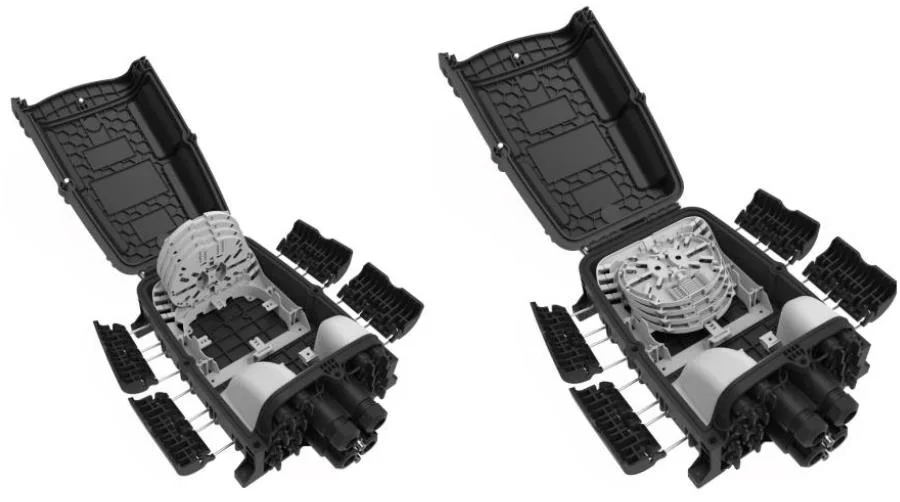

Ukubukeka kwe-gfs-16qx

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

1.3 Izicelo zemvelo

2. Izici

1. Design wesakhiwo esithuthukile, ukusebenza okulula kanye nomzila ofanele.

2. Indwangu: I-PP + gf.

3. Ubufakazi obunamanzi, amanzi angenamanzi, ubufakazi bothuli, anti-ukuguga.

4. Izinga lokuvikelwa phezulu ku-IP68.

I-5. 1 I-OVAL Optical Cable Entry, 2 IBANDLA LESI-STANCH OPTICY OPTICICE ONTIes kanye Adaptha ayi-16 axhunyiwe kwangaphambili.

6. 2 Thayipha ama-Splice Trays Ongakukhetha.

7

3. Ukucaciswa

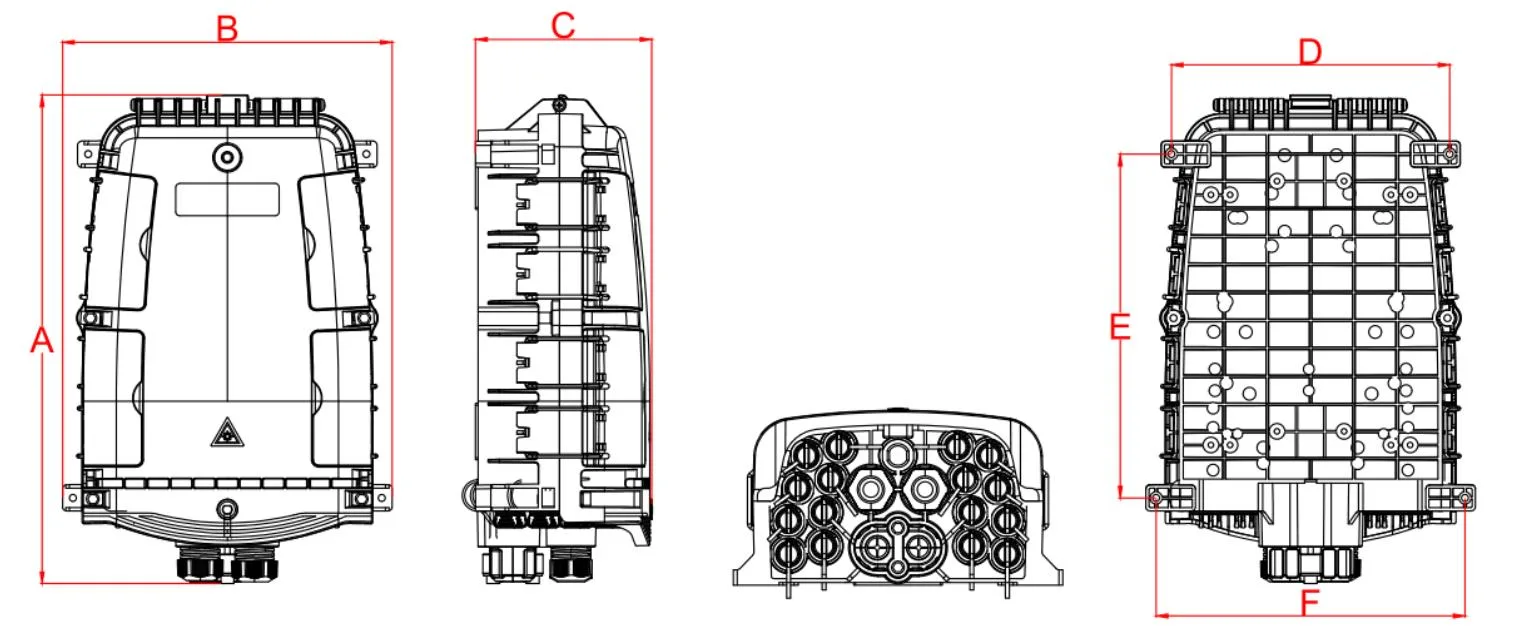

3.1 Ukucaciswa Kwemishini

4. Ukucushwa

4.1 Amapharamitha aphambili we-Optical

Amapharamitha abonakalayo akhonjiswe etafuleni ngenhla ngamanani azenzakalelayo, futhi angenziwa ngokwezifiso ngokuya ngezidingo.

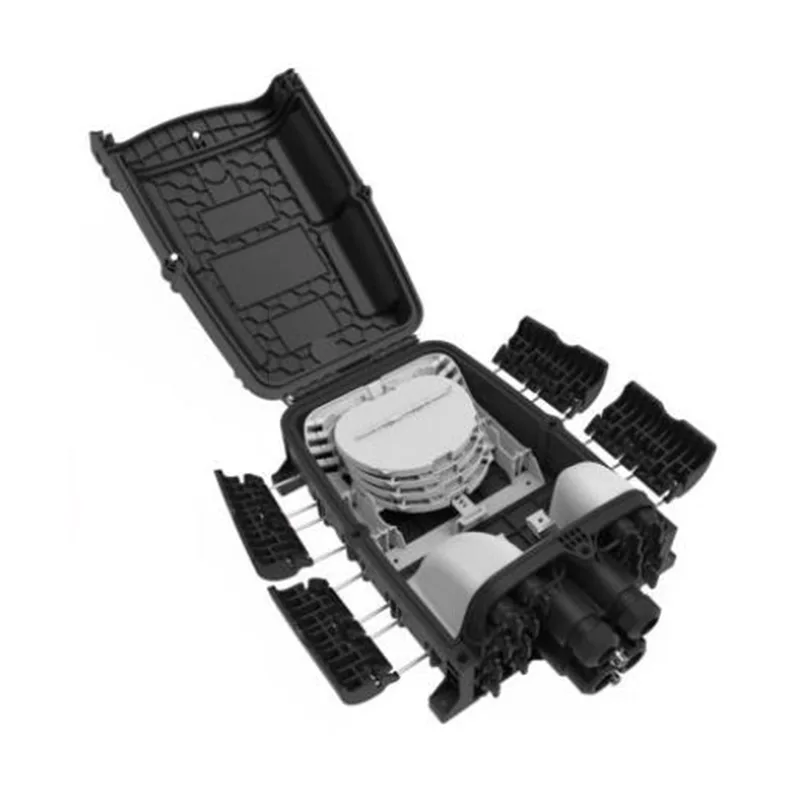

5. Isithombe somkhiqizo

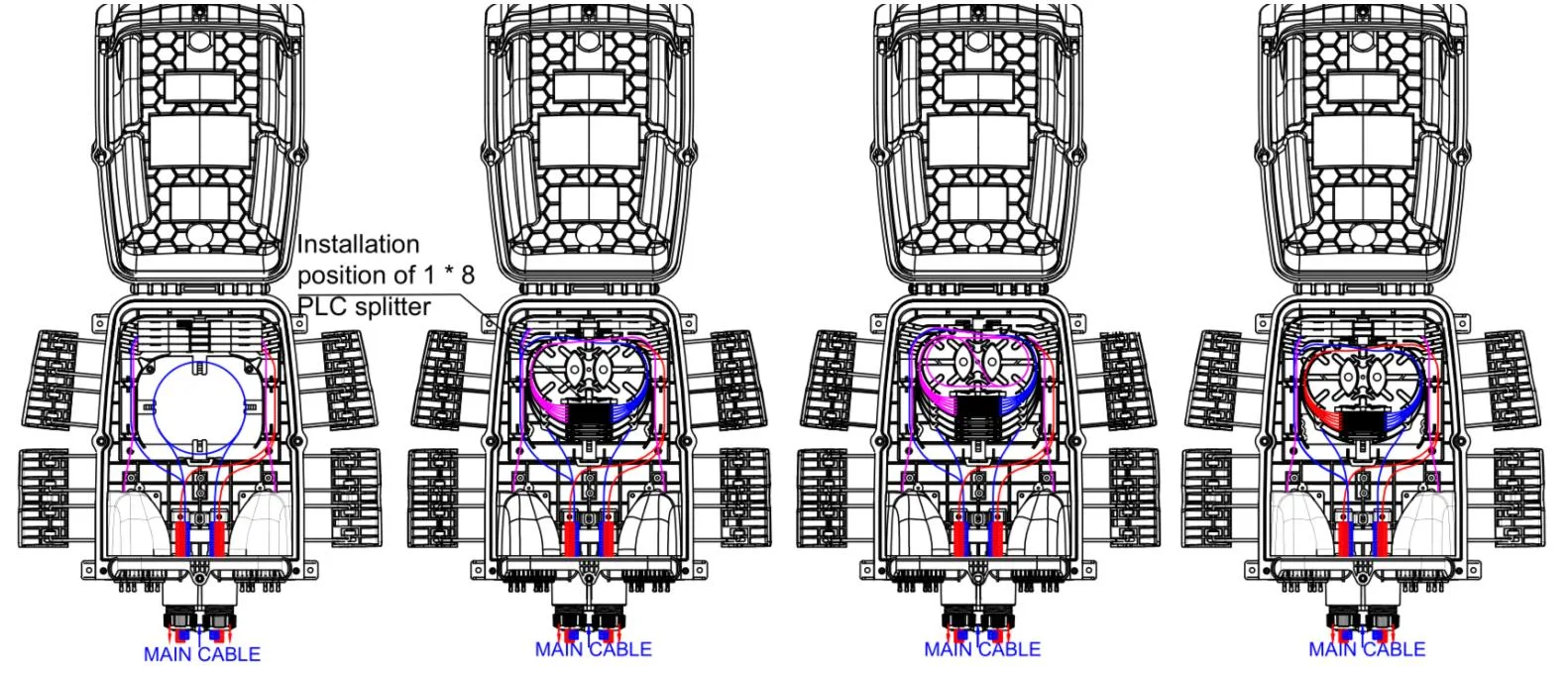

5.1 Izindlela zekhebula zomkhiqizo:

I-GFS-16QX Routing Diagam

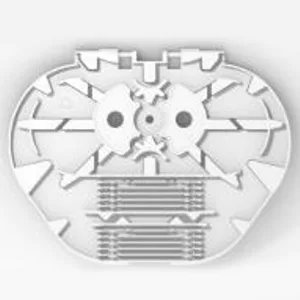

5.2 I-Splicing Tray

Into yendaba	Ukugoqa ugqoko a	Ukugoqa ugqoko b	I-Splitter Tray A-1	Ukugoqa ugqoko c
Ubukhulu (H * w * d, mm)	134 * 104 * 8	134 * 104 * 4	134 * 104 * 8	136 * 104 * 4
Isisindo se-net (kg)	0.021	0.015	0.021	0.018
Isithombe
Umbala	RAL7035	RAL7035	RAL7035	RAL7035
Into uqobo lwayo	I-PC + ABS	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuhlukanisa umthamo wetay (cores)	12 (Izingqimba ezi-2 zokushisa okushisayo okubonakalayo okubonakalayo)	8 (1 ungqimba lokushisa okushisayo okubonakalayo okubonakalayo)	6  (Izingqimba ezi-2 zokushisa okushisayo okubonakalayo okubonakalayo)	12 (1 ungqimba lokushisa okushisayo okubonakalayo okubonakalayo)
Umthamo we-splitter we-tray (Ama-PC)	1  (Plc 1x2, 1x4, 1x8, i-1.9mm fiber, 60x7x4mm)	/	1  (PLC 1x16, 0.9mm fiber, 60x12x4mm)	/
Ubukhulu (ama-PC)	4	8	4	8
Okuzenzakalelayo (ama-PC)	2	/	/	2
Qaphela: 1. Amathileyi angenhla angaxutshwa ngokuya ngezidingo. 2. Imithetho yokucushwa: 1a = 2b = 2c = 1d = 1E = 2f 3. Izinhlobo zama-fiber disc zanda ngokuqhubekayo

Into yendaba	Uhlukanisa ugqoko d	Ukugoqa ugqoko e	Ukuhlukanisa ugqoko e-1	Ukugoqa ugqoko f
Ubukhulu (H * W * d, mm)	136 * 104 * 8	135 * 125 * 8	135 * 125 * 8	135 * 125 * 4
Isisindo se-net (kg)	0.024	0.033	0.033	0.021
Isithombe
Umbala	RAL7035	RAL7035	RAL7035	RAL7035
Into uqobo lwayo	I-PC + ABS	I-PC + ABS	I-PC + ABS	I-PC + ABS
Ukuhlukanisa umthamo wetay (cores)	24 (Izingqimba ezi-2 zokushisa okushisekayo okuvikelekile)	24 (Izingqimba ezi-2 zokushisa okushisekayo okuvikelekile)	18 (Izingqimba ezi-2 zokushisa okushisekayo okuvikelekile)	16 (1 ungqimba lokushisa okushisayo okubonakalayo okubonakalayo)
Umthamo we-splitter we-tray (Ama-PC)	/	1 (Plc 1x2, 1x4, 1x8, i-1.9mm fiber, 60x7x4mm)	1 (PLC 1x16, 0.9mm fiber, 60x12x4mm)	/
Ubukhulu (ama-PC)	4	4	4	8
Okuzenzakalelayo (ama-PC)	/	/	/	/
Qaphela: 1. Amathileyi angenhla angaxutshwa ngokuya ngezidingo. 4. Imithetho yokucushwa: 1a = 2b = 2c = 1d = 1E 3.Izinhlobo zama-fiber disc zanda ngokuqhubekayo

5.3 Izesekeli

Cha.	Ingxenye Igama	Isithombe sereferensi	Umuvo	Ubuningi	Phawula
1	Abasebenzisi''mamal	/	Ama-PC	1	Phakathi kwa-
2	Umbiko wokuhlola we-Splitter	/	Ama-PC	1	Phakathi kwa-
3	Isihluthulelo		Ama-PC	1	"D" uhlobo
4	Umkhono Wokuvikelwa Okushisayo		Ama-PC	16	L = 45mm, Ongakukhetha njengesicelo seKhasimende
5	Ithayi lekhebula le-nylon		Ama-PC	10	3x100mm

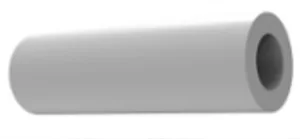

6	I-Tube Evikelekile Yefilimu		Ama-PC	1	I-OD5MM x 50cm

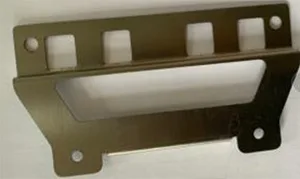

7	Kit efakwe odongeni		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende. Ipulakini elinwetshiwe lepulasitiki φ7.5x40mm, Ama-Phillips athepha ngokuzithoba ama-M5x40mm.

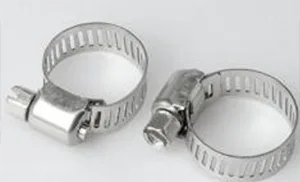

8	Ihashana		Ama-PC	2	ᴓ13-19mm
9	Ipulaki yokungena ngentambo ye-Optical Cable Entrance		Ama-PC	2

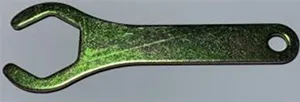

10	I-Brach Cable Seating Nut wrench		Ama-PC	1

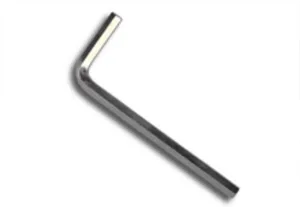

11	Ukhiye we-Allen Allen		Ama-PC	1	M6
12	Kit ebekwe pole-a		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende
13	Kit-b		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende
14	Kit ebekwe e-aerial		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende
15	Dlulisa ugqoko wokugcina intambo		Ama-PC	2	Ongakukhetha njengesicelo seKhasimende

6. Izici zezemvelo

Lo mkhiqizo uhambisana ne-ROHS Environmental Ukuvikelwa Kwezemvelo Detrive, kanye nokuqukethwe kwe-Lead, CADMIUM, i-Hexavalent, i-Hexavalent Chromium, i-POLYBROMINAID BIPHENYL (PBDE) nePolybromalinated Diphhenyl (PBDE) ne-PillBromalined Diphhenyl (PBDE) angeqi umkhawulo.

7. Ukufakwa

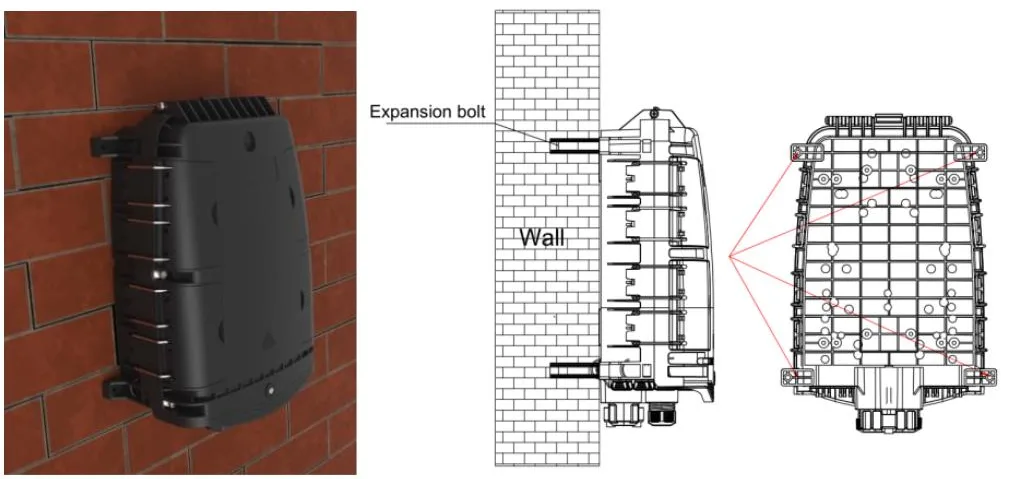

7.1. Ukufakwa okufakwe odongeni

Dlala izimbobo ezi-4 odongeni ngokuya ngobukhulu kuThebula 3.1, Beka ukwanda kwe-plule7.5 * 40, beka ibhokisi ukufanisa izimbobo futhi usebenzise izikulufa ukubopha.

Ukufakwa okufakwe odongeni

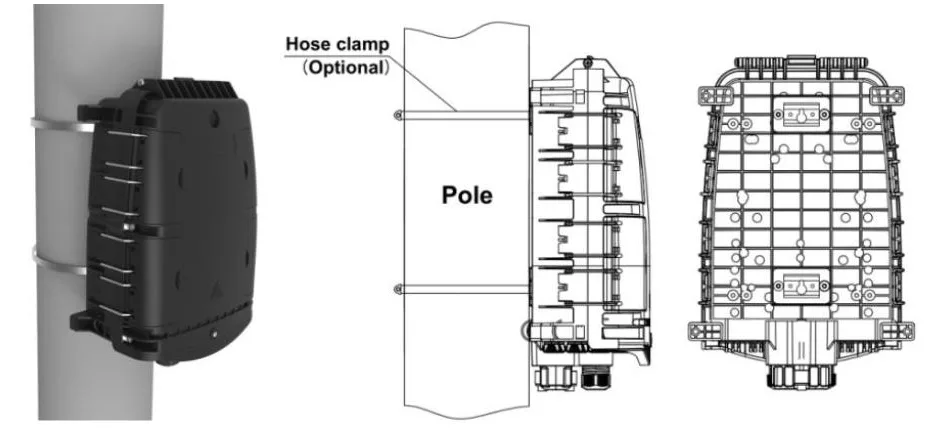

7.2. Ukufakwa okufakwe esigceni

Dlulisa indandatho ye-hoop ngokusebenzisa slot yepuleti engemuva bese uyilungisa esigxotsheni se-telecommunication

Ukufakwa okufakwe phezu kwe-Pole

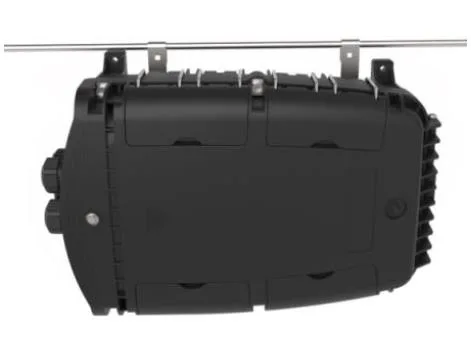

7.3 Isakhiwo esiphezulu

Bopha laba ababili abafakwe ku-chassis of the overhead belenga ocingweni, bese begcotshwa, vimbela icala liwa.

Isakhiwo esiphezulu

8. Ukusebenza kwesixhumi

8.1 I-adaptha exhunywe kuqala - a (e)

⚫ Shekele engxenyeni yomcibisholo yesixhumi esixhumeke nge-fiber contecliokwise futhi ukhiphe i-cap cap.

⚫ Ingxenye yomcibisholo wesixhumi se-fiber ingaphezulu, faka isixhumi se-fiber ungene kwisokhethi bese ujikeleza umcibisholo ingxenye yewashi.

8.2 I-Adapter Exhunyiwe Kwangaphambili - B (XL)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cable cap cap ku-sheath iwashi

8.3 I-adaptha exhunywe kuqala - c

⚫ Push indandatho eshelelayo ku-plug ye-fiber ye-Optical fiber ekuqondeni komcibisholo ukuze ususe i-cap cap; Cindezela inkinobho ukuthatha i-cap cap ku-adaptha ohlangothini lomcibisholo.

⚫ Qondanisa umzimba wepulaki ebelwe nge-adapter Buckle kuze kube yilapho iboshwe. Xhuma uthuli olubili luhlanganisa ngendlela efanayo.

⚫ Ipulaki efakiwe efakiwe iphoqelela indandatho eshelelayo ukudedela ibhande, bese udonsa umzimba oyinhloko emuva ukuze uyihlukanise.

8.4 I-adaptha exhunywe kuqala - D

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo.

⚫ Xhuma i-plug exhunywe kuqala D kanye ne-adaptha yangaphambili exhunyiwe D ekuqondeni komcibisholo, futhi ujikeleze i-plug ngokwewashi ukuyilungisa.

8.5 I-Adapter exhunywe kuqala - e (a)

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo

⚫ Xhuma i-plug exhunywe kuqala i-e kanye ne-adaptha exhunyiwe ngaphambili e eqophelweni lomcibisholo, futhi ujikeleze i-plue wise ukuyilungisa.

8.6 I-adaptha exhunywe kuqala - SC

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cack cap ku-sheath iwashi.

8.7 I-Adapter exhunywe kuqala - g

9. Iphakheji

I-1PC esikhwameni se-bubble, 400 * 480mm;

I-1PC ebhokisini elincane, 385 * 260 * 150mm, isisindo esinamandla ngu-3.5kg;

Ama-8pcs ebhokisini elikhulu elihlanganisiwe, 540 * 405 * 640 mm, isisindo esikhulu ngu-29kg.
