I-Fiber Opting Optictic Cable Distribution Box I-GFS-12BY & -1 & -2

1. Okuvamile

1.1 Incazelo

Ibhokisi lokusatshalaliswa kwe-Optical Pre-Pre adverty njenge-FTTX Network Distribution Network Ourness, nikeza ukuxhumana okusheshayo nokuthembekile, ukuvikelwa okuhle kanye nokuphathwa kwe-FTTX inethiwekhi.

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

1.3 Izicelo zemvelo

2. Izici

1. Igobolondo elingezansi nesembozo esiphezulu selded nge-holt Plate selding, engatholakali.

2. Indwangu: I-PP.

3. Ubufakazi obunamanzi, amanzi angenamanzi, ubufakazi bothuli, anti-ukuguga.

4. Izinga lokuvikelwa phezulu ku-IP68.

I-5

I-6

7. Isikhundla se-adaptha kungenzeka senziwe ngokwezifiso ngokuya ngezidingo zamakhasimende.

3. Ukucaciswa

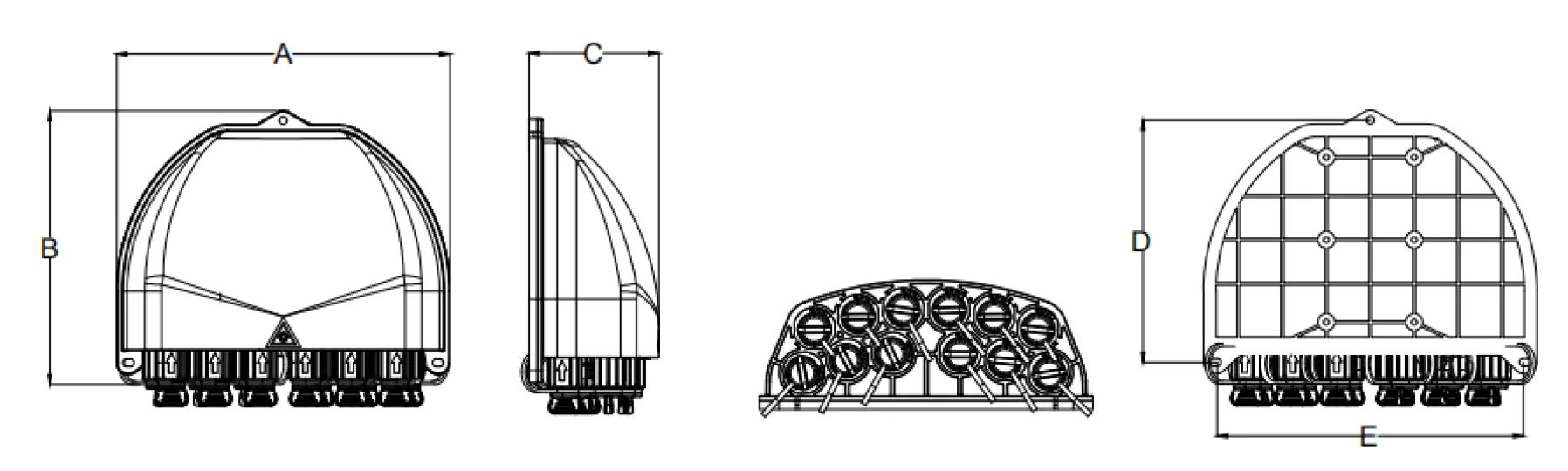

3.1 Ukucaciswa Kwemishini

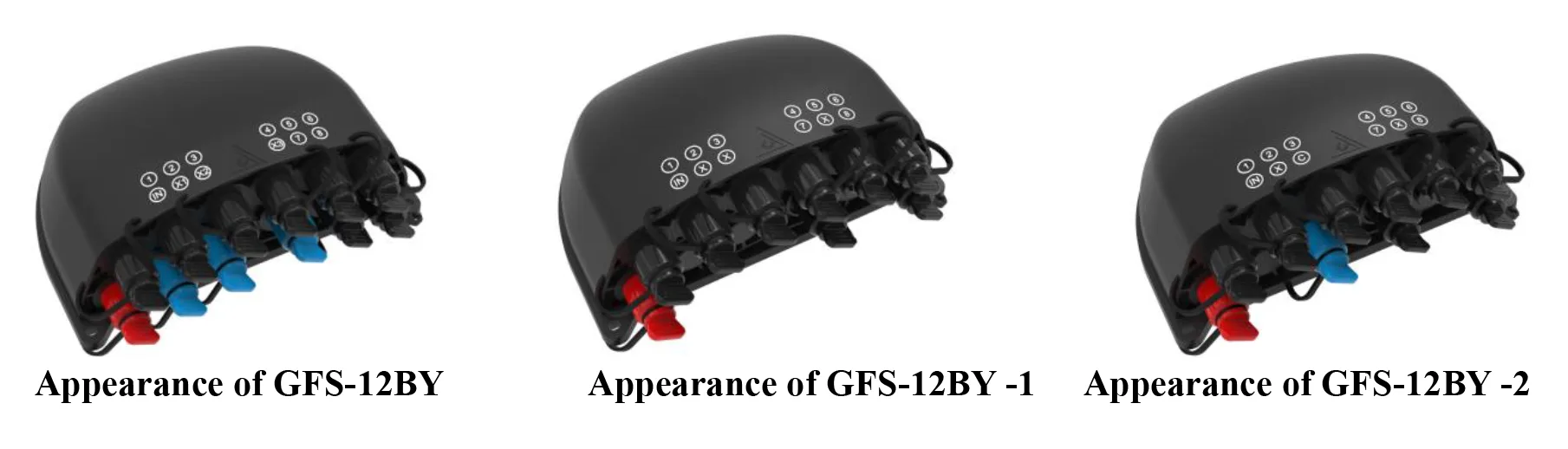

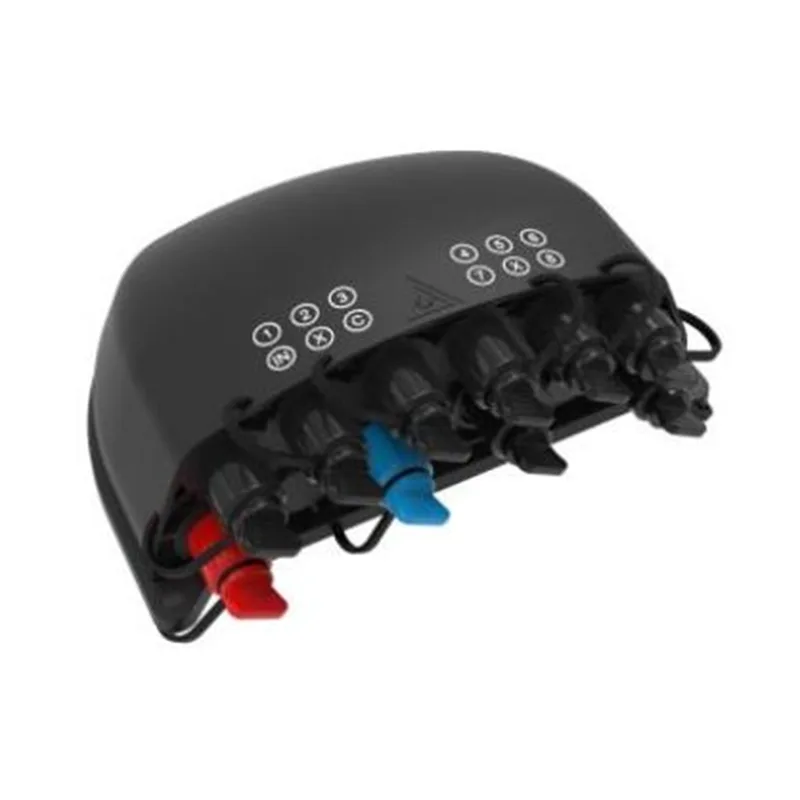

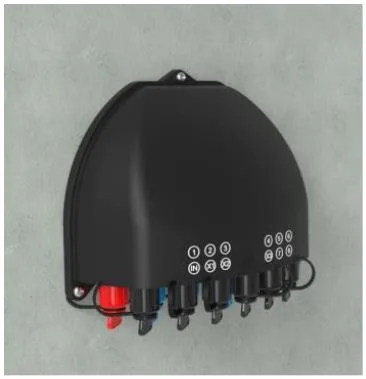

4. Isithombe somkhiqizo

4.1 Izindlela zekhebula zomkhiqizo:

PLC ngaphezulu, FBT Phansi

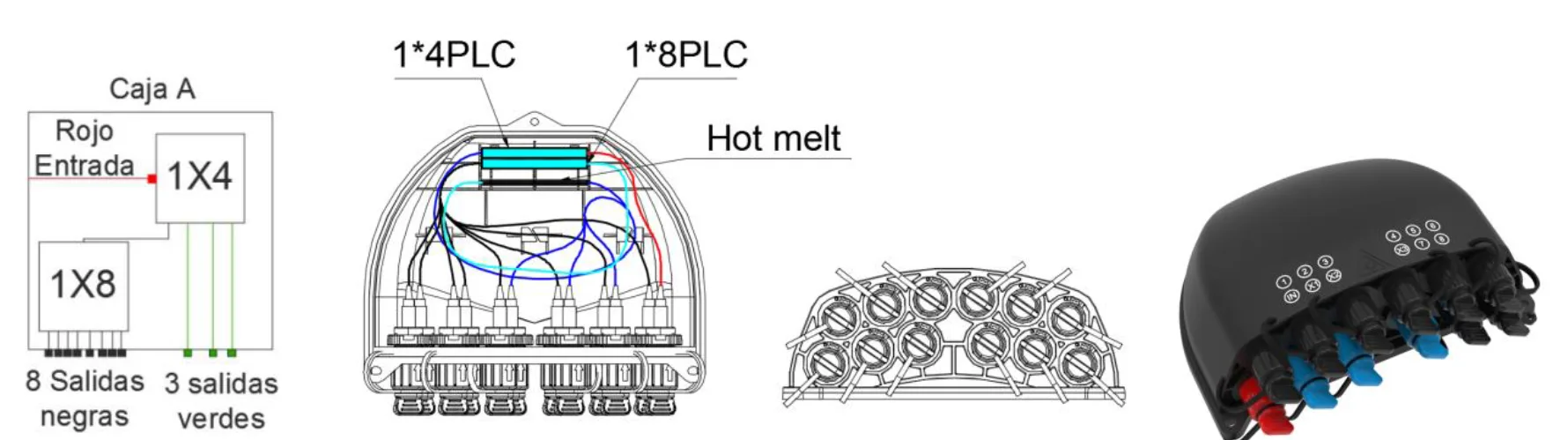

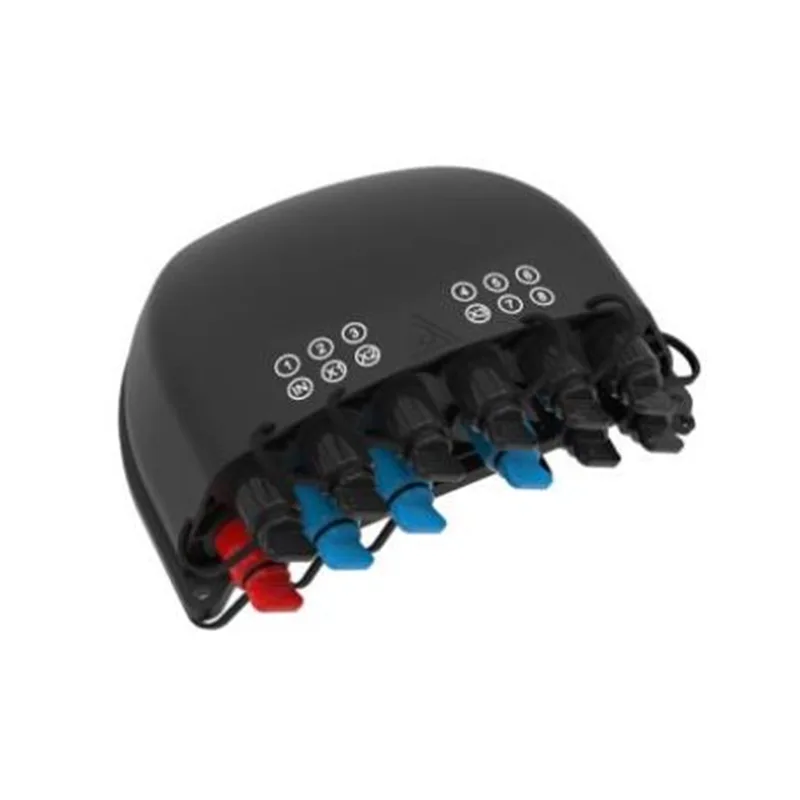

I-GFS-12BY (1 * 4 PLC + 1 * 8 PLC Splitter izindlela zekhebula)

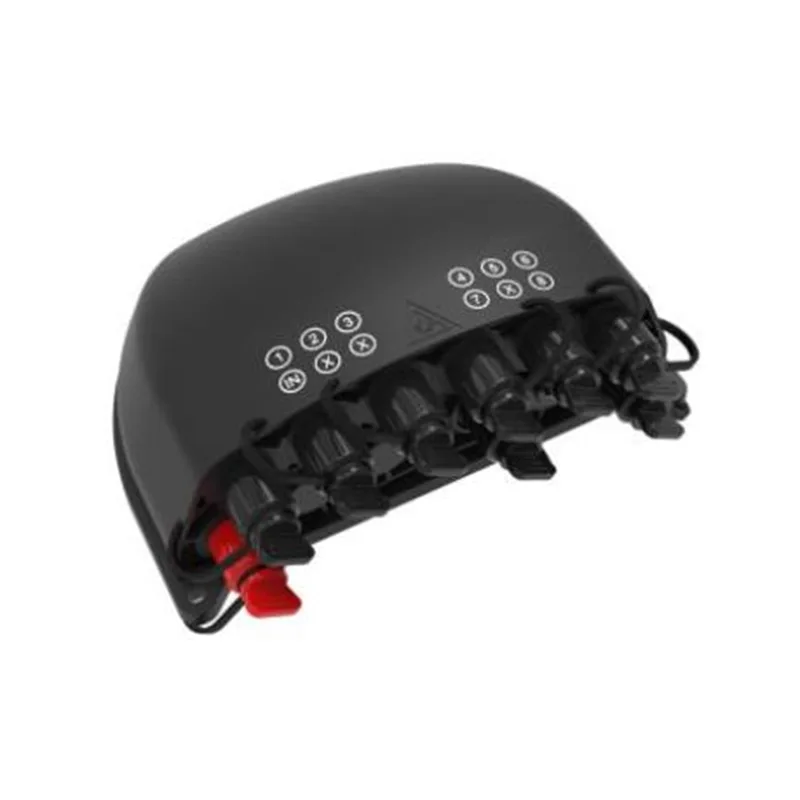

Gfs-12by-1 (1 * 8 plc splitter izindlela zekhebula)

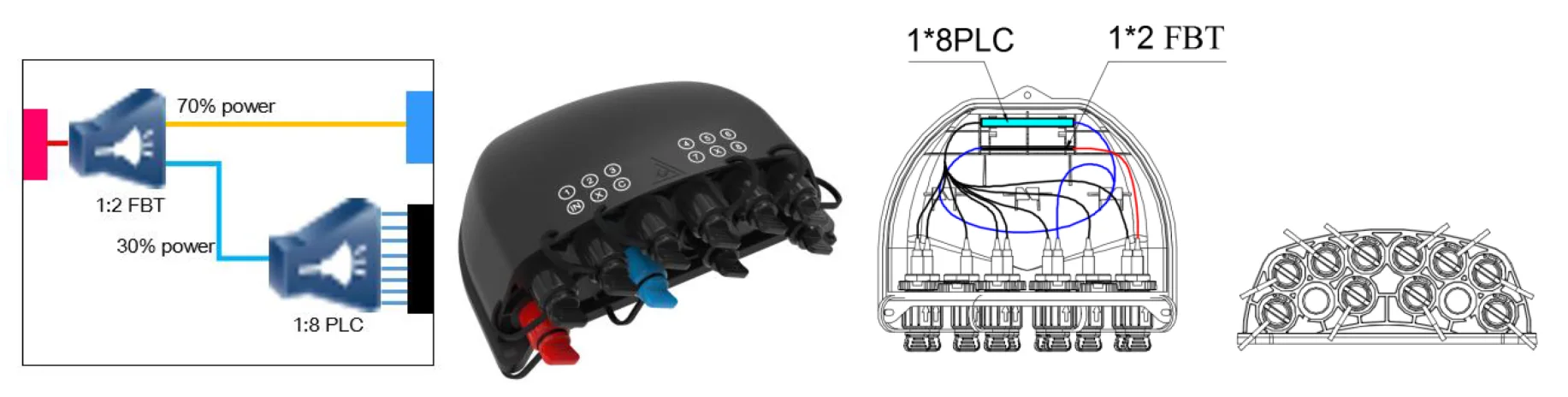

I-GFS-12BY-2 (1 * 2FBT + 1 * 8 PLC Spripter Amakhebula Izindlela)

4.2 Ukucushwa

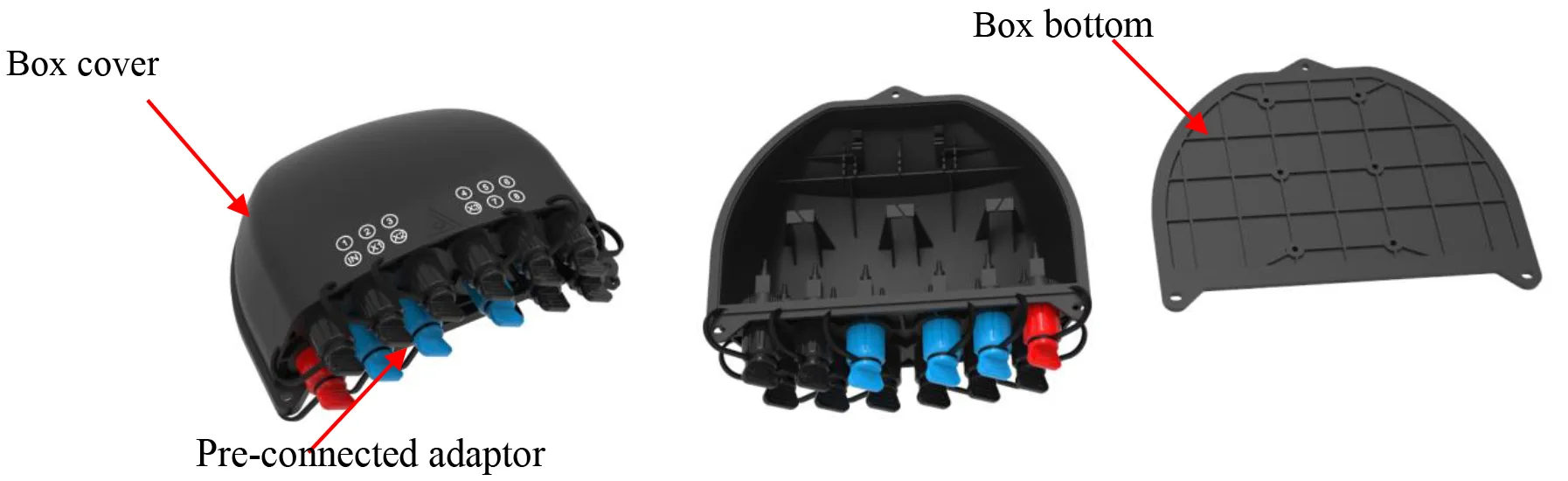

4.2.1 izingxenye eziphambili

4.2.2 Izesekeli

Cha.	Ingxenye Igama	Isithombe sereferensi	Umuvo	Ubuningi	Phawula
1	Abasebenzisi''mamal	/	Ama-PC	1	Phakathi kwa-
2	Umbiko wokuhlola we-Splitter	/	Ama-PC	1	Phakathi kwa-
3	Kit efakwe odongeni		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa
4	Kit efakwe ezigxotsheni		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa
5	Kit ebekwe e-aerial		ukubeka esikhathini esithile	1	Ongakukhetha njengekhasimende nxusa

5. Izici zezemvelo

Lo mkhiqizo uhambisana nomyalo wokuvikelwa kwemvelo we-rohs, kanye nokuqukethwe kwe-lead, i-cadmium, i-mercury, i-chromium ye-chromium, i-polybromalinated biphenyl (PBB) ne-polybromalinated diphenyl (PBDE) ne-polybromalined diphenyl (PBDE) futhi angeqi umkhawulo.

6. Ukufakwa

6.1. Ukufakwa okufakwe odongeni

Shayela izimbobo ezi-3 odongeni ngokuya ngobukhulu, beka ipulaki yokwanda Φ7.5 * 40, beka ibhokisi ukuze uhambisane nezimbobo bese usebenzisa izikulufa ukubopha.

Ukufakwa okufakwe odongeni

6.2. Ukufakwa okufakwe esigceni

Dlulisa indandatho ye-hoop ngokusebenzisa slot yepuleti engemuva bese uyilungisa esigxotsheni se-telecommunication

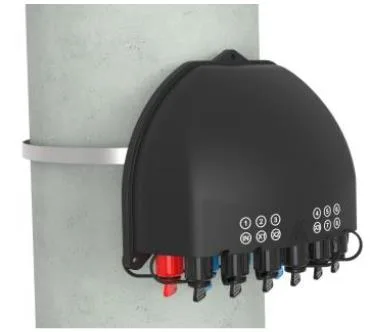

Ukufakwa okufakwe phezu kwe-Pole

6.3 Ukufakwa okufakwe odongeni (nge-Drop Cable Tray)

Bopha laba ababili abafakwe ku-chassis of the overhead belenga ocingweni, bese begcotshwa, vimbela icala liwa.

Ukufakwa okufakwe odongeni (nge-Drop Cable Traw

7. Ukusebenza kwesixhumi

7.1 I-adaptha exhunywe kuqala - a (e)

⚫ Shekele engxenyeni yomcibisholo yesixhumi esixhumeke nge-fiber contecliokwise futhi ukhiphe i-cap cap.

⚫ Ingxenye yomcibisholo wesixhumi se-fiber ingaphezulu, faka isixhumi se-fiber ungene kwisokhethi bese ujikeleza umcibisholo ingxenye yewashi.

7.2 I-Adapter exhunywe kuqala - b (xl)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cable cap cap ku-sheath iwashi

7.3 I-adaptha exhunywe kuqala - c

⚫ Push indandatho eshelelayo ku-plug ye-fiber ye-Optical fiber ekuqondeni komcibisholo ukuze ususe i-cap cap; Cindezela inkinobho ukuthatha i-cap cap ku-adaptha ohlangothini lomcibisholo.

⚫ Qondanisa umzimba wepulaki ebelwe nge-adapter Buckle kuze kube yilapho iboshwe. Xhuma uthuli olubili luhlanganisa ngendlela efanayo.

⚫ Ipulaki efakiwe efakiwe iphoqelela indandatho eshelelayo ukudedela ibhande, bese udonsa umzimba oyinhloko emuva ukuze uyihlukanise.

7.4 I-adaptha exhunywe kuqala - D

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo.

⚫ Xhuma i-plug exhunywe kuqala D kanye ne-adaptha yangaphambili exhunyiwe D ekuqondeni komcibisholo, futhi ujikeleze i-plug ngokwewashi ukuyilungisa.

I-adaptha engu-7.5 exhunywe kuqala - e (a)

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo

⚫ Xhuma i-plug exhunywe kuqala i-e kanye ne-adaptha exhunyiwe ngaphambili e eqophelweni lomcibisholo, futhi ujikeleze i-plue wise ukuyilungisa.

7.6 I-Adapter exhunywe kuqala

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cack cap ku-sheath iwashi.

8. Iphakheji
