I-Fiber Opting Optiptic Cable Distribution Box Ibhokisi le-GFS-016-024C

1. Okuvamile

1.1 Incazelo

Ibhokisi lokusatshalaliswa kwe-Optical Pre-Pre adverty njenge-FTTX Network Distribution Network Ourness, nikeza ukuxhumana okusheshayo nokuthembekile, ukuvikelwa okuhle kanye nokuphathwa kwe-FTTX inethiwekhi.

Gfs-016-024c

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

1.3 Izicelo zemvelo

2. Izici

1. Igobolondo elingezansi nesembozo esiphezulu selded nge-holt Plate selding, engatholakali.

2. Indwangu: I-PP + gf.

3. Ubufakazi obunamanzi, amanzi angenamanzi, ubufakazi bothuli, anti-ukuguga.

4. Izinga lokuvikelwa phezulu ku-IP68.

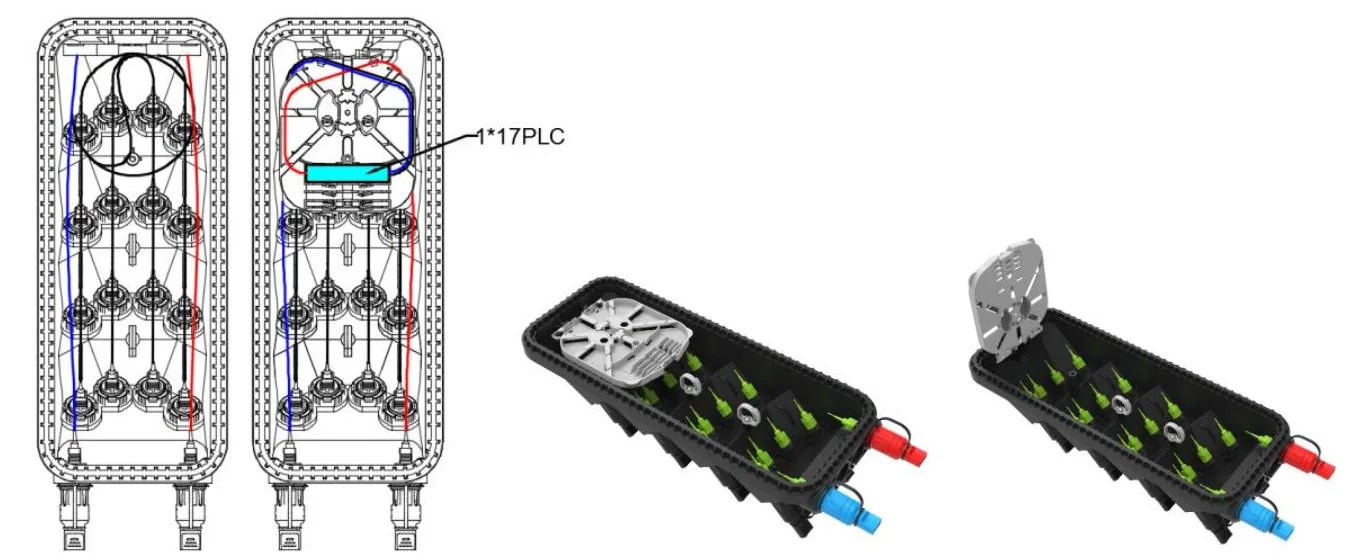

I-5. Ingaphakathi lifakwe nge-1x2 FBT Splitter + 1x16 PLC Splitter noma i-1x17 PLC Spritter.

I-6

3. Ukucaciswa

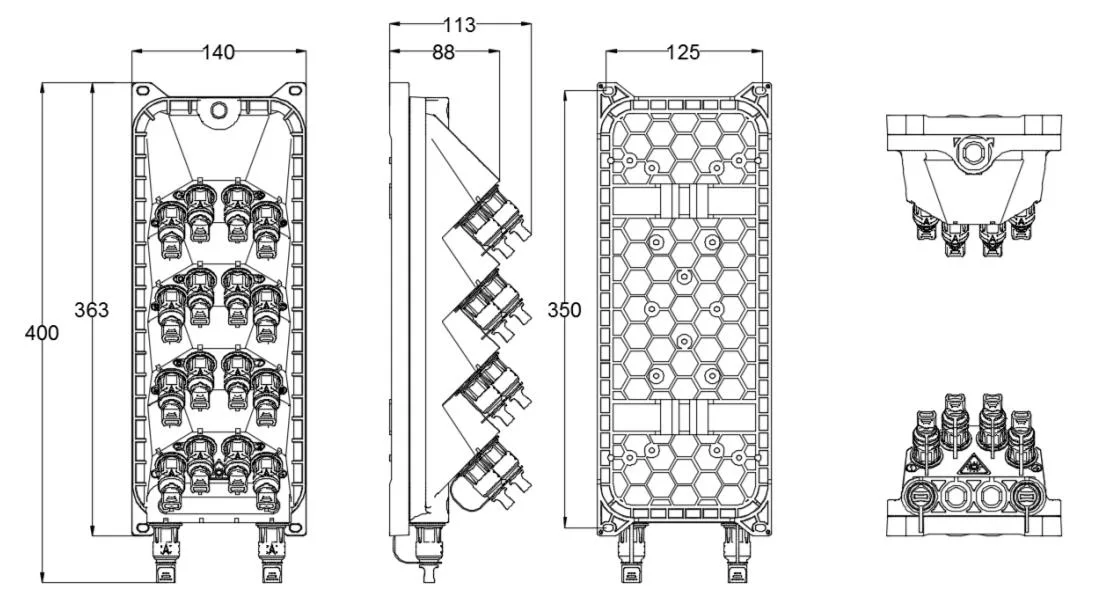

3.1 Ukucaciswa Kwemishini

4. Isithombe somkhiqizo

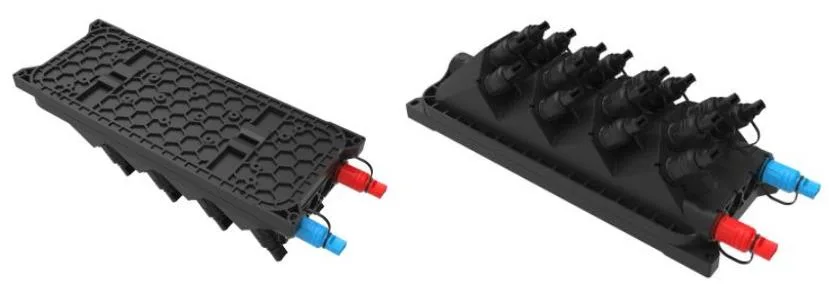

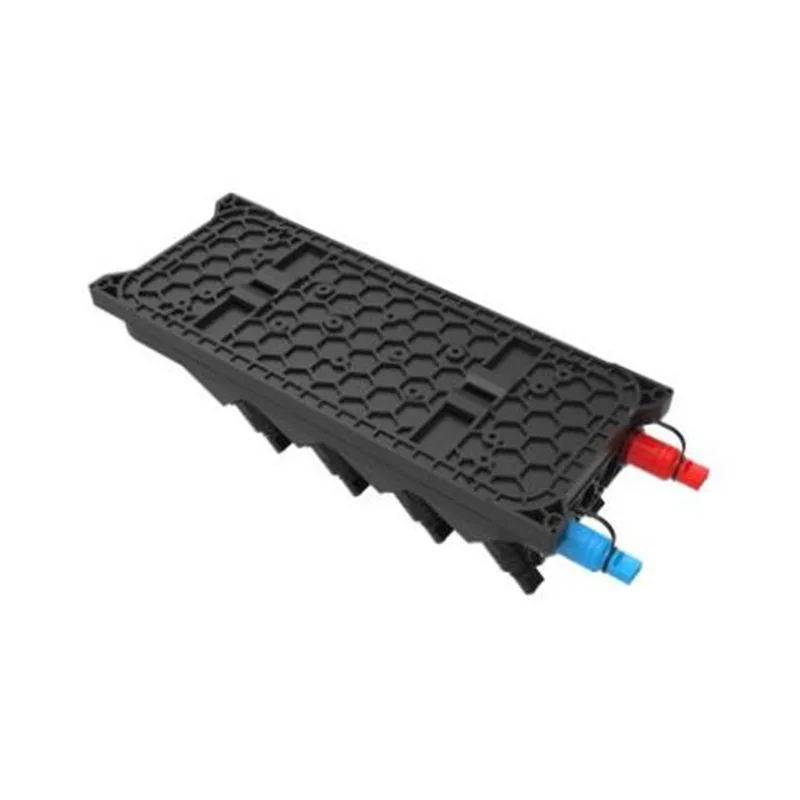

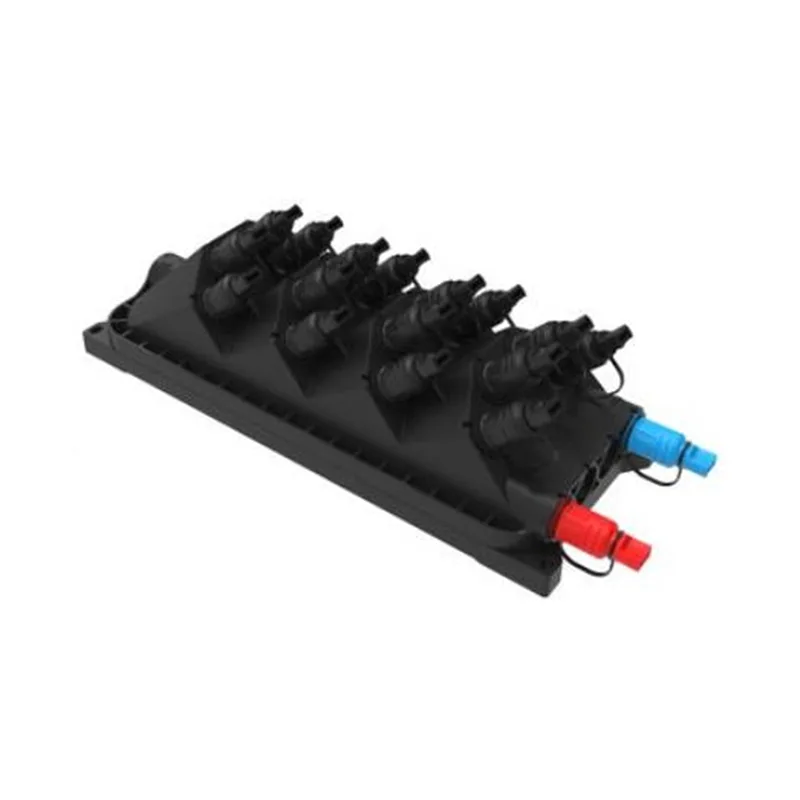

Gfs-016-024c isithombe somkhiqizo

5. Izici zezemvelo

Lo mkhiqizo uhambisana nomyalo wokuvikelwa kwemvelo we-rohs, kanye nokuqukethwe kwe-lead, i-cadmium, i-mercury, i-chromium ye-chromium, i-polybromalinated biphenyl (PBB) ne-polybromalinated diphenyl (PBDE) ne-polybromalined diphenyl (PBDE) futhi angeqi umkhawulo.

6. Ukufakwa

6.1. Ukufakwa okufakwe odongeni

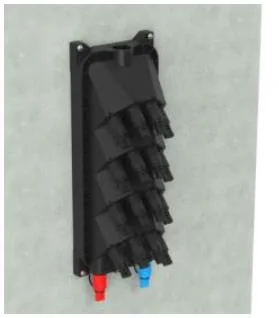

Drill 4 izimbobo odongeni olususelwa ngosayizi etafuleni 1, Beka i-Expension Bolt φ8 * 40, beka ibhokisi ukufanisa izimbobo bese usebenzisa i-BOLT ukubopha.

Ukufakwa okufakwe odongeni

6.2. Ukufakwa okufakwe esigceni

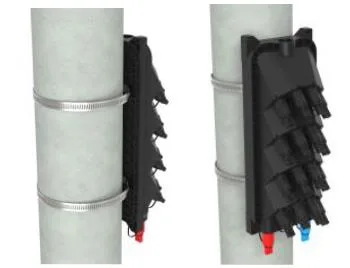

Lungisa isethi engu-1 yendandatho ye-pole kwi-telecom pole

Ukufakwa okufakwe phezu kwe-Pole

6.3 Isakhiwo esiphezulu

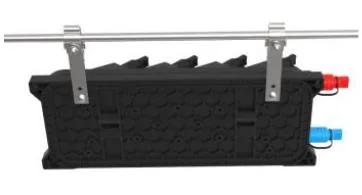

Bopha laba ababili abafakwe ku-chassis of the overhead belenga ocingweni, bese begcotshwa, vimbela icala liwa.

Isakhiwo esiphezulu

7. Ukusebenza kwesixhumi

7.1 I-adaptha exhunywe kuqala - a (e)

⚫ Shekele engxenyeni yomcibisholo yesixhumi esixhumeke nge-fiber contecliokwise futhi ukhiphe i-cap cap.

⚫ Ingxenye yomcibisholo wesixhumi se-fiber ingaphezulu, faka isixhumi se-fiber ungene kwisokhethi bese ujikeleza umcibisholo ingxenye yewashi.

7.2 I-Adapter exhunywe kuqala - b (xl)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cable cap cap ku-sheath iwashi

7.3 I-adaptha exhunywe kuqala - c

⚫ Push indandatho eshelelayo ku-plug ye-fiber ye-Optical fiber ekuqondeni komcibisholo ukuze ususe i-cap cap; Cindezela inkinobho ukuthatha i-cap cap ku-adaptha ohlangothini lomcibisholo.

⚫ Qondanisa umzimba wepulaki ebelwe nge-adapter Buckle kuze kube yilapho iboshwe. Xhuma uthuli olubili luhlanganisa ngendlela efanayo.

⚫ Ipulaki efakiwe efakiwe iphoqelela indandatho eshelelayo ukudedela ibhande, bese udonsa umzimba oyinhloko emuva ukuze uyihlukanise.

7.4 I-adaptha exhunywe kuqala - D

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo.

⚫ Xhuma i-plug exhunywe kuqala D kanye ne-adaptha yangaphambili exhunyiwe D ekuqondeni komcibisholo, futhi ujikeleze i-plug ngokwewashi ukuyilungisa.

I-adaptha engu-7.5 exhunywe kuqala - e (a)

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo

⚫ Xhuma i-plug exhunywe kuqala i-e kanye ne-adaptha exhunyiwe ngaphambili e eqophelweni lomcibisholo, futhi ujikeleze i-plue wise ukuyilungisa.

7.6 I-Adapter exhunywe kuqala

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cack cap ku-sheath iwashi.

7.7 I-adaptha exhunywe kuqala - g

7.8 I-Adapter Exhunyiwe E-7: H-1

I-adaptha engu-7.9 exhunywe kuqala - j-1

8. Iphakheji
