I-Fiber Opting Optiptic Cable Distribution Box I-GFS-016-007C

1. Okuvamile

1.1 Incazelo

Ibhokisi lokusatshalaliswa kwe-Optical Pre-Pre adverty njenge-FTTX Network Distribution Network Ourness, nikeza ukuxhumana okusheshayo nokuthembekile, ukuvikelwa okuhle kanye nokuphathwa kwe-FTTX inethiwekhi.

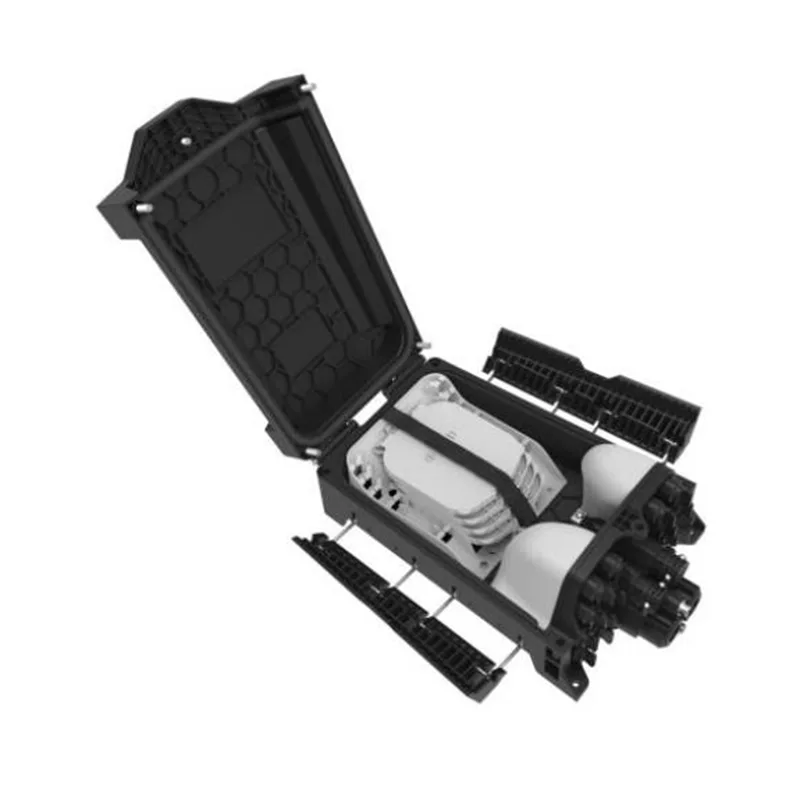

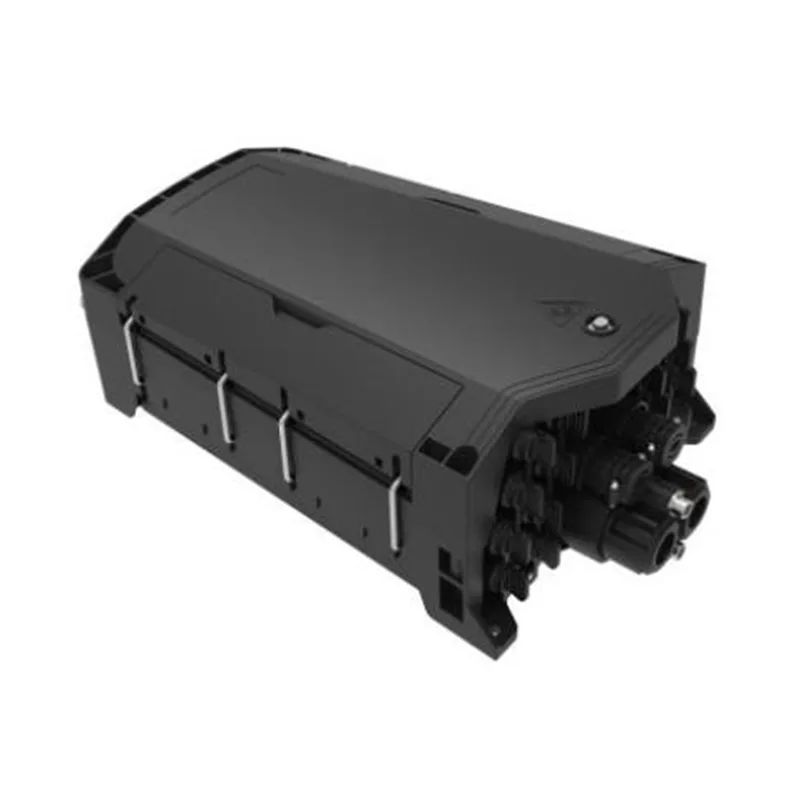

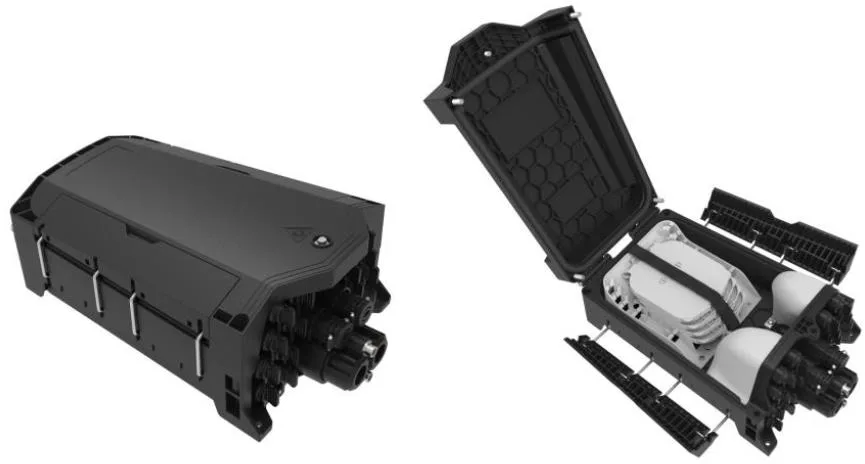

Ukubukeka kwe-GFS-016-007c

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

1.3 Izicelo zemvelo

2. Izici

1. Igobolondo elingezansi nesembozo esiphezulu selded nge-holt Plate selding, engatholakali.

2. Indwangu: I-PP + gf.

3. Ubufakazi obunamanzi, amanzi angenamanzi, ubufakazi bothuli, anti-ukuguga.

4. Izinga lokuvikelwa phezulu ku-IP68.

I-5. 1 I-OVAL Optical Cable Entry, 2 IBANDLA LESI-STANCH OPTICY OPTICICE ONTIes kanye Adaptha ayi-16 axhunyiwe kwangaphambili.

I-6. Izinhlobo ezahlukahlukene zamathileyi we-splice ayatholakala.

7

3. Ukucaciswa

3.1 Ukucaciswa Kwemishini

4. Ukucushwa

4.1 Amapharamitha aphambili we-Optical

Amapharamitha abonakalayo akhonjiswe etafuleni ngenhla ngamanani azenzakalelayo, futhi angenziwa ngokwezifiso ngokuya ngezidingo.

5. Isithombe somkhiqizo

5.1 Izindlela zekhebula zomkhiqizo:

I-GFS-016-007C Umdwebo We-Routing

5.2 I-Splicing Tray

Into yendaba	Ukugoqa ugqoko a	Ukugoqa ugqoko b	Ukugoqa ugqoko c
Ubukhulu (h * w * d, mm)	121 * 101 * 4	125 * 101 * 8	125 * 101 * 8
Isisindo se-net (kg)	0.017	0.026	0.026
Isithombe
Umbala	Pantone 428C	Pantone 428C	Pantone 428C
Into uqobo lwayo	I-PC + ABS / ABS	I-PC + ABS / ABS	I-PC + ABS / ABS
Ukuhlukanisa umthamo wetay (cores)	Okuqophele  (1 ungqimba lokushisa okushisayo okubonakalayo okubonakalayo)	Ubhomboloko o-inhliziyo  (Izingqimba ezi-2 zokushisa okushisayo okubonakalayo okubonakalayo)	2 (Izingqimba ezi-2 zokushisa okushisayo okubonakalayo okubonakalayo)
Umthamo we-atray (Ama-PC)	/	1  (Plc 1x2, 1x4, 1x8, i-1.9mm fiber, 60x7x4mm)	2 (Plc 1x2, 1x4, 1x8, i-1.9mm fiber, 60x7x4mm), 1 (PLC 1x16, 0.9mm fiber, 60x12x4mm), 1  (1 * 2 FBT, 0.9mm fiber, Ø3 60mm)
Ubukhulu (ama-PC)	8	4	4
Okuzenzakalelayo (ama-PC)	/	4	/

Qaphela:

1. Amathileyi angenhla angaxutshwa ngokuya ngezidingo.

2. Imithetho Yokucushwa: 2A = 1b = 1c Izinhlobo zama-fiber disc zanda ngokuqhubekayo

5.3 Izesekeli

Cha.	Ingxenye Igama	Isithombe sereferensi	Umuvo	Ubuningi	Phawula
1	Abasebenzisi''mamal	/	Ama-PC	1	Phakathi kwa-
2	Umbiko wokuhlola we-Splitter	/	Ama-PC	1	Phakathi kwa-
3	Isihluthulelo		Ama-PC	1	"D" uhlobo

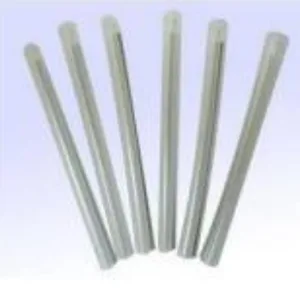

4	Umkhono Wokuvikelwa Okushisayo		Ama-PC	16	L = 45mm, ngokuzithandela njengesicelo sekhasimende

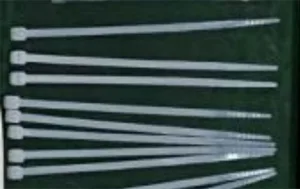

5	Ithayi lekhebula le-nylon		Ama-PC	10	3x100mm

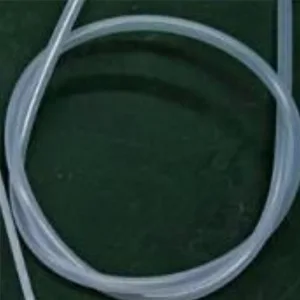

6	I-Tube Evikelekile Yefilimu		Ama-PC	1	I-OD5MM x 50cm
7	Kit efakwe odongeni		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende. (Kunwetshwe ipulaki leplastiki leplastiki φ8x40mm, ama-Phillips wokuzishaya ngezikulufo ze-M5x40mm.)

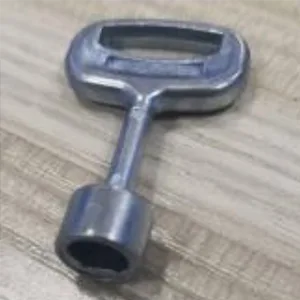

8	Ukhiye we-Allen Allen		Ama-PC	1	M6
9	Kit efakwe ezigxotsheni		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende
10	Kit ebekwe e-aerial		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende

6. Izici zezemvelo

Lo mkhiqizo uhambisana nomyalo wokuvikelwa kwemvelo we-rohs, kanye nokuqukethwe kwe-lead, i-cadmium, i-mercury, i-chromium ye-chromium, i-polybromalinated biphenyl (PBB) ne-polybromalinated diphenyl (PBDE) ne-polybromalined diphenyl (PBDE) futhi angeqi umkhawulo.

7. Ukufakwa

7.1. Ukufakwa okufakwe odongeni

Drill 3 izimbobo odongeni ngokuya ngobukhulu kuThebula 3.1, Beka ukwanda kwe-plule7.5 * 40, beka ibhokisi ukuze uhambisane nezimbobo futhi usebenzise izikulufa ukubopha.

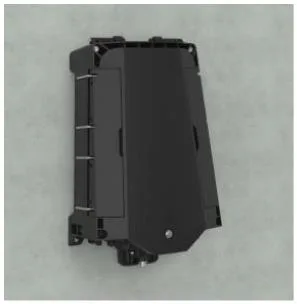

Ukufakwa okufakwe odongeni

7.2. Ukufakwa okufakwe esigceni

Dlulisa indandatho ye-hoop ngokusebenzisa slot yepuleti engemuva bese uyilungisa esigxotsheni se-telecommunication

Ukufakwa okufakwe phezu kwe-Pole

7.3 Ukufakwa okufakwe odongeni (nge-Drop Cable Tray)

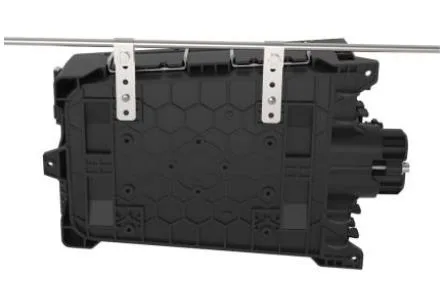

Bopha laba ababili abafakwe ku-chassis of the overhead belenga ocingweni, bese begcotshwa, vimbela icala liwa.

Isakhiwo esiphezulu

8. Ukusebenza kwesixhumi

8.1 I-adaptha exhunywe kuqala - a (e)

⚫ Shekele engxenyeni yomcibisholo yesixhumi esixhumeke nge-fiber contecliokwise futhi ukhiphe i-cap cap.

⚫ Ingxenye yomcibisholo wesixhumi se-fiber ingaphezulu, faka isixhumi se-fiber ungene kwisokhethi bese ujikeleza umcibisholo ingxenye yewashi.

8.2 I-Adapter Exhunyiwe Kwangaphambili - B (XL)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cable cap cap ku-sheath iwashi

8.3 I-adaptha exhunywe kuqala - c

⚫ Push indandatho eshelelayo ku-plug ye-fiber ye-Optical fiber ekuqondeni komcibisholo ukuze ususe i-cap cap; Cindezela inkinobho ukuthatha i-cap cap ku-adaptha ohlangothini lomcibisholo.

⚫ Qondanisa umzimba wepulaki ebelwe nge-adapter Buckle kuze kube yilapho iboshwe. Xhuma uthuli olubili luhlanganisa ngendlela efanayo.

⚫ Ipulaki efakiwe efakiwe iphoqelela indandatho eshelelayo ukudedela ibhande, bese udonsa umzimba oyinhloko emuva ukuze uyihlukanise.

8.4 I-adaptha exhunywe kuqala - D

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo.

⚫ Xhuma i-plug exhunywe kuqala D kanye ne-adaptha yangaphambili exhunyiwe D ekuqondeni komcibisholo, futhi ujikeleze i-plug ngokwewashi ukuyilungisa.

8.5 I-Adapter exhunywe kuqala - e (a)

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo

⚫ Xhuma i-plug exhunywe kuqala i-e kanye ne-adaptha exhunyiwe ngaphambili e eqophelweni lomcibisholo, futhi ujikeleze i-plue wise ukuyilungisa.

8.6 I-Adapter exhunywe kuqala

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cack cap ku-sheath iwashi.

8.7 I-Adapter exhunywe kuqala - g

9. Iphakheji

I-1PC esikhwameni se-bubble, 480 * 400mm;

I-1PC ebhokisini elincane, 365 * 225 * 145mm, isisindo esikhulu yi-2.1kg;

Ama-8pcs ebhokisini elikhulu elihlanganisiwe, 470 * 385 * 615 mm, isisindo esiningi singu-18kg.
