1. Okuvamile

1.1 Incazelo

Ibhokisi lokusabalalisa le-Optical Presed Optical njenge-FTTX Network Distribution Network Distribution Ourction, nikeza ukuxhumana okusheshayo nokwethembekile, ukuvikelwa okuhle kanye nokuphatha inethiwekhi ye-FTTX.

Uhlobo Sokukhiqiza	Ukuhlela ngohlobo oluthile
Gfs-008-013c	Ibhokisi elixhumeke ngaphambili le-fiber optic cable passsation bhokisi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

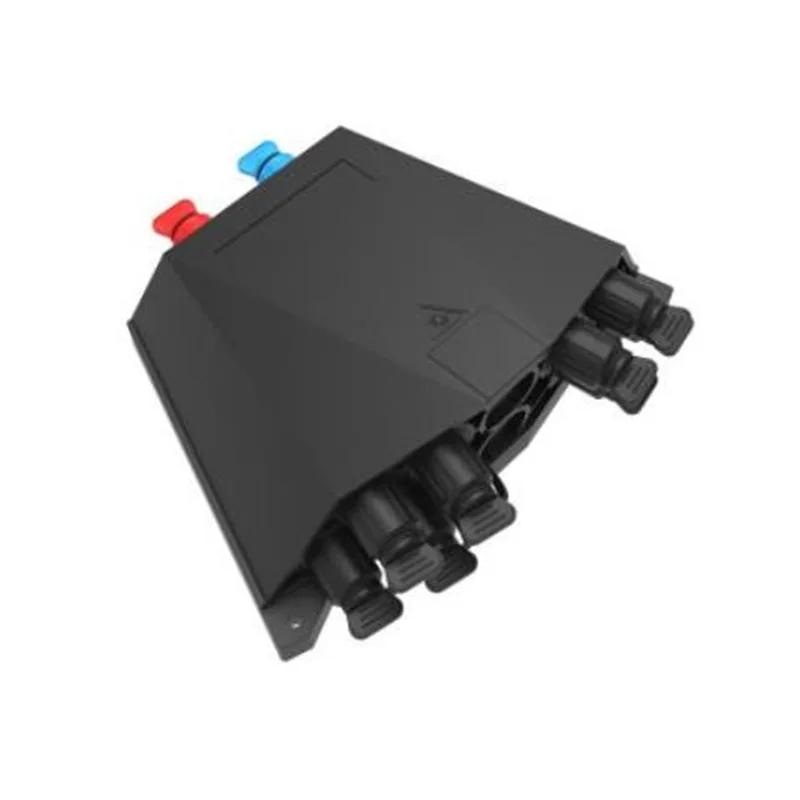

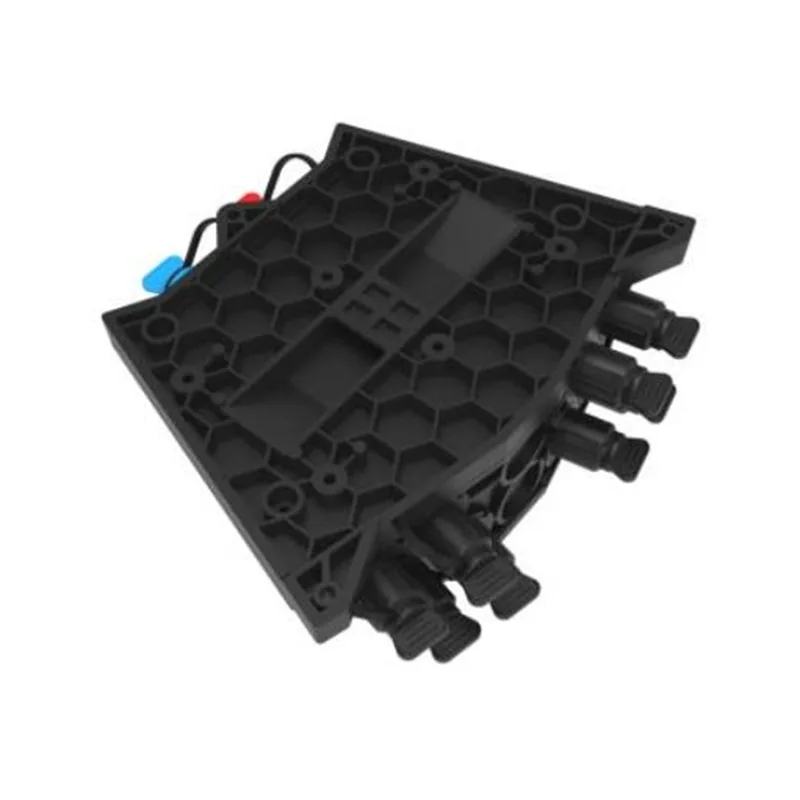

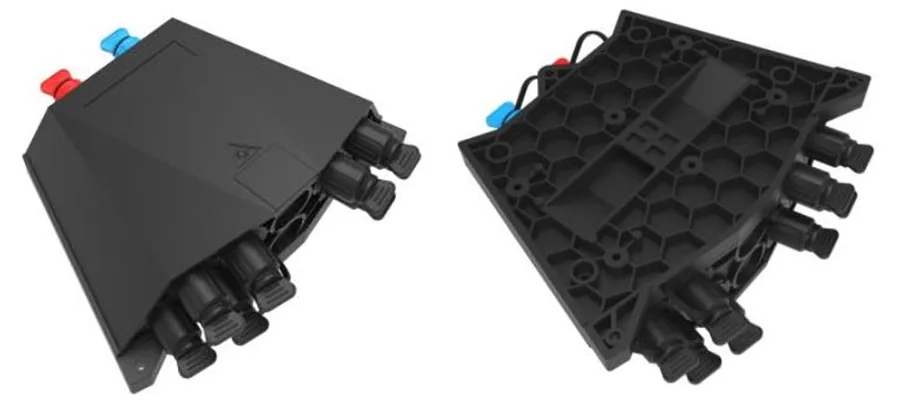

Ukubukeka kwe-GFS-008-0133C

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

Lokho-t g.652	Izici ze-Optical fiber eyodwa eyodwa
IEC 607944-1-1	I-Optical fiber cable-part 1-1: I-generic specification-jikelele
IEC 60794-1-2	I-Optical fiber cables-parts 1-2: Inqubo yokuhlola ikhebula elijwayelekile

1.3 Izicelo zemvelo

Into yendaba	Thanda
Ukushisa kokusebenza	-40 ºC ~ + 65 ºC
Ukushisa okushisa	-5 ºC ~ + 40 ºC
Ukushisa okushisa	-0ºC ~ + 65 ºC
Ingcindezi yasemkhathini	70 ~ 106kpa
Umswakama ohlobene	≤93% (+ 40 ℃)

2. Izici

1. Igobolondo elingezansi nesembozo esiphezulu selded nge-holt Plate selding, engatholakali.

2. Indwangu: I-PP + gf.

3. Ubufakazi obunamanzi, amanzi angenamanzi, ubufakazi bothuli, anti-ukuguga.

4. Izinga lokuvikelwa phezulu ku-IP68.

I-5. Ingaphakathi lifakwe nge-1x2 FBT Splitter + 1x8 PLC Splitter noma i-1x8 PLC Spritter.

I-6

3. Ukucaciswa

3.1 Ukucaciswa Kwemishini

Into yendaba	Ukucacisa	Phawula
Izinto ezibonakalayo zezindlu	I-PP + gf
Impahla yesesekeli sensimbi	Insimbi esezingeni eliphakeme engenasici

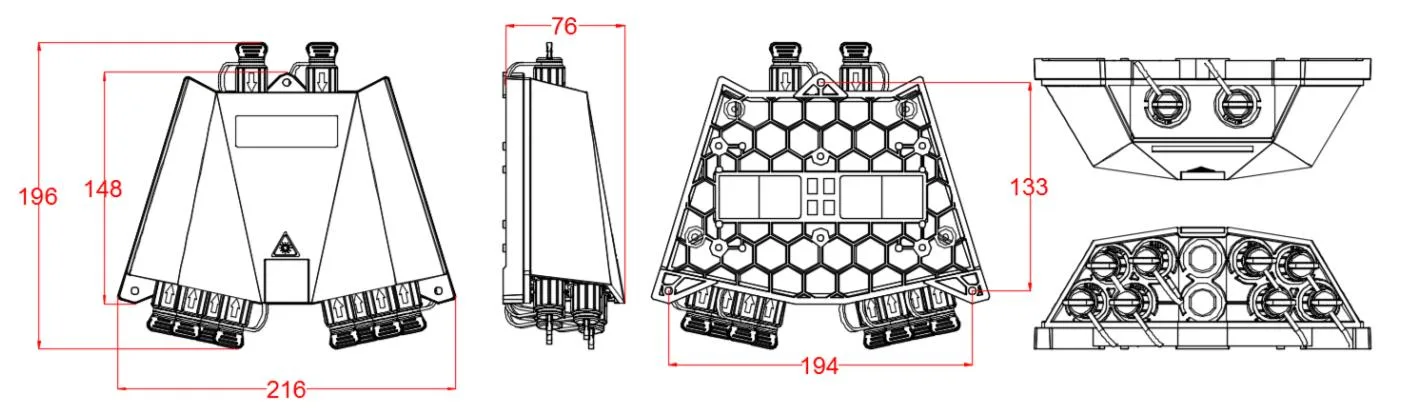

Isici sangaphandle (mm)	216 * 196 * 148mm
Umbala	-Mnyama
Isikhundla Somgodi Wokufaka (MM)	194 * 133
Inani lama-adaple axhumeke kuqala	10
Shupha	I-1x2 FBT Splitter + 1x8 PLC Splitter
Gradlar	IP68
Ukuvulayo	UL94-HB	Phutha
Ukuhlolwa kwe-Houtral Salt Spray (NSS)	48h	Phutha

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

4. Ukucushwa

Amapharamitha aphambili we-Optical

Shupha	(DB)		Rl (db)	(DB)	Indlela yokuhlola
Shupha	Shupha			Ibhokisi Lokusabalalisa	Indlela yokuhlola
1 * 2 FBT (90/10) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (90%)	≤0.83	≥55	≤1.03	IL: IEC61300-3-4 Indlela B RL: I-IEC61300-3-6 1
1 * 2 FBT (90/10) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (10%) + 1 * 8 PLC	≤21.7	≥55	≤21.9
1 * 2 FBT (80/20) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (80%)	≤1. 4	≥55	≤1.6
1 * 2 FBT (80/20) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (20%) + 1 * 8 PLC	≤18.3	≥55	≤18.5
1 * 2 FBT (70/30) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (70%)	≤2.1	≥55	≤2.3
1 * 2 FBT (70/30) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (30%) + 1 * 8 PLC	≤16.5	≥55	≤16.7
1 * 2 FBT (60/40) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (60%)	≤2.8	≥55	≤3
1 * 2 FBT (60/40) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (40%) + 1 * 8 PLC	≤15.2	≥55	≤15.4
1 * 2 FBT (50/50) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (50%)	≤3.8	≥55	≤4.0
1 * 2 FBT (50/50) + 1 * 8 PLC Spritter, ngesixhumi seScapc	1 * 2 FBT (50%) + 1 * 8 PLC	≤14.3	≥55	≤14.5
1 * 8 plp splitter, ngesixhumi seScapc	1 * 8 plc	≤10.5	≥55DB	≤10.7

Amapharamitha abonakalayo akhonjiswe etafuleni ngenhla ngamanani azenzakalelayo, futhi angenziwa ngokwezifiso ngokuya ngezidingo.

5. Isithombe somkhiqizo

5.1 Izindlela zekhebula zomkhiqizo:

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

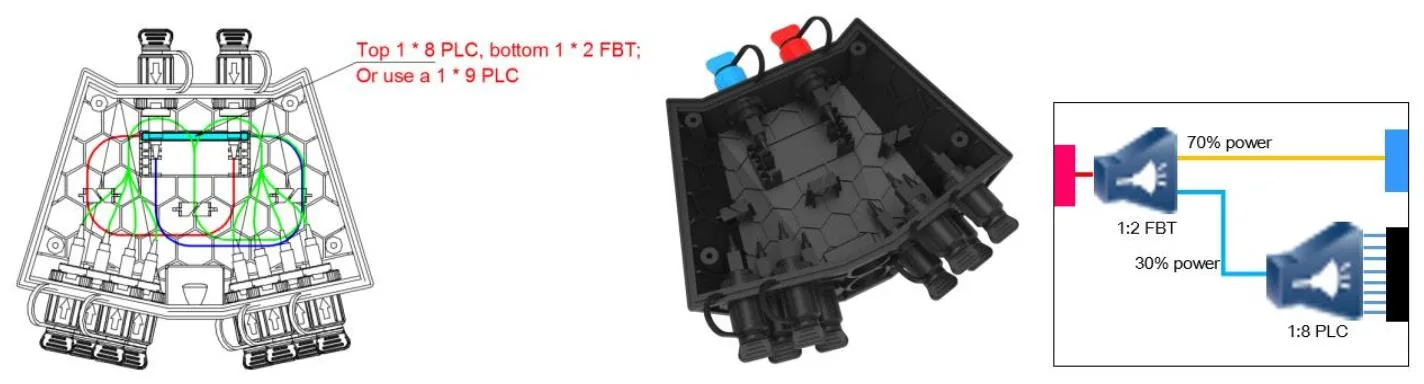

1 * 2 FBT + 1 * 8 PLC Splitter izindlela zekhebula

5.2 Izesekeli

Cha.	Ingxenye Igama	Isithombe sereferensi	Umuvo	Ubuningi	Phawula
1	Abasebenzisi''mamal	/	Ama-PC	1	Phakathi kwa-
2	Umbiko wokuhlola we-Splitter	/	Ama-PC	1	Phakathi kwa-
3	Kit efakwe odongeni		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende
4	Kit efakwe ezigxotsheni		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende
5	Kufakwe e-aerial isihlokwa nje		ukubeka esikhathini esithile	1	Ongakukhetha njengesicelo seKhasimende

6. Izici zezemvelo

Lo mkhiqizo uhambisana ne-ROHS Environmental Ukuvikelwa Kwezemvelo Detrive, kanye nokuqukethwe kwe-Lead, CADMIUM, i-Hexavalent, i-Hexavalent Chromium, i-POLYBROMINAID BIPHENYL (PBDE) nePolybromalinated Diphhenyl (PBDE) ne-PillBromalined Diphhenyl (PBDE) angeqi umkhawulo.

7. Ukufakwa

7.1. Ukufakwa okufakwe odongeni

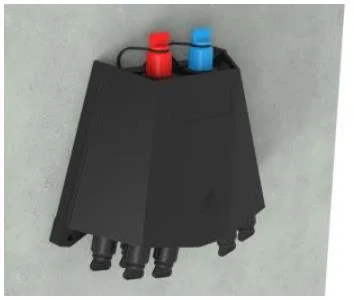

Shayela izimbobo ezi-3 odongeni ngokuya ngobukhulu, beka ipulaki yokwanda Φ7.5 * 40, beka ibhokisi ukuze uhambisane nezimbobo bese usebenzisa izikulufa ukubopha.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

Ukufakwa okufakwe odongeni

7.2. Ukufakwa okufakwe esigceni

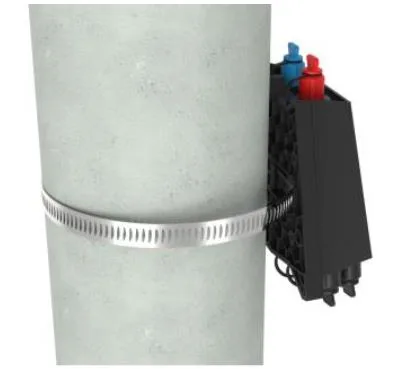

Dlulisa indandatho ye-hoop ngokusebenzisa slot yepuleti engemuva bese uyilungisa esigxotsheni se-telecommunication.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

Ukufakwa okufakwe phezu kwe-Pole

7.3. Isakhiwo esiphezulu

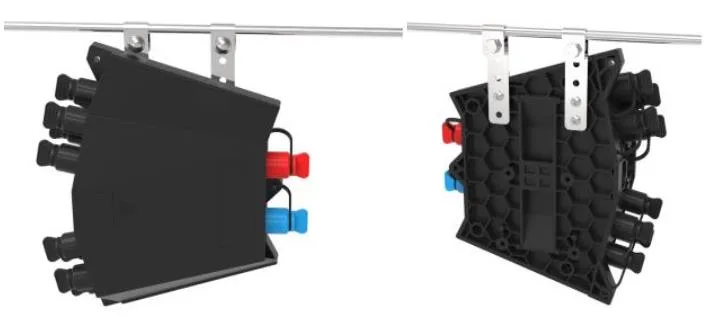

Bopha okufakiwe ku-chassis of the overhead ongemuva ocingweni, bese ugoqa, vimbela icala liwa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

Isakhiwo esiphezulu

8. Ukusebenza kwesixhumi

8.1 I-adaptha exhunywe kuqala - a (e)

⚫ Shekele engxenyeni yomcibisholo yesixhumi esixhumeke nge-fiber contecliokwise futhi ukhiphe i-cap cap.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

⚫ Ingxenye yomcibisholo wesixhumi se-fiber ingaphezulu, faka isixhumi se-fiber ungene kwisokhethi bese ujikeleza umcibisholo ingxenye yewashi.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

8.2 I-Adapter Exhunyiwe Kwangaphambili - B (XL)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cable cap cap ku-sheath iwashi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

8.3 I-adaptha exhunywe kuqala - c

⚫ Push indandatho eshelelayo ku-plug ye-fiber ye-Optical fiber ekuqondeni komcibisholo ukuze ususe i-cap cap; Cindezela inkinobho ukuthatha i-cap cap ku-adaptha ohlangothini lomcibisholo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

⚫ Qondanisa umzimba wepulaki ebelwe nge-adapter Buckle kuze kube yilapho iboshwe. Xhuma uthuli olubili luhlanganisa ngendlela efanayo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

⚫ Ipulaki efakiwe efakiwe iphoqelela indandatho eshelelayo ukudedela ibhande, bese udonsa umzimba oyinhloko emuva ukuze uyihlukanise.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

8.4 I-adaptha exhunywe kuqala - D

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

⚫ Xhuma i-plug exhunywe kuqala D kanye ne-adaptha yangaphambili exhunyiwe D ekuqondeni komcibisholo, futhi ujikeleze i-plug ngokwewashi ukuyilungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

8.5 I-Adapter exhunywe kuqala - e (a)

⚫ Guqula i-plug exhunyiwe ngaphambili i-anti yewashi bese uvula i-plug exhunyiwe ngaphambili nesembozo sothuli endaweni yomcibisholo

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

⚫ Xhuma i-plug exhunywe kuqala i-e kanye ne-adaptha exhunyiwe ngaphambili e eqophelweni lomcibisholo, futhi ujikeleze i-plue wise ukuyilungisa.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

8.6 I-Adapter exhunywe kuqala -F (SC)

Faka i-plug ye-SC Optical Fibre Connector ezingxenyeni ezixegayo, bese uyixhuma kwi-adaptha;

Faka i-xl pre exhunyiwe i-adapter Sheath ku-adaptha ngokhiye wepulasitiki;

Faka ipulaki yentwasahlobo ye-SNAP emgodini;

⚫ I-cable clamp izofakwa futhi umugqa uzobe ususondele kwi-plug;

⚫ Screw the lesihlalo sesikhumba se-cack cap ku-sheath iwashi.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

8.7 I-Adapter exhunywe kuqala - g

Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-013C

9. Iphakheji

Into yendaba	Into uqobo lwayo	Usayizi (mm)	Ubuningi	Isisindo esiphelele (kg)
Ukupakishwa komkhiqizo ezizimele	Ibhokisi lekhadibhodi	225x205x90	1	0.6
I-Outer Packal Carton	Ibhokisi lekhadibhodi	470x430x490	20	13
Qaphela: ngaphandle kwe-Drap Cable Traw
