Incazelo Yomkhiqizo

1. Okuvamile

1.1 Incazelo

Imishini isetshenziswa njengendawo yokuqedwa kwekhebula le-Drop ukuxhuma ne-ONU ngaphakathi efulethini ohlelweni lwenethiwekhi ye-FTTX. Ukuhlukaniswa kwe-fiber kungenziwa kuleli bhokisi, futhi okwamanje kunikeza ukuvikela okuqinile nokuphatha isakhiwo senethiwekhi ye-FTTX.

Uhlobo Sokukhiqiza	Ukuhlela ngohlobo oluthile
Gfs-1f	Iphaneli ye-terminal yokufinyelela ye-fiber optinal

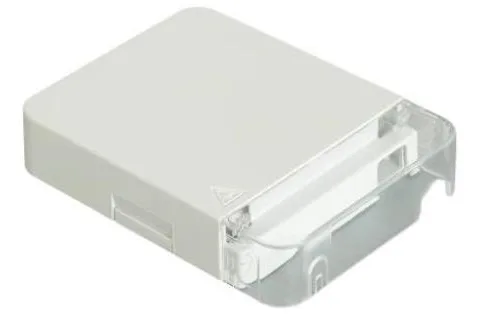

Ukubukeka kwe-gfs-1f

1.2 Amazinga ahambisana

Ukukhiqizwa okunikezwayo kwenzelwe, kwakhiqizwa futhi kwahlolwa ngokuya ngamazinga ngale ndlela elandelayo:

IEC61300-2	I-fiber optic ukuxhumanisa amadivayisi nezinto ezingenamikhawulo - ukuhlolwa okuyisisekelo nezinqubo zokulinganisa
IEC60068-2	Izinqubo eziyisisekelo zokuhlola imvelo zemikhiqizo kagesi neye-elekthronikhi

1.3 Izicelo zemvelo

Into yendaba	Thanda
Ukushisa kokusebenza	-40 ºC ~ + 60 ºC
Ukushisa okushisa	-5 ºC ~ + 40 ºC
Ukushisa okushisa	-45ºC ~ + 65 ºC

2. Izici

1. Isetshenziselwa indawo yomsebenzi womndeni, gcwalisa ukufinyelela okukodwa komsebenzi noma okukodwa okuyisisekelo, kungahlangabezana ngokugcwele izidingo zokugoba imisakazo yefayibha, futhi uvikele ukuphepha kwe-Optical fiber, ukuhlinzeka ngokuvikelwa kokuphepha komgogodla.

2. Ukufakwa okulula, ukusebenza okulula nokulungiswa.

3. Ngokwezidingo zamakhasimende zingaphrintwa i-logo.

4. Kwenziwe nge-ABS + PC ephezulu yezobunjiniyela epulasitiki enobuqili obuhle kakhulu.

5. Ungafaka i-adaptha ye-SC.

3. Ukucaciswa

3.1 Ukucaciswa Kwemishini

Into yendaba	Ukucacisa	Phawula
Isici sangaphandle (mm)	115 * 86 * 23
Umbala	Okumhlophe
Inani lamachweba e-Inlet	3
Ububanzi bekhebu le-fiber of the port yokufaka (mm)	Φ 2 Φ 2 Φ 2 Φ 2 φ3, 2 * 3
Amandla (max)	2 cores
Izinga Lokuvikelwa kwe-IP	I-IP20
Ukuvulayo	UL94-HB	Kungenziwa ngokwezifiso ngokuya ngezidingo.

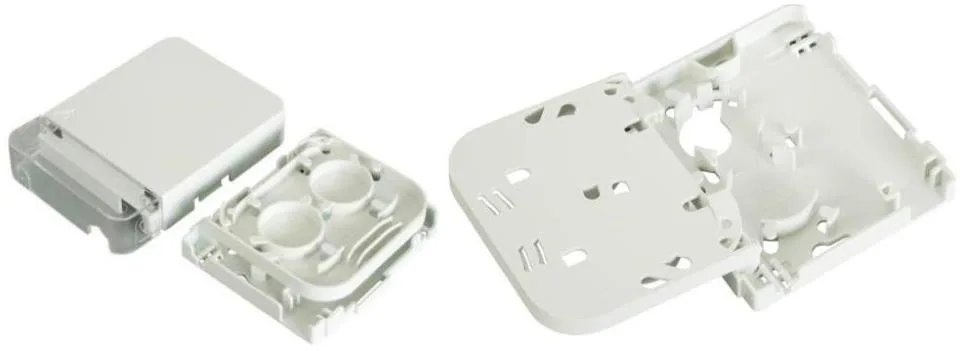

Fiber Optic Cable Access Terminal Panel GFS-1F

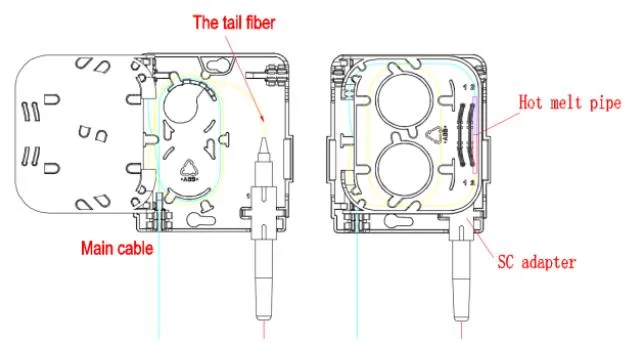

Imephu ye-GFS-1F

3.2 Ukucaciswa kwe-Optical

Into yendaba	Indlela yokuhlola	Ukucacisa
Ukulahleka Kokufaka (DB)	IEC61300-3-4 - Indlela B	Kusho ≤0.1DB, Maximump0.3DB
Ukulahlekelwa Ukulahleka (DB)	IEC61300-3-6-Indlela 1	I-APC860DB, upc≥50db
Ukuxhumana okungahleliwe	IEC61300-3-4-4	Kusho ≤0.15DB, Maximump0.3DB
-Phindaphiwe	IEC 61300-2-2 500 Imijikelezo	Ngesikhathi sokuhlola umehluko phakathi kokukalwa kokuqala kanye nezilinganiso ngakunye ngemuva komjikelezo owodwa kufanele kube ngaphansi kwe-0,20 dB, futhi kufanele kuhlanzwe ngenye indlela, kube nomkhawulo wokuhlanza okungu-25

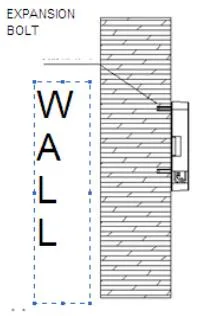

3.3. Ukufakwa okufakwe odongeni

Drill 2 izimbobo odongeni ngokuya ngobukhulu kuThebula 2, Beka ipulaki yokwanda Φ6 * 30, beka ibhokisi ukufanisa izimbobo bese usebenzisa izikulufa ukubopha.

Fiber Optic Cable Access Terminal Panel GFS-1F

Ukufakwa okufakwe ngodonga

4. Ukucushwa

Isigaba se-4%

Ingxenye Igama	Umuvo	Ubuningi	Incwajana
Ama-screws nama-plugs enjoloba	ukubeka esikhathini esithile	2	M4 * 25 IPhilips Head Screw, φ6 * I-30 Ipulaki Rubber
Ukushisa kwehlisa umkhono wokuvikela	Ama-PC	1	L = 45mm

I-5.Patage

I-Carton evamile ekhule kabili, 520 * 360 * 390mm, 200 eCarton, cishe ngo-19.5kg.
