1 * 4 1 * 8 plc splitter

I-1x4 / 1 × 8 I-PLC Splitter Tube Tube Package engu-60x7x4mm, nge-900μm evulekile tube 1 + 0.1 / -0M, SC / APC Isixhumi.Ukucaciswa kokusebenza:AmapharamithaIsifanekiseloUkucacisaUmuvoInombolo yesiteshiCH1 × 41 × 8I-Operation WavelengthI-1260 ~ 1650nyeUkuhlolwa kwe-wavelth1310/1550nyeI......

Thumela Uphenyo

Incazelo Yomkhiqizo

I-1x4 / 1 × 8 I-PLC Splitter Tube Tube Package engu-60x7x4mm, nge-900μm evulekile tube 1 + 0.1 / -0M, SC / APC Isixhumi.

Ukucaciswa kokusebenza:

Amapharamitha	Isifanekiselo	Ukucacisa		Umuvo
Inombolo yesiteshi	CH	1 × 4	1 × 8
I-Operation Wavelength		I-1260 ~ 1650		nye
Ukuhlolwa kwe-wavelth		1310/1550		nye
Isilinganiso sokubukeka		25%	12.5%	%
Ukufakwa kwe-Fready1	Imbulu	≤7.2	≤10.5	I-
Ukufana	Uni	≤0.8	≤1.0	I-
Ukulahleka kokuncika kombala	Ibhola	≤0.30	≤0.30	I-
Ukulahlekelwa Ukulahleka	RL	≥55		I-
Ukuqondiswa2	Inje	≥55		I-
Faka amandla o-optic	P	100		umnyuziki
Uhlobo lwefayibha		I-G657 A1 fiber
Uhlobo lwe-Pigtail		I-COM Port: White 900μm tube evulekile
Uhlobo lwe-Pigtail		I-1 ~ 8ch Port: I-White 900μm tube evulekile
Ubude bokufaka		I-1.0 + 0.1 / -0		m
Ubude bokukhipha		I-1.0 + 0.1 / -0		m
Isixhumi		Bonke IPort: SC / APC
Uphawu lwekhebula		I-1X4 PLC: In, 1,2 ... ... 3, 4 I-1x8 PLC: In, 1,2 ... ... 7, 8
I-Package Dimension (L) × (W) × (H)	I-PKG	I-60x7x4		m
Ukushisa kokusebenza	Isihloko	-40 ~ +85		℃
Ukushisa okushisa	Tst	-40 ~ +85		℃

* Amanothi: 1. Onke amanani wokunciphisa ukulahleka awafaki ukulahleka kwesixhumi, faka ukulahleka kwesixhumi + 0.3DB.

Imephu Yesikenye:

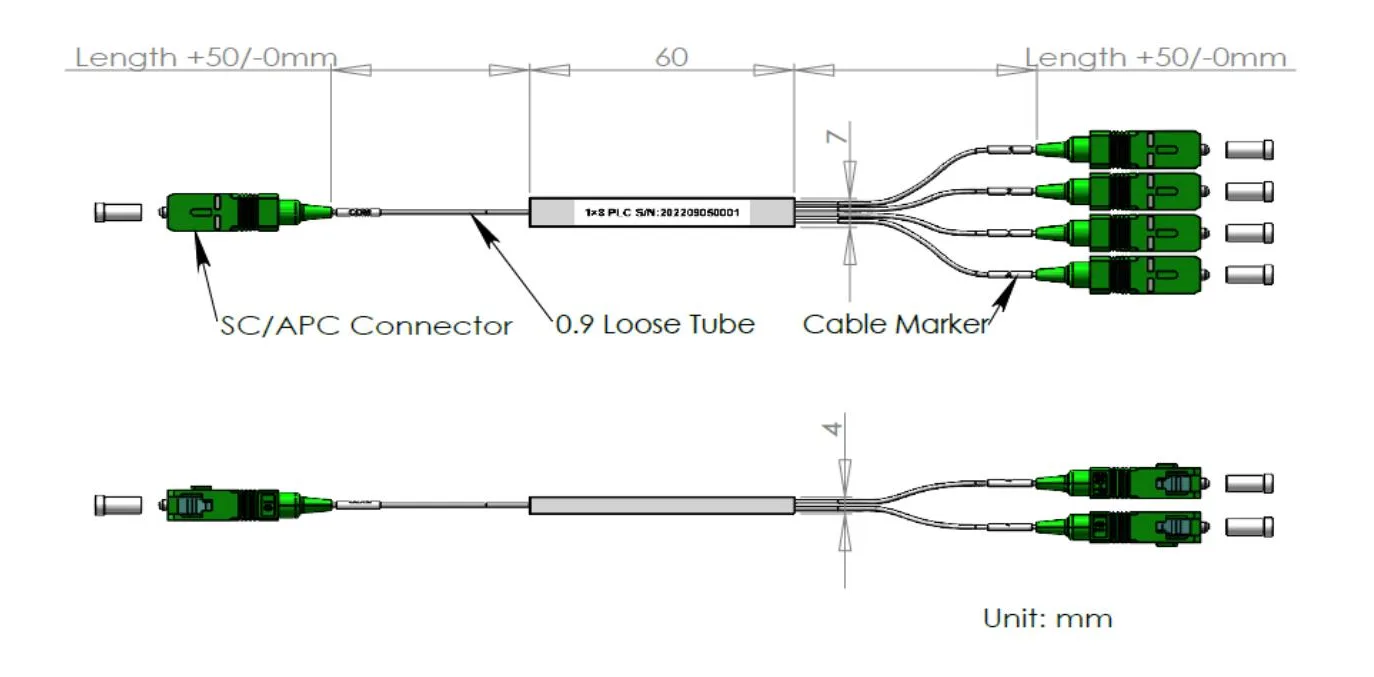

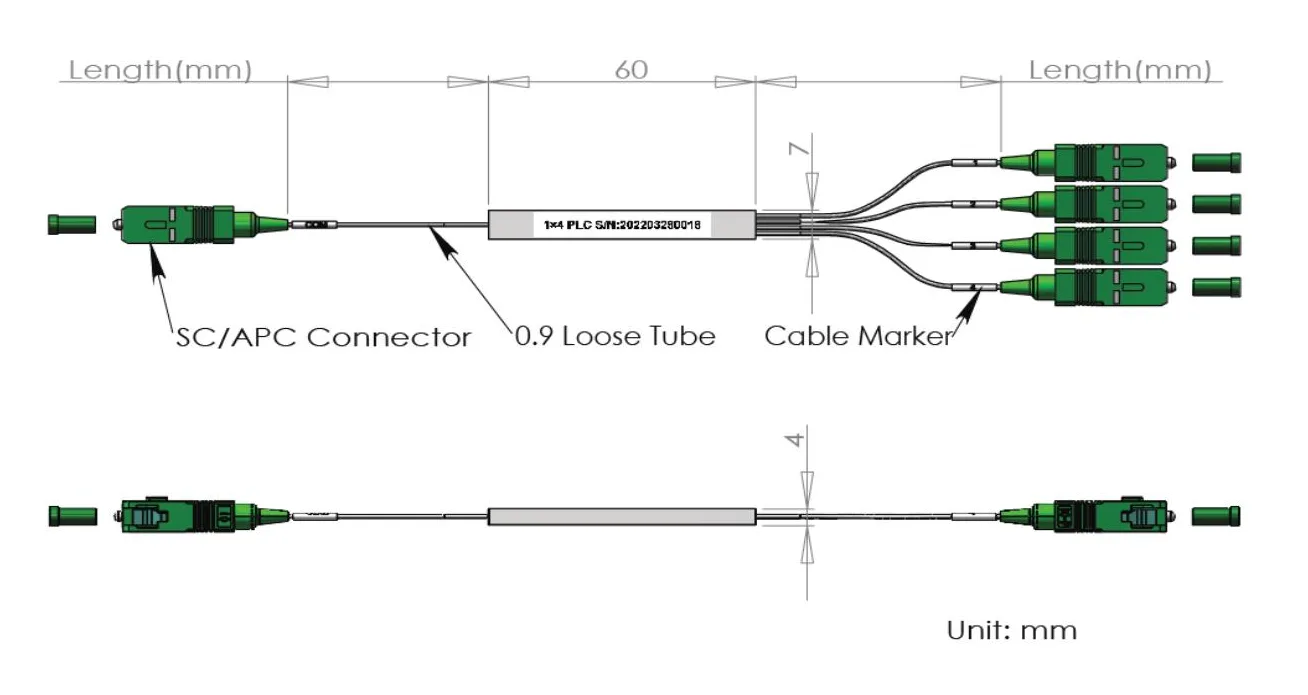

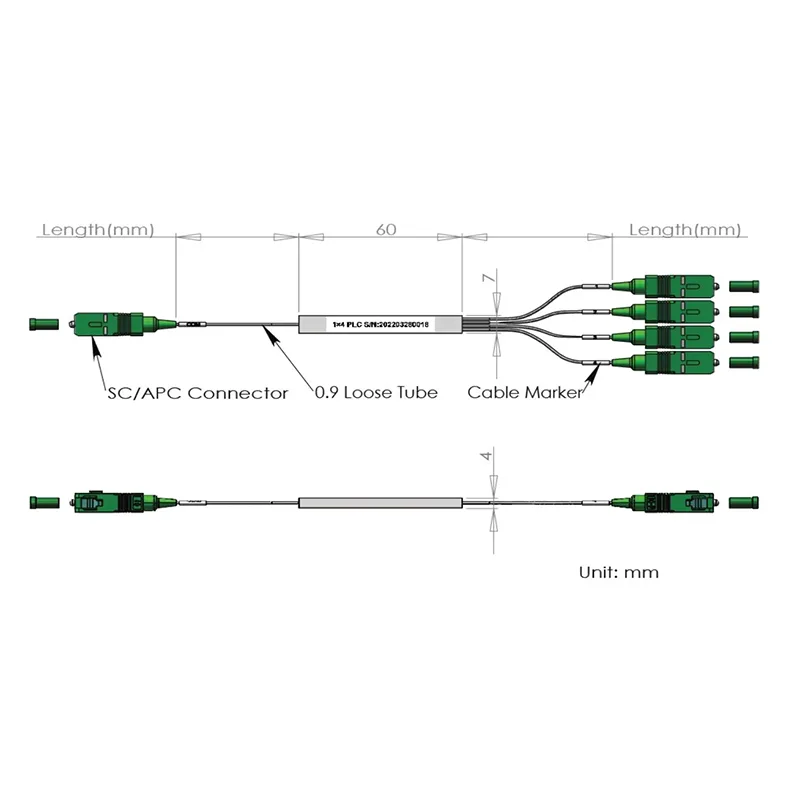

1x4 / 1×8 PLC Splitter Specification

Uku-oda imininingwane

I-PLC

Uhlobo lwe-PLC

Umbuzi

Uhlobo lwebhokisi

Uhlobo lwefayibha

Ubude be-fiber

Isixhumi

Plc splitter

102 = 1x2

104 = 1x4

108 = 1x8

116 = 1x16

132 = 1x32

164 = 1x64

204 = 2x4

208 = 2x8

216 = 2x16

232 = 2x32

264 = 2x64

1 = 1310NM

2 = 1550nm

3 = 1310 & 1550nm

4 = 1260 ~ 1650nm

X = ekhethekile

1 = insimbi ishubhu + tare fiber

1 = I-Metal Tube + Tube Execur

2 = 90x20x10 ibhokisi le-AB

3 = Ibhokisi le-100x80x10

4 = 120x80x18 ibhokisi le-AB

5 = 140x120x20 ibhokisi

6 = I-Metal Box

7 = 1RU 19 "I-Rack Mount

X = ekhethekile

1 = g652d

2 = g657a1

3 = g657a2

X = ekhethekile

1 = 0.5m

2 = 1m

3 = 2m

4 = 3m

5 = I-Adapter

X = ekhethekile

1 = Akukho 2 = FC / UPC

3 = FC / apc

4 = LC / UPC

5 = LC / APC

6 = SC / UPC

7 = SC / APC

X = ekhethekile
