I-1x12 / 1 × 24 PLC Splitter Tube Tube Package 6x12X4 ne-80x20x4mm, nge-900μm tube okuxekethile ishubhu 1.0 + 0.1 /-isixhumi se-SC / APC.Ukucaciswa kokusebenza:AmapharamithaIsifanekiseloUkucacisaUmuvoInombolo yesiteshiCH1 × 121 × 24I-Operation WavelengthI-1260 ~ 1650nyeUkuhlolwa kwe-w......

Thumela Uphenyo

Incazelo Yomkhiqizo

I-1x12 / 1 × 24 PLC Splitter Tube Tube Package 6x12X4 ne-80x20x4mm, nge-900μm tube okuxekethile ishubhu 1.0 + 0.1 /-isixhumi se-SC / APC.

Ukucaciswa kokusebenza:

Amapharamitha	Isifanekiselo	Ukucacisa		Umuvo
Inombolo yesiteshi	CH	1 × 12	1 × 24
I-Operation Wavelength		I-1260 ~ 1650		nye
Ukuhlolwa kwe-wavelth		1310/1550		nye
Isilinganiso sokubukeka		8.333%	4.166%	%
Ukufakwa kwe-Fready1	Imbulu	≤12.5	≤16.0	I-
Ukufana	Uni	≤1.2	≤1.6	I-
Ukulahleka kokuncika kombala	Ibhola	≤0.35	≤0.40	I-
Ukulahlekelwa Ukulahleka	RL	≥55		I-
Ukuqondiswa2	Inje	≥55		I-
Faka amandla o-optic	P	100		umnyuziki
Uhlobo lwefayibha		ITU-T G657 A1 fiber
Uhlobo lwe-Pigtail		Bonke I-Port: I-White 900μm tube evulekile
Ubude bokufaka		I-1.0 + 0.1 / -0		m
Ubude bokukhipha		I-1.0 + 0.1 / -0		m
Isixhumi		Bonke IPort: SC / APC
Uphawu lwekhebula		I-1x12 PLC: In, 1,2 ... ... 11, 12 I-1X24 PLC: In, 1,2 ... ... 23, 24
I-Package Dimension (L) × (W) × (H)	I-PKG	I-1x12 PLC: 60x12X4 I-1x24 PLC: 80x20X6		m
Ukushisa kokusebenza	Isihloko	-40 ~ +85		℃
Ukushisa okushisa	Tst	-40 ~ +85		℃

* Amanothi: 1. Onke amanani wokulahleka kokufaka afaka ukulahleka kwesixhumi.

Imephu Yesikenye:

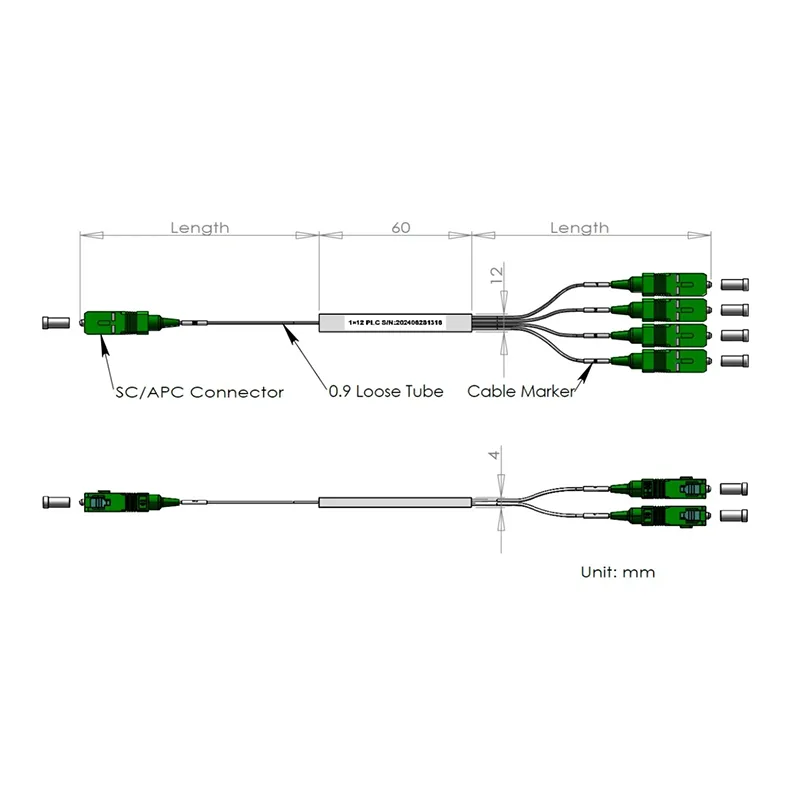

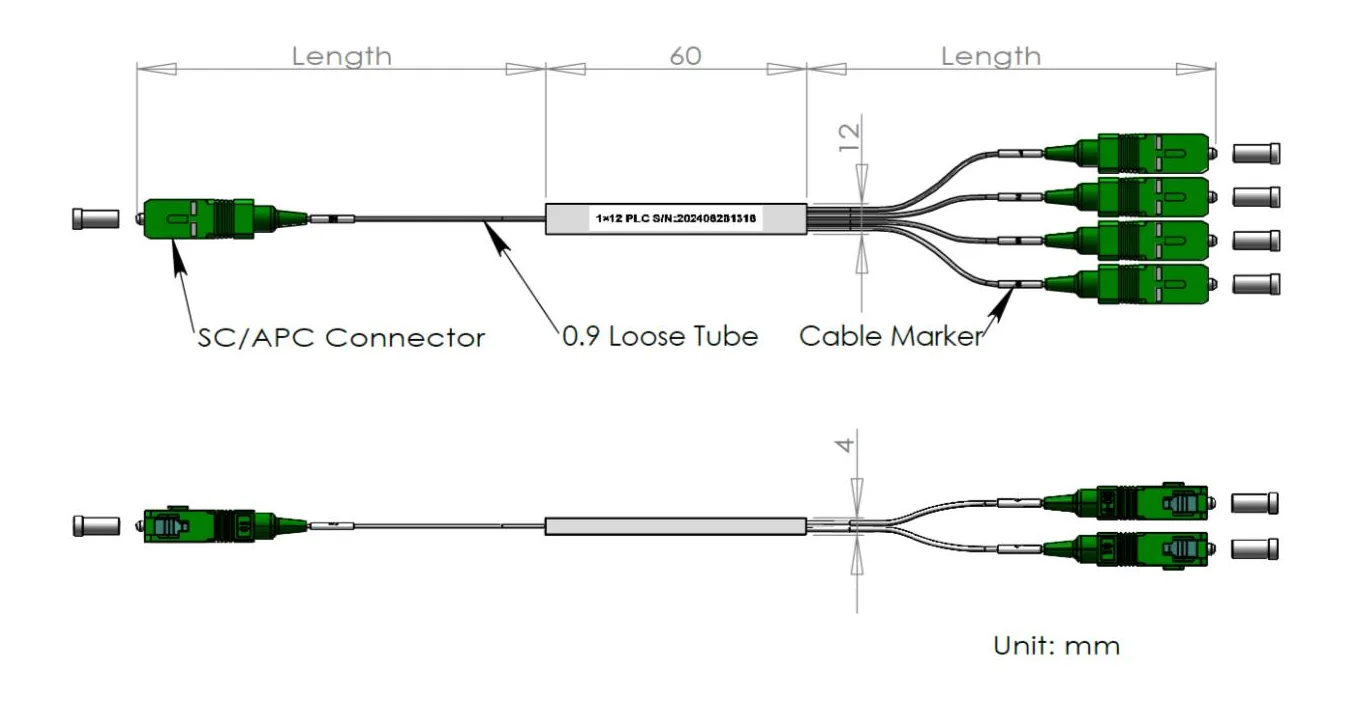

I-I-1x12 PLC Splitter

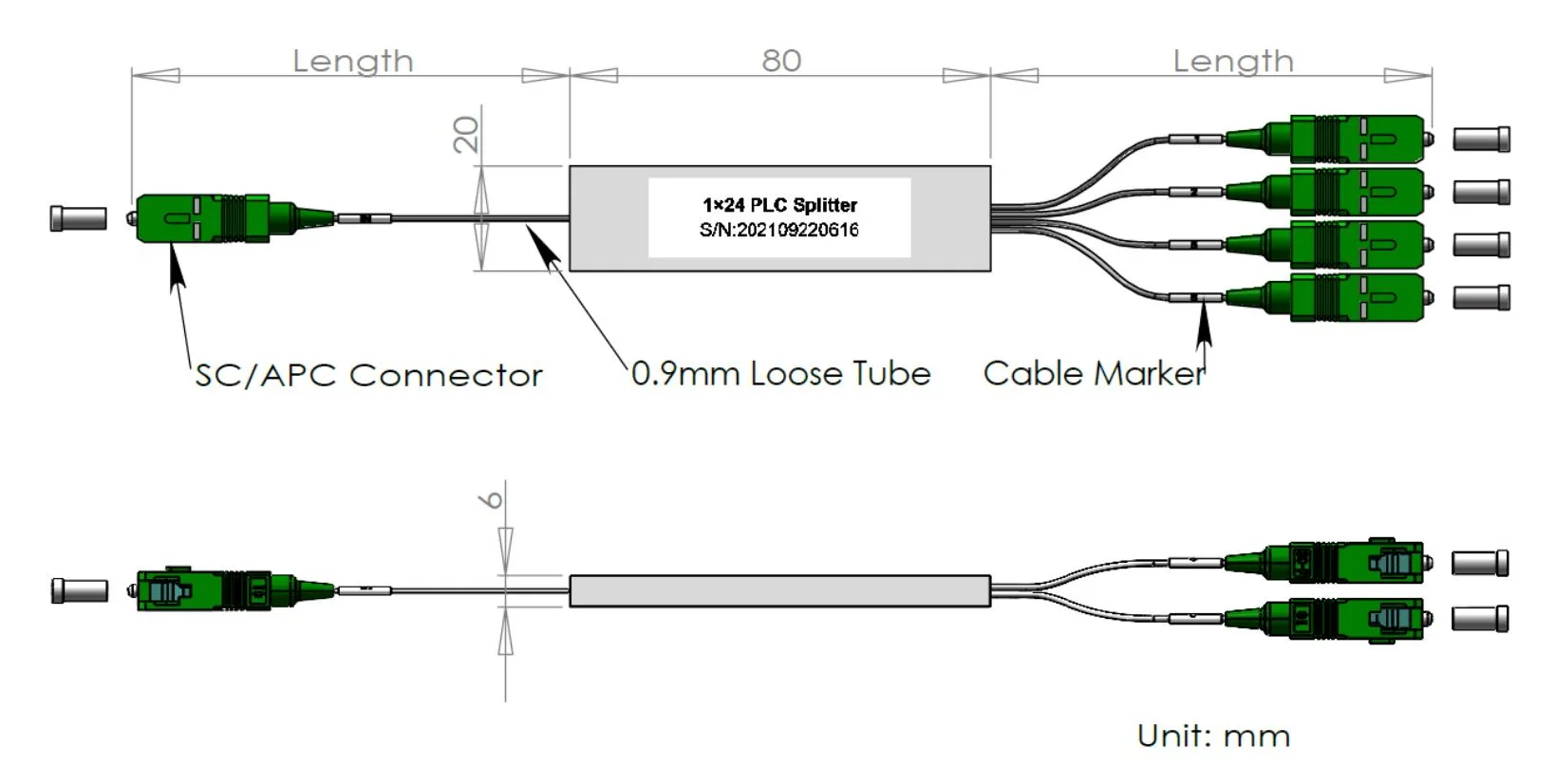

I-1x24 PLC yehlukanisa

Umbiko wokuhlola:

1. Umbiko wokuhlola onamanani aqondile okufanele ufakwe kwiphakheji.

Umbiko Wesibonelo: Ishidi le-1x12 mini 0.9mm PLC Splitter Sheet

I-WAVAVETEFTH (NM)	I-1260-1650	Usuku Oluhloliwe	2024/111/11/130
P / N:	I-1x12-0.9-in 1.0m-Out 1.0m-Scapc	Isono:	21113000001
Uhlobo lwefayibha	G657a2	Ubude be-fiber (m)	I-in1.0m / Out> 1.0m
Uhlobo lwesixhumi	I-SCIAPC	I-Package Cimension (MM)	I-60x12x4
Ukushisa okushisa	-40 ~ + 85 ℃	Ukushisa okusebenzayo	-40 ~ + 85 ℃

ltem	(DB)		I-PDL (DB)		Rl (db)
Wavelength (nm)	@ 1310	@ 1550	@ 1310	@ 1550	@ 1310	@ 1550
I-spec.	UMax.12.50		UMax.0.35		≥55
Port 1	12.43	12.38	0.14	0.07	Dlula	Dlula
IPort 2	12.24	12.35	0.16	0.06	Dlula	Dlula
IPort 3	12.22	12.20	0.12	0.07	Dlula	Dlula
IPort 4	12.30	12.24	0.04	0.04	Dlula	Dlula
IPort 5	12.24	12.25	0.11	0.05	Dlula	Dlula
IPort 6	12.35	12.29	0.11	0.01	Dlula	Dlula
IPort 7	12.42	12.44	0.21	0.11	Dlula	Dlula
IPort 8	12.23	12.18	0.11	0.01	Dlula	Dlula
IPort 9	12.27	12.19	0.21	0.10	Dlula	Dlula
IPort 10	12.38	12.17	0.02	0.04	Dlula	Dlula
IPort 11	12.29	12.21	0.11	0.06	Dlula	Dlula
IPort 12	12.42	12.27	0.08	0.07	Dlula	Dlula
Faka	Ni nina				Ni nina
Umnciphikazi	12.43	12.44	0.21	0.11	N / a
Imiz.	12.22	12.18	0.04	0.01	N / a
-Vamile	12.30	12.29	0.13	0.05	Ni nina
Ukufana (≤0.8DB)	0.21	0.27	Ukuqondiswa (db)		> 55
