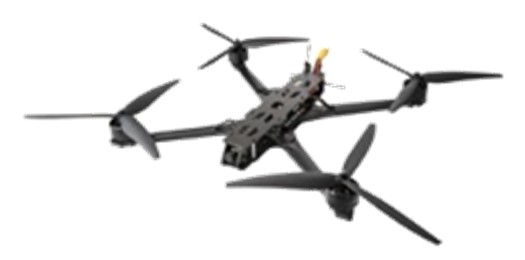

13-intshi UAV

I-UAV engama-intshi angu-13 iwumkhiqizo ojwayelekile ongahlonywa ngesigubhu se-fiber-optic esingu-20 km kanye no-3 kg wokukhokha, noma usebenzise isilawuli esingenantambo ngo-6~7 kg wokukhokha. Isebenzisa ibhethri le-Li-ion elingabizi kakhulu elingu-20000mAh, linikeza isikhathi sendiza esingafika kumaminithi angu-20 ngomthwalo omkhulu. I-UAV yamukela izingxenye ze-elekthronikhi ezinokwethenjelwa kakhulu nezinye izingxenye ezinembobo engangeni manzi ezindaweni ezingaphezulu; i-airframe iqinile futhi ingasebenza ezindaweni ezinokhahlo, iqinisekise impumelelo yemishini.

Thumela Uphenyo

Incazelo Yomkhiqizo

OkuyisisekeloIulwazi

Into	Speukucaciswa
I-Flight Firmware	I-Betaflight 4.4.3
Phezulu Plate Ukujiya	3 mm
Ubukhulu bePleti Eliphakathi	3 mm
Ukuqina Kwepuleti Elingezansi	3 mm
I-Frame Material	I-T300 carbon fiber
Ukuqina Kwengalo	8 mm
I-wheelbase	430 mm
Isisindo	1860 g
Lawula Imvamisa	915 MHz
Imvamisa Yevidiyo	4.9 – 6.2 GHz
Ibanga lokulawula	20 km
Ukulayisha okunconyiwe	6 kg
I-Max Payload	7 kg
Isivinini esikhulu	150 km/h
Isivinini Sokukhuphuka Esiphezulu	20 m/s
I-Max Descent Speed	25 m/s
I-Max Flight Altitude	6000 m
Izinga Lokushisa Lokusebenza	-20 °C kuya +45 °C
I-Max Wind Resistance	15 m/s
Ibhethri Elinconyiwe	20000mAh Ibhethri ye-Li-ion

EzogesiParameters

Into	Ukucaciswa
I-Voltage Yokufaka Okuphezulu	35.6 V
I-Voltage encane yokufaka	22.2 V
I-Voltage Yokufaka Enconyiwe	35.6 V
I-Max Current (injini ngayinye)	79 A
Amandla Amakhulu (injini ngayinye)	1990 W

HardwkukhonaUhlu

Into	Ukucaciswa
Uhlaka	Inguqulo engu-13-intshi SE
Isilawuli Sendiza	STM32F405 ICM42688P FC
ESC	AM32 100 A 4-in-1 ESC
Imoto	4214 660 kV
Ikhamera	Umbono wasebusuku 1500 TVL
I-VTX	4.9-6.2 GHz 3 W
I-GPS	I-M10 GPS enekhampasi
Umamukeli	ELRS 915 MHz
I-Antenna	4.9-6.2 GHz 150 mm RHCP SMA
Uphephela	1309-3 izindwani
I-Airborne Fiber Terminal	Ongakukhetha
