15-intshi UAV

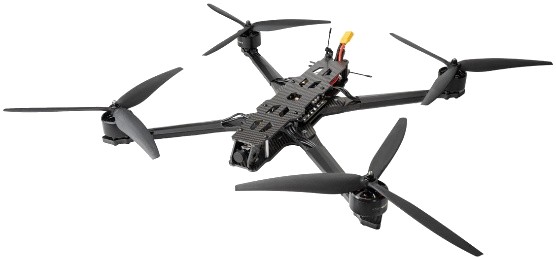

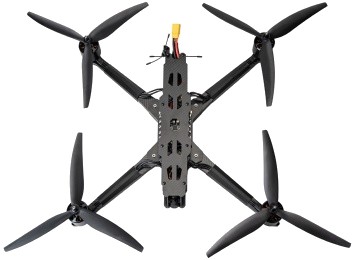

I-UAV engu-15 intshi iyinkundla ye-UAV enokwethenjelwa kakhulu eyakhelwe indiza yebanga elide kanye nokulayisha okuphakathi. I-airframe yayo isebenzisa i-ultra-high-strength carbon fibre ye-T300, inikeze yonke i-fuselage i-resonance ephansi kakhulu kanye nokuzinza okuhle kakhulu. Ihlanganiswe nezingxenye ze-elekthronikhi ezisebenza kahle kakhulu, iyakwazi ukwenza imisebenzi eyinkimbinkimbi.

Thumela Uphenyo

Incazelo Yomkhiqizo

OkuyisisekeloIulwazi

Into	Speukucaciswa
I-Flight Firmware	I-Betaflight 4.4.3
Phezulu Plate Ukujiya	3 mm
Ubukhulu bePleti Eliphakathi	4 mm
Ukuqina Kwepuleti Elingezansi	4 mm
I-Frame Material	I-T300 carbon fiber
Ukuqina Kwengalo	9 mm
I-wheelbase	650 mm
Isisindo	2850 g
Lawula Imvamisa	915 MHz
Imvamisa Yevidiyo	4.9 – 6.2 GHz
Ibanga lokulawula	20 km
Ukulayisha okunconyiwe	8 kg
I-Max Payload	10 kg
Isivinini esikhulu	130 km/h
Isivinini Sokukhuphuka Esiphezulu	15 m/s
I-Max Descent Speed	15 m/s
I-Max Flight Altitude	6000 m
Izinga Lokushisa Lokusebenza	-20 °C kuya +45 °C
I-Max Wind Resistance	15 m/s
Ibhethri Elinconyiwe	35000mAh Ibhethri ye-Li-ion

EzogesiParameters

Into	Ukucaciswa
I-Voltage Yokufaka Okuphezulu	33.6 V
I-Voltage encane yokufaka	21.6 V
I-Voltage Yokufaka Enconyiwe	33.6 V
I-Max Current (injini ngayinye)	90 A
Amandla Amakhulu (injini ngayinye)	3020 W

HardwkukhonaUhlu

Into	Ukucaciswa
Uhlaka	15-intshi SE inguqulo
Isilawuli Sendiza	STM32F405 ICM42688P FC
ESC	I-BLS 4-8S i-120A eqhubekayo (burst 150A) 4IN1 ESC
Imoto	4720 480 kV
Ikhamera	Umbono wasebusuku 1500 TVL
I-VTX	4.9-6.2 GHz 3 W
I-GPS	Lutho
Umamukeli	ELRS 915 MHz
I-Antenna	4.9-6.2 GHz 150 mm RHCP SMA
Uphephela	1507-3 izindwani
I-Airborne Fiber Terminal	Ongakukhetha
