Ikhebula elincane le-Uni-tube Non-metallic Air-blowing Micro

Le Uni-tube Non-metallic Air-blowing Micro Cable yakhelwe ukuthunyelwa kwefayibha exinene kakhulu kumanethiwekhi okuxhumana esimanje. Njengomkhiqizi waseShayina kanye nesixazululo somphakeli, lo mkhiqizo uhlanganisa isakhiwo esihlangene se-uni-tube esihlanganiswe nokuqiniswa okungeyona insimbi, okuyenza ifaneleke ukufakwa ngokushaywa umoya. Idizayini igxile ekusebenzeni okuzinzile, ukusetshenziswa okulula, nokuthembeka kwesikhathi eside kumgogodla, inethiwekhi yokufinyelela, nezinhlelo zokusebenza ze-FTTH.

Thumela Uphenyo

Incazelo Yomkhiqizo

Kubathengi abafuna ukunikezwa kwefekthri yase-China ye-Uni-tube Non-metallic Air-blowing Micro Cable, lo mkhiqizo uhlinzeka ngebhalansi phakathi komklamo ongasindi, amandla emishini, nokuvikela umswakama, okusiza ukunciphisa izindleko zokufaka kanye nokwenza ngcono ukusebenza kahle ekwakhiweni kwenethiwekhi yefayibha.

Uhlolojikelele Lomkhiqizo

Isakhiwo Esiqinile Nesisebenzayo

Ikhebula isebenzisa isakhiwo se-uni-tube lapho imicu ye-optical engu-250μm (imodi eyodwa noma imodi eminingi) ibekwe ngaphakathi kweshubhu ephezulu ye-modulus loose. Lo mklamo uvumela ukuminyana okuphezulu kwefayibha kuyilapho igcina ububanzi bangaphandle buncane, okulungele ngokukhethekile ukufakwa okuvuthela umoya emathanjeni amancane.

I-Non-metallic Design Advantage

Ngokusebenzisa intambo ye-aramid esikhundleni sokuqinisa insimbi, ikhebuli igwema ukuphazamiseka kwe-electromagnetic (EMI) kanye nokuphazamiseka kwefrikhwensi yomsakazo (RFI). Lokhu kuyenza ibe inketho esebenzayo ezindaweni lapho ukuzinza kwesignali kubalulekile.

Ukuvikelwa Komswakama Nokuqina

Ishubhu elixegayo ligcwele inhlanganisela engangeni manzi engenabuthi, esiza ukuvimbela ukungena komswakama. Ihlanganiswe ne-HDPE sheath yangaphandle, ikhebuli igcina ukusebenza okuzinzile ngisho nasezindaweni ezinomswakama noma ezingaphansi komhlaba.

Izici Eziyinhloko

Ukusebenza Okungahambisani Nokuphazamiseka

Isakhiwo esingeyona insimbi ngokugcwele siqeda ukuphazamiseka kwefrikhwensi kagesi kanye nerediyo, efanele indawo yenethiwekhi eyinkimbinkimbi.

Amandla Emishini Ethembekile

Ukuqiniswa kwentambo ye-Aramid kunikeza amandla azinzile, okusekela ukufakwa okufutha umoya ngaphandle kokulimala.

Isakhiwo Seshubhu Esizinzile

Idizayini yeshubhu eqinile futhi elawulwa kahle isiza ukuvimbela ukushwabana nokonakala ngesikhathi sokufakwa nokusebenza.

Ukumelana Nomswakama

Inhlanganisela yokugcwalisa okungenamanzi iqinisekisa ukuvikeleka kwesikhathi eside ekungeneni komswakama.

I-Flexible & Lightweight

Ububanzi obuncane nesisindo esilula kwenza ukuhamba nokufaka kube lula, ikakhulukazi ezinhlelweni zamapayipi aminyene.

High Fiber Density

Isakhiwo sangaphakathi esithuthukisiwe sivumela amafayibha amaningi ngaphakathi kosayizi wekhebula elihlangene, okuthuthukisa ukusetshenziswa kwendawo.

Izinhlelo zokusebenza

I-I-Backbone Network

Ifanele ukudluliswa kwefayibha ephezulu kungqalasizinda yenethiwekhi ewumongo.

Finyelela Inethiwekhi

Isekela ukuthunyelwa okuphumelelayo kumanethiwekhi okusabalalisa emadolobheni nakumadolobha.

I-FTTH (I-Fiber eya Ekhaya)

Isetshenziswa kakhulu ekufakweni kwefayibha yemayela lokugcina lapho kudingeka khona usayizi ohlangene nokuguquguquka.

Imininingwane Yesakhiwo

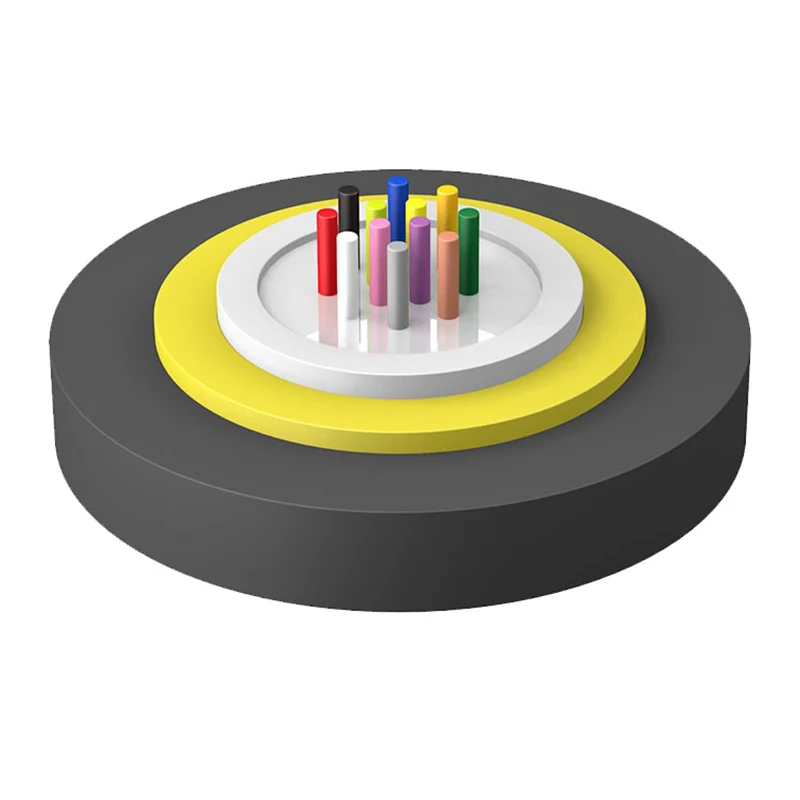

Ukwakhiwa Kwekhebula

I-Fiber
I-Tube Filling Compound
Ishubhu evulekile
I-Aramid Yarn (Ilungu Lamandla Angelona elensimbi)
I-PE Sheath (Ijakhethi yangaphandle ye-HDPE)

Uni-tube Non-metallic Air-blowing Micro Cable

Imingcele Yezobuchwepheshe

Uhlobo Lwekhebula

(Kunyuswe ngamafayibha ama-2)

I-Fiber Count

Ububanzi bekhebula

(mm)

Isisindo sekhebula (Ref)

(kg/km)

Amandla Okuqina

Isikhathi Eside/Esifushane

(N)

I-Crush Resistance

Isikhathi Eside/Esifushane

(N/100mm)

Ukugoba Irediyasi

I-Static/Dynamic

(mm)

I-GCYXTY- 2~12Xn

2~12

3.5±0.3

60/150

150/450

10D/20D

I-GCYXTY- 14 ~ 24Xn

14-24

4.4±0.3

60/150

150/450

10D/20D

Isitoreji/Izinga Lokushisa Lokusebenza: -30℃-+70℃

Izimpawu ze-Optical

Uhlobo lweFiber	Ukunciphisa (+20℃)				Umkhawulokudonsa		Imbobo Yezinombolo	I-Cable Cut-off Wavelength λcc
Uhlobo lweFiber	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Imbobo Yezinombolo	I-Cable Cut-off Wavelength λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.657	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---
