Umklamo wesakhiwo esingewona owongemuva uvimbela ngempumelelo ukuphazamiseka kwe-radio frequency kanye nokuphazanyiswa kwe-electromagnetic
Isakhiwo sentambo esiqinile sivimbela ngempumelelo umkhono kusuka ekunciphiseni
I-Loge Thuthu Ukugcwalisa I-Compound kuqinisekisa ukusebenza okuhle komswakama
Ukuvumelana nezimo okuhle
I-fiber ephezulu egcwele, ububanzi obuncane kanye nezinsimbi zokukhanya
Iguqulwe kunethiwekhi ye-backbone, inethiwekhi yokufinyelela an

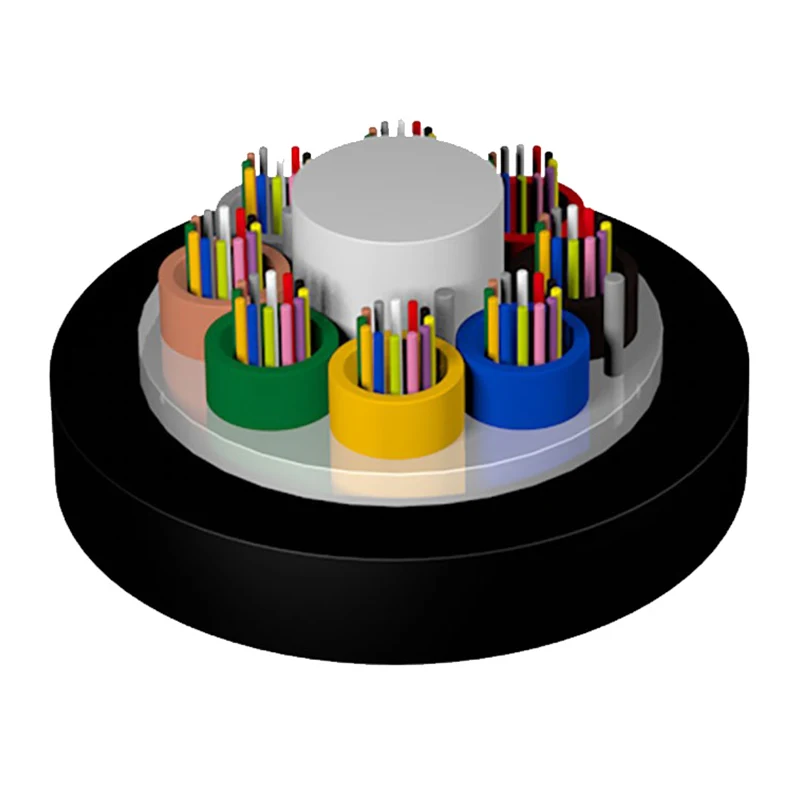

1. I-fiber
2. I-Tube Ukugcwalisa I-Compound
3. I-tube evulekile
4. Ilungu lamandla we-FRP
I-5. I-RIPCord
6. Intambo yokuvimba amanzi
7. PU SHEAT
|
Uhlobo lwekhebula |
Ukubalwa kwefayibha |
Amashubhu |
Amapliki |
Ububanzi bekhebula (mm) |
Isisindo sekhebula (Ref) (kg / km) |
Amandla asheshayo Isikhathi eside / esifushane (N) |
Ukuchoboza ukumelana Isikhathi eside / esifushane (N / 100mm) |
Ukugoba Radius I-Static / Dynamic (mm) |
|
Gcyfy-24 ~ 72xn |
24 ~ 72 72 |
2 ~ 6 |
4 ~ 0 |
5.6 |
21 |
150/500 |
150/45050 |
I-10D / 20D |
|
Gcyfy-96xn |
96 |
8 |
0 |
6.4 |
31 |
250/800 |
150/45050 |
I-10D / 20D |
|
Gyfy-144xn |
144 |
12 |
0 |
8.3 |
49 |
250/800 |
150/45050 |
I-10D / 20D |
Isitoreji / Ukusebenza okusebenzayo: -30 ℃ - + 70 ℃
|
Uhlobo lwefayibha |
(+ 20 ℃) |
Ibandlawi |
Isithambisi sezinombolo |
Cable cut-off wavelength λcc |
||||
|
@ 850nm |
@ 1300nm |
@ 1310NM |
@ 1550nm |
@ 850nm |
@ 1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36DB / km |
≤0.22DB / km |
--- |
--- |
--- |
≤1260nm |
|
G.657 |
--- |
--- |
≤0.36DB / km |
≤0.22DB / km |
--- |
--- |
--- |
≤1260nm |
|
50 / 125μm |
≤3.3DB / km |
≤1.2DB / km |
--- |
--- |
≥500mhz · km |
≥500mhz · km |
--- |
--- |
|
62.5 / 125μm |
≤3.5DB / km |
≤1.2DB / km |
--- |
--- |
≥200mhz · km |
≥500mhz · km |
0.275 ± 0.015 vele |
--- |
